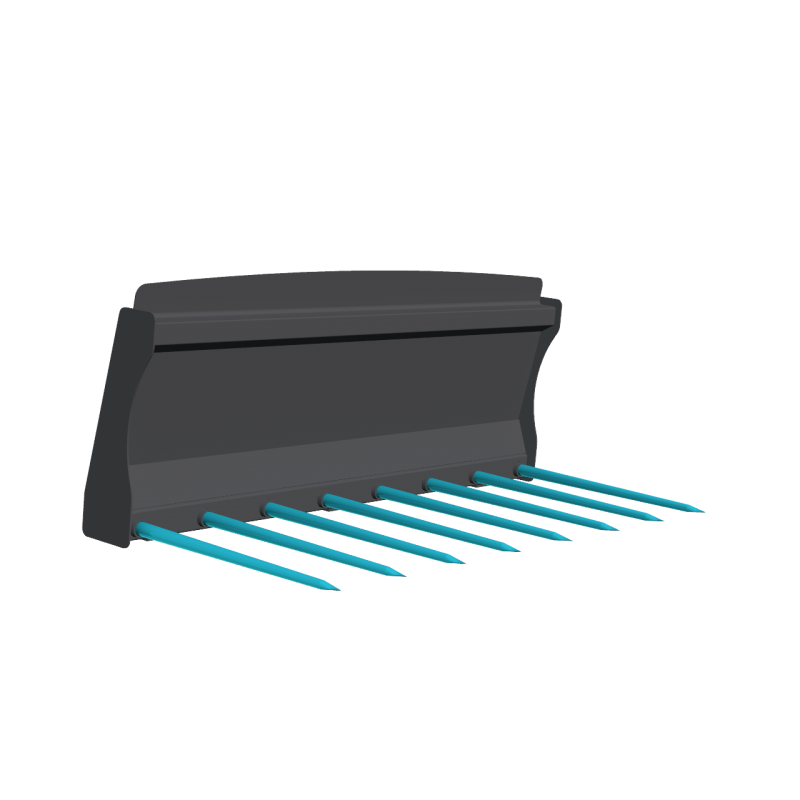

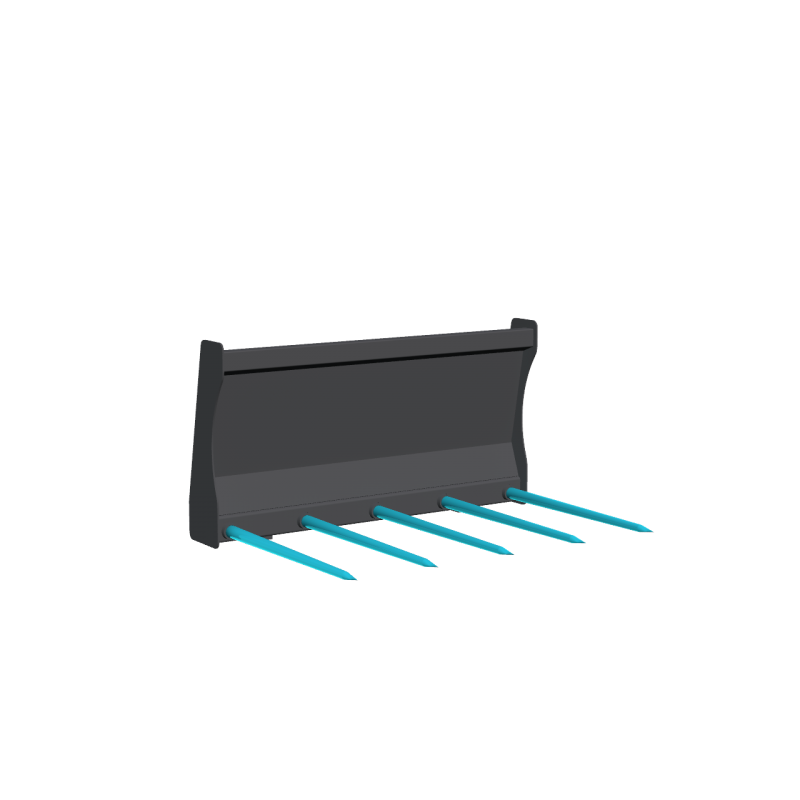

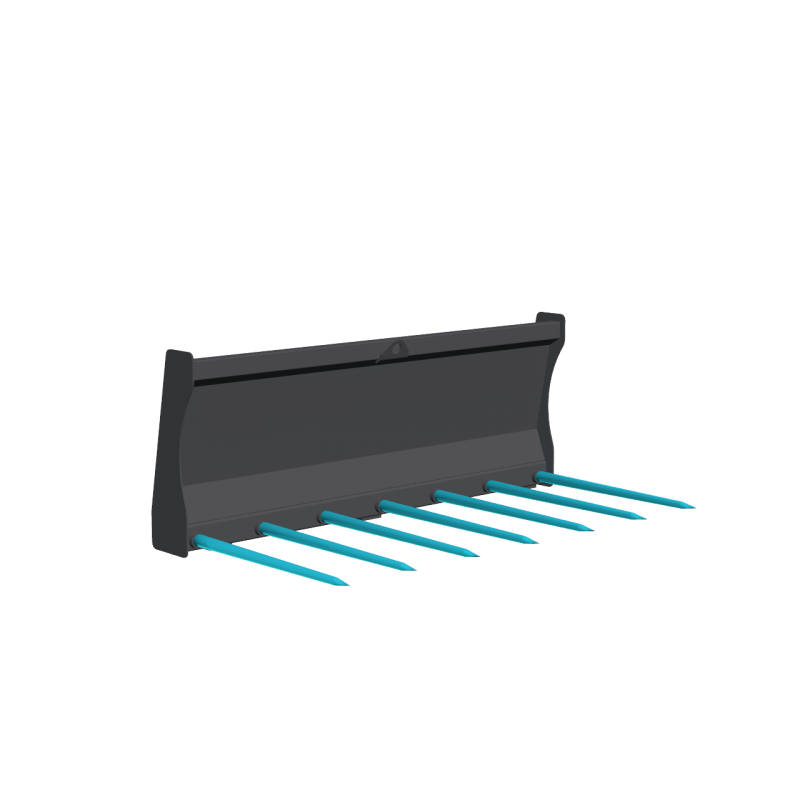

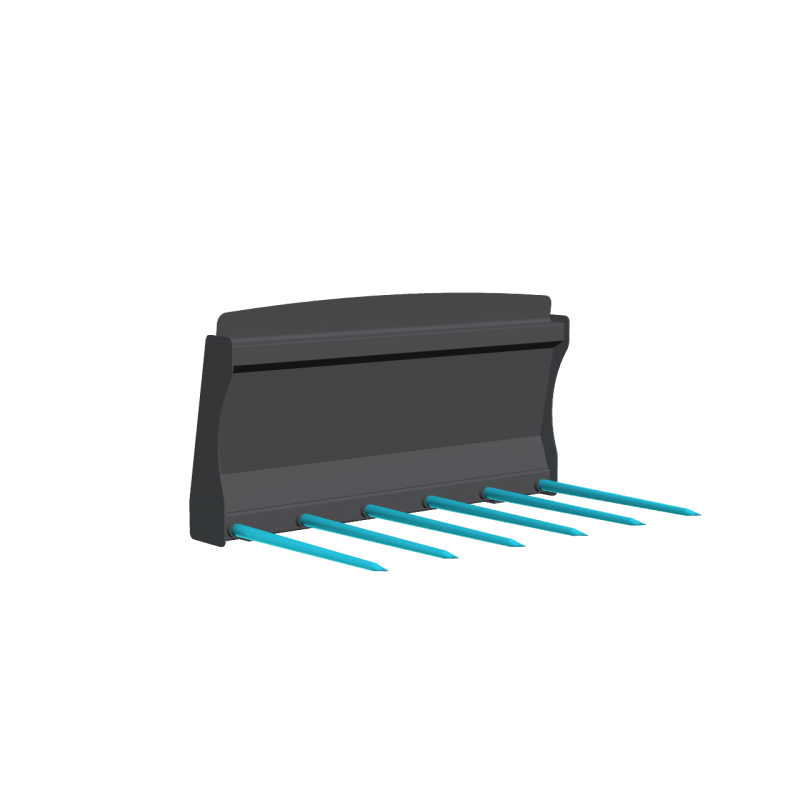

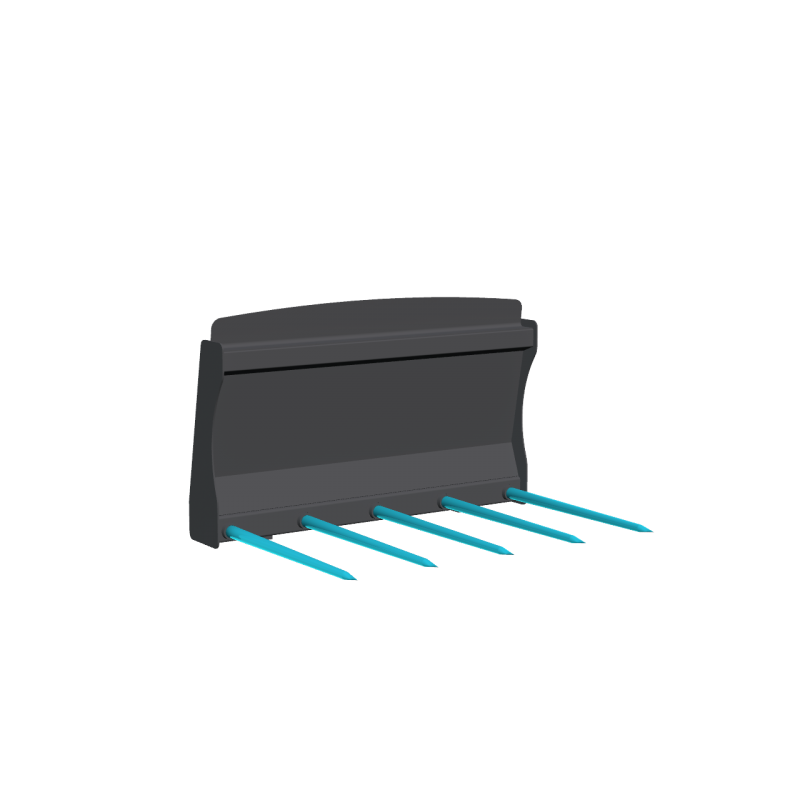

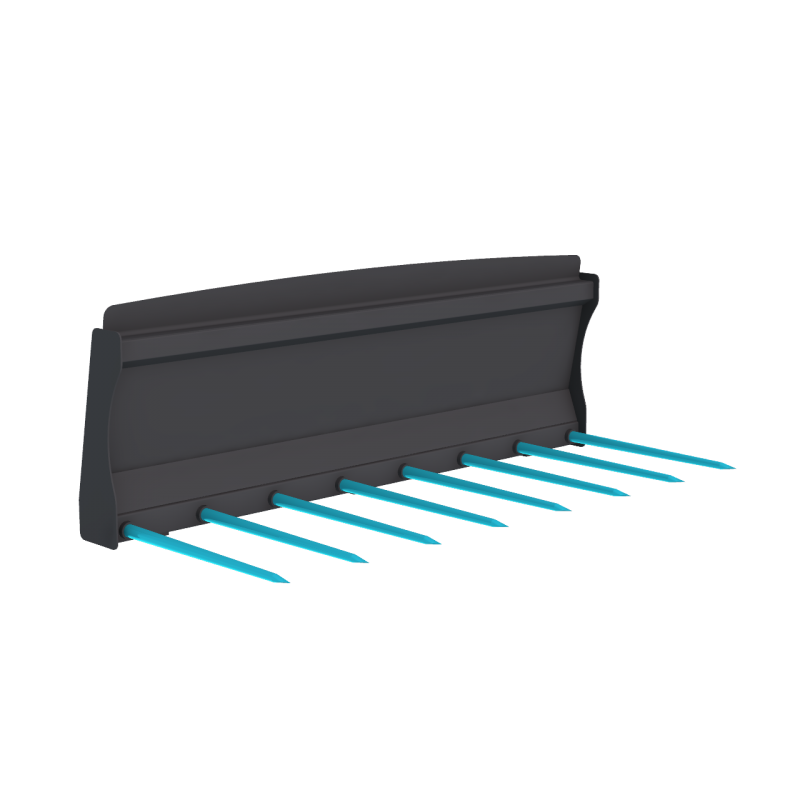

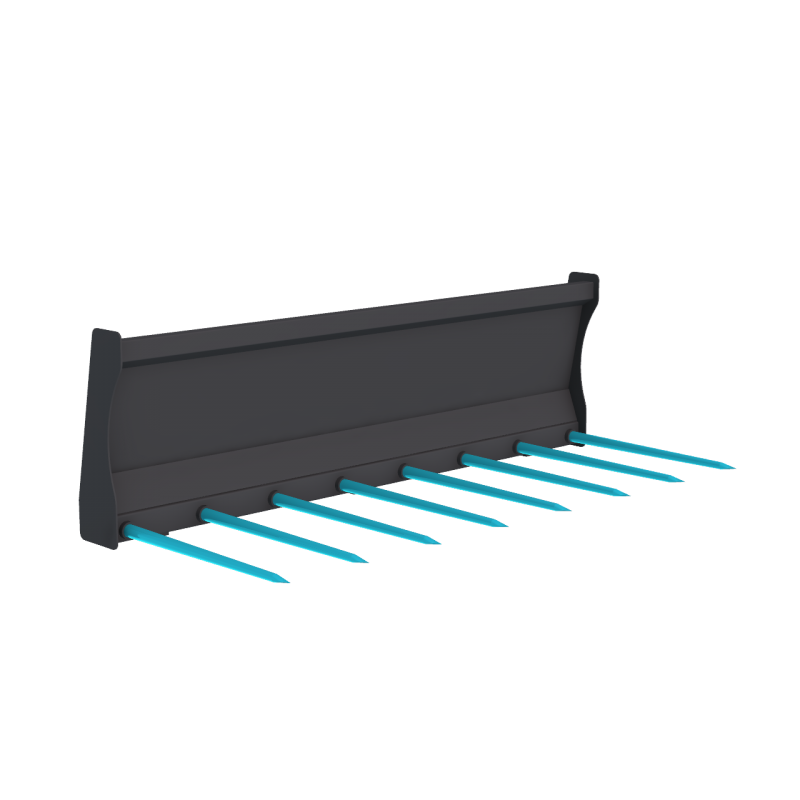

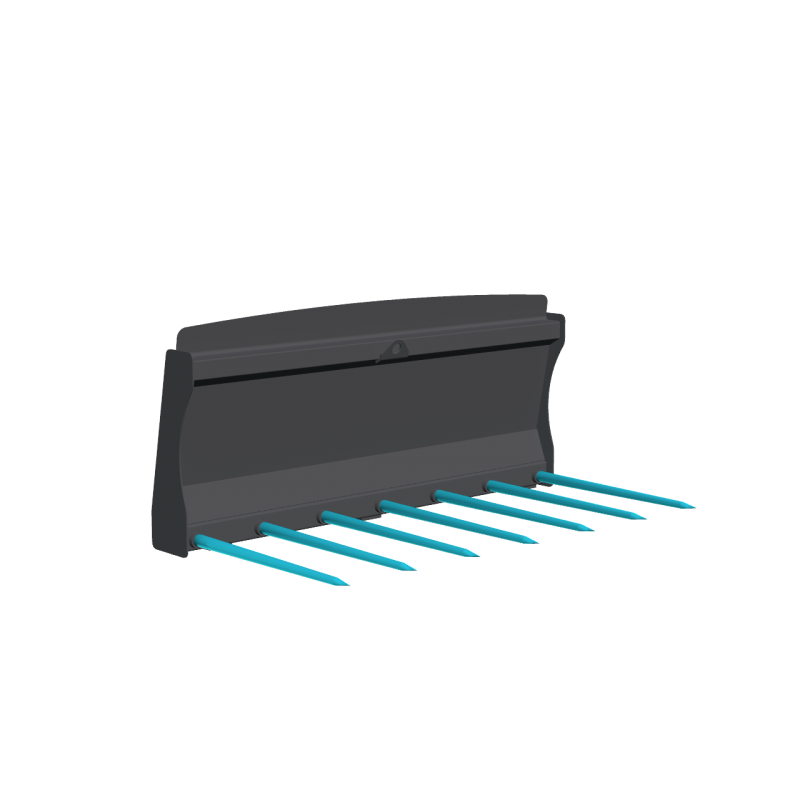

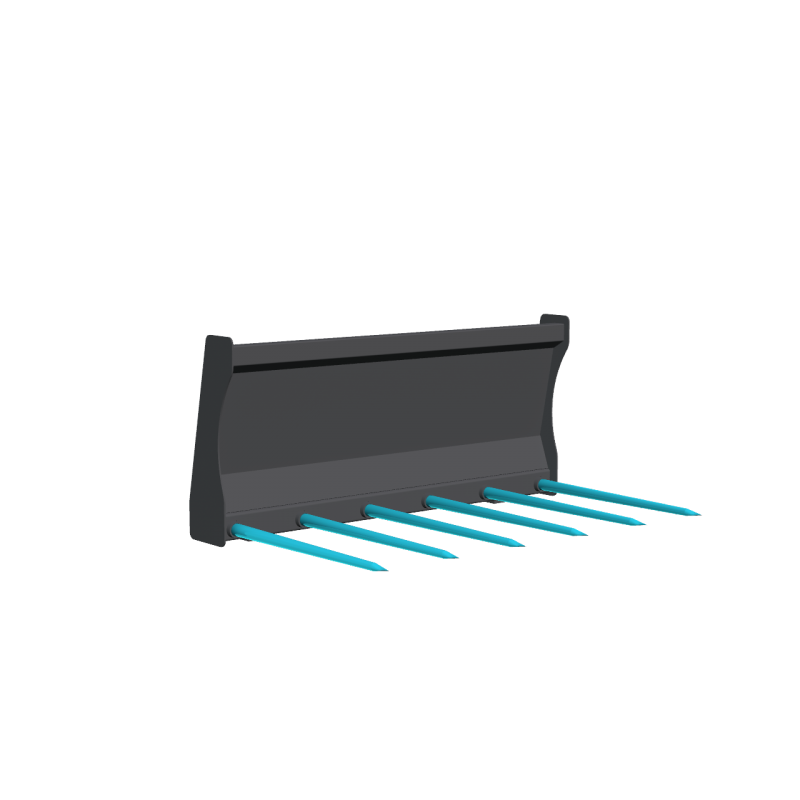

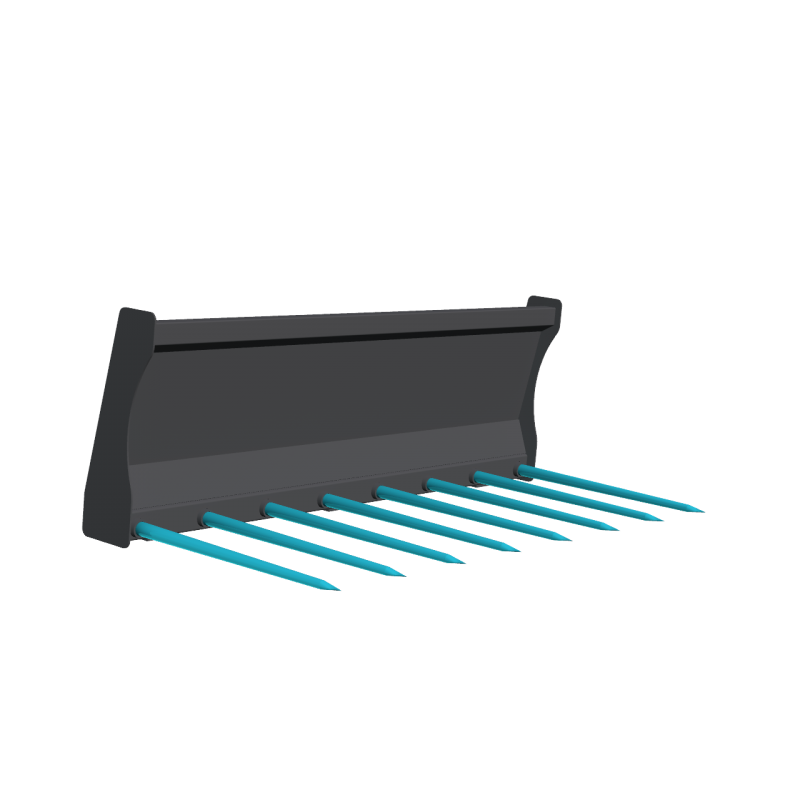

GM83 Manure fork with forged tines
New product
Manure fork with forged tines for tractors and loader with 40 hp to 70 hp
Data sheet
| Power range | 40 hp - 70 hp |
| Material | 3/16" |
| Lifting ring | Yes |
| Fork tines | Forged |
| Length range (min-max) | 43" - 75" |
More info
Manure fork with forged tines for 40hp to 70 hp loaders and tractors
Construction with High Strength Steel: 3/16" material, 3/16" end plates
1 7/16" x 34" forged tines
Tines with quick fixing
Lifting ring
400 Brinell wear pads
Optional:
Spill guard
Made in Canada
| Part # | Length | Forged tines | Depth | Height | Weight (lbs) |
| GM8343 | 43" | 5 | 34" | 23" | 285 |
| GM8351 | 51" | 6 | 34" | 23" | 320 |

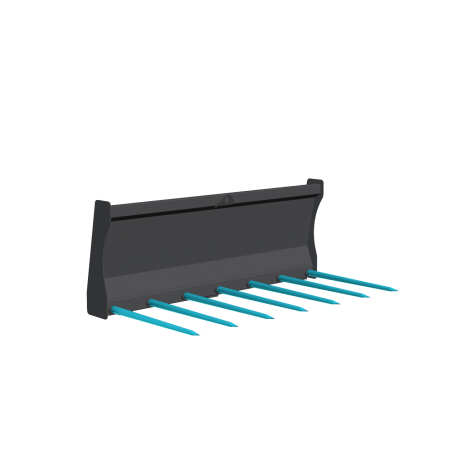

| GM8359 | 59" | 7 | 34" | 23" | 370 |
| GM8367 | 67" | 8 | 34" | 23" | 390 |
| GM8375 | 75" | 8 | 34" | 23" | 410 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
