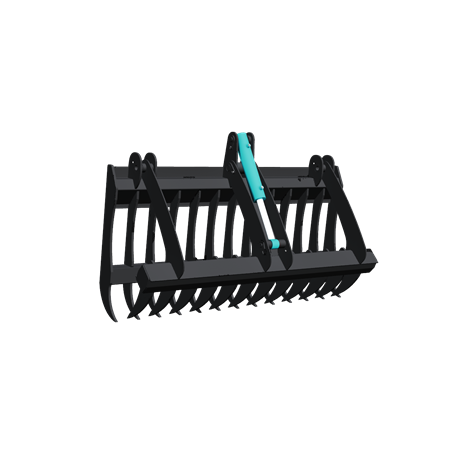

GM53 Root rake with grapple
New product
Root rake with grapple for tractors and loader with less than 70 hp
Data sheet
| Power range | 40 hp - 70 hp |
| Material | 1/2" |
| Lifting ring | Yes |
| Fork tines | Forged |
| Grab tines | Welded assembly |
| Check valve | Optional |
| Length range (min-max) | 43" - 75" |
More info
Root rake with grpple designed for agricultural tractors and loaders with a power range from 40 hp to 70 hp
Fork set
Construction with High Strength Steel
Lifting ring
Grapple set
42" opening
2 1/2" x 8" cylinder on the top
Wear bushing at the pivots
Optional:
Check valve
Made in Canada
| Part # | Length | Depth | Height | Weight (lbs) |
| GM5343 | 43" | 18" | 32" | 520 |
| GM5351 | 51" | 18" | 32" | 550 |
| GM5359 | 59" | 18" | 32" | 580 |
| GM5367 | 67" | 18" | 32" | 610 |
| GM5375 | 75" | 18" | 32" | 640 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
