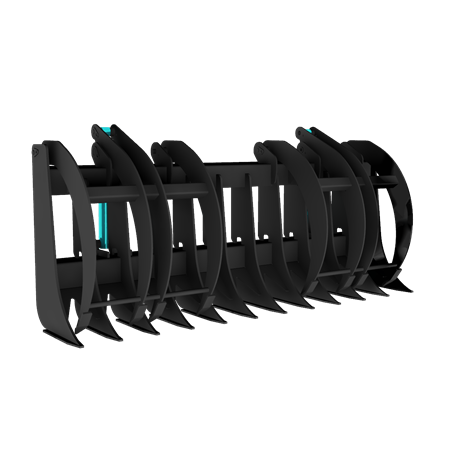

GP53 Root rake with grapple
New product
Root rake with grapple for tractors and loader with 80 hp and more
Data sheet
| Power range | 80hp + |
| Material | 3/8" and more |
| Lifting ring | Yes |
| Grab tines | Welded assembly |
| Check valve | Optional |
| Length range (min-max) | 60" - 84" |
More info
Root rake with grapple designed for agricultural tractors and loaders with 80 hp power and more
Fork set
Construction with High Strength Steel
Lifting ring
Grapple set
64" opening
2 3/4" x 8" cylinders
Wear bushing and grease nipple at the pivots
Optional:
Check valve
Made in Canada
| Part # | Length | Opening | Height | Weight (lbs) |
| GP5378 | 78" | 64" | 40" | 920 |
| GP5388 | 88" | 64" | 40" | 1100 |
| GP5396 | 96" | 64" | 40" | 1280 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
