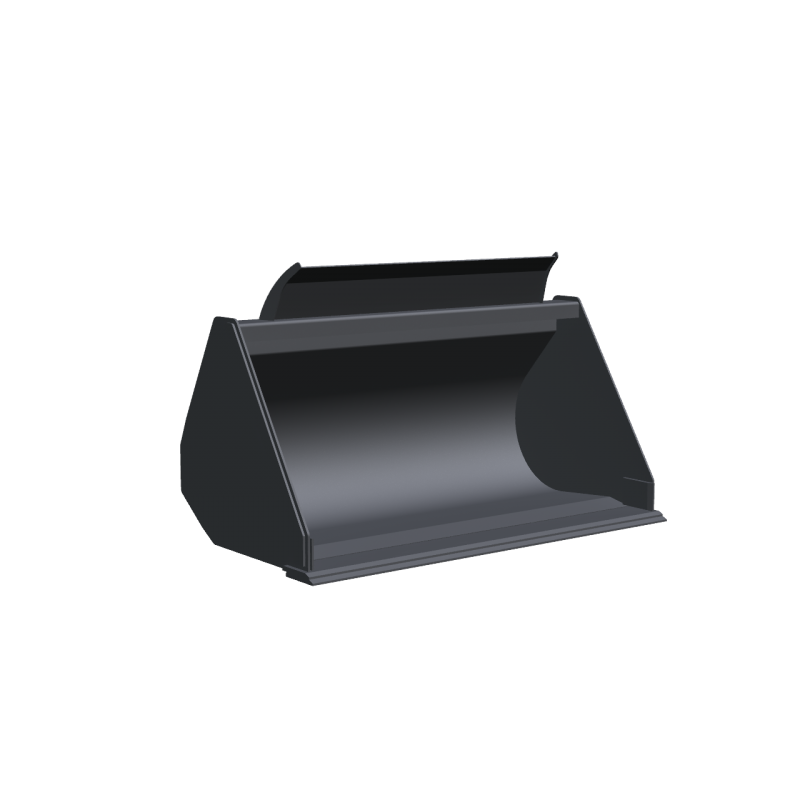

GR03 Bucket

New product

Heavy Duty bucket for loader and telehandler with 100 hp and over

More details

  • No
  • Yes

Data sheet

Power range 100 hp +
Material 1/4" & 5/16"
Cutting edge 5 7/8" x 5/8" 400 Brinell
Spill guard Yes
Lifting ring Yes
Level indicator Yes
Length range (min-max) 59" - 99"
Volume range (cu.ft) (min-max) 21,2 - 44,1

More info

Heavy Duty bucket for loaders, tractors and telehandler with 100 hp and over

Construction with High Strength Steel: 1/4" material, 5/16" end plates

5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Central bucket reinforcement from 75" buckets

End plates reinforcement for rigidity and durability

Large spill guard

Level indicator

Lifting ring

Wear pads for Heavy Duty use

400 Brinell wear corners



Optional:

Double 5/8" cutting edge (400 Brinell hardness)



Made in Canada







Part # Length Volume (cu.ft) Depth Height Weight (lbs)
GR0359 59" 21,2 32" 37" 635
GR0367 67" 23,8 32" 37" 690
GR0375 75" 26,5 32" 37" 760
GR0383 83" 30,0 32" 37" 810
GR0391 91" 33,6 32" 37" 865
GR0395 95" 35,3 32" 37" 895
GR0399 99" 44,1 32" 37" 915

 Dimension, weight and volume are without attachment, indicative only and not contractual.
