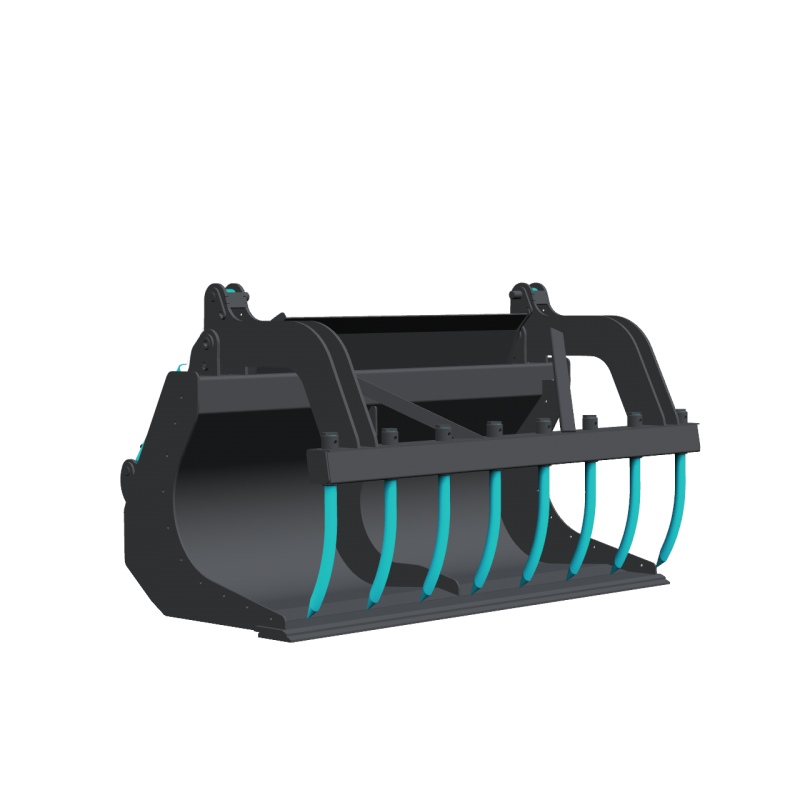

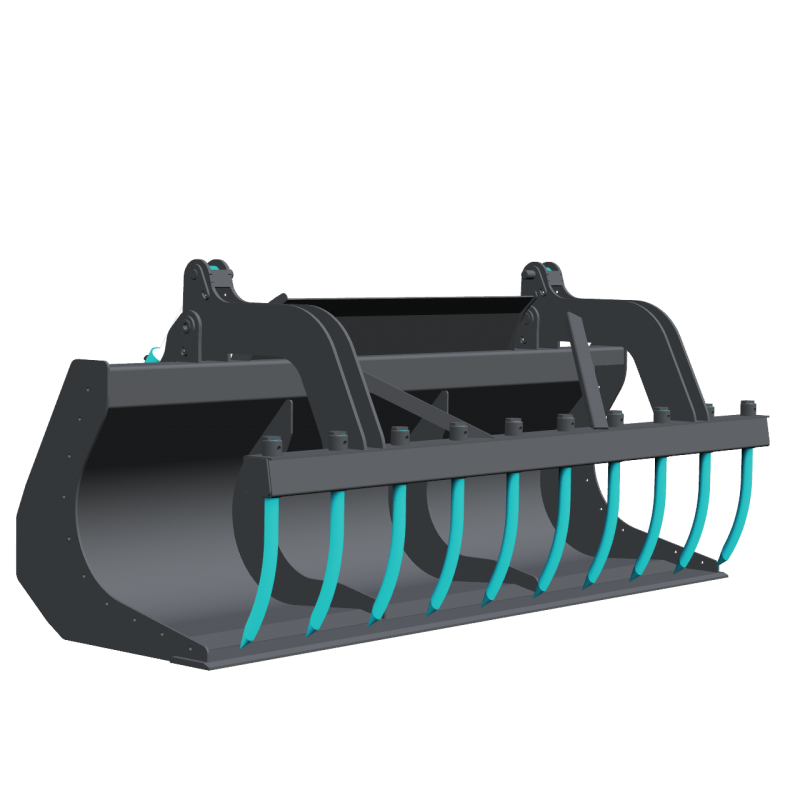

GR25 Bucket with forged tines grab

Bucket with forged tines grapple for loaders and tractors with power range from 100 hp

Bucket set

Construction with High Strength Steel: 1/4" material, 5/16" end plates

5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Central bucket reinforcement

Large spill guard

Lifting ring

Wear pads

Grapple set

Maximum opening grapple for working against walls. In the open position, the grapple teeth remain behind the cutting edge.

66" opening

2 3/4" x 10" cylinder on the top

1 7/16" x 22" forged tines

Tines with anti-rotation system

Check valve

Pressure relief valve

Wear bushing at the pivots

Optional:

Double 5/8" cutting edge (400 Brinell hardness)

Bolt-on removable sides

Made in Canada

 Dimension, weight and volume are without attachment, indicative only and not contractual.
