> >>>GL36 Bucket with removable sides
GL3647 View larger
Previous Next

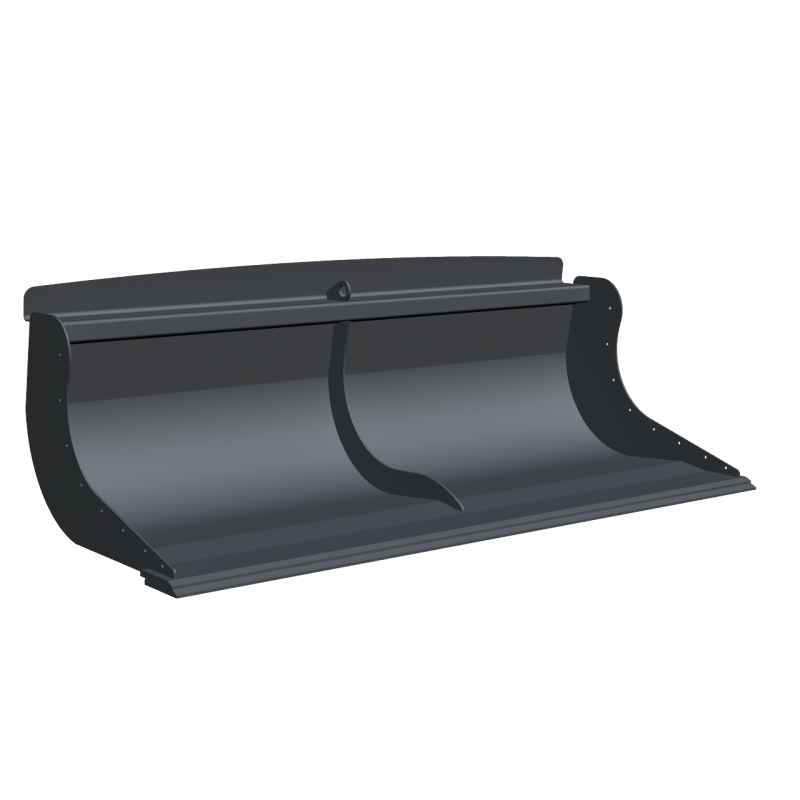

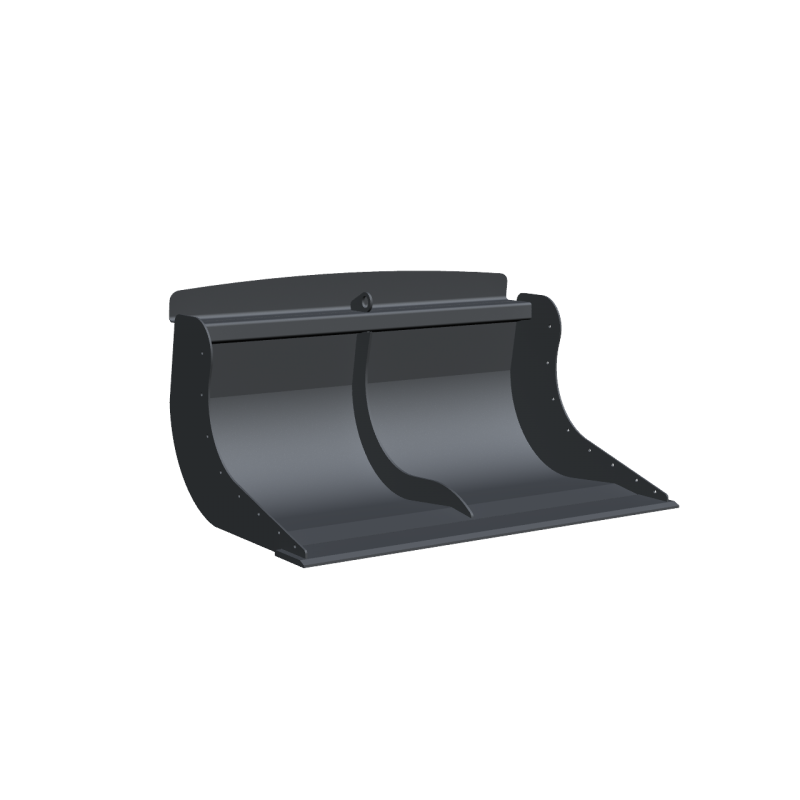

GL36 Bucket with removable sides

New product

Bucket with removable end plates for tractors and loader with 50 hp to 100 hp

More details

  • No
  • Yes
  • No
  • Yes

Data sheet

Power range 50 hp - 100 hp
Material 3/16" & 1/4"
Cutting edge 5 7/8" x 5/8" 400 Brinell
Spill guard Yes
Lifting ring Yes
Removable attachment Optional
Level indicator Yes
Bolt-on removable sides Yes
Length range (min-max) 47" - 83"
Volume range (cu.ft) (min-max) 11,9 - 20,9

More info

Bucket with removable sides for 50hp to 100 hp loaders and tractors

Construction with High Strength Steel: 3/16" material, 1/4" end plates

5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Bolt-on removable sides included

Central bucket reinforcement

Spill guard

Level indicator

Lifting ring

Wear pads



Optional:

Double 5/8" cutting edge (400 Brinell hardness)

Removable attachment kit



Made in Canada





Part # Length Volume (cu.ft) Depth Height Weight (lbs)
GL3247 47" 11,9 31" 25" 365
GL3251 51" 12,9 31" 25" 435
GL3259 59" 14,9 31" 25" 465
GL3267 67" 16,9 31" 25" 495
GL3275 75" 18,9 31" 25" 520
GL3283 83" 20,9 31" 25" 555

 Dimension, weight and volume are without attachment, indicative only and not contractual.
