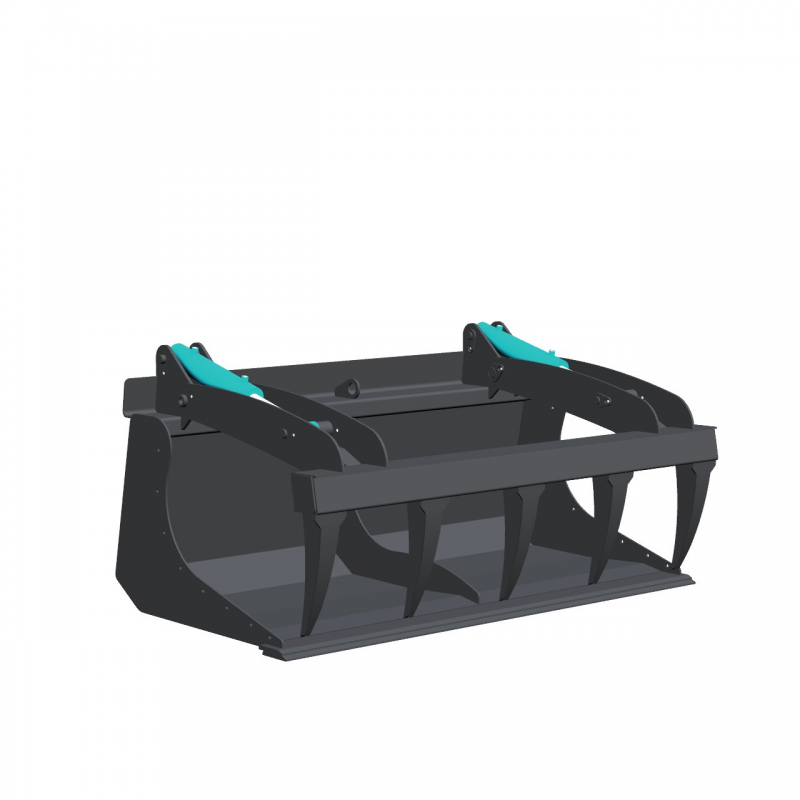

GP04 Bucket with multi purpose grab

New product

Bucket with fmulti purpose grapple for tractors and loader with power range from 50 hp to 100 hp

More details

  • No
  • Yes
  • No
  • Yes
  • No
  • Yes

Data sheet

Power range 50 hp - 100 hp
Material 3/16" & 1/4"
Cutting edge 4" x 1/2" 400 Brinell
Spill guard Yes
Lifting ring Yes
Grab tines Welded assembly
Bolt-on removable sides Optional
Check valve Optional
Length range (min-max) 59" - 83"

More info

Bucket with multi purpose grab for loaders and tractors with power range from 50 hp to 100 hp



Bucket set

Construction with High Strength Steel: 3/16" material, 1/4" end plates

1/2" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Spill guard

Bucket reinforcement

Lifting ring

Wear pads



Grapple set

Maximum opening grapple for working against walls. In the open position, the grapple teeth remain behind the cutting edge.

45" opening

2 1/2" x 8" cylinder on the top

14" mechanically welded teeth

Wear bushing at the pivots



Optional:

Double 1/2" cutting edge (400 Brinell hardness)

Check valve

Bolt-on removable sides



Made in Canada







Part # Length Grab Tines Depth Height Weight (lbs)
GP0459 59" 7 34" 29" 680
GP0465 65" 8 34" 29" 730
GP0475 75" 8 34" 29" 775
GP0483 83" 9 34" 29" 825

 Dimension, weight and volume are without attachment, indicative only and not contractual.
