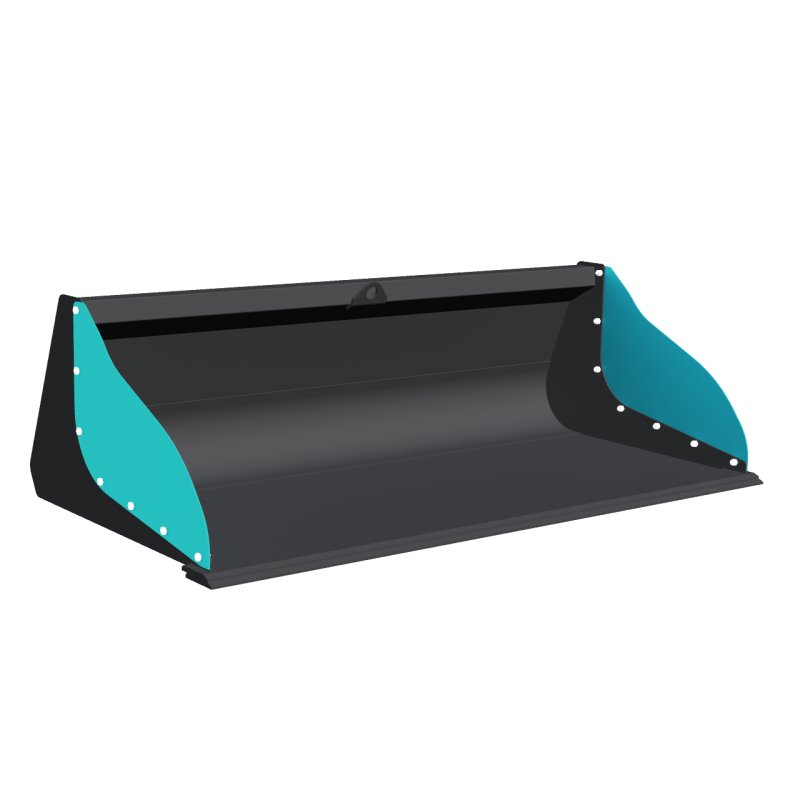

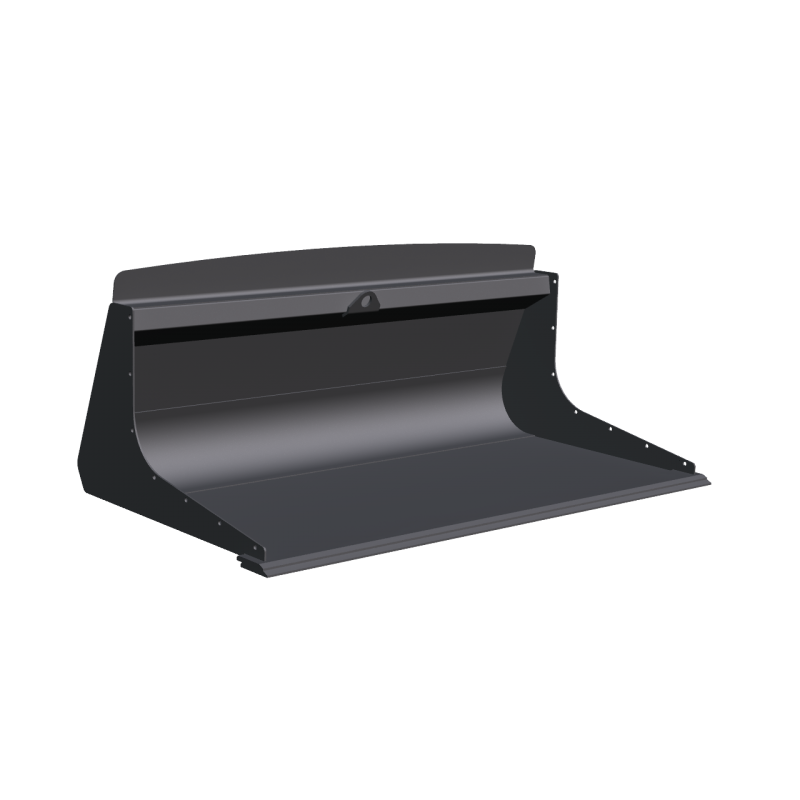

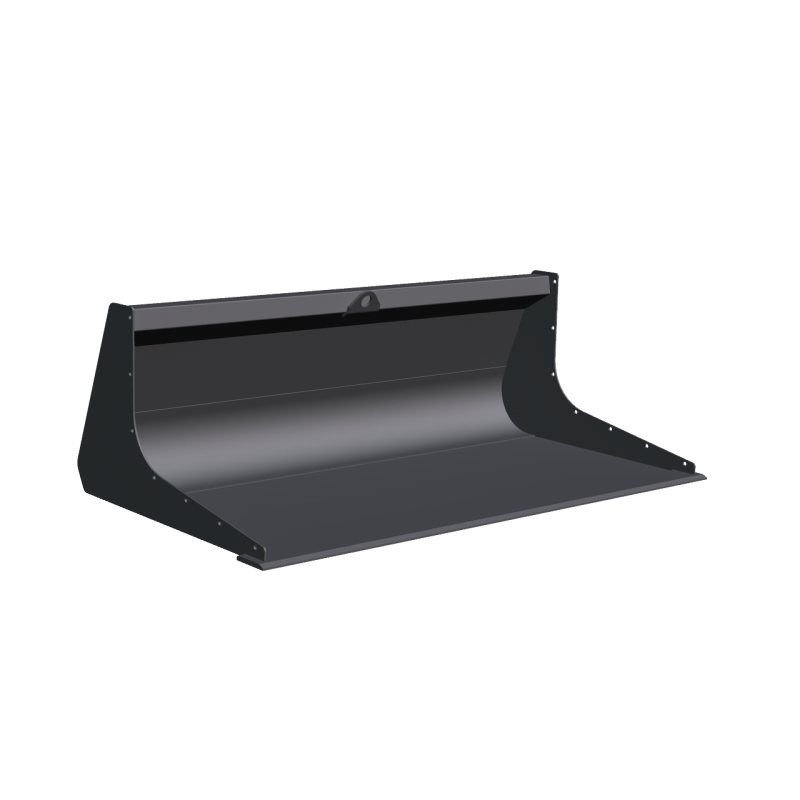

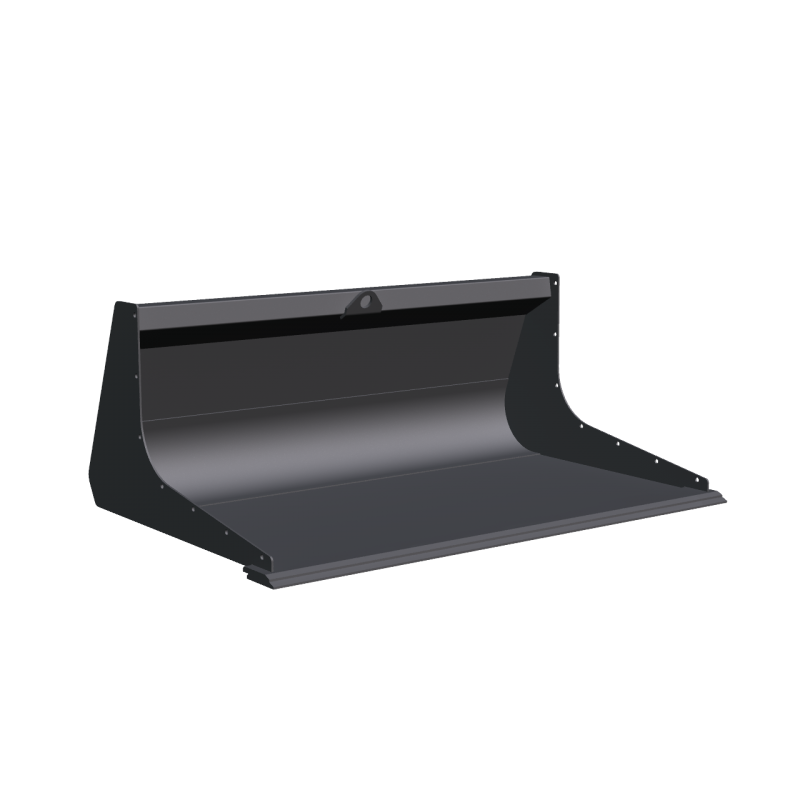

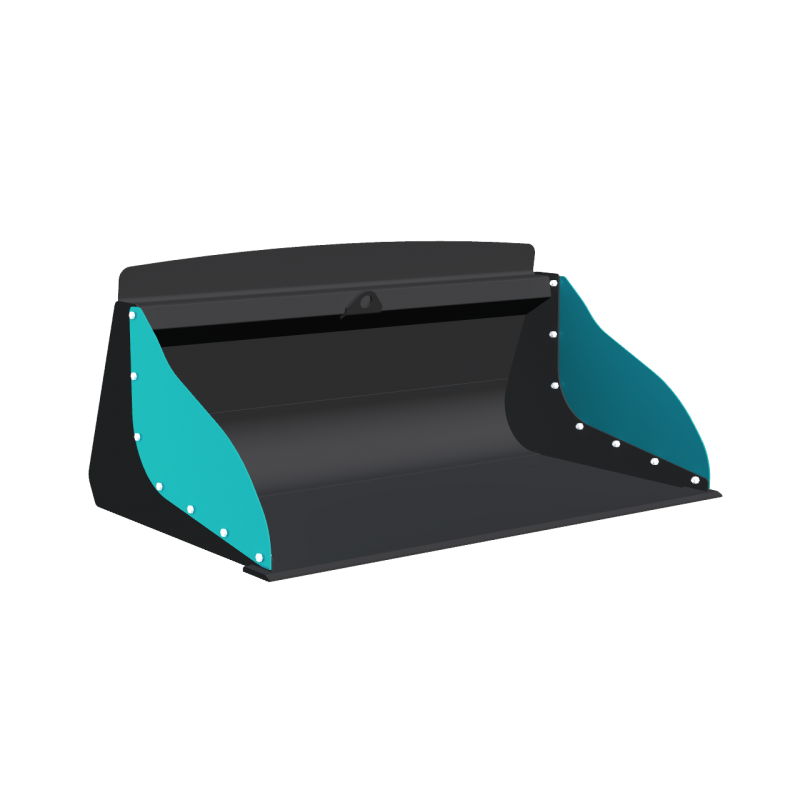

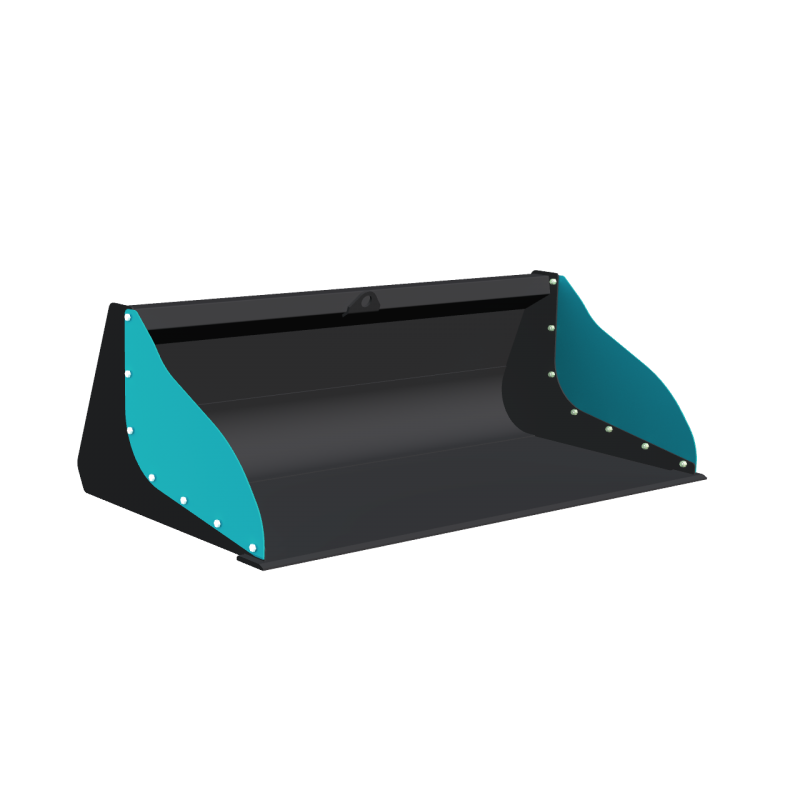

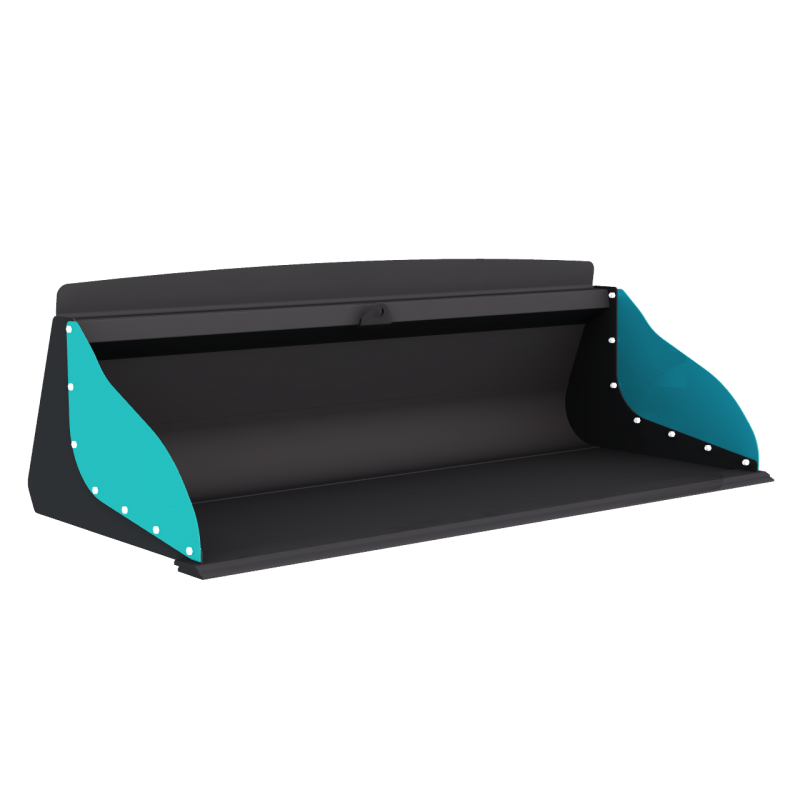

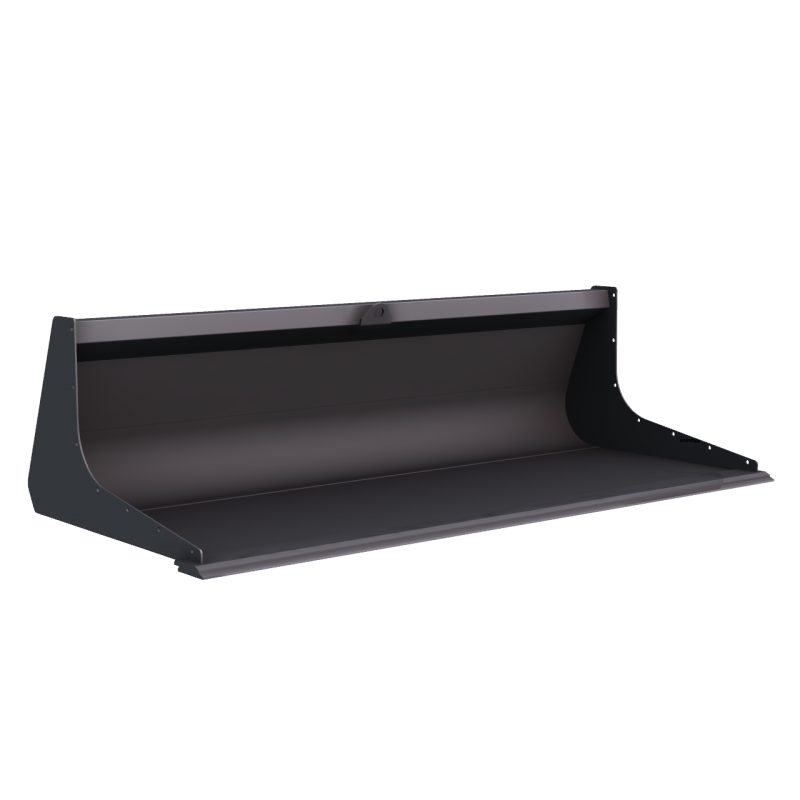

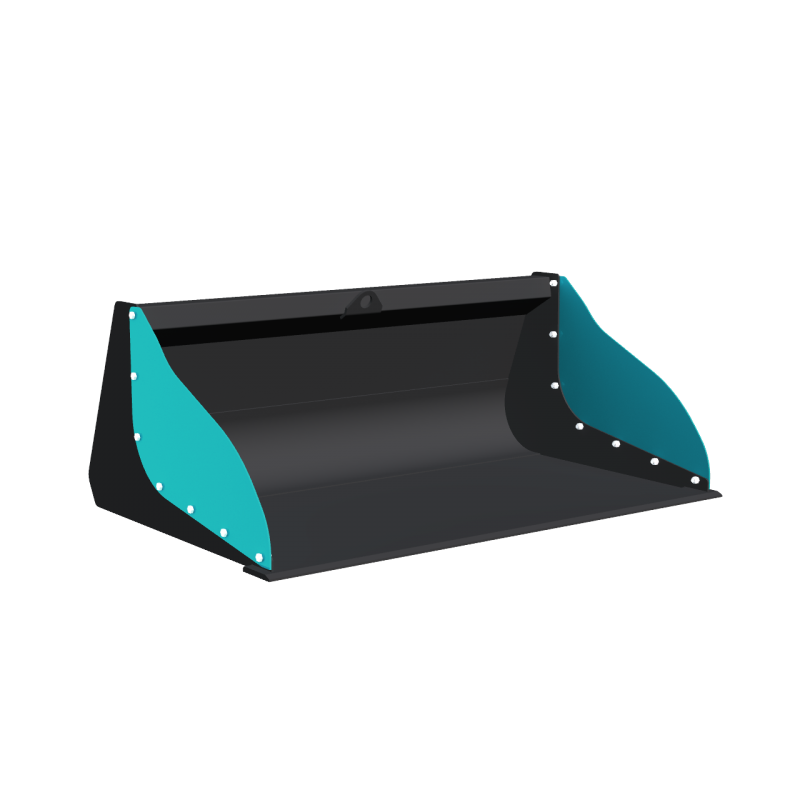

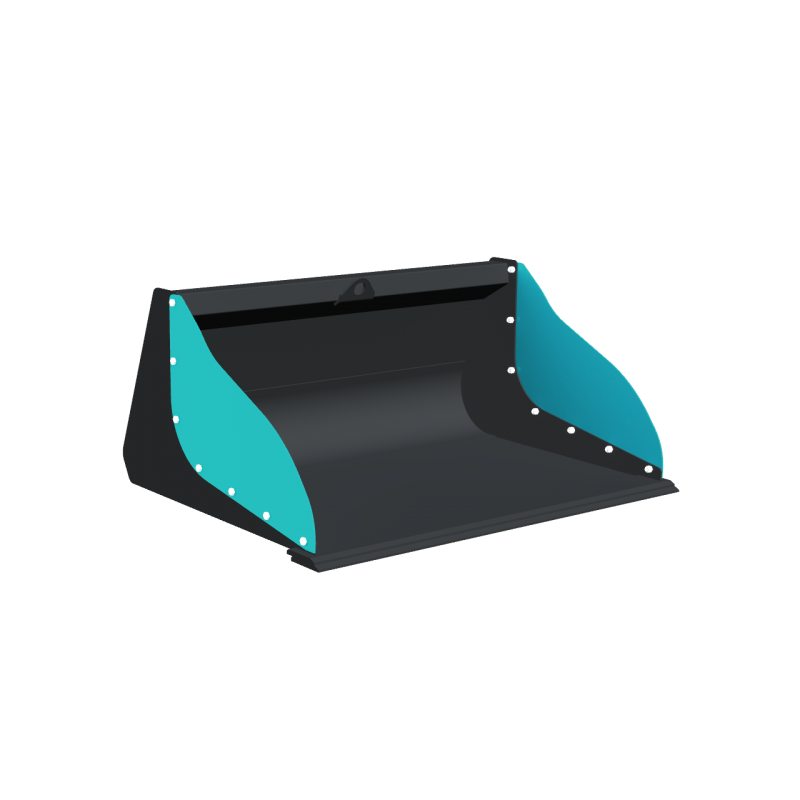

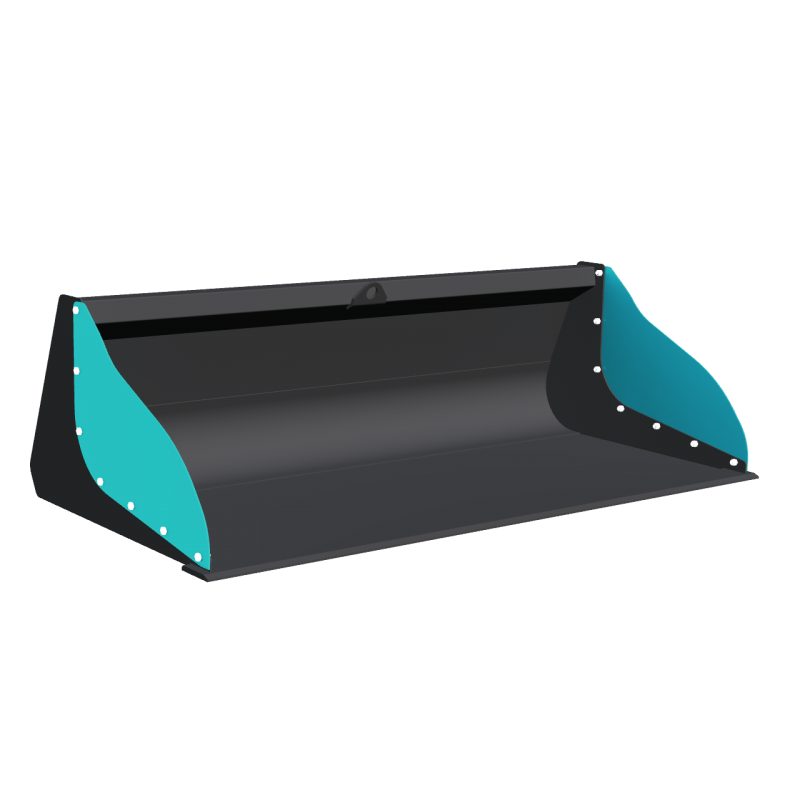

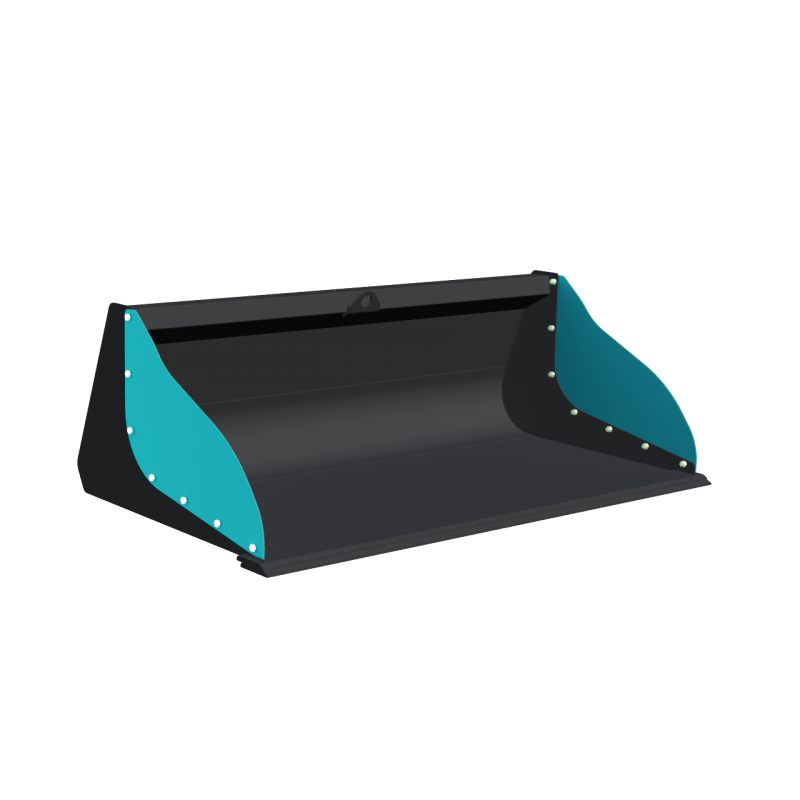

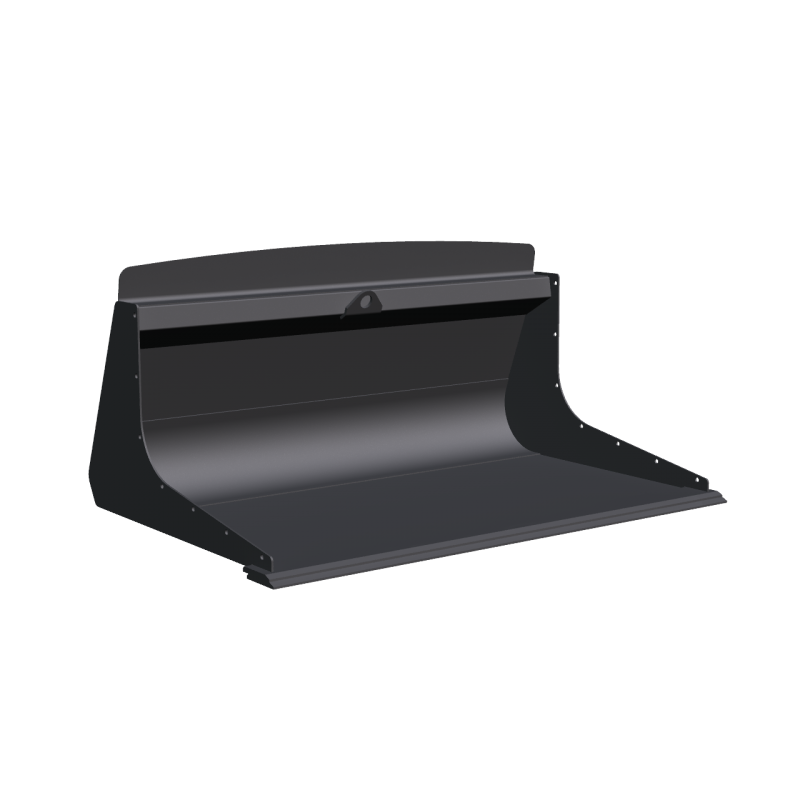

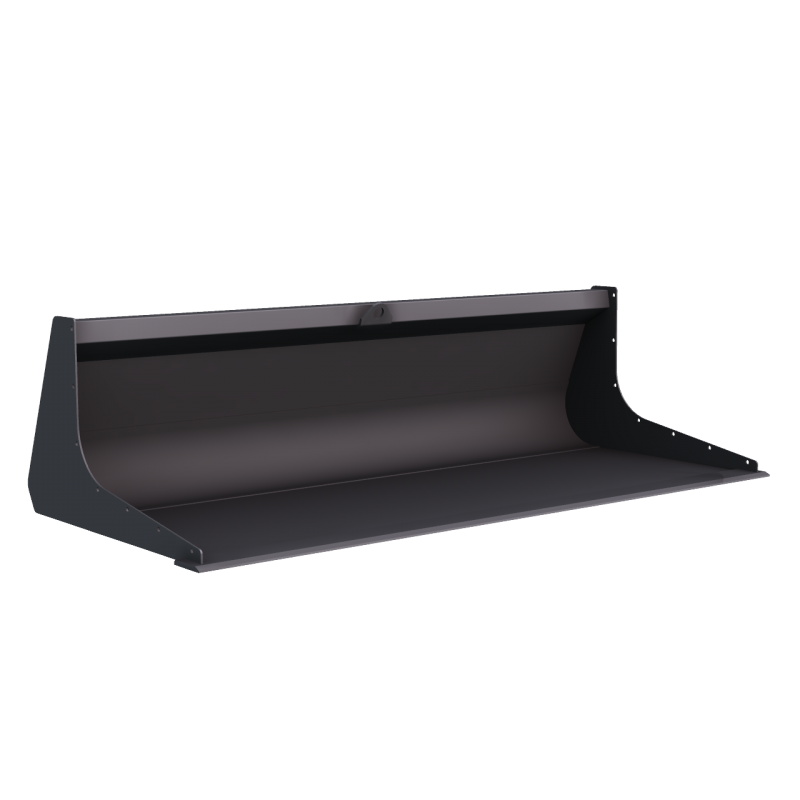

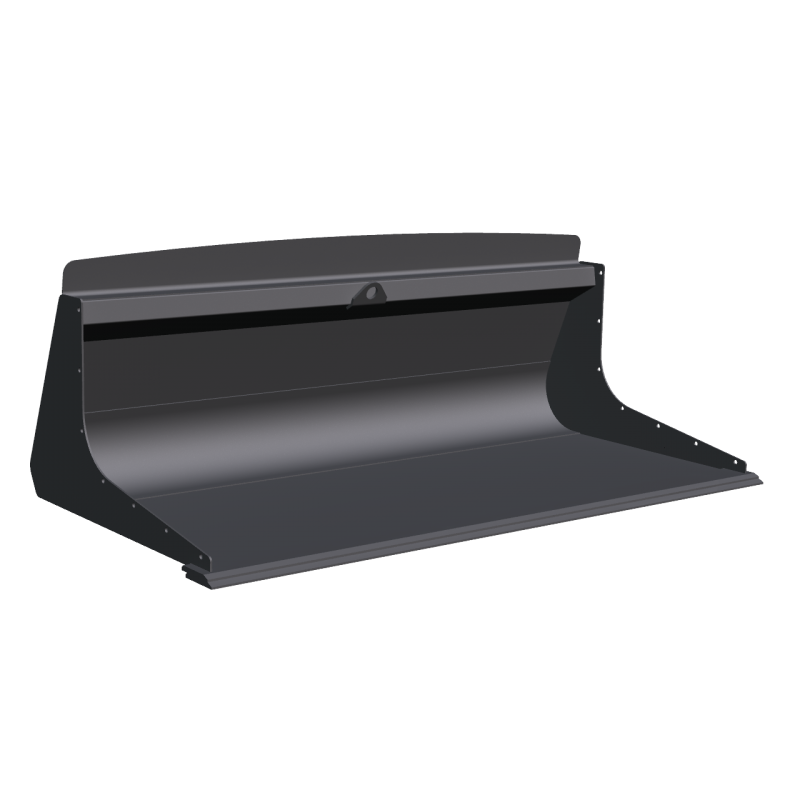

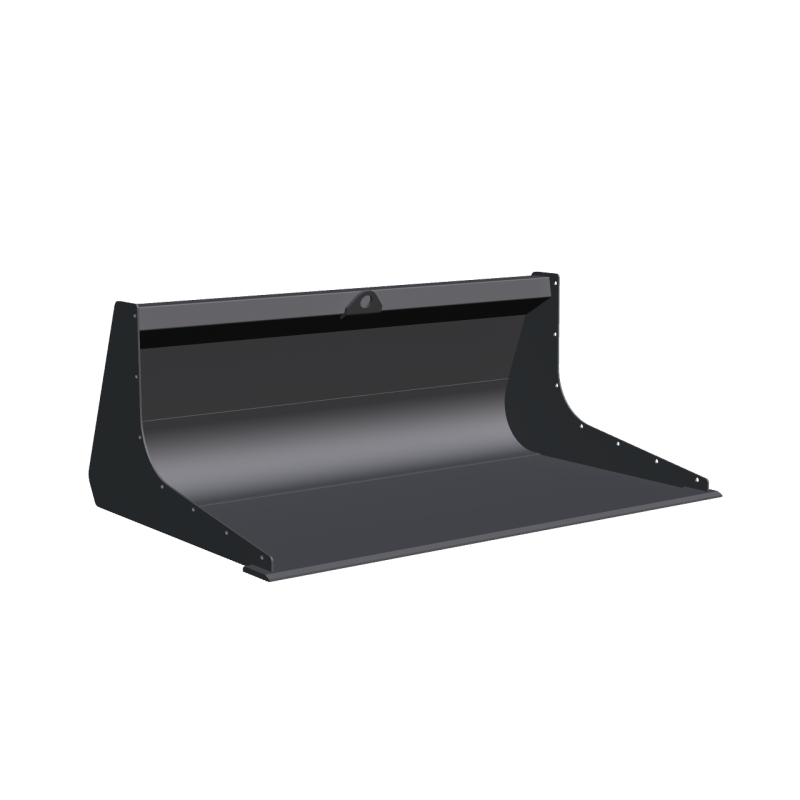

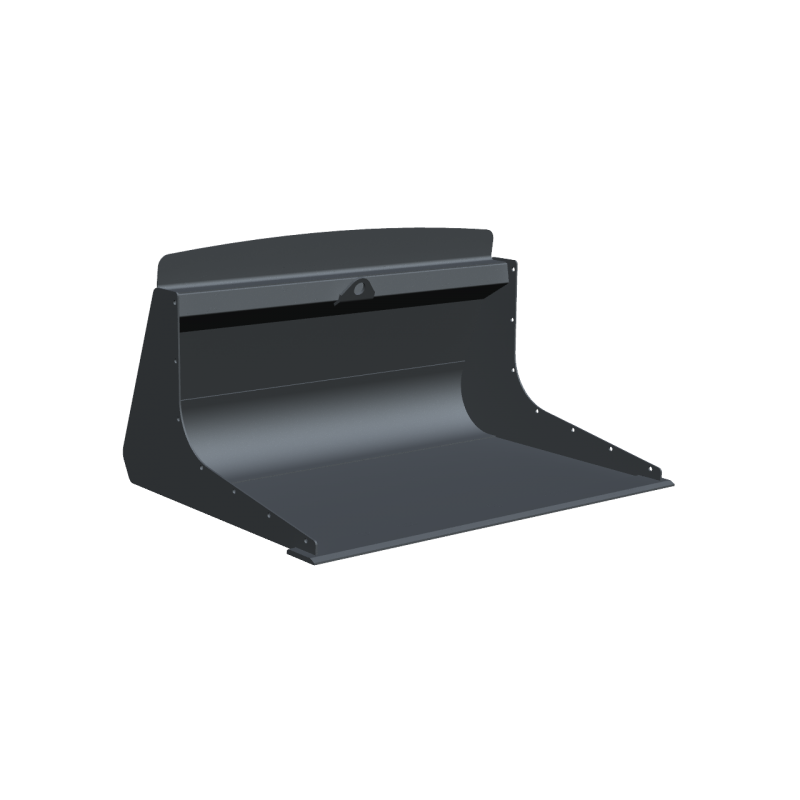

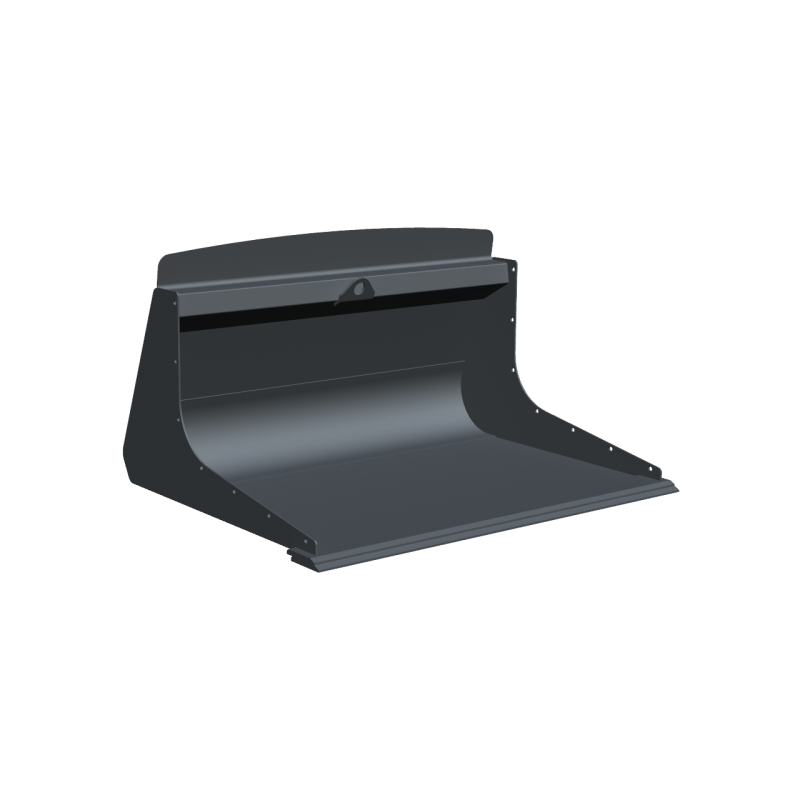

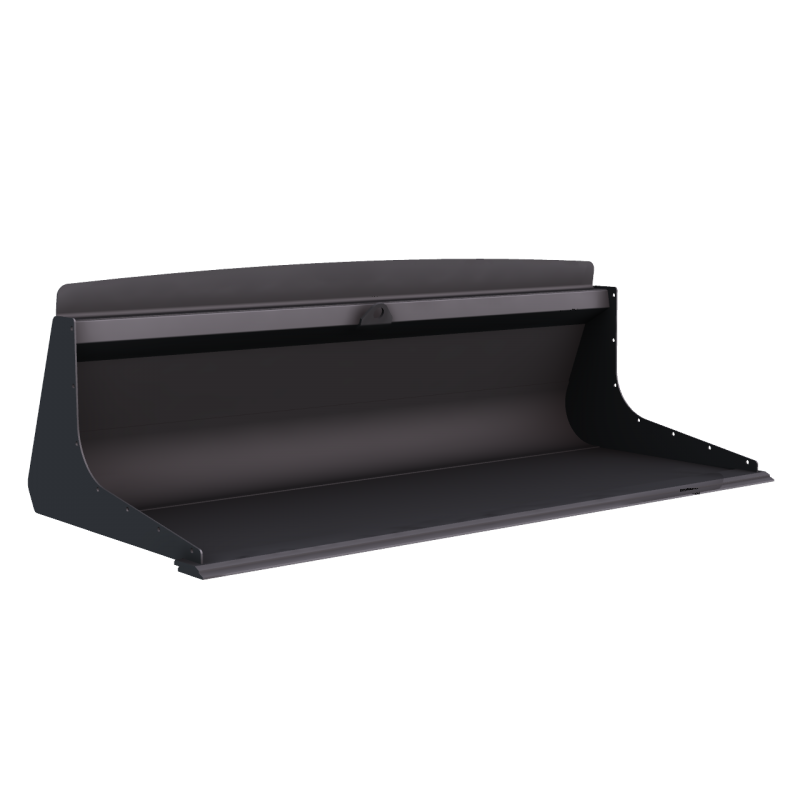

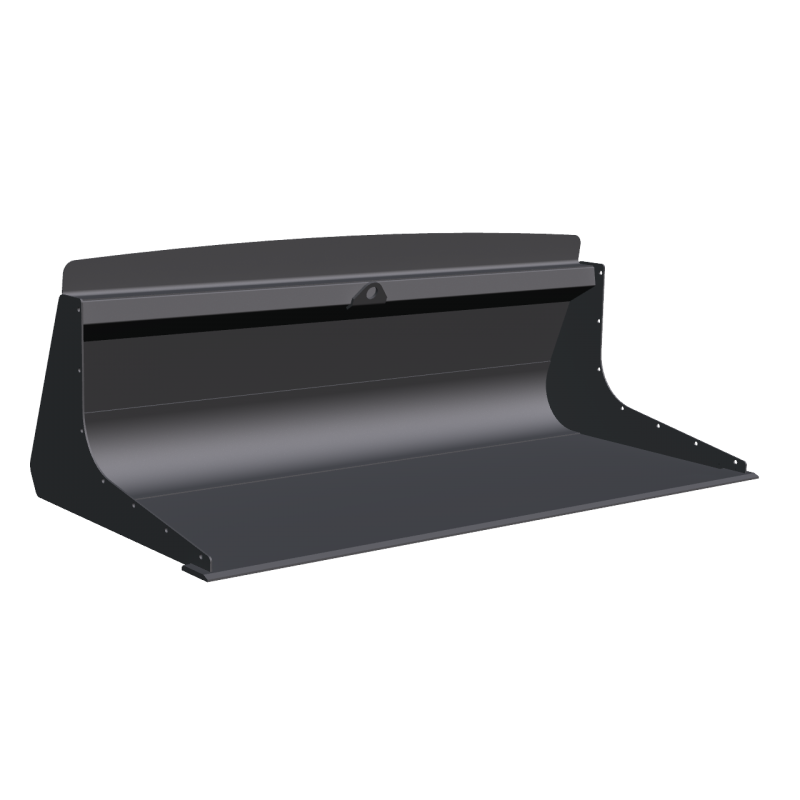

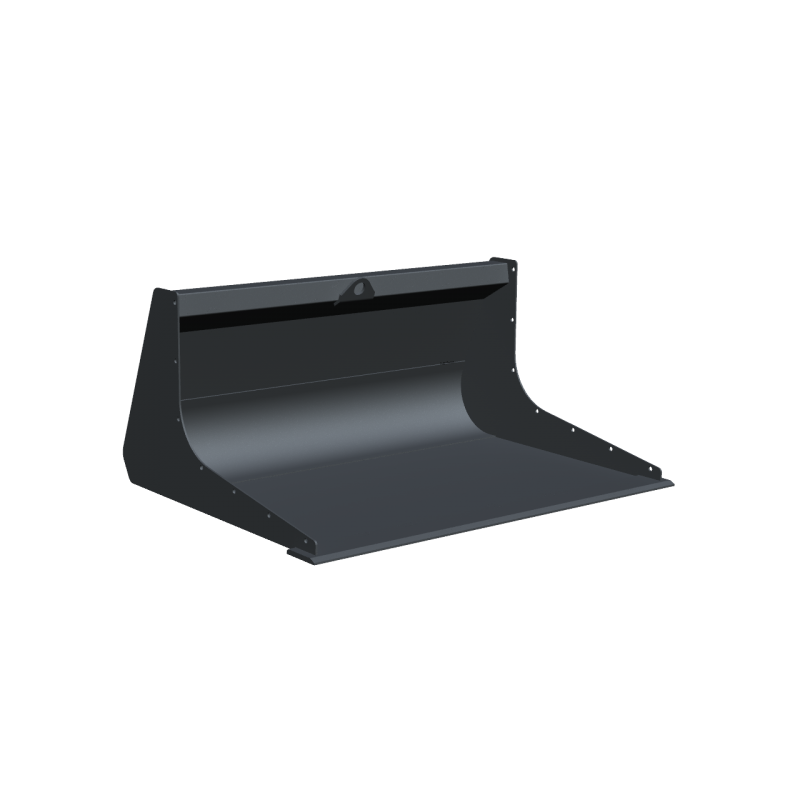

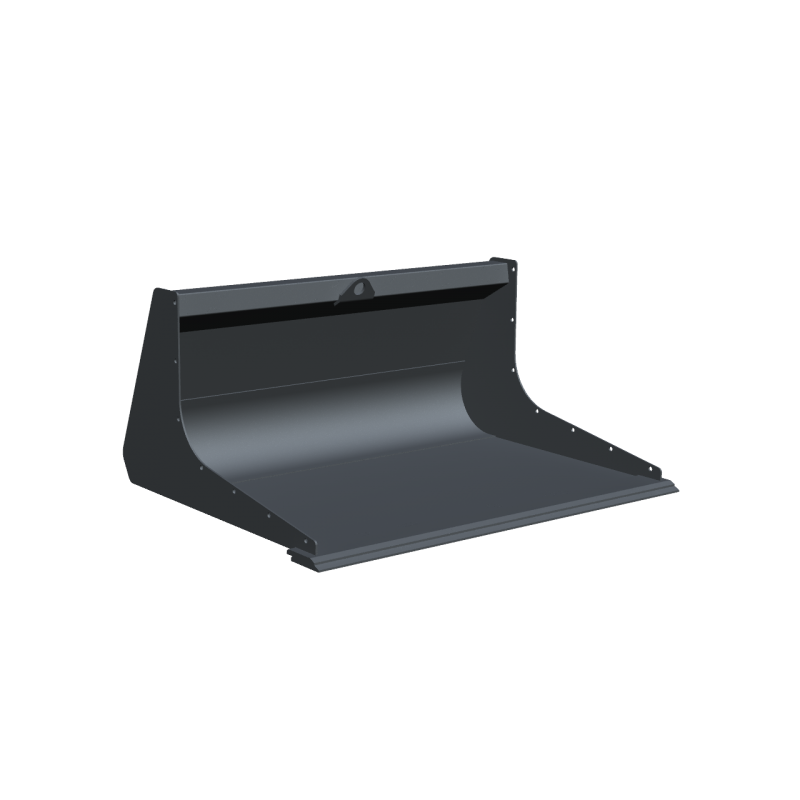

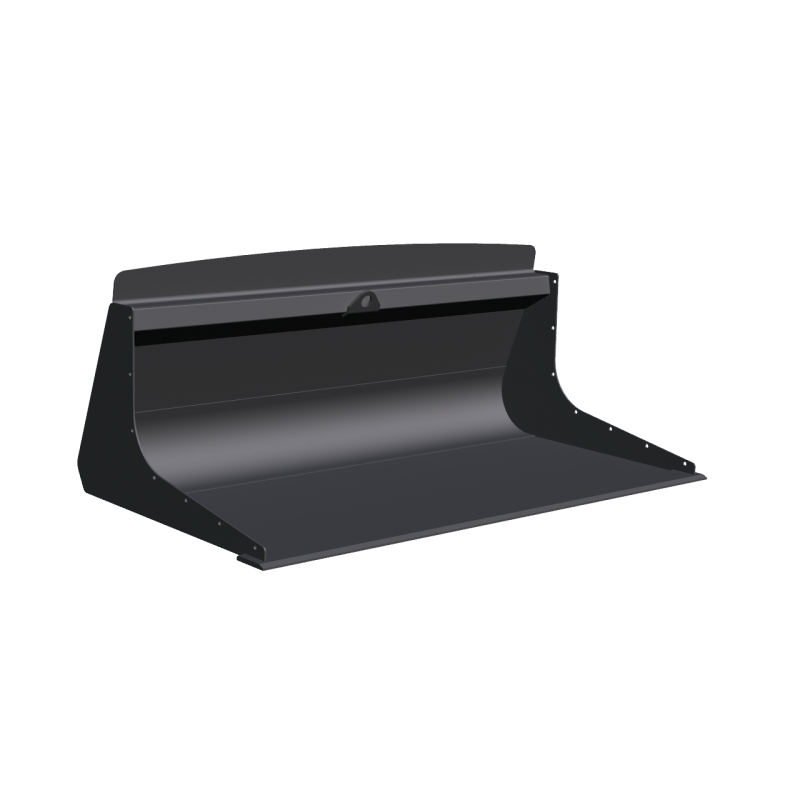

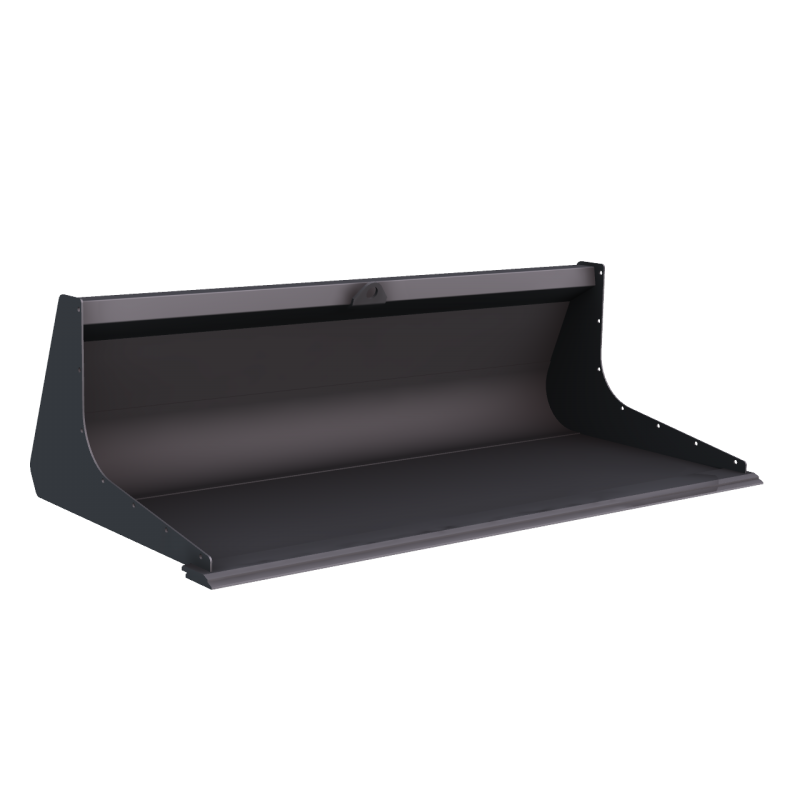

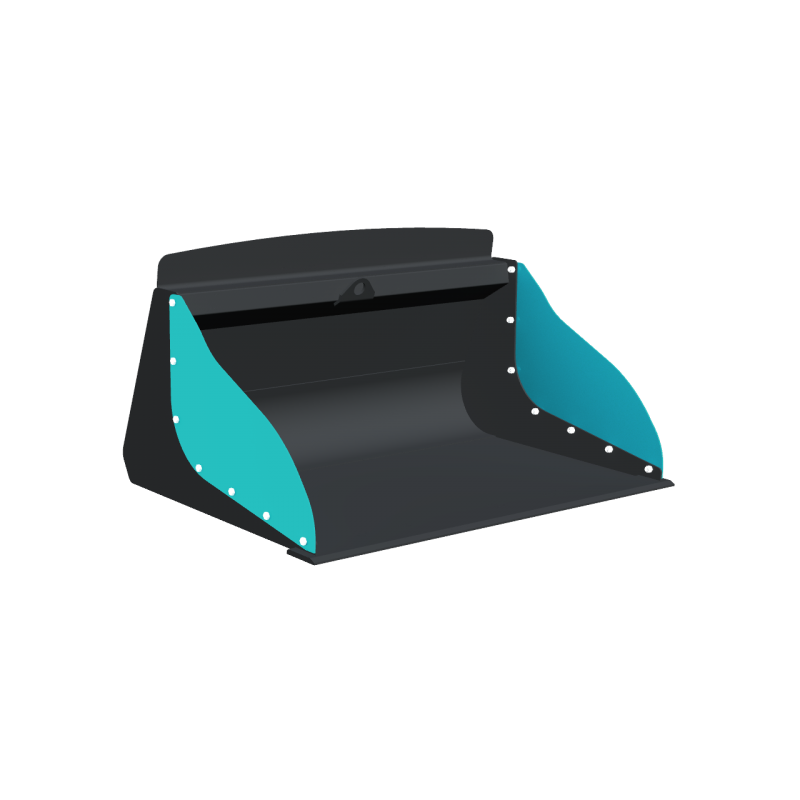

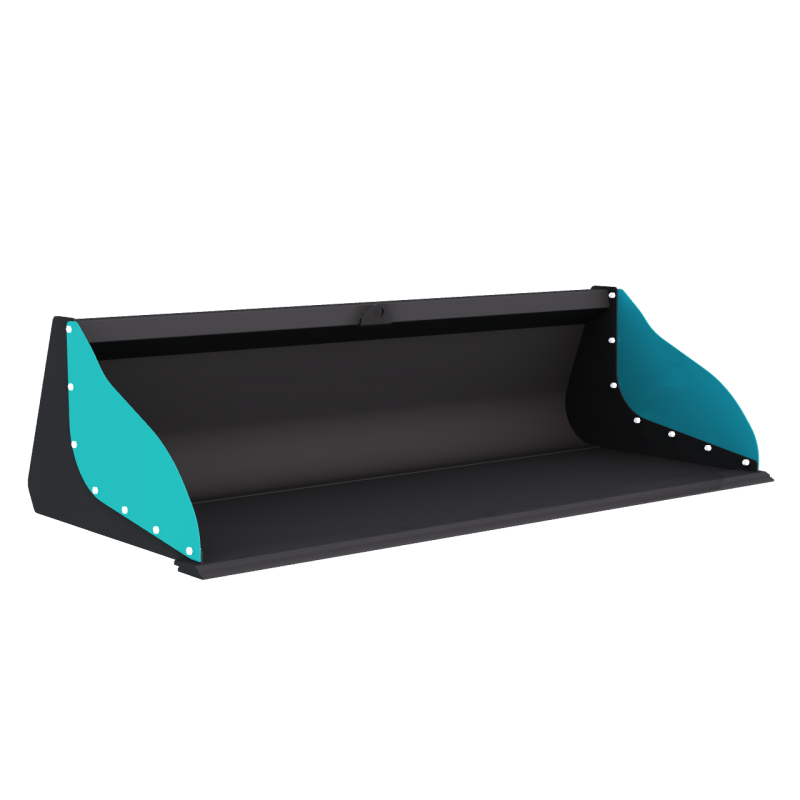

GM81 Bucket with removable sides
New product
Bucket with removable sides for tractors and loader with 40 hp to 70 hp
Data sheet
| Power range | 40 hp - 70 hp |
| Material | 1/8" & 3/16" |
| Cutting edge | 4" x 1/2" 400 Brinell |

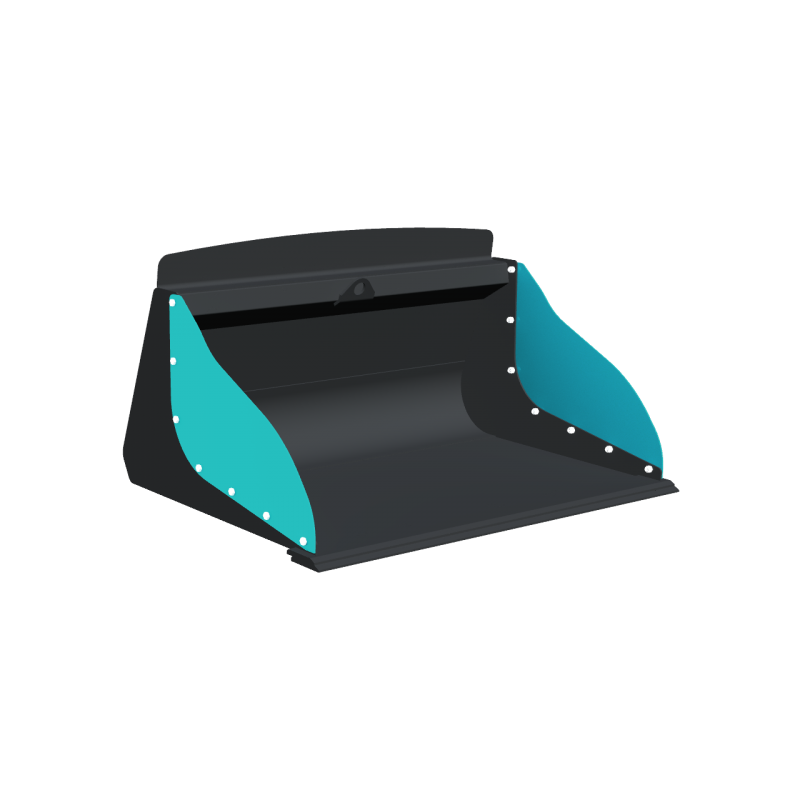

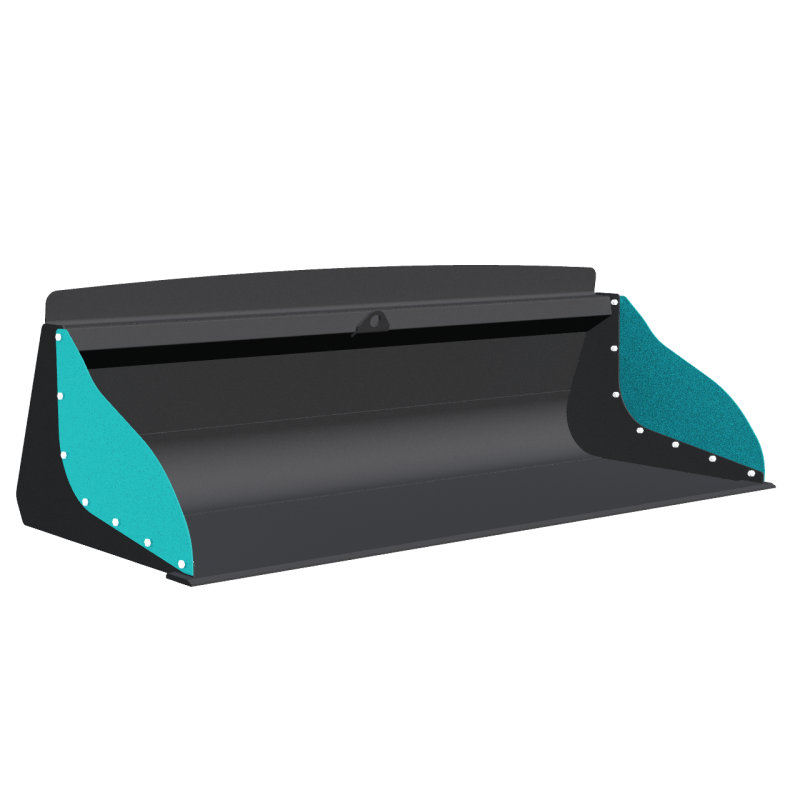

| Spill guard | Optional |
| Running board on Skid Steer | Yes |
| Lifting ring | Yes |
| Level indicator | Flat top |
| Bolt-on removable sides | Yes |
| Length range (min-max) | 43" - 75" |
| Volume range (cu.ft) (min-max) | 10,3 - 17,8 |
More info
Grading bucket with removable sides for 40hp to 70 hp loaders and tractors
Construction with High Strength Steel: 1/8" material, 3/16" end plates
5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

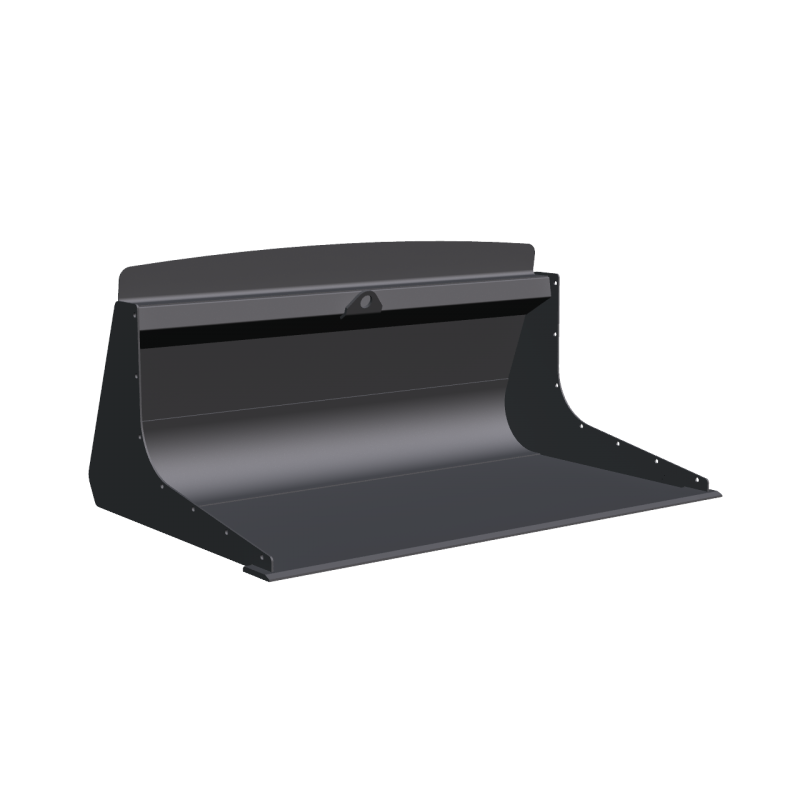

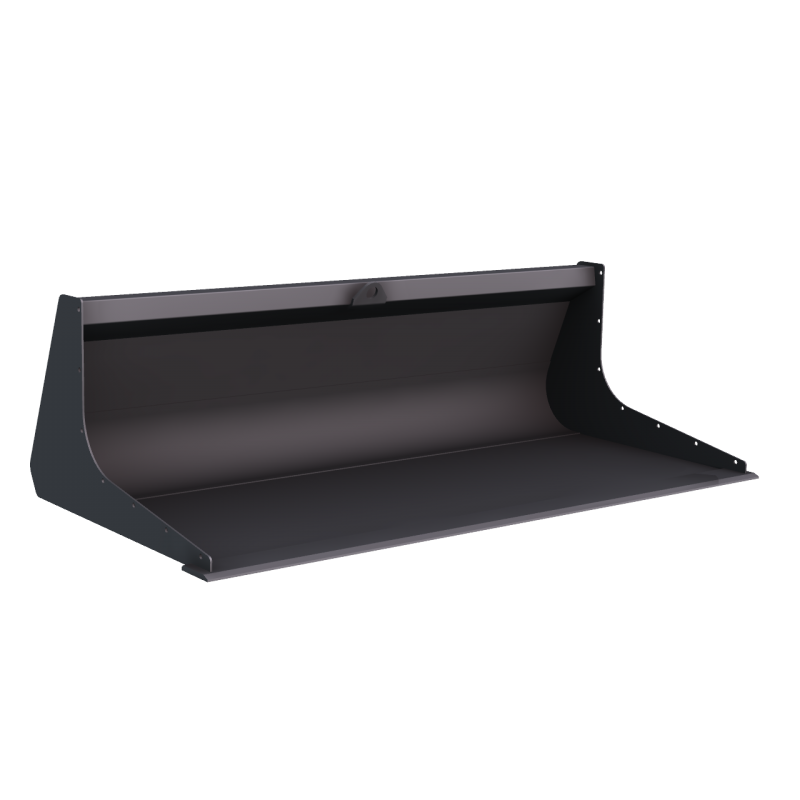

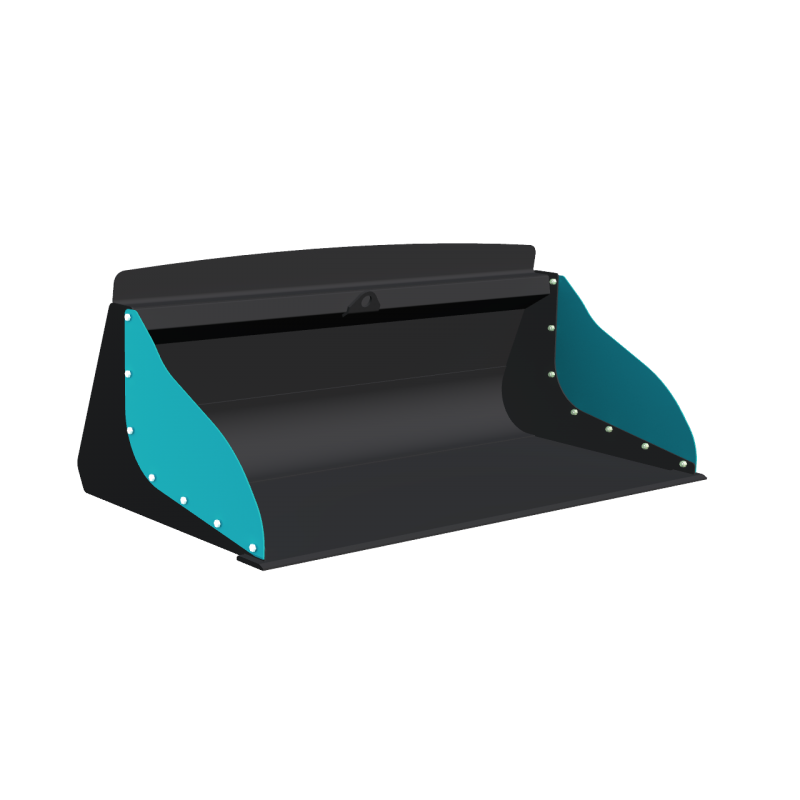

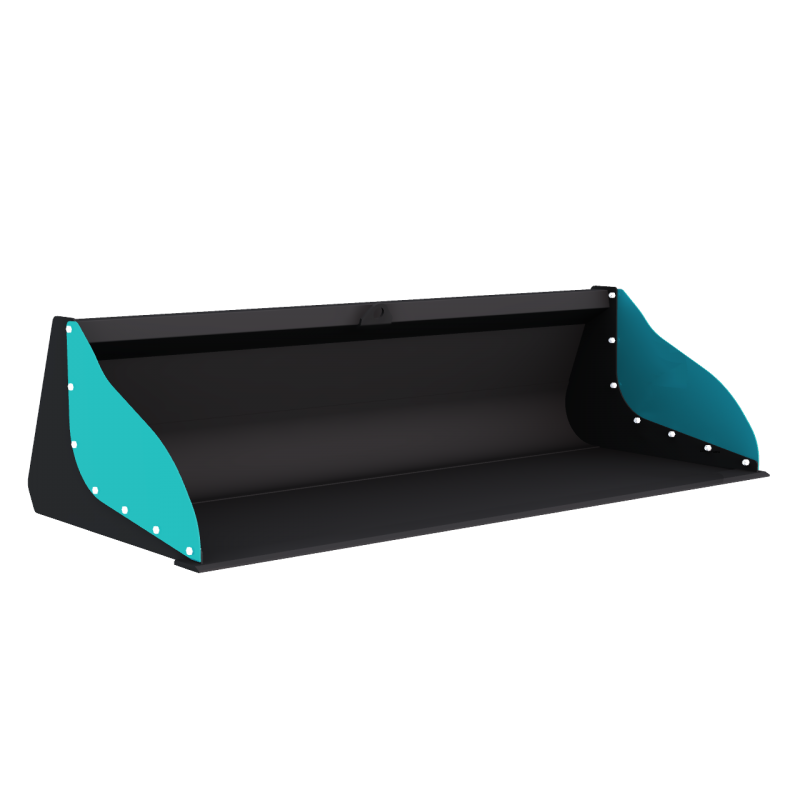

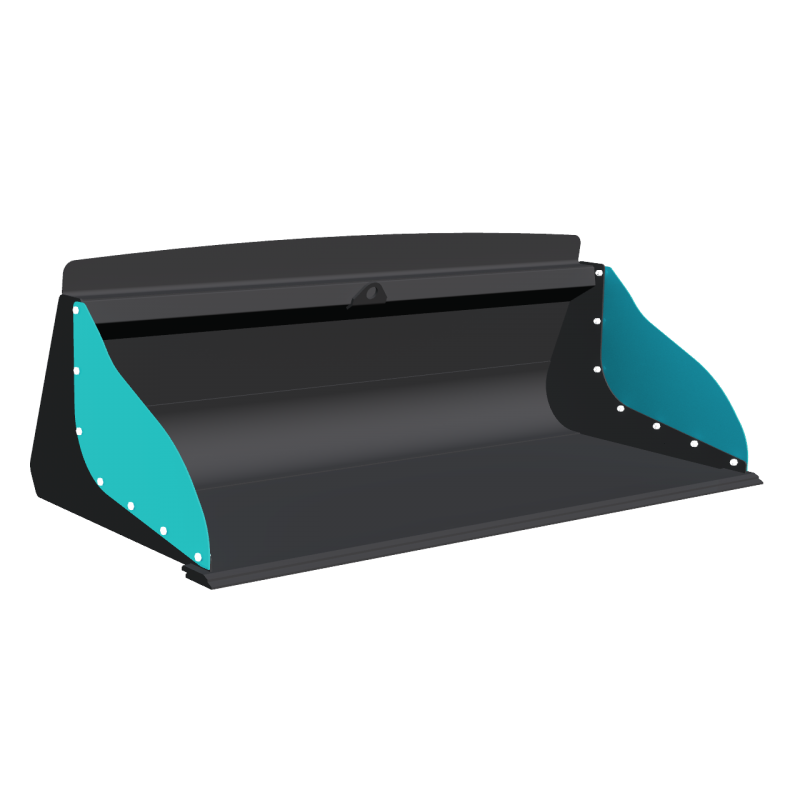

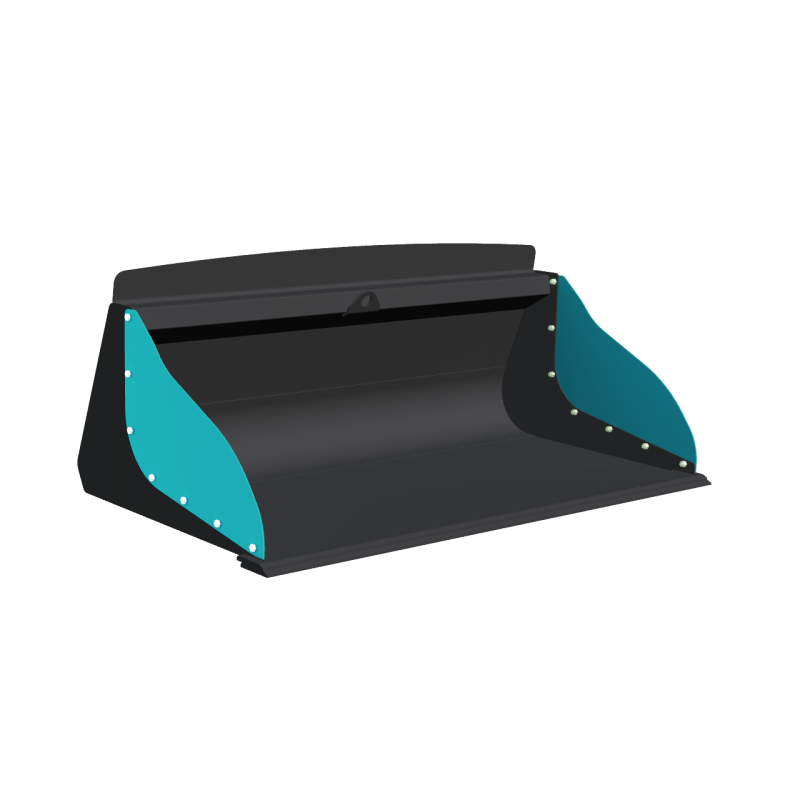

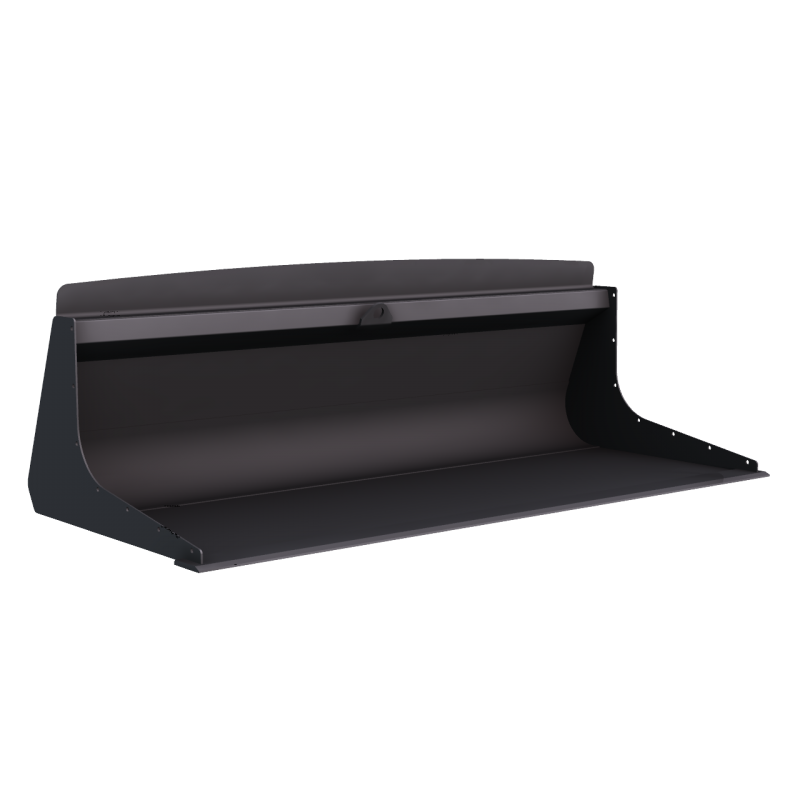

Bolt-on removable sides included
Flat top acts as level indicator
Lifting ring
Wear pads
5/8" Bolt-on cutting edge
Made in Canada
| Part # | Length | Volume (cu.ft) | Depth | Height | Weight (lbs) |
| GM8143 | 43" | 10,3 | 33" | 20" | 285 |
| GM8151 | 51" | 12,2 | 33" | 20" | 310 |
| GM8159 | 59" | 14,1 | 33" | 20" | 330 |
| GM8167 | 67" | 18,0 | 33" | 20" | 345 |
| GM8175 | 75" | 17,8 | 33" | 20" | 370 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
