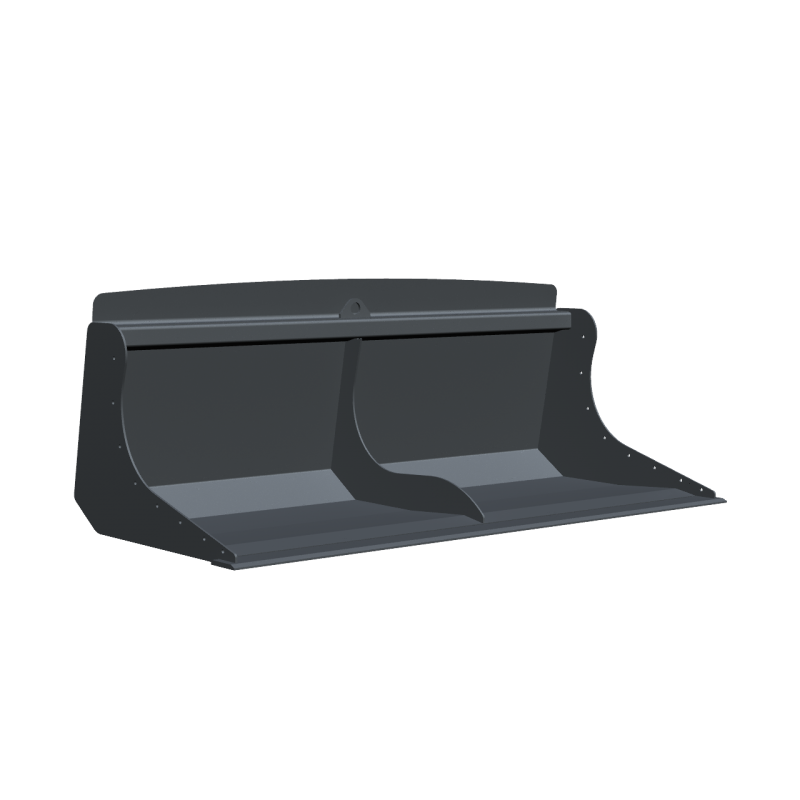

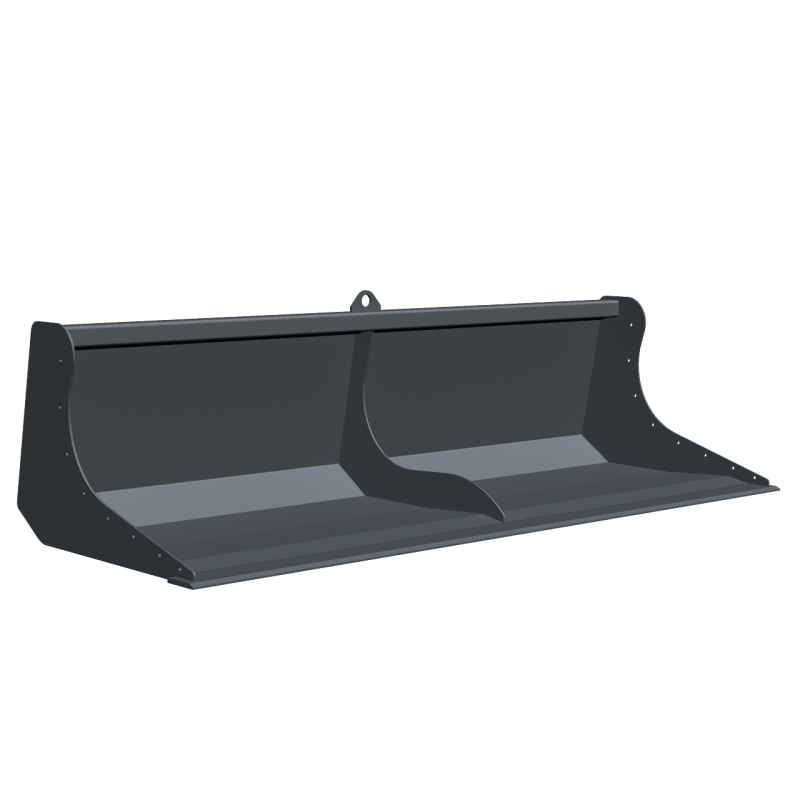

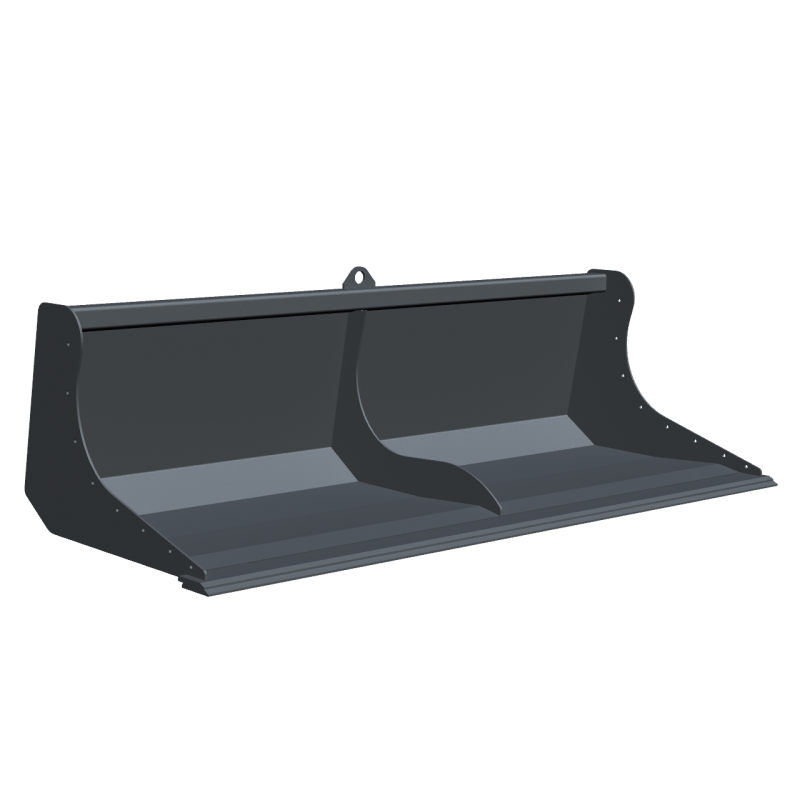

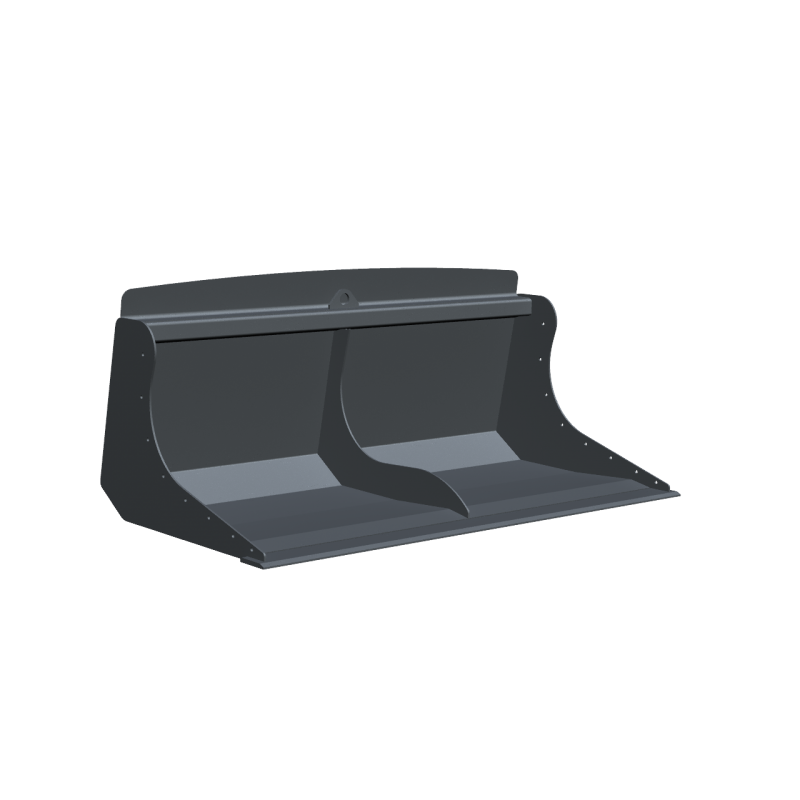

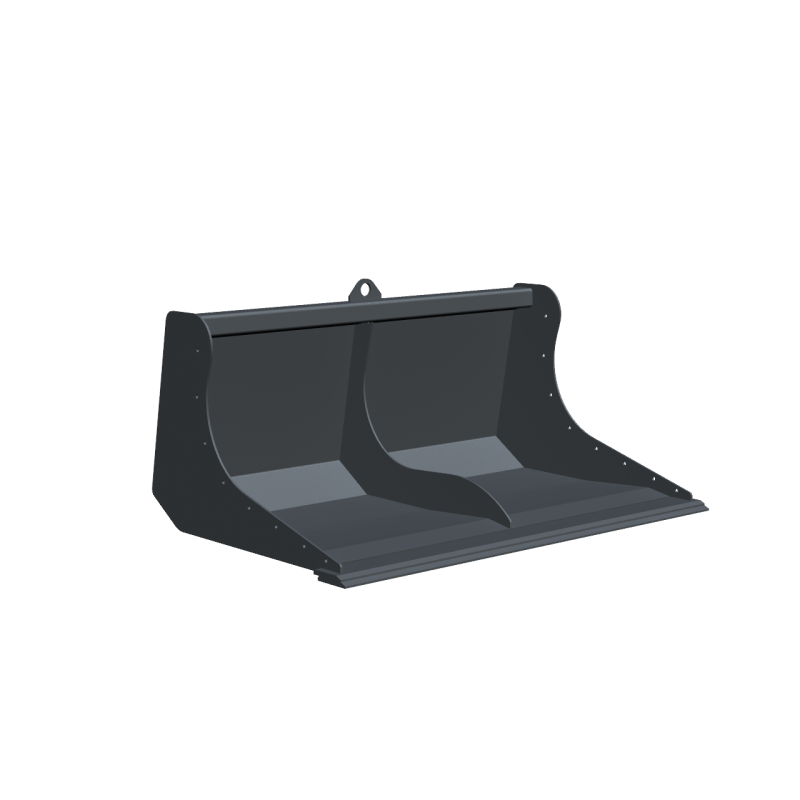

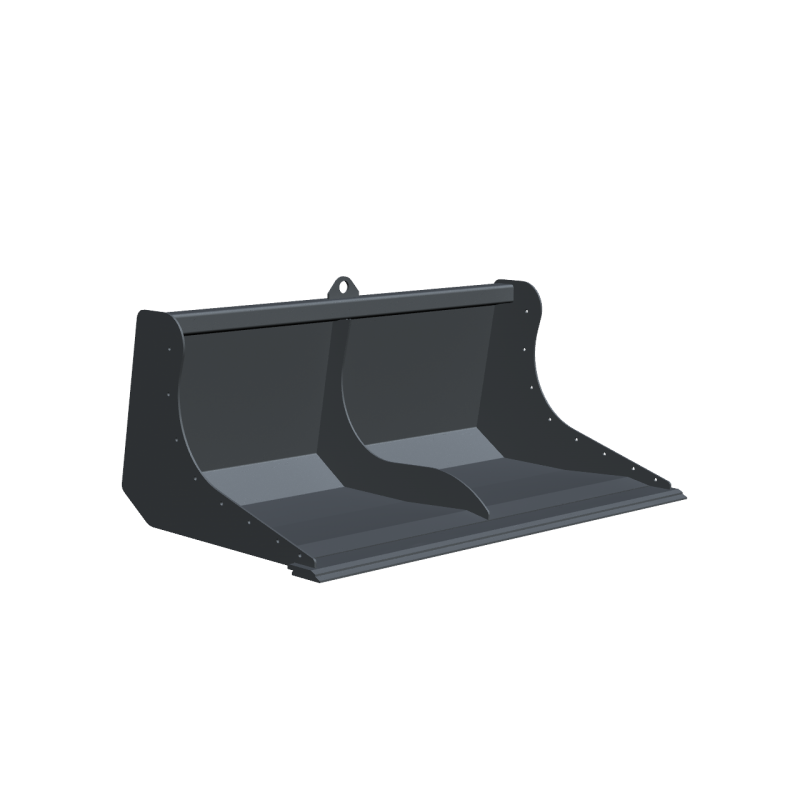

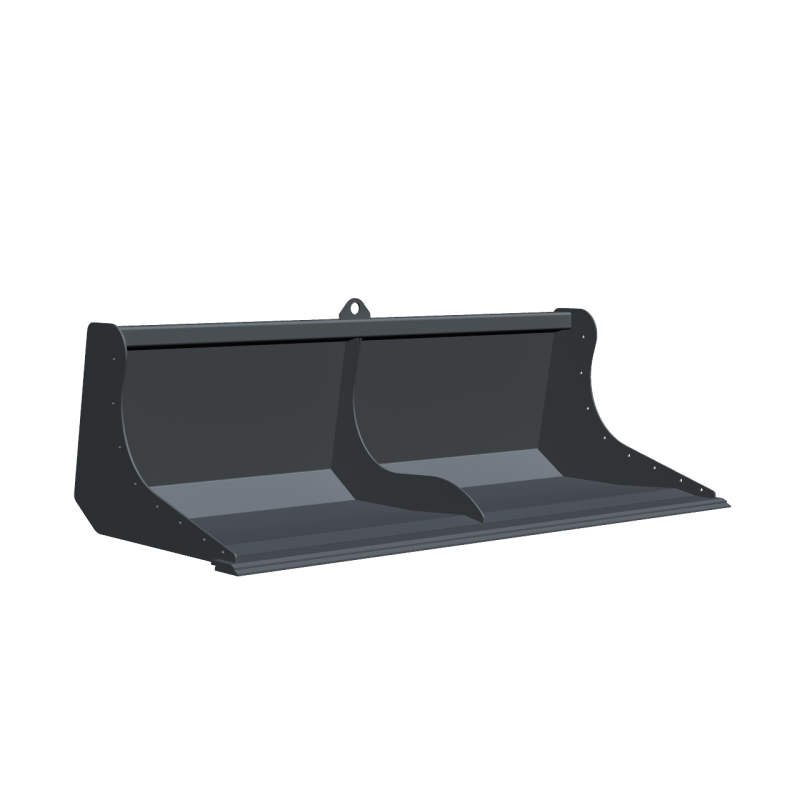

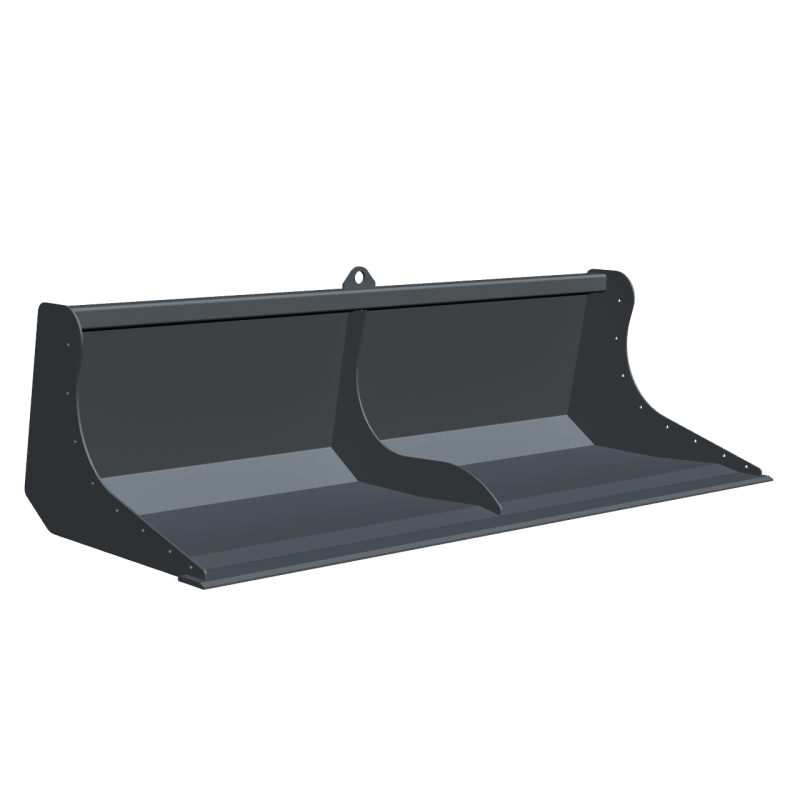

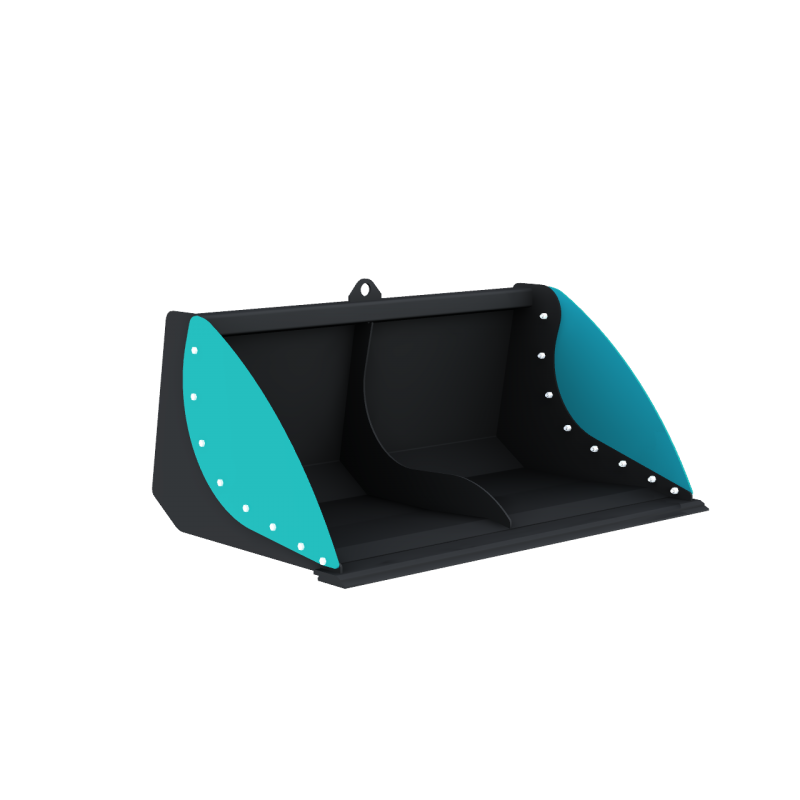

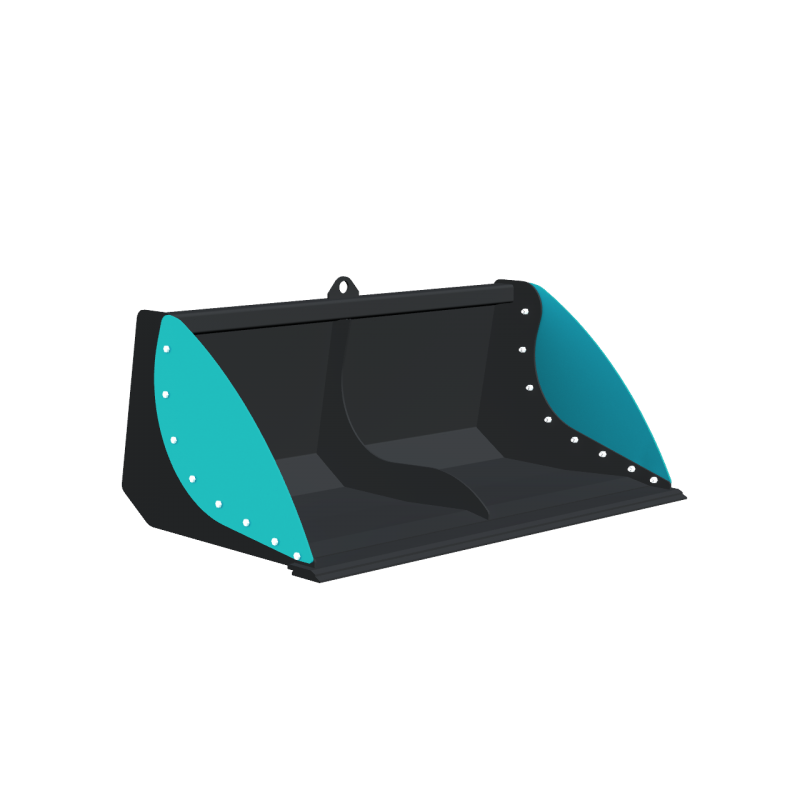

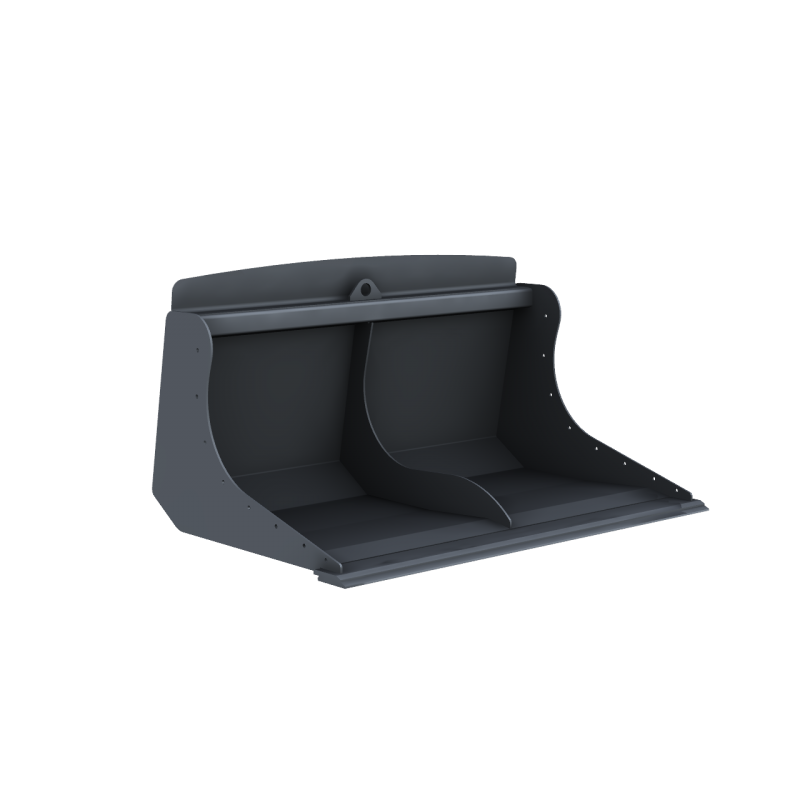

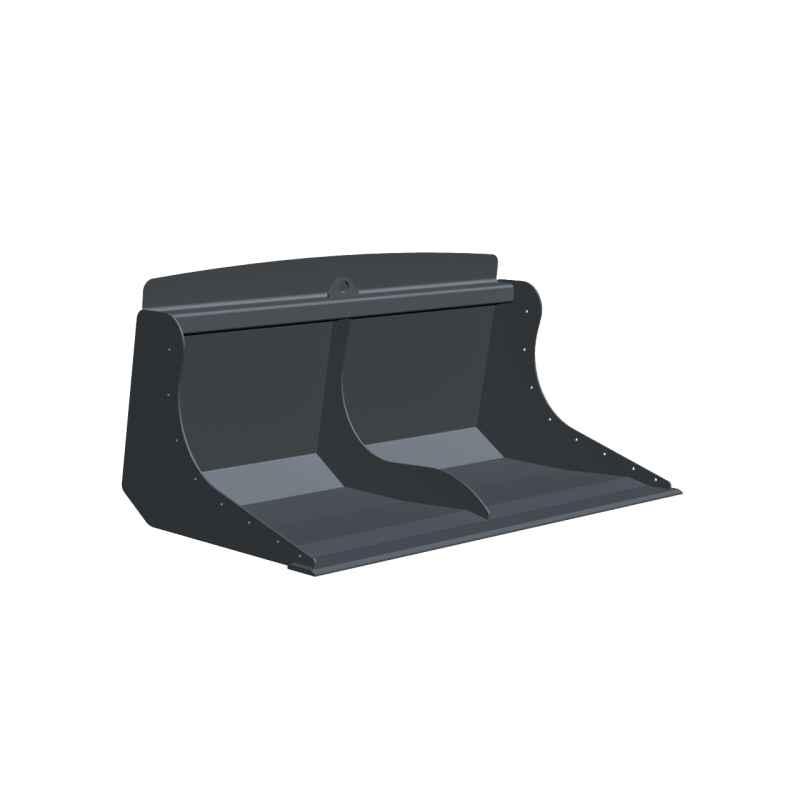

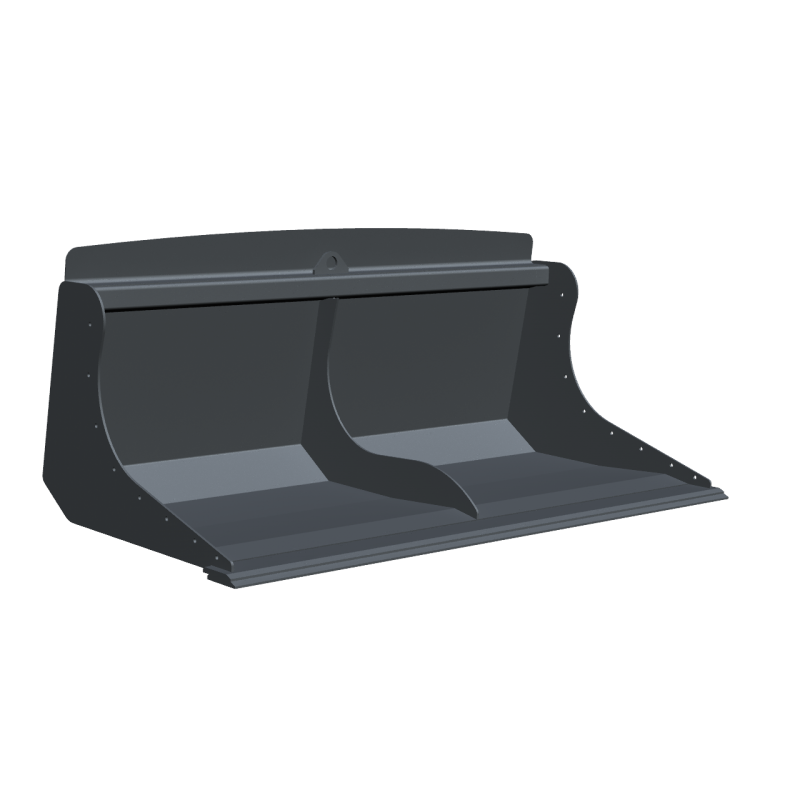

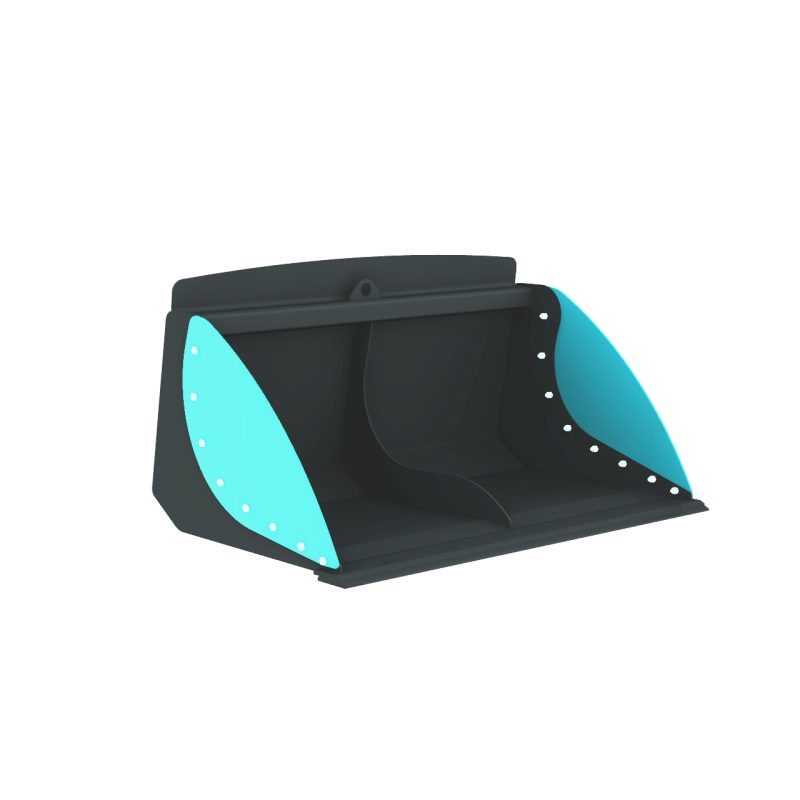

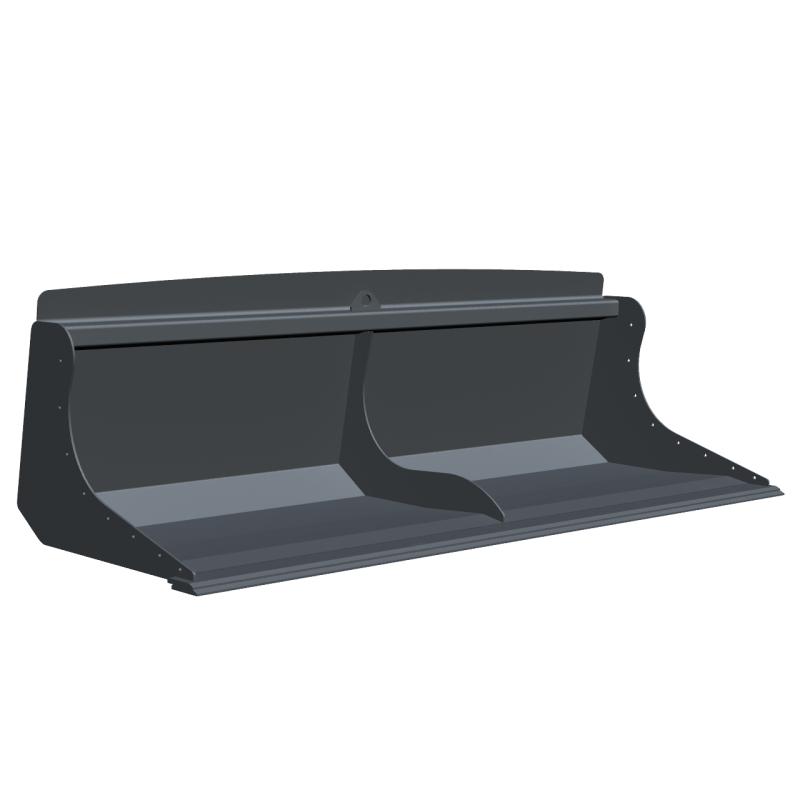

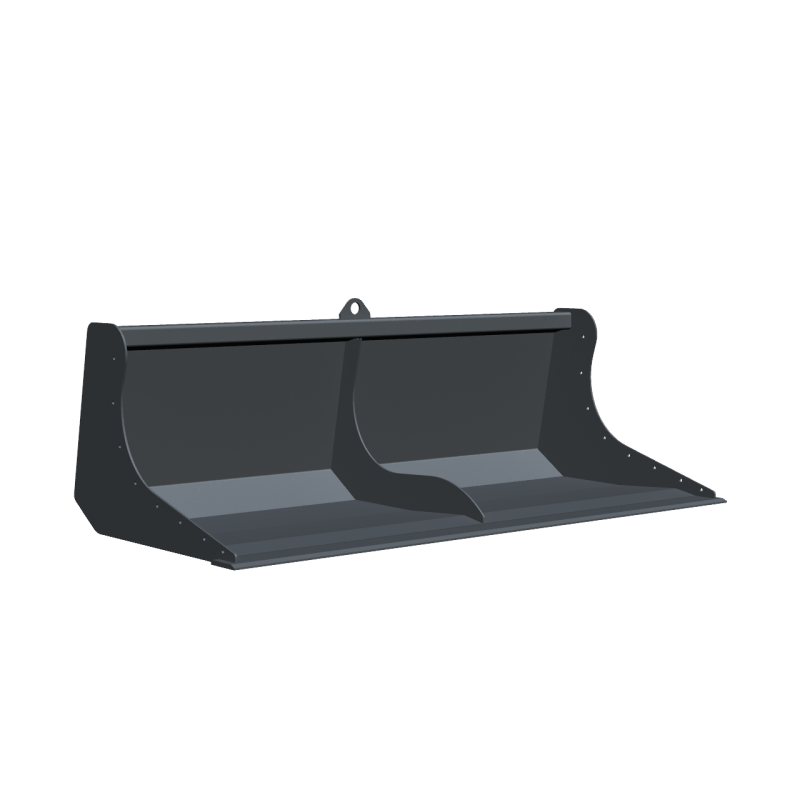

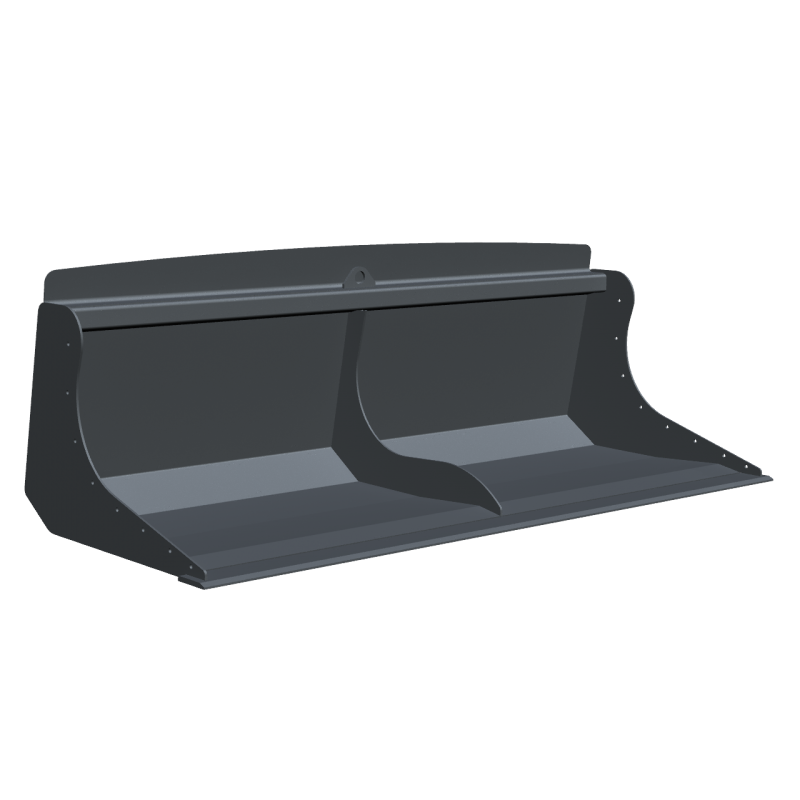

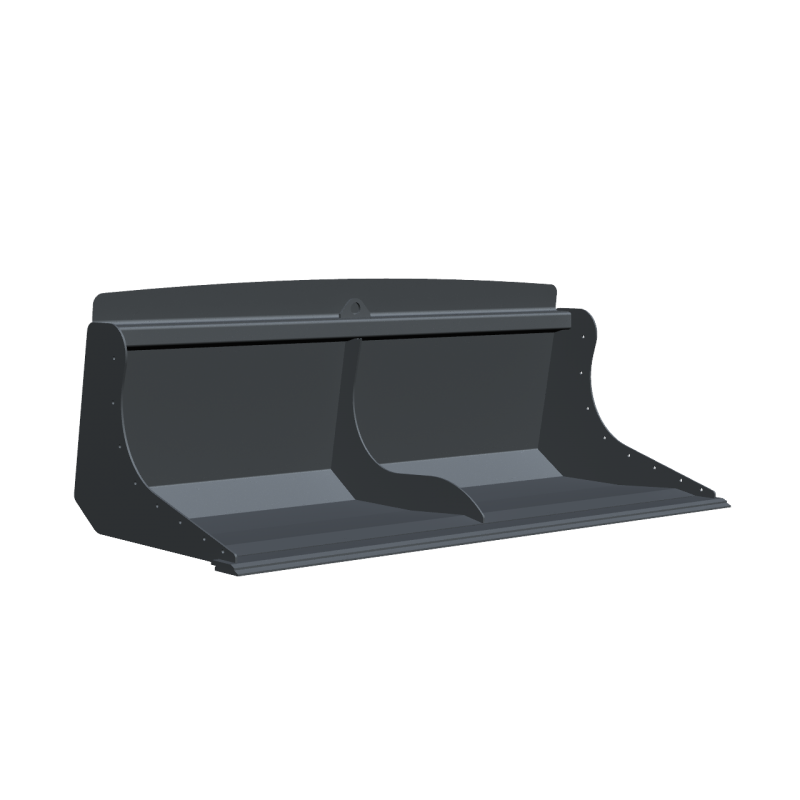

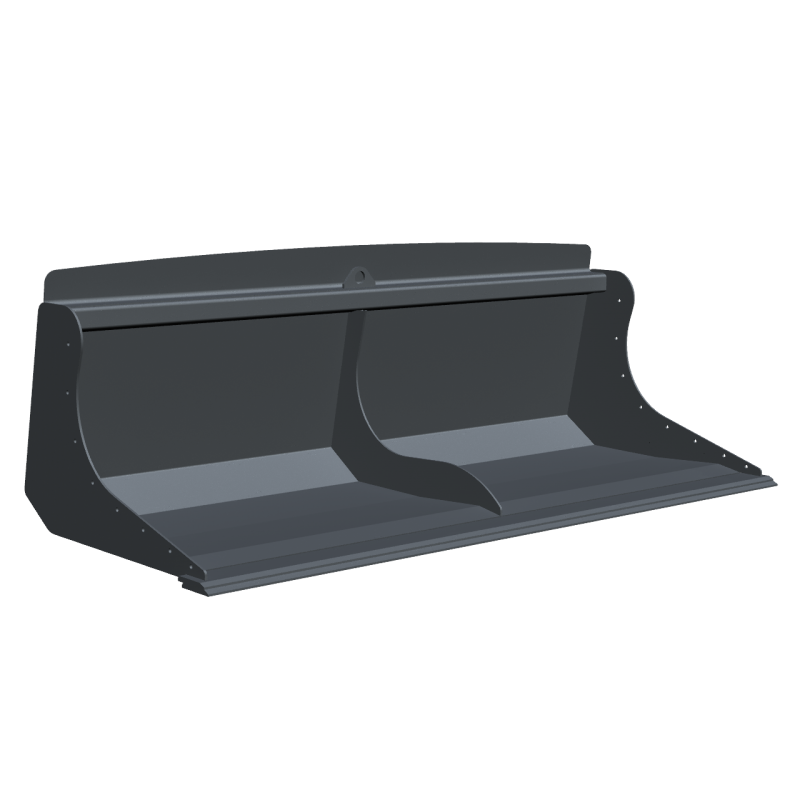

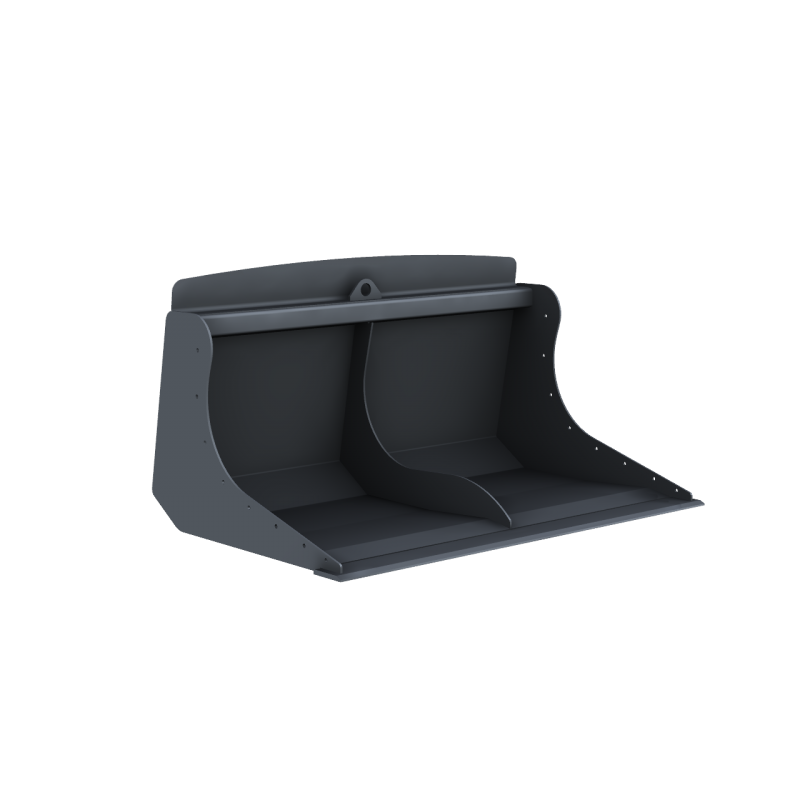

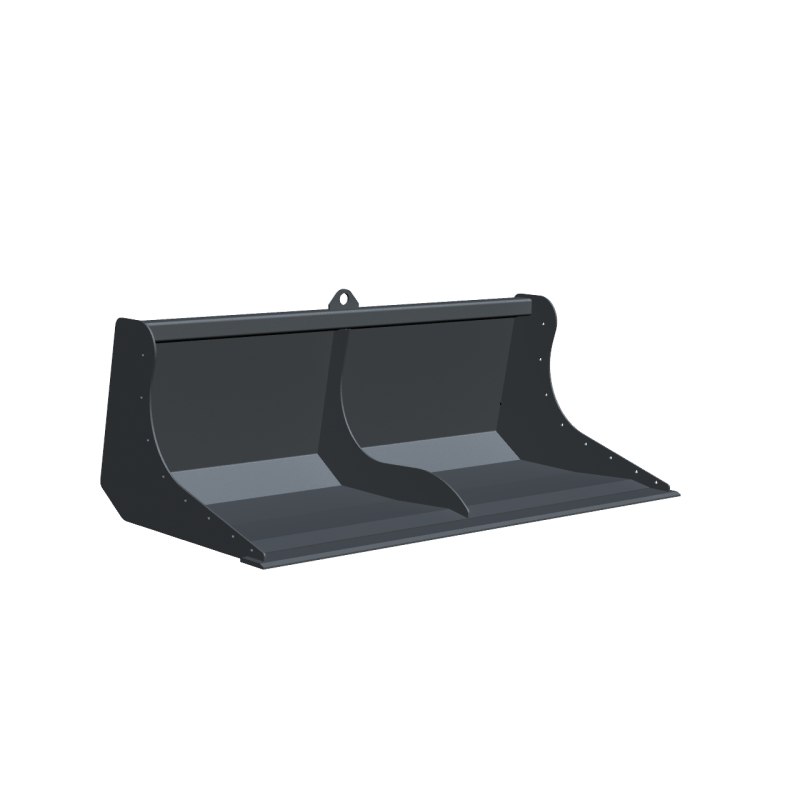

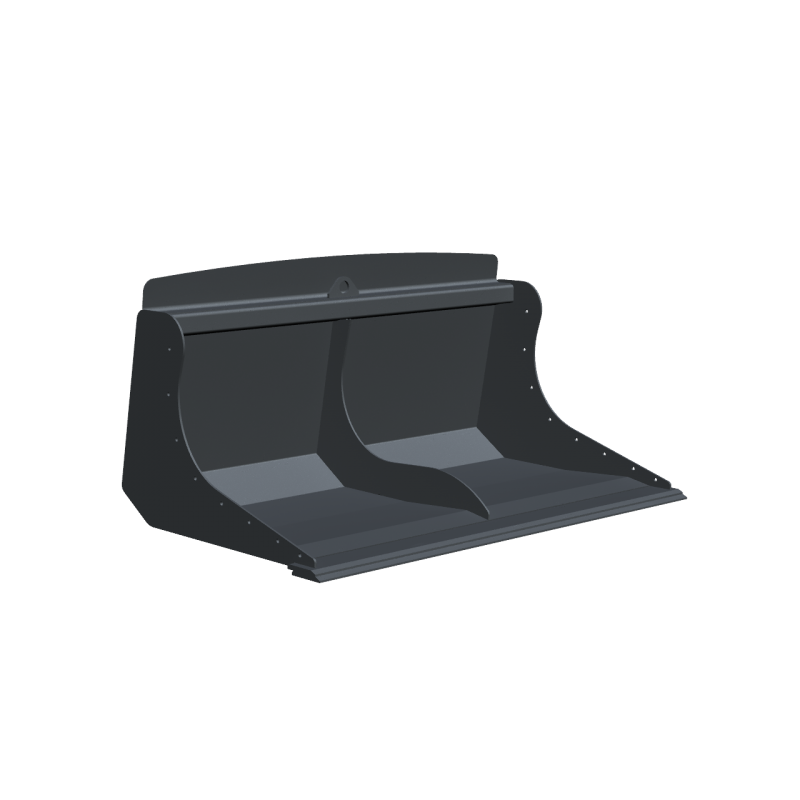

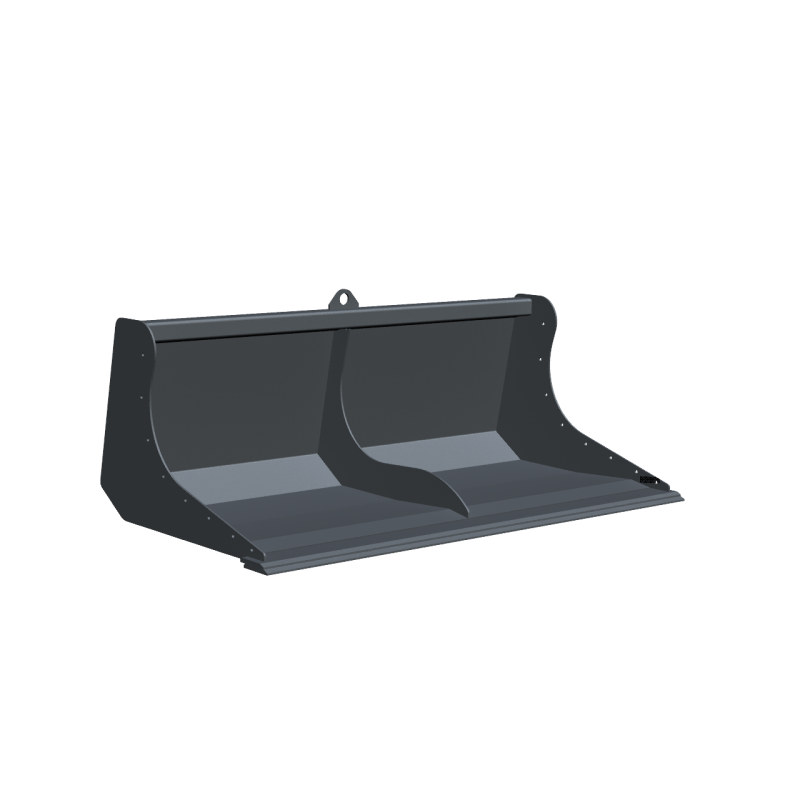

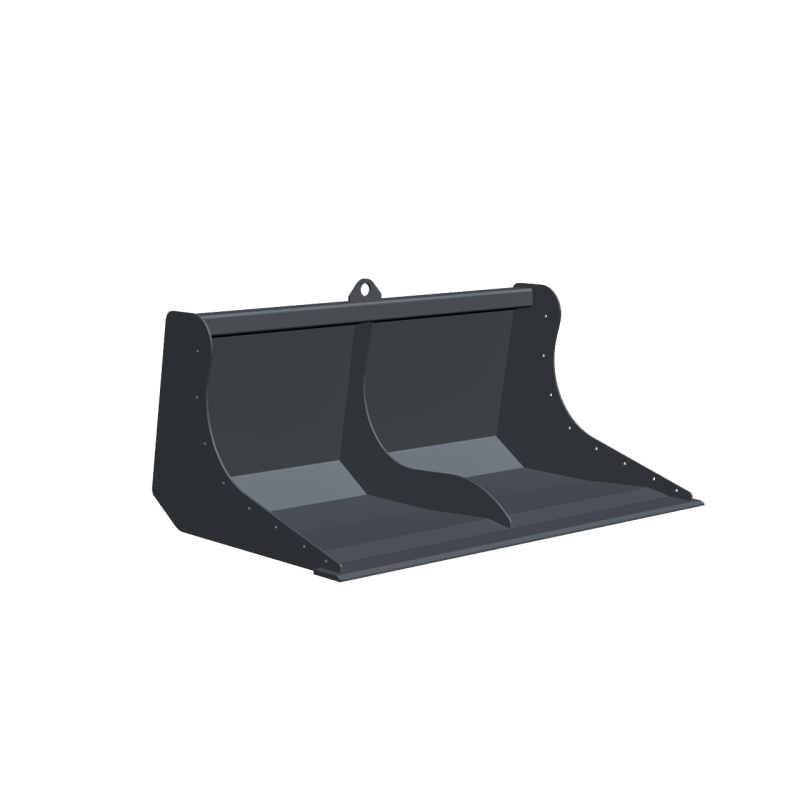

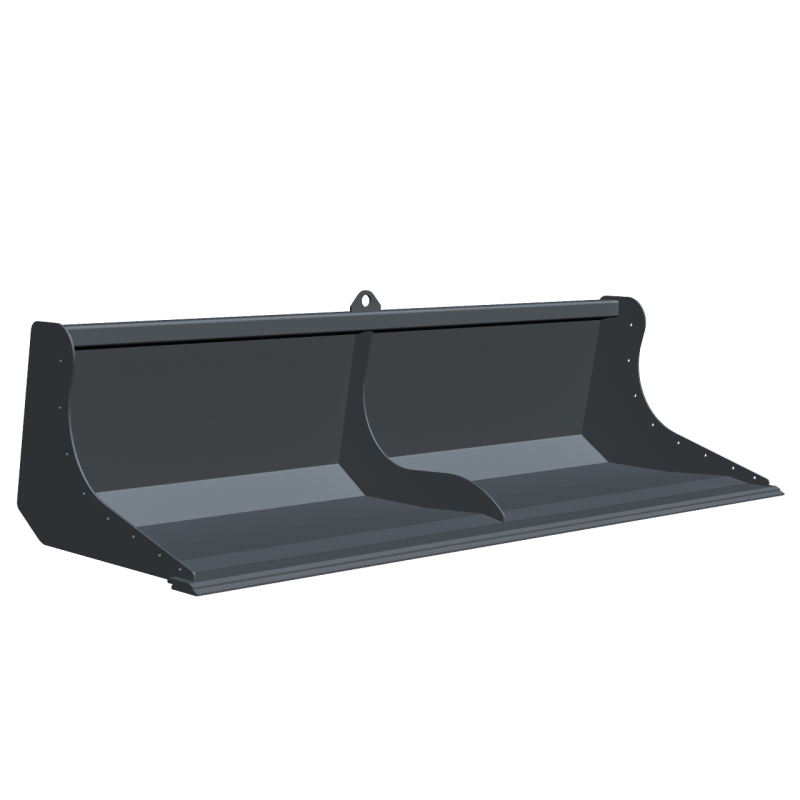

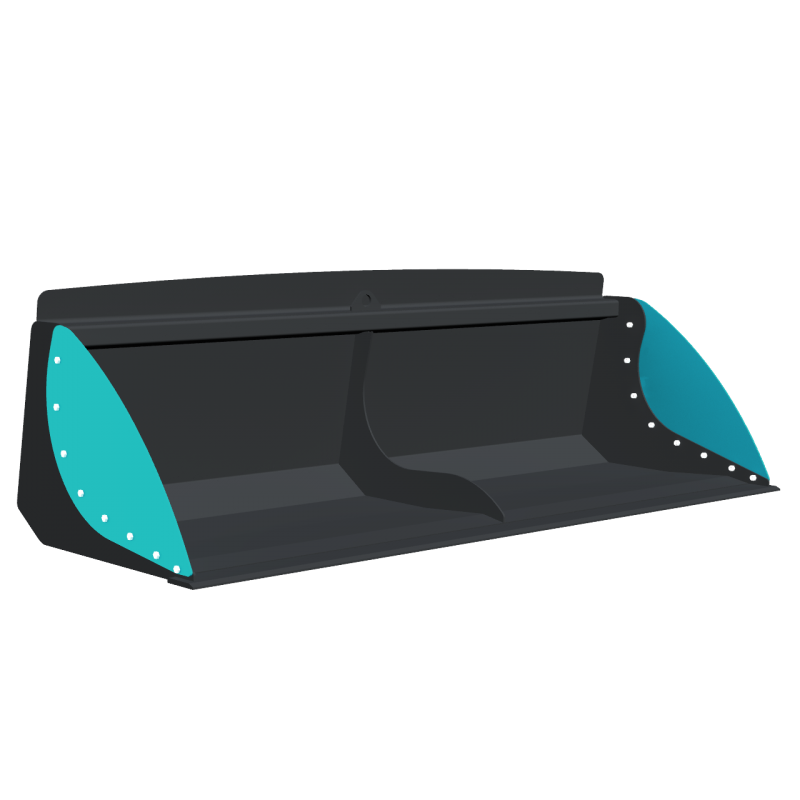

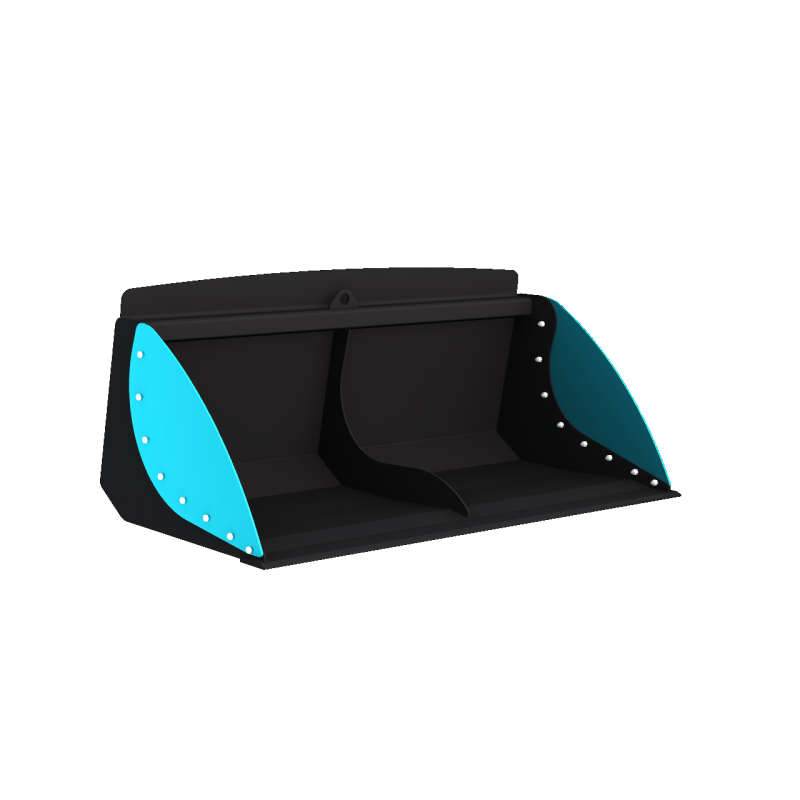

GP36 Bucket with removable sides
New product
Bucket with removable end plates for tractors and loader with 50 hp to 100 hp
Data sheet
| Power range | 50 hp - 100 hp |
| Material | 3/16" & 1/4" |
| Cutting edge | 4" x 1/2" 400 Brinell |
| Spill guard | Optional |
| Running board on Skid Steer | Yes |
| Lifting ring | Yes |
| Level indicator | Flat top |
| Bolt-on removable sides | Yes |
| Length range (min-max) | 47" - 83" |
| Volume range (cu.ft) (min-max) | 12,5 - 21,9 |
More info
Bucket with removable sides for 50hp to 100 hp loaders and tractors
Construction with High Strength Steel: 3/16" material, 1/4" end plates
5/8" cutting edge

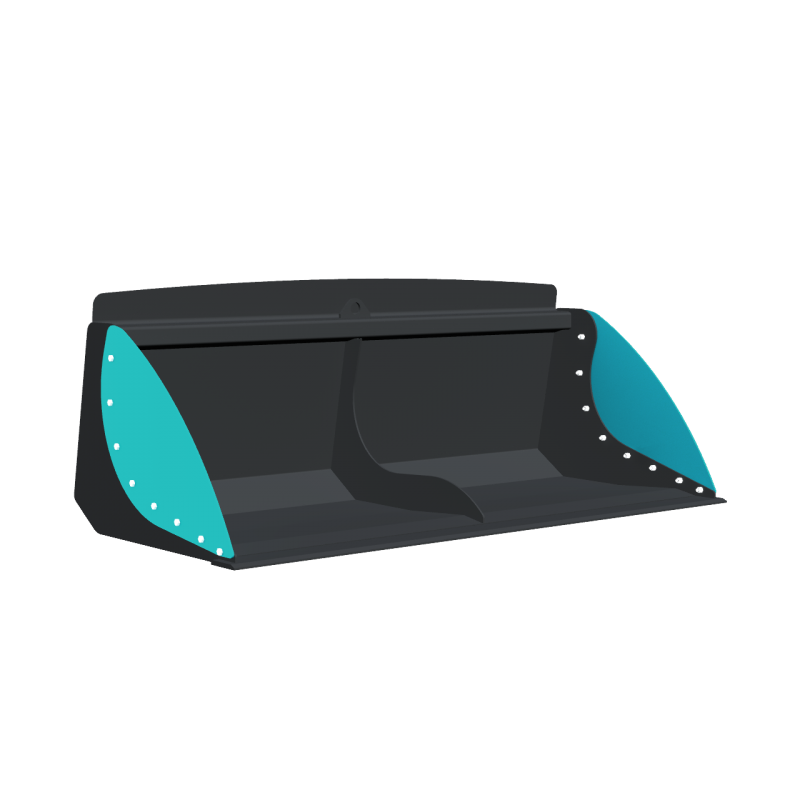

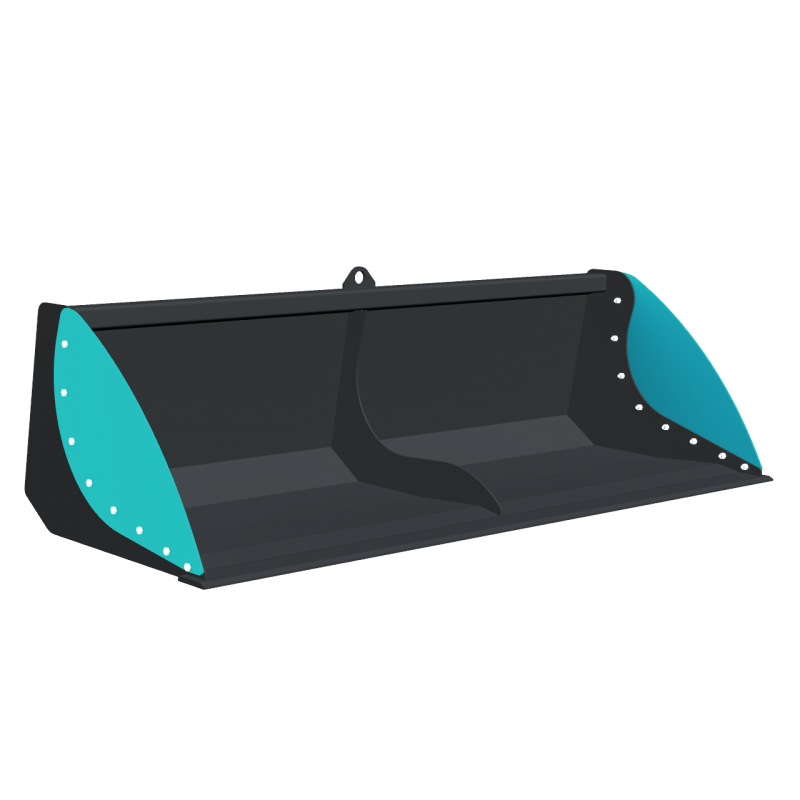

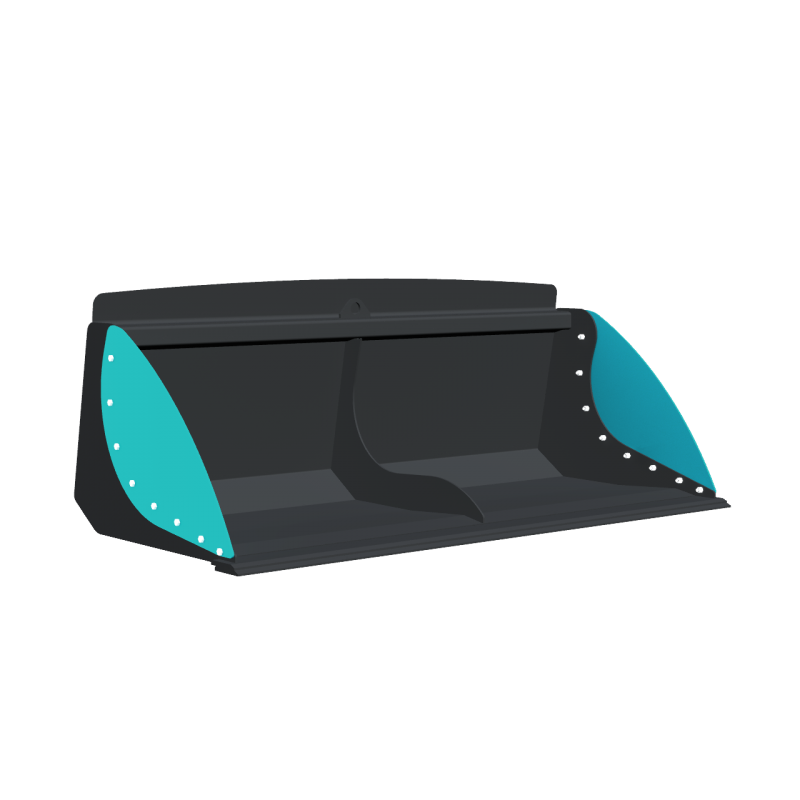

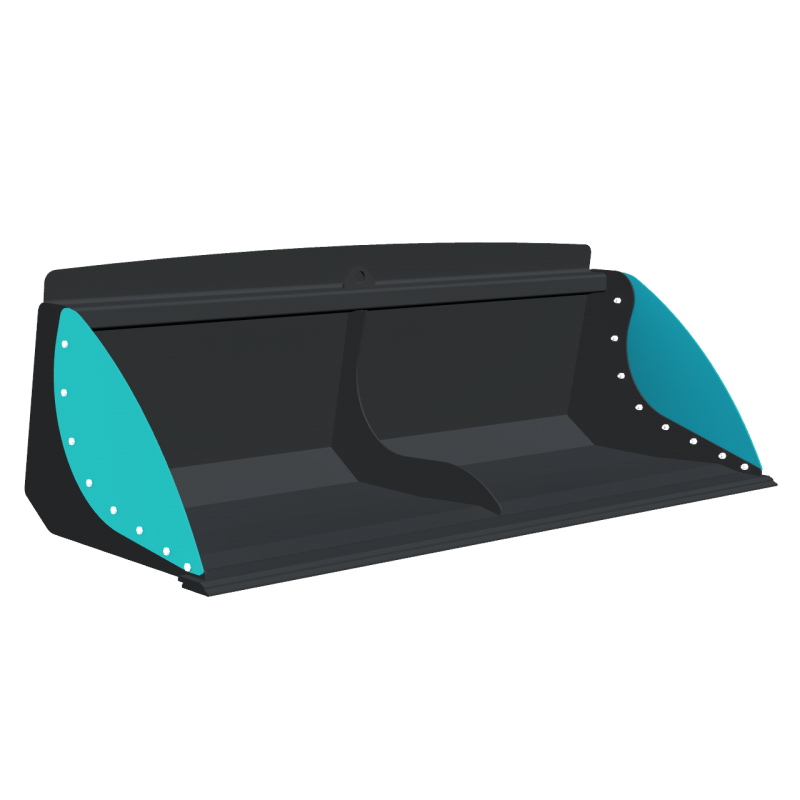

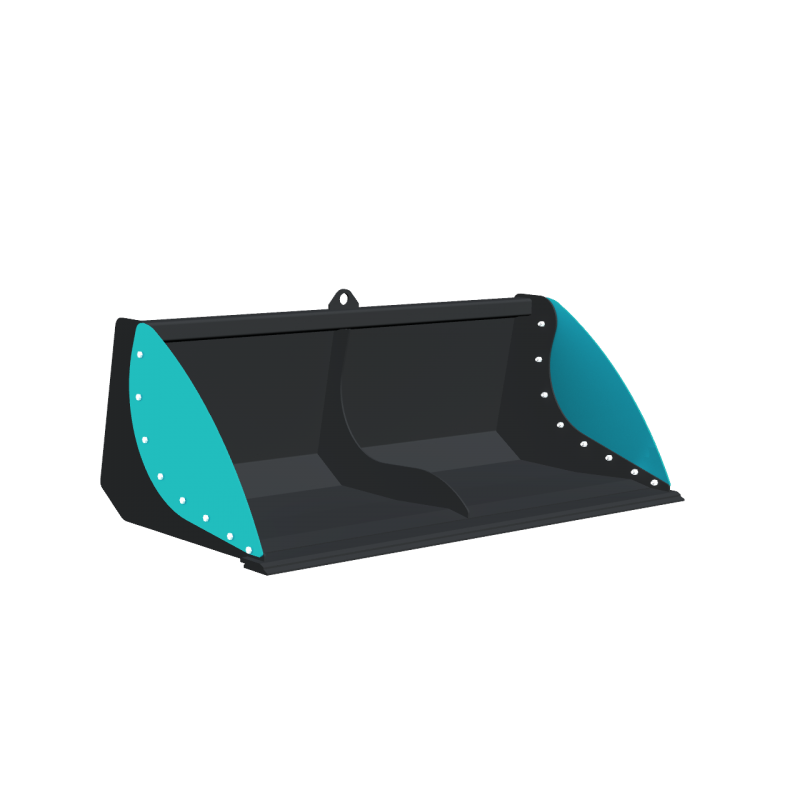

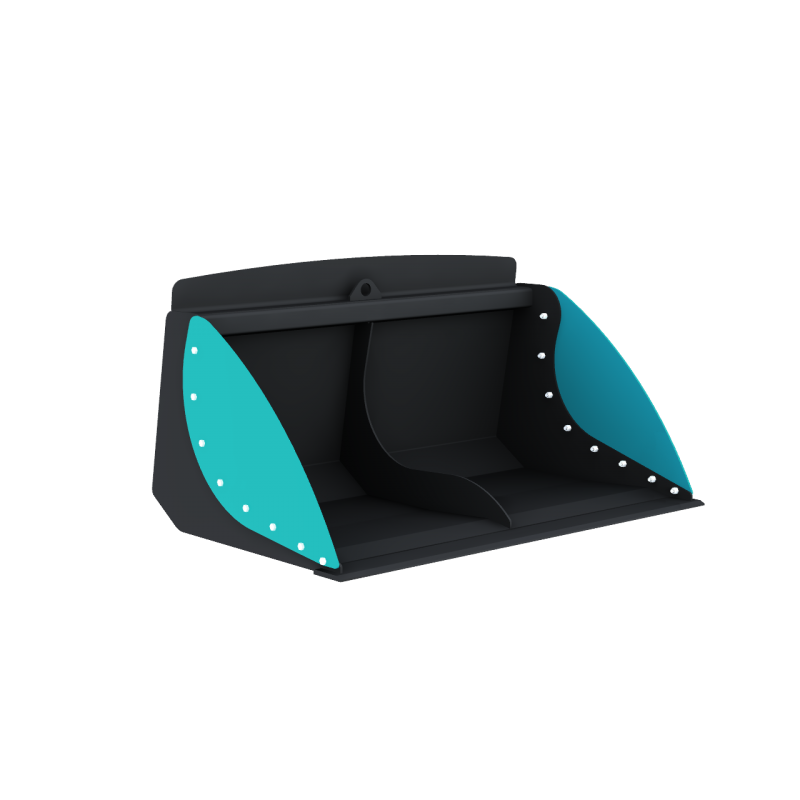

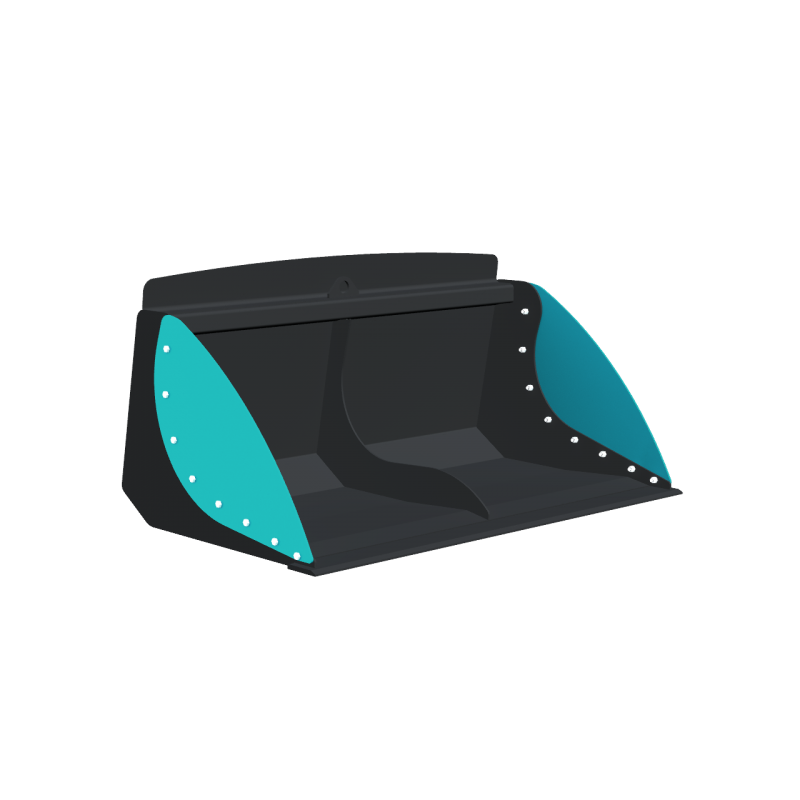

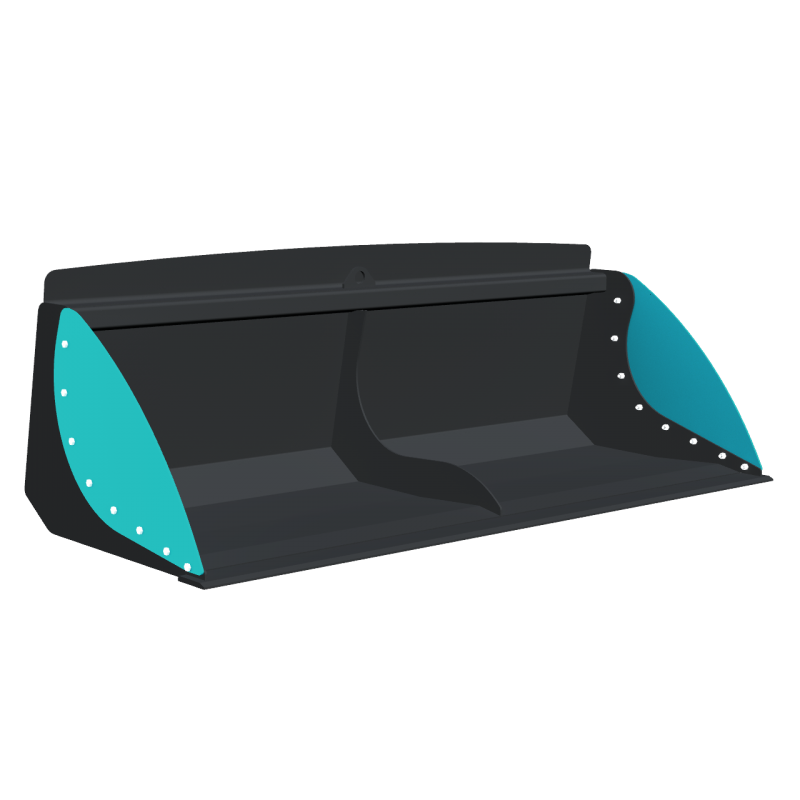

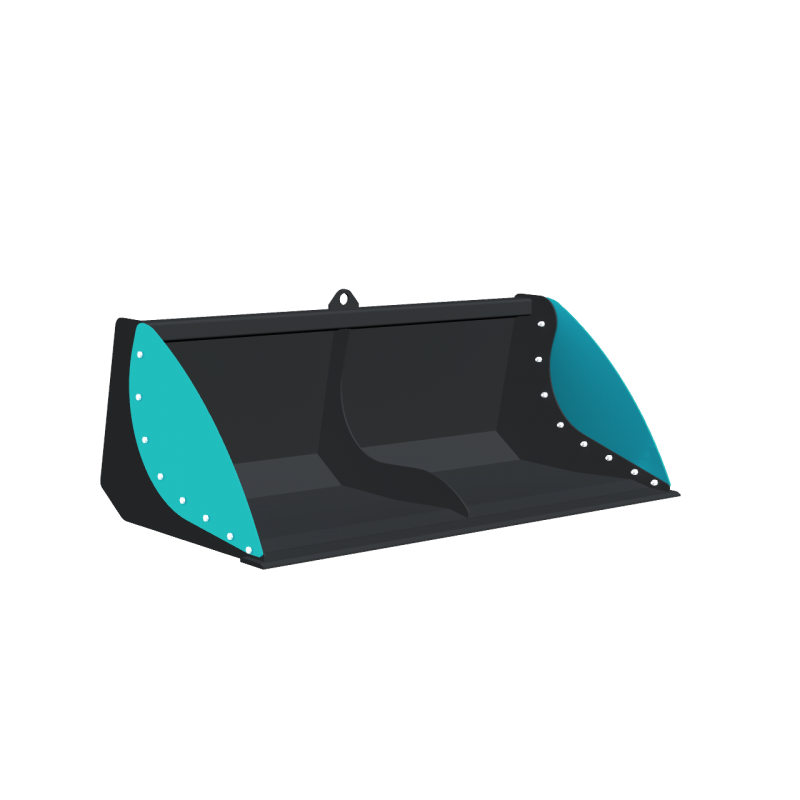

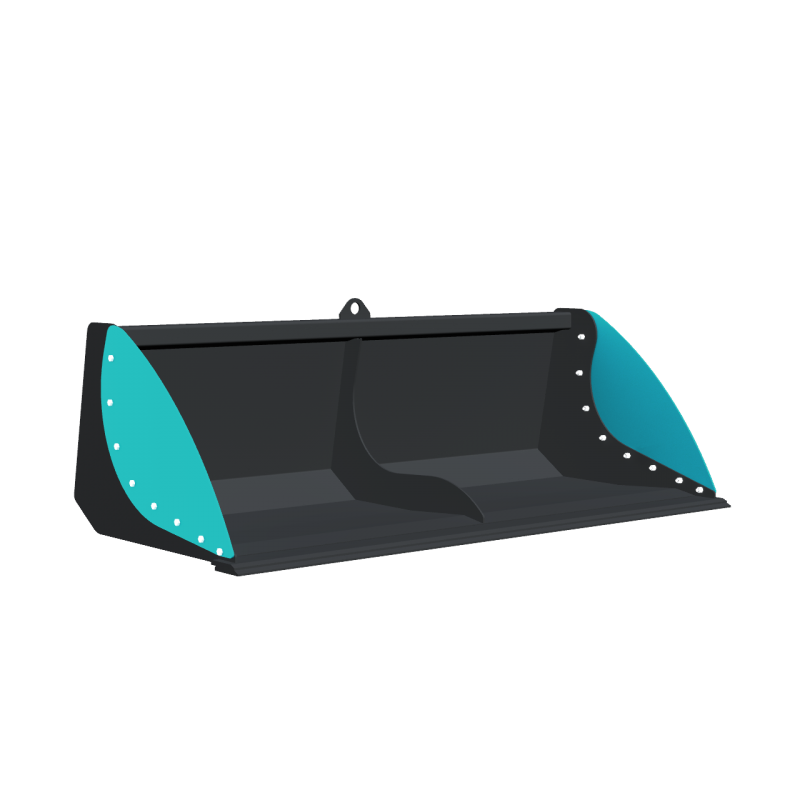

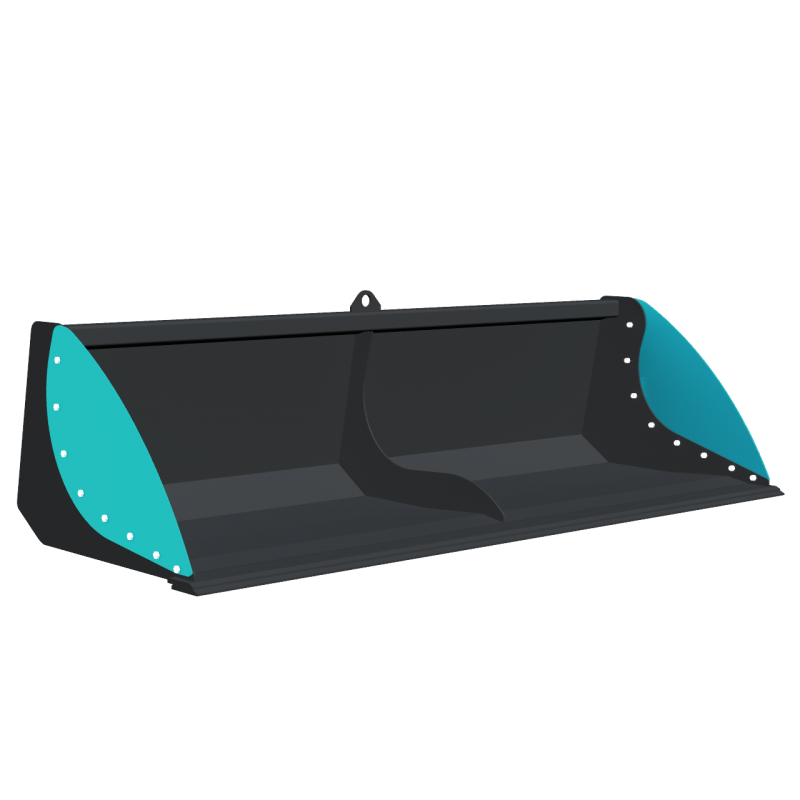

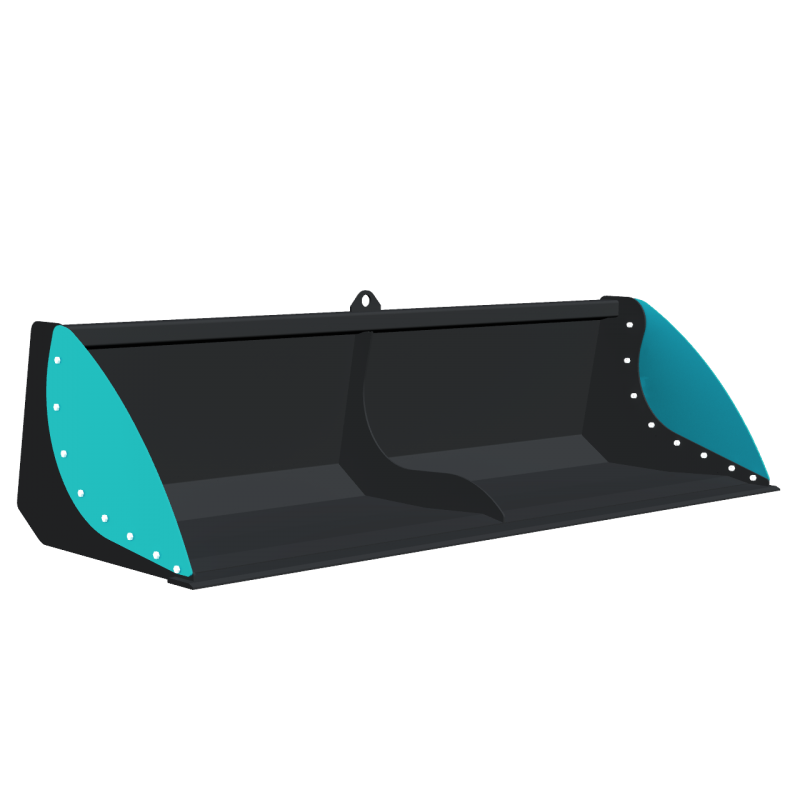

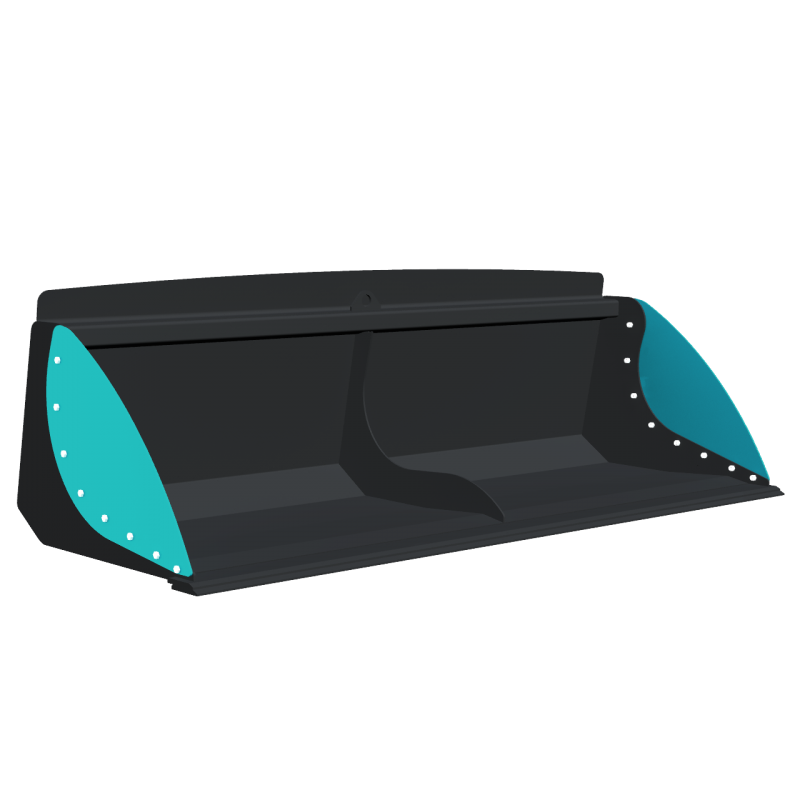

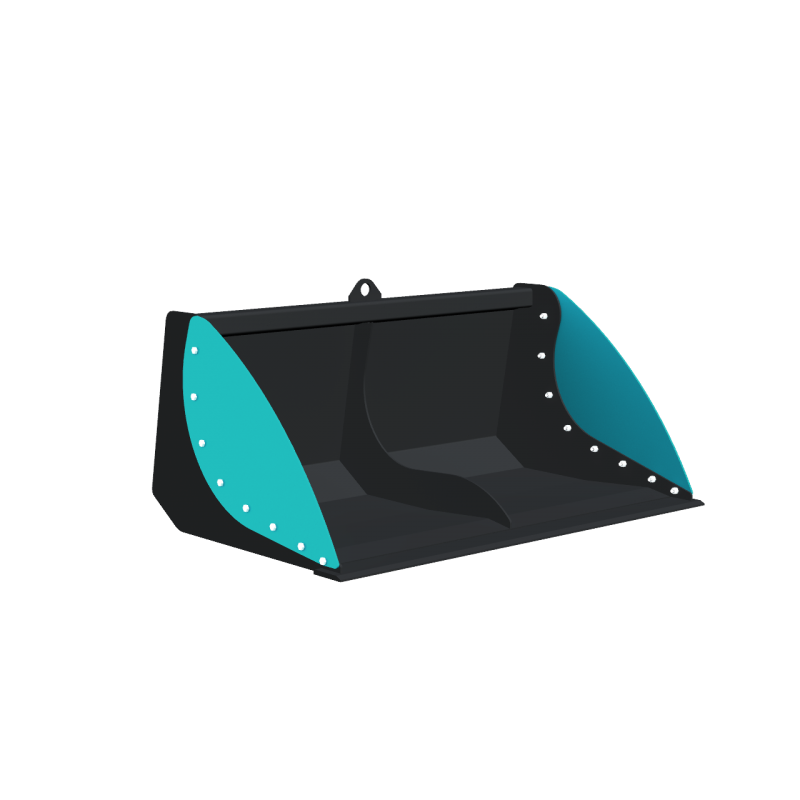

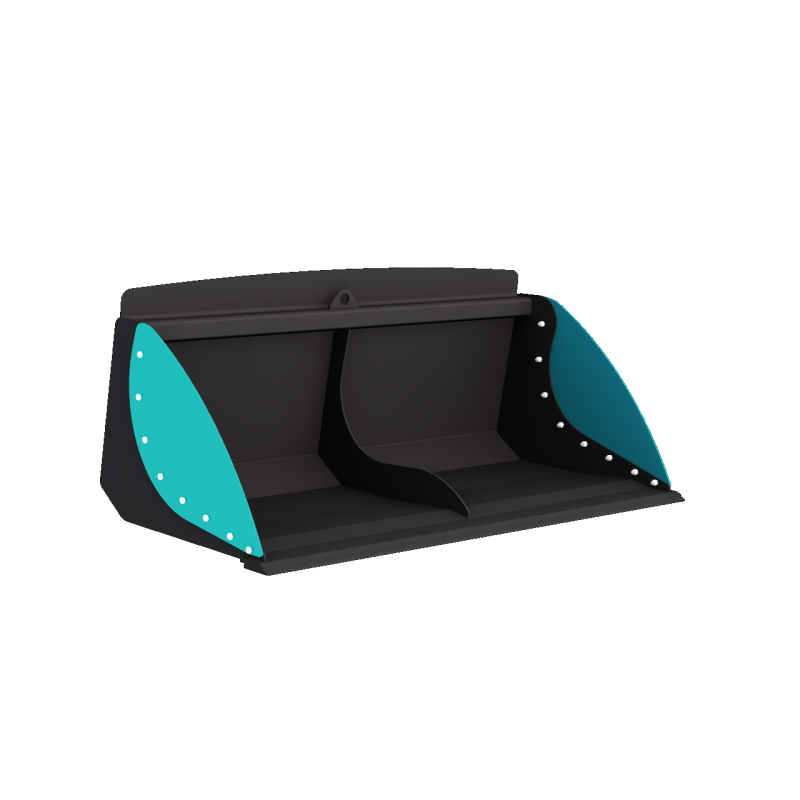

Bolt-on removable sides included
Central bucket reinforcement
Flat top acts as level indicator
Lifting ring
Running board on skid steer attachment
Wear pads
5/8" bolt-on cutting edge
Made in Canada
| Part # | Length | Volume (cu.ft) | Depth | Height | Weight (lbs) |
| GP3247 | 47" | 12,5 | 34" | 22" | 350 |
| GP3251 | 51" | 13,6 | 34" | 22" | 365 |
| GP3259 | 59" | 15,6 | 34" | 22" | 395 |
| GP3267 | 67" | 17,7 | 34" | 22" | 430 |
| GP3275 | 75" | 19,8 | 34" | 22" | 460 |
| GP3283 | 83" | 21,9 | 34" | 22" | 495 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
