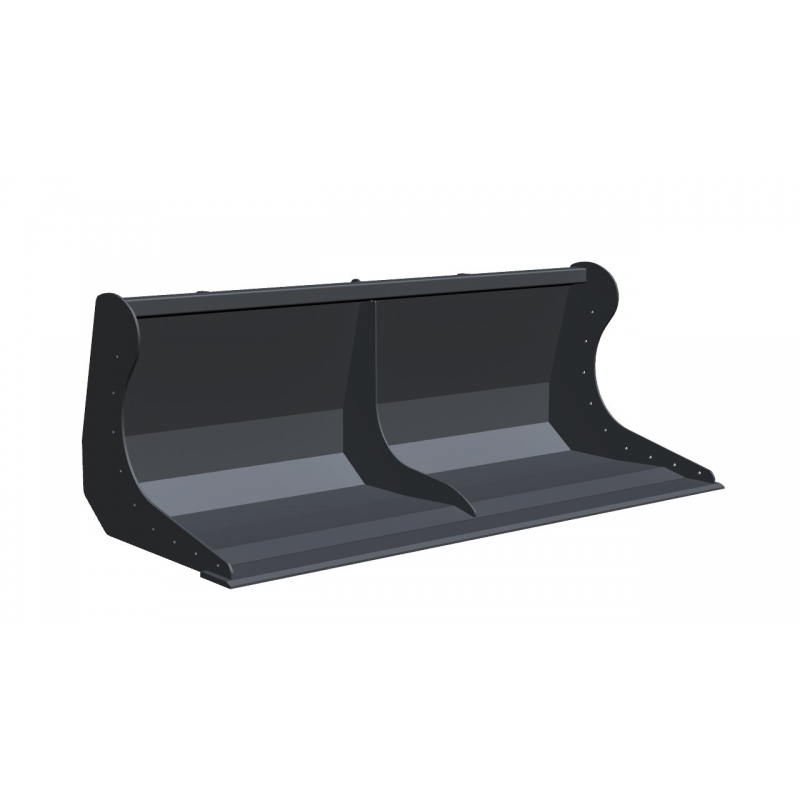

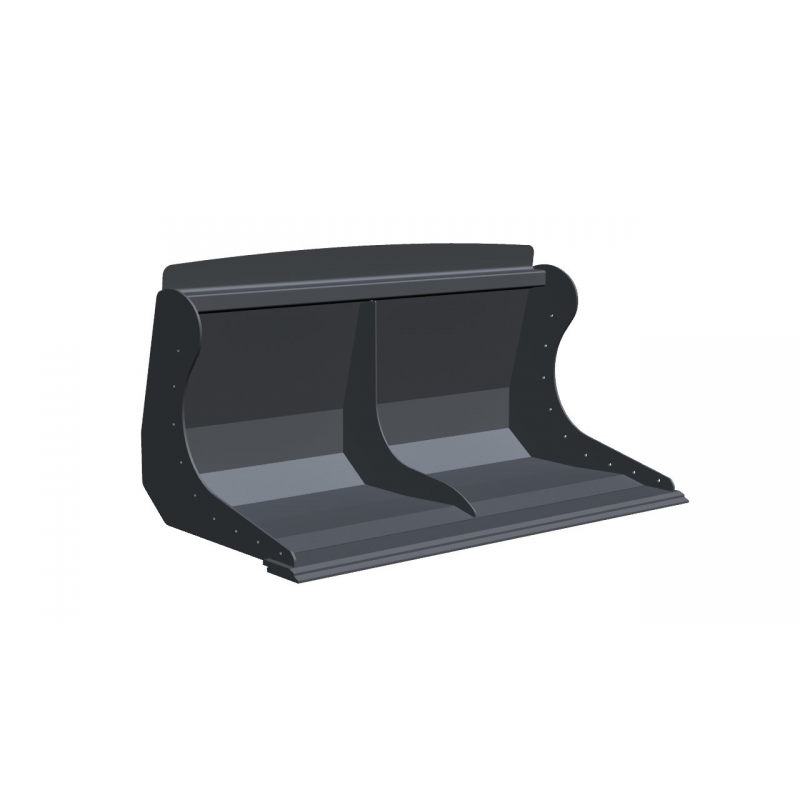

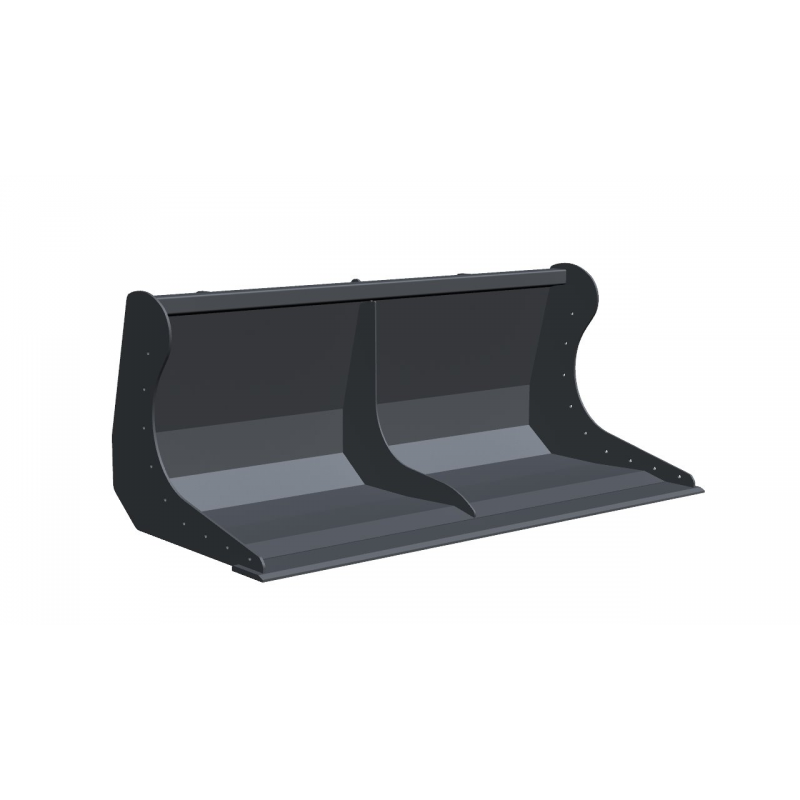

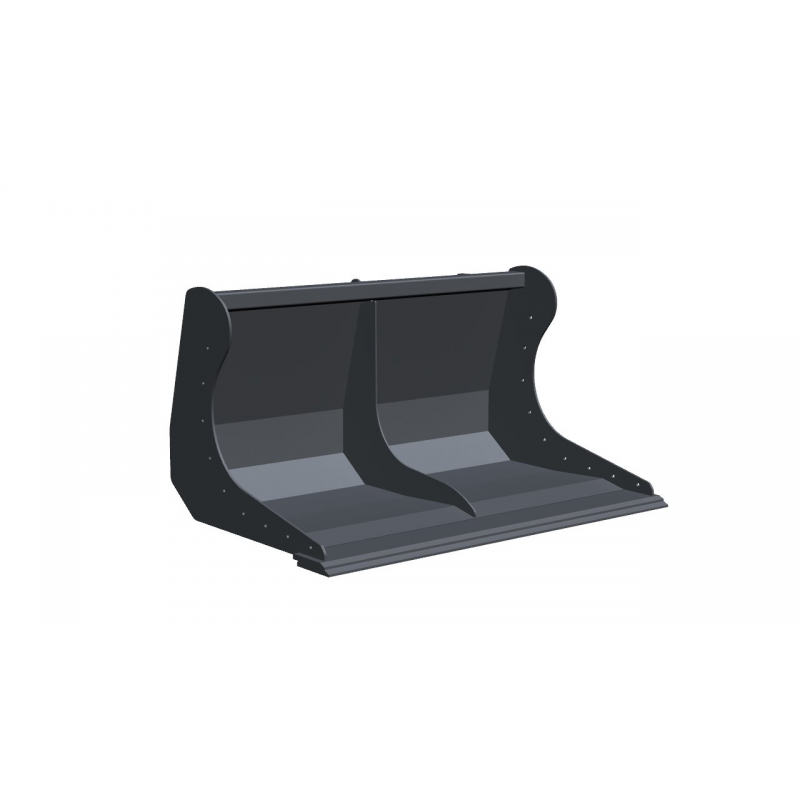

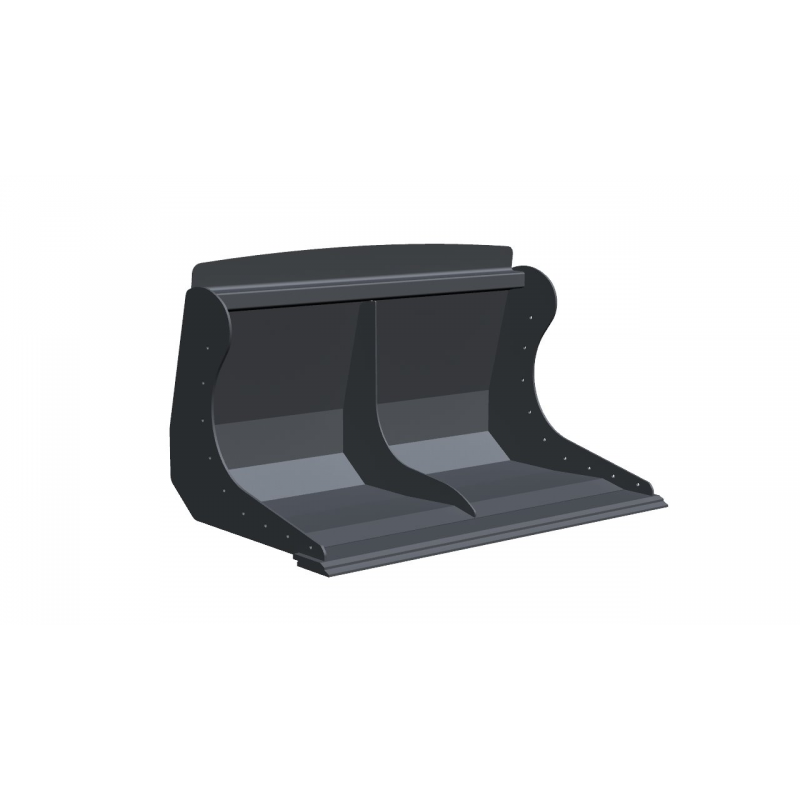

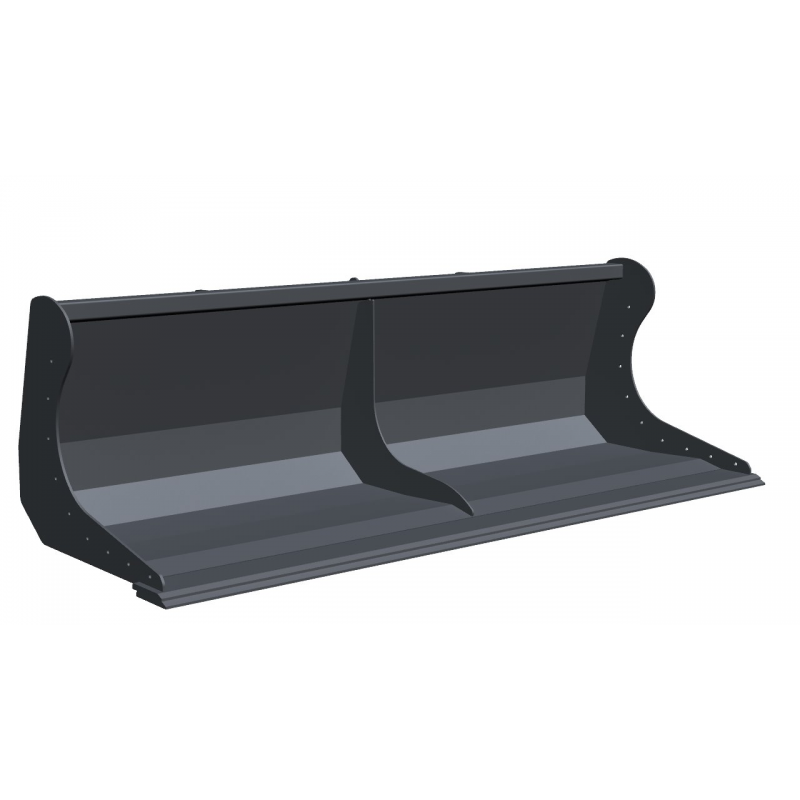

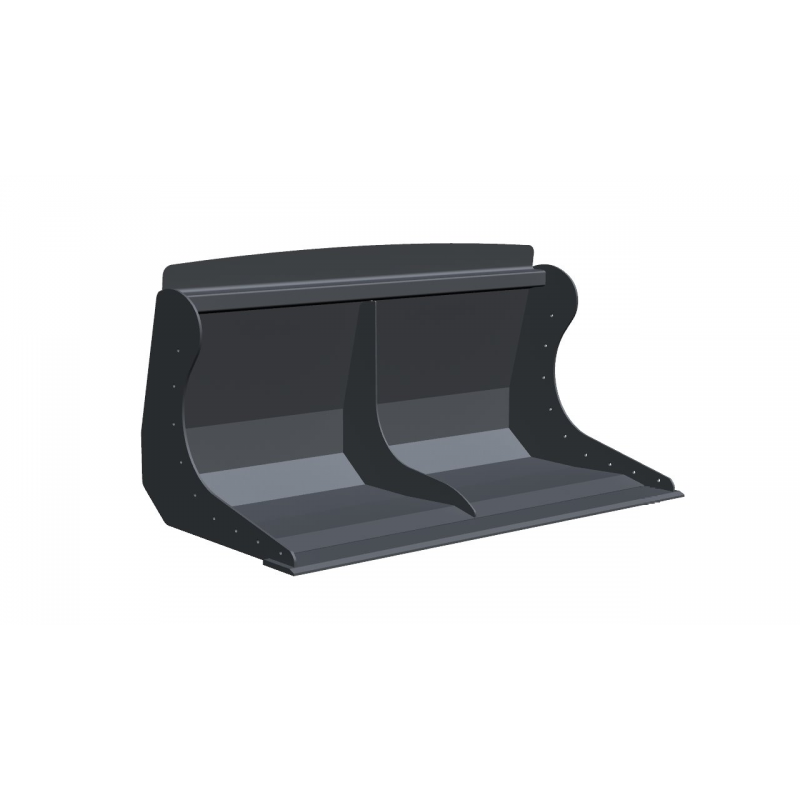

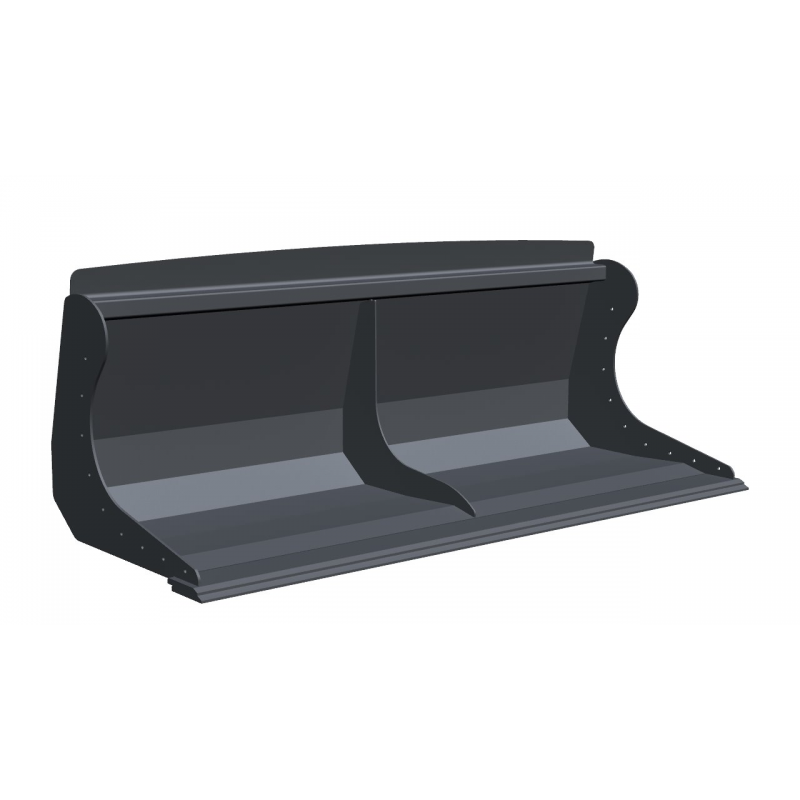

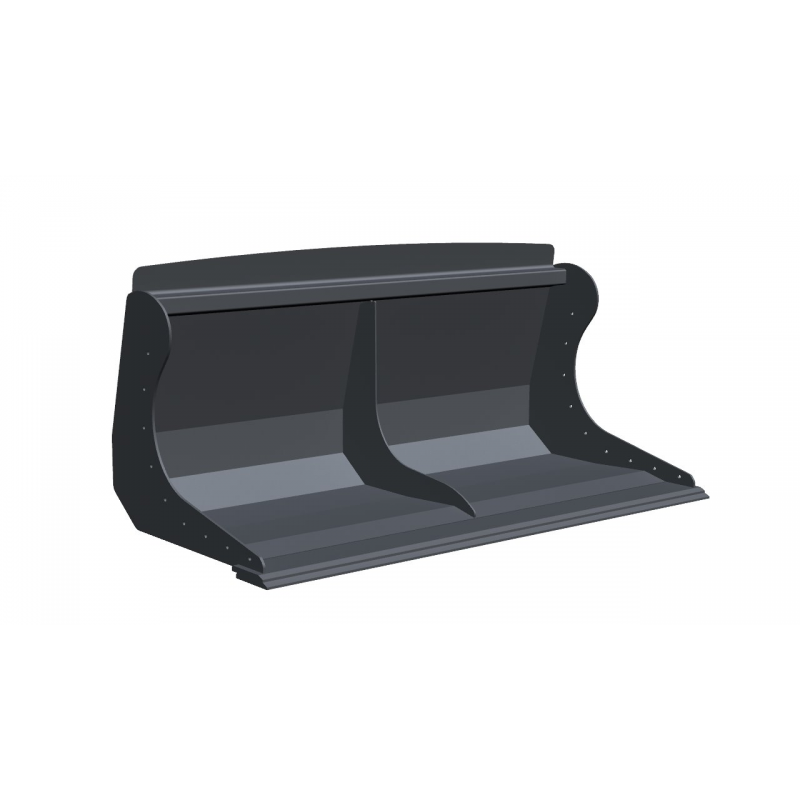

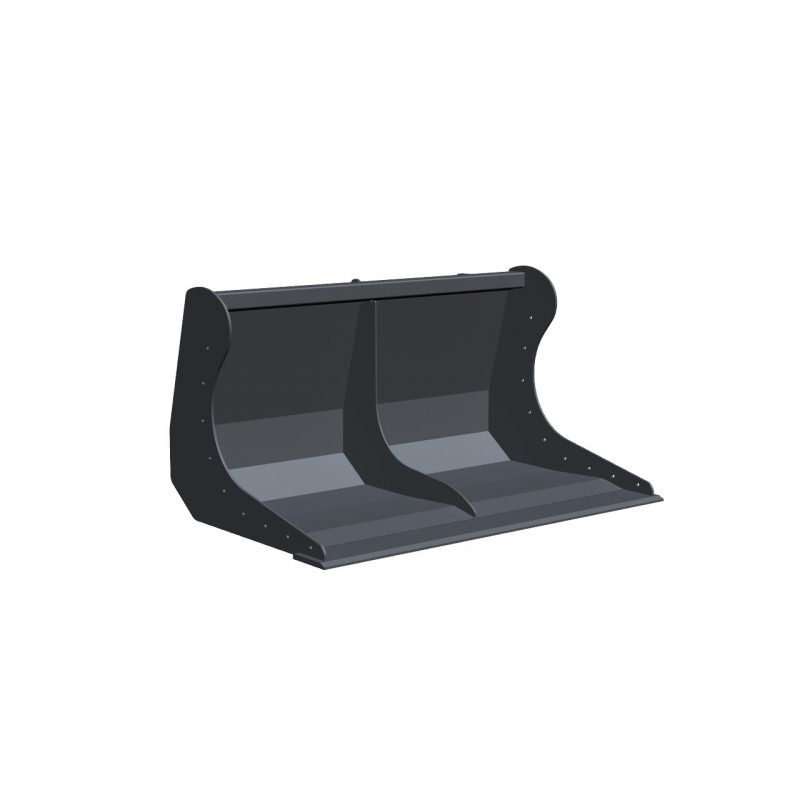

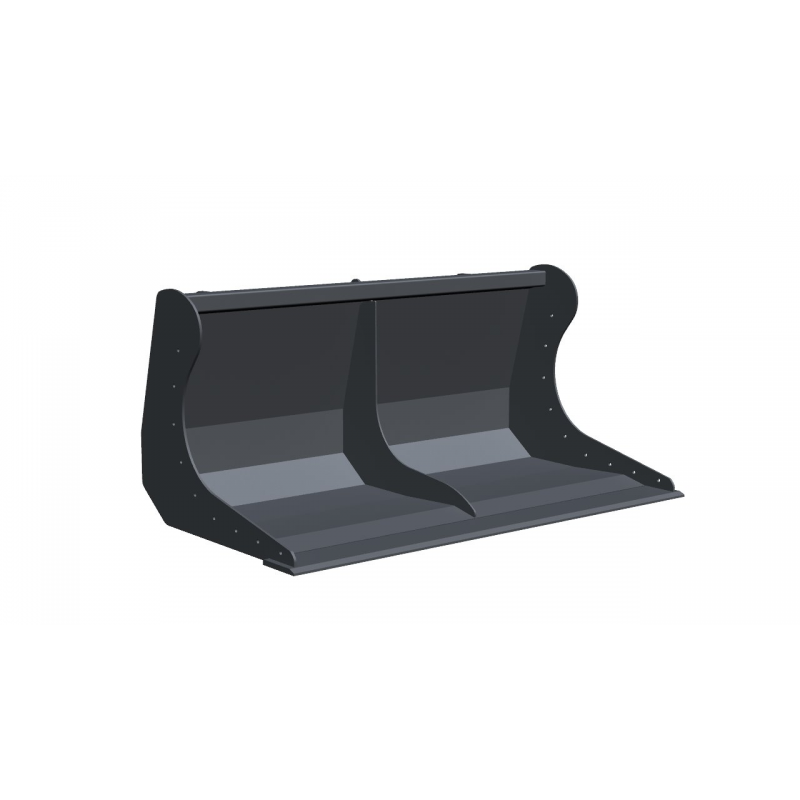

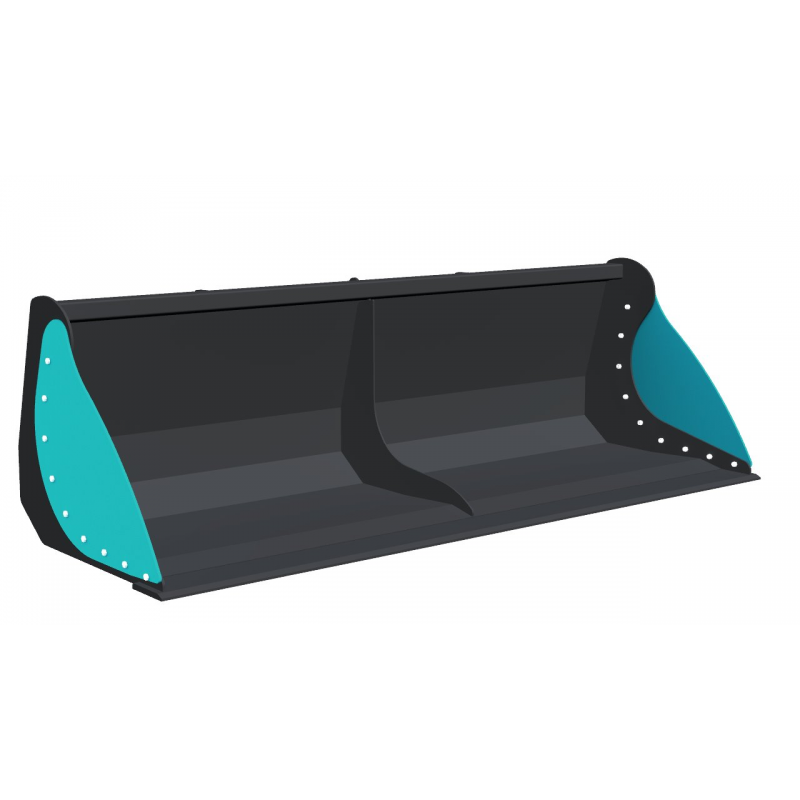

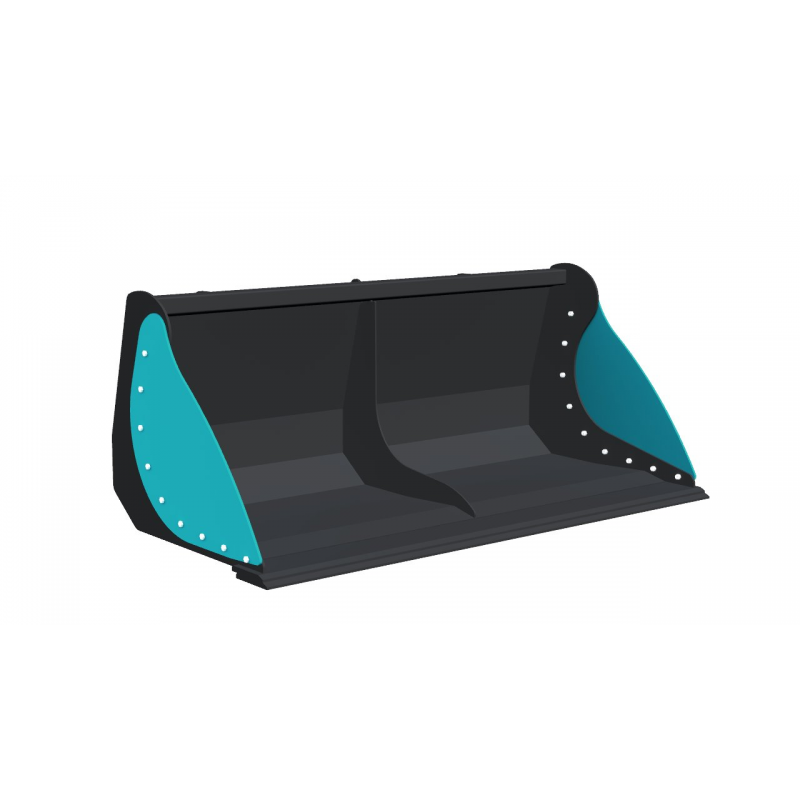

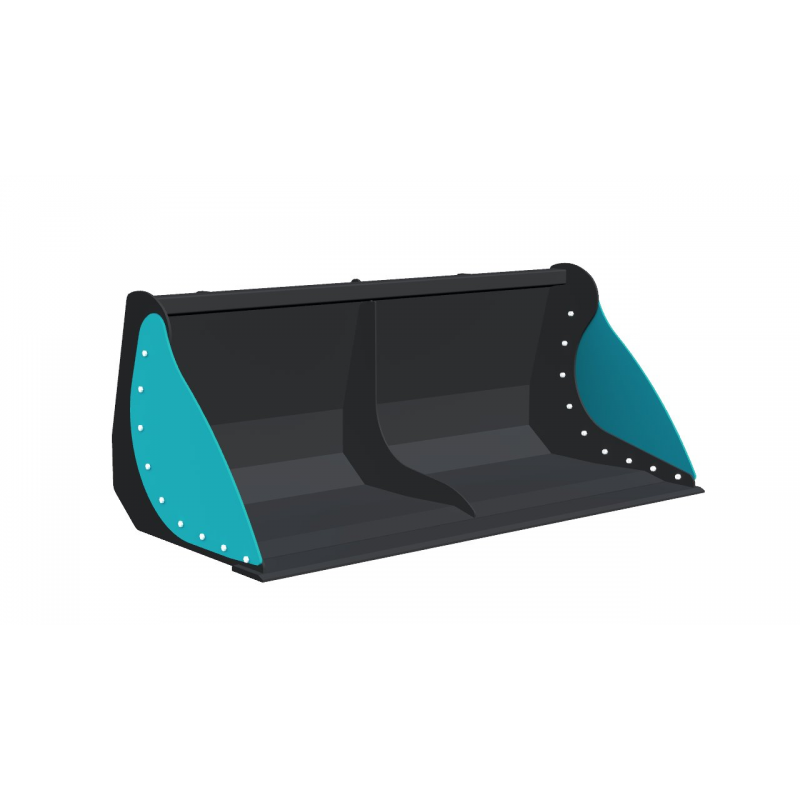

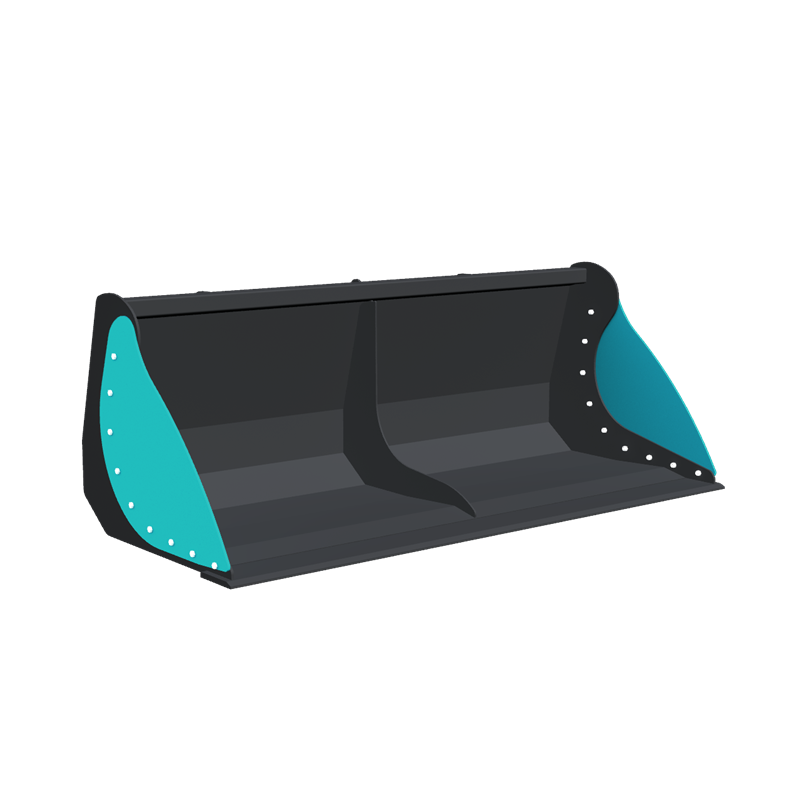

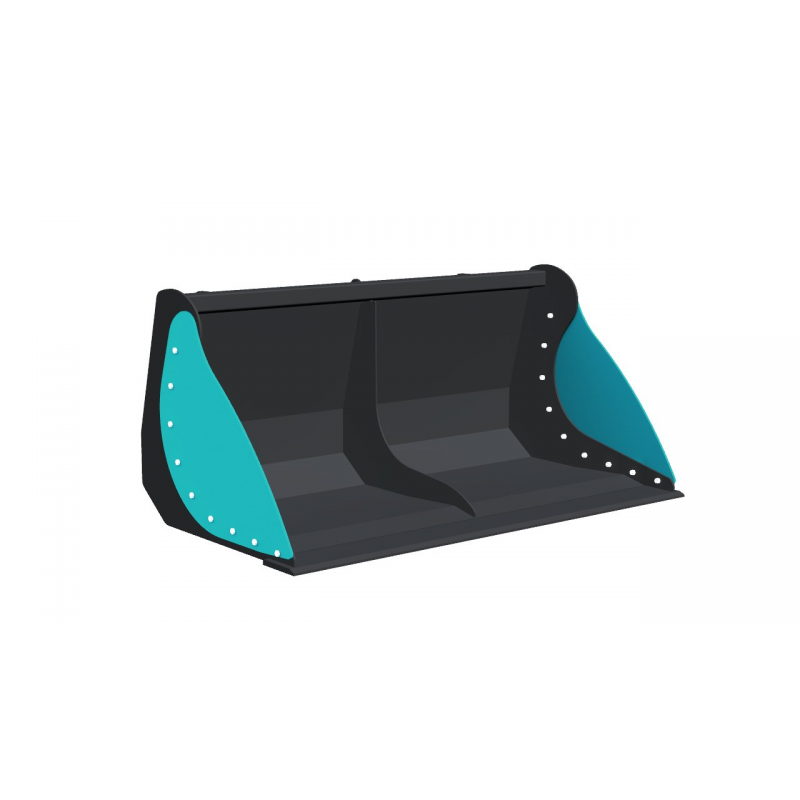

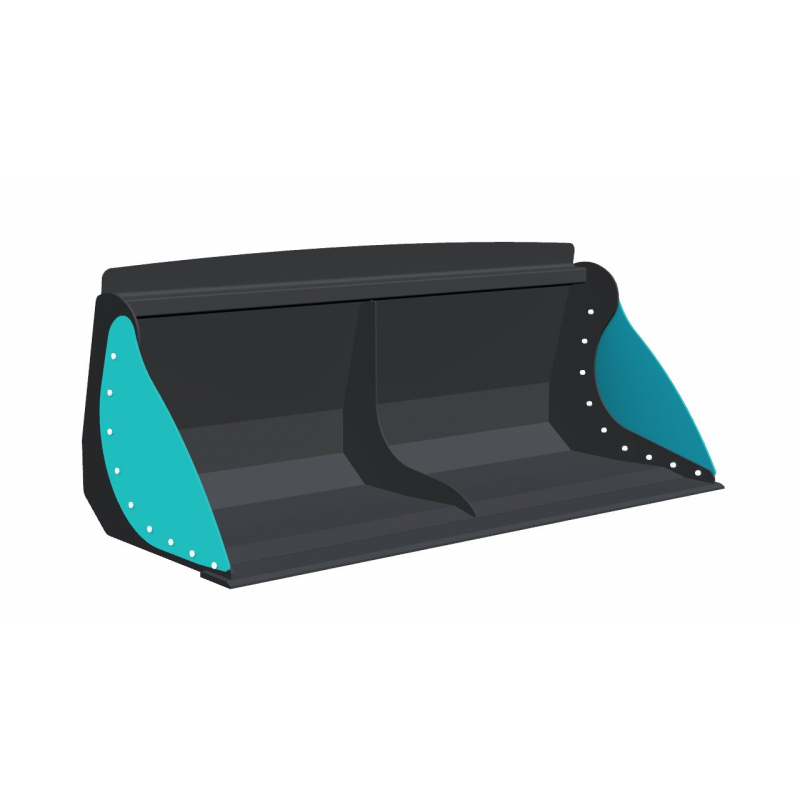

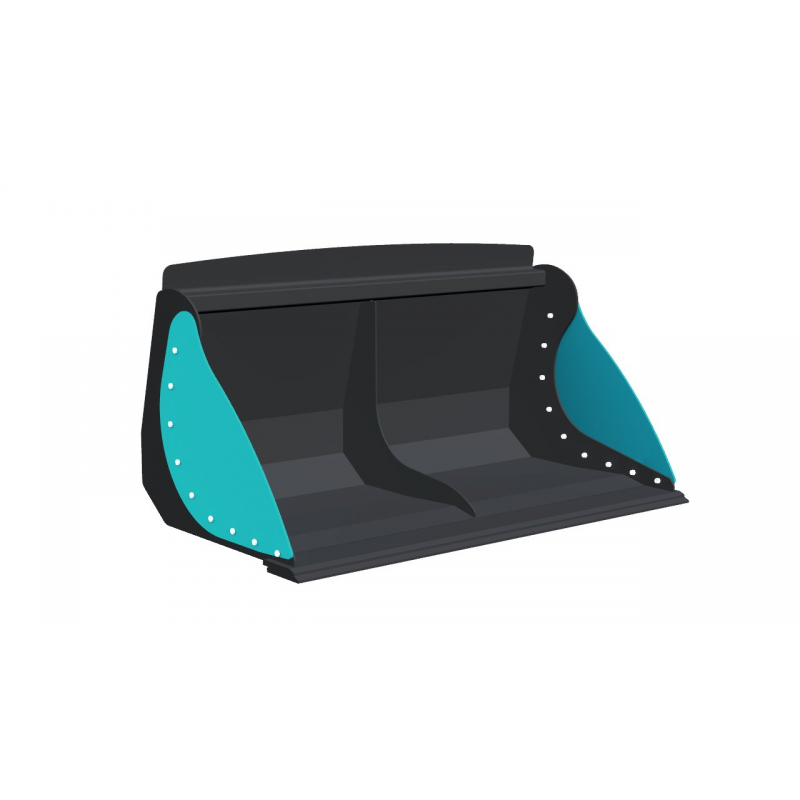

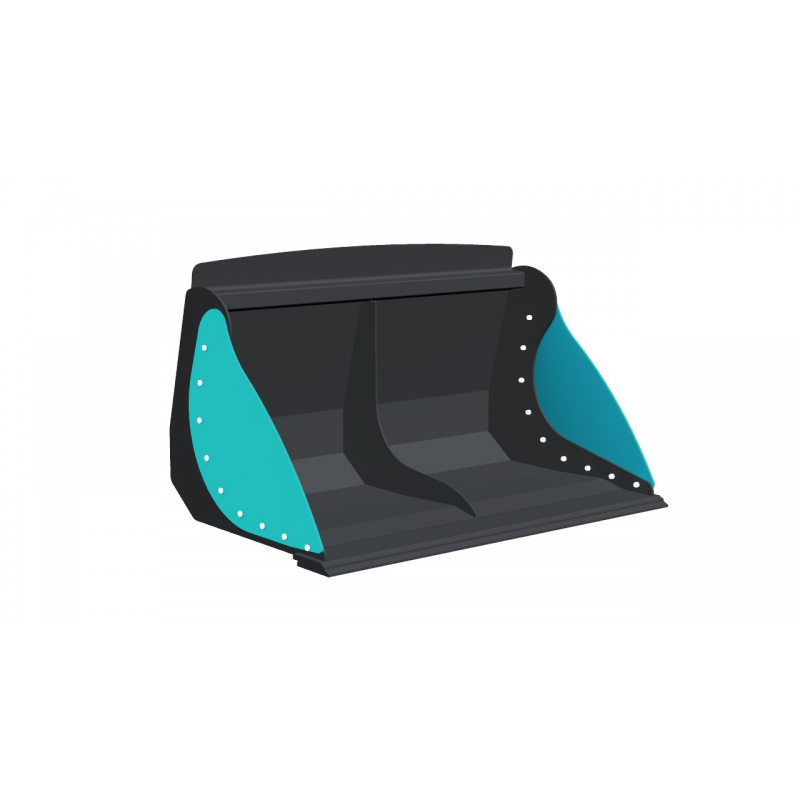

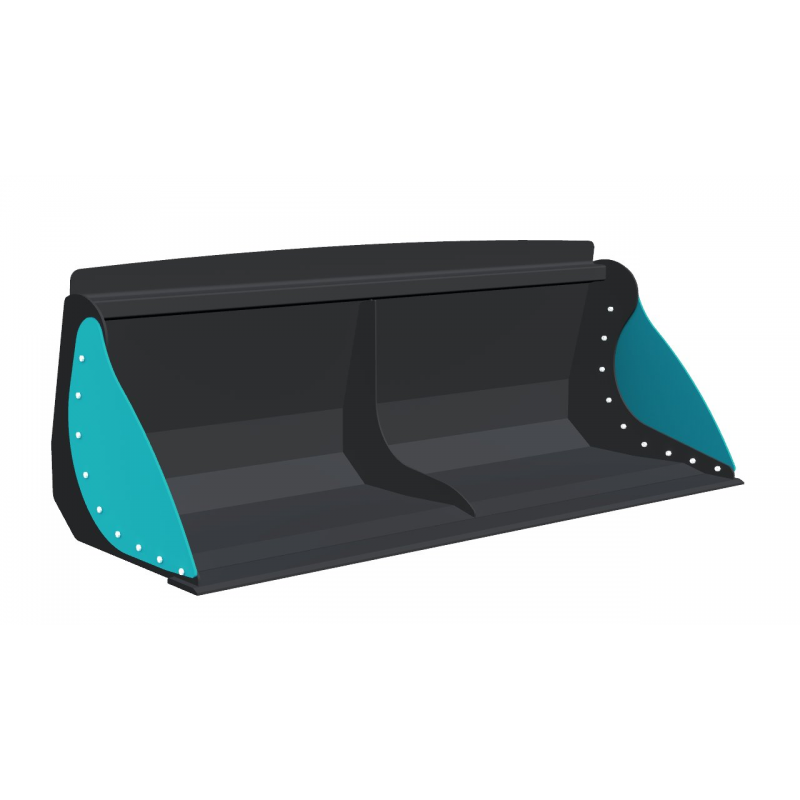

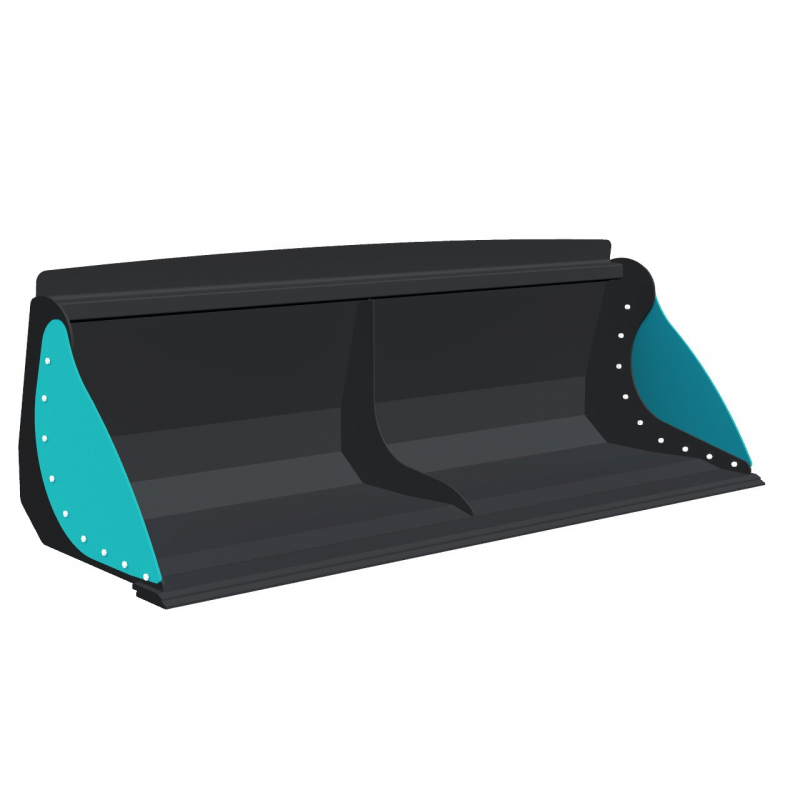

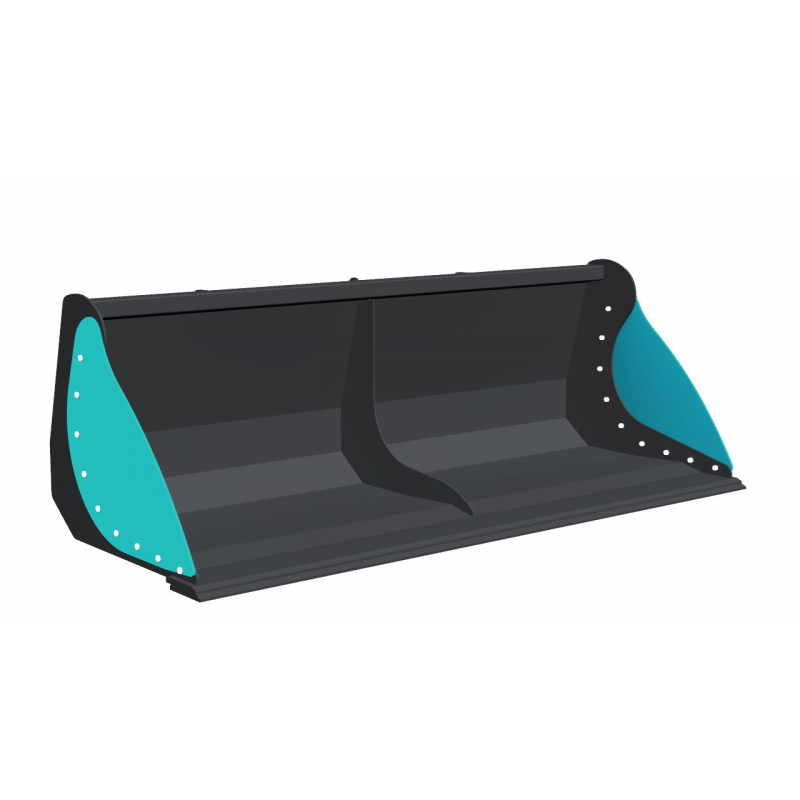

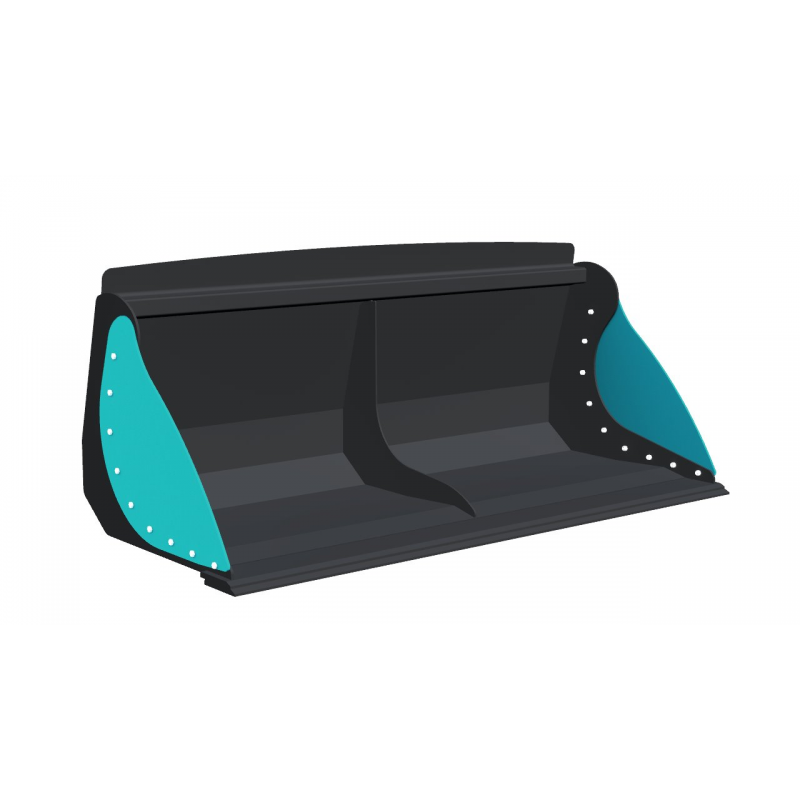

GB12 Bucket with removable sides
New product
Bucket with removable end plates for tractors and loader with power range from 80 hp to 130 hp
Data sheet
| Power range | 80 hp - 130 hp |
| Material | 3/16" & 1/4" |
| Cutting edge | 5 7/8" x 5/8" 400 Brinell |

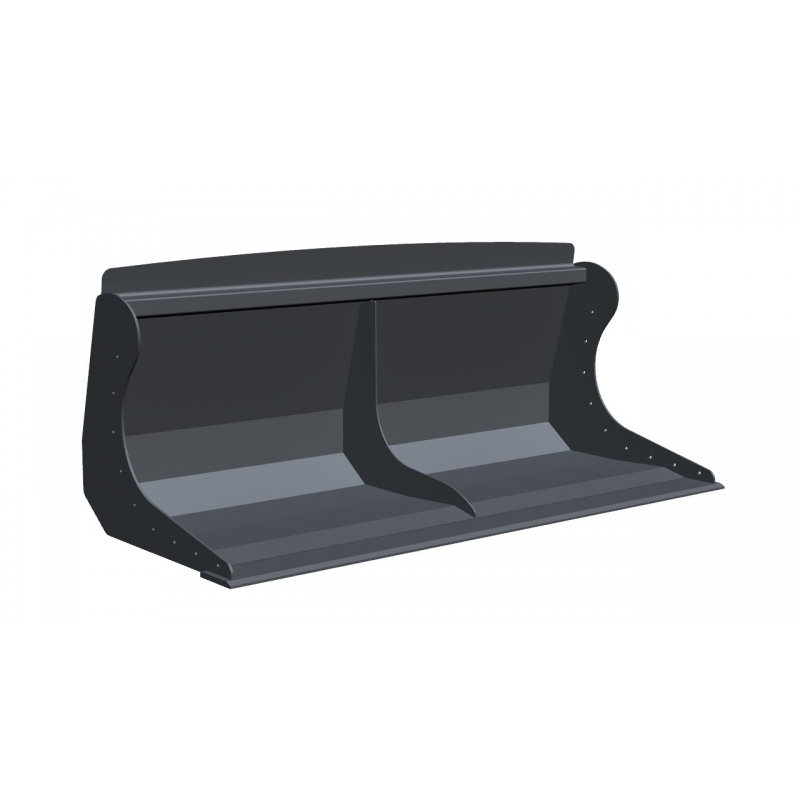

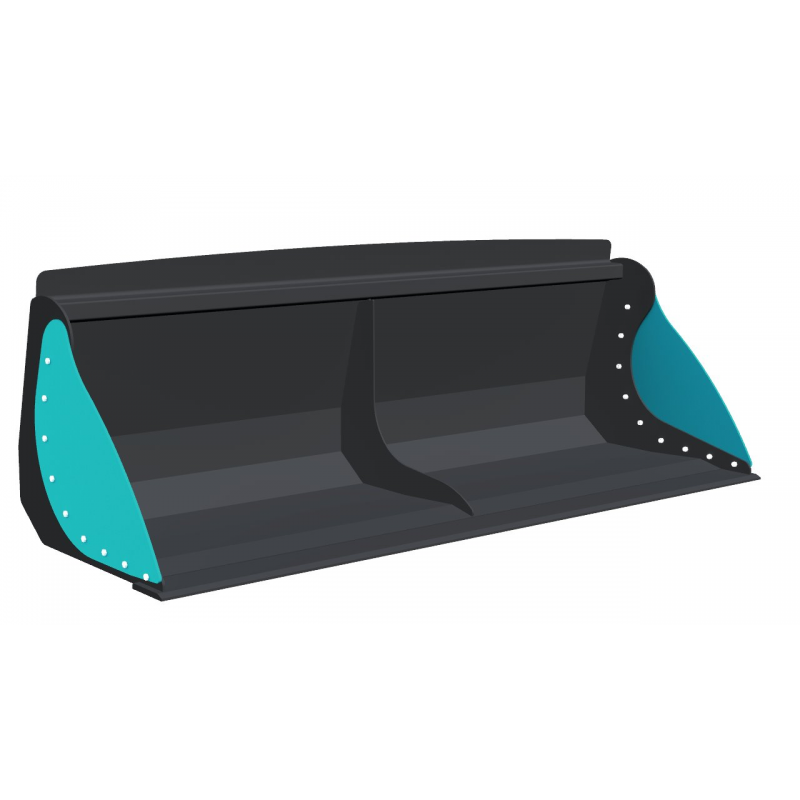

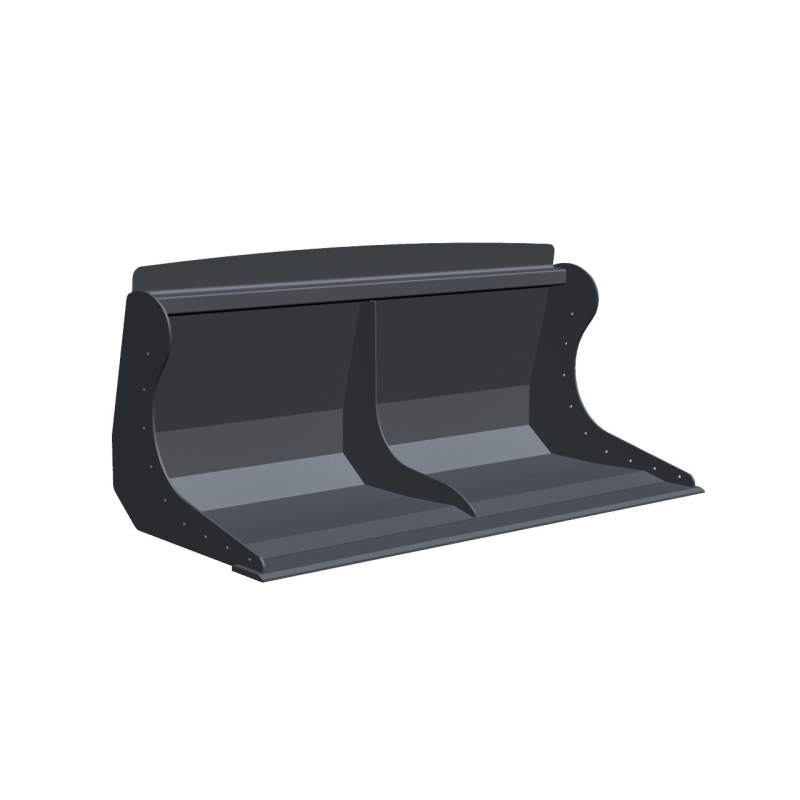

| Spill guard | Optional |
| Running board on Skid Steer | Yes |
| Lifting ring | Yes |
| Level indicator | Flat top |
| Bolt-on removable sides | Yes |
| Length range (min-max) | 51" - 91" |
| Volume range (cu.ft) (min-max) | 17,0 - 30,1 |
More info
Bucket with removable sides for loaders, tractors and telehandler with power range from 80 hp to 130 hp
Construction with High Strength Steel: 3/16" material, 5/16" end plates
5/8" cutting edge

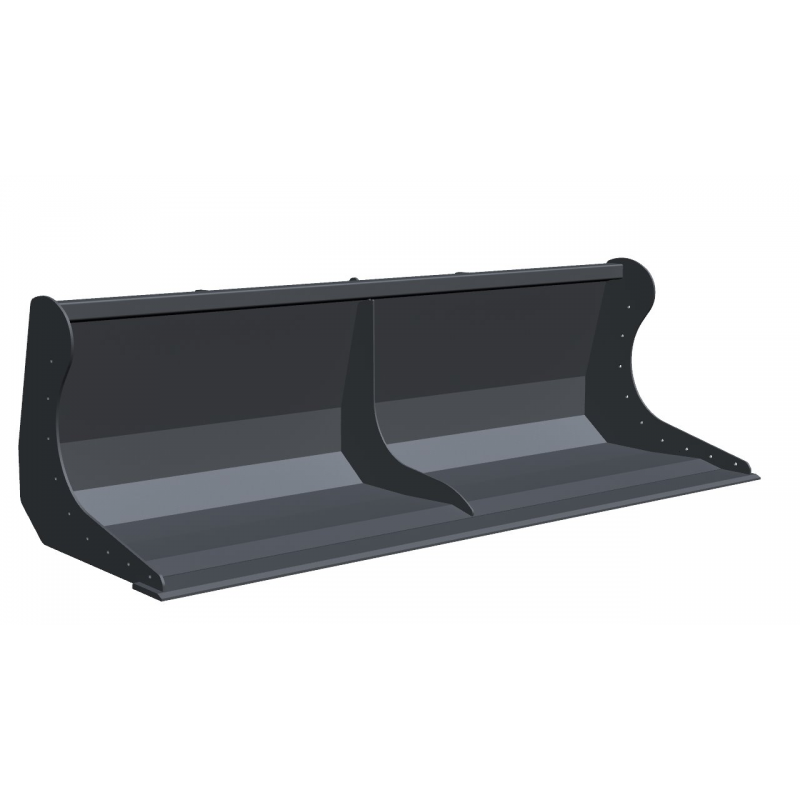

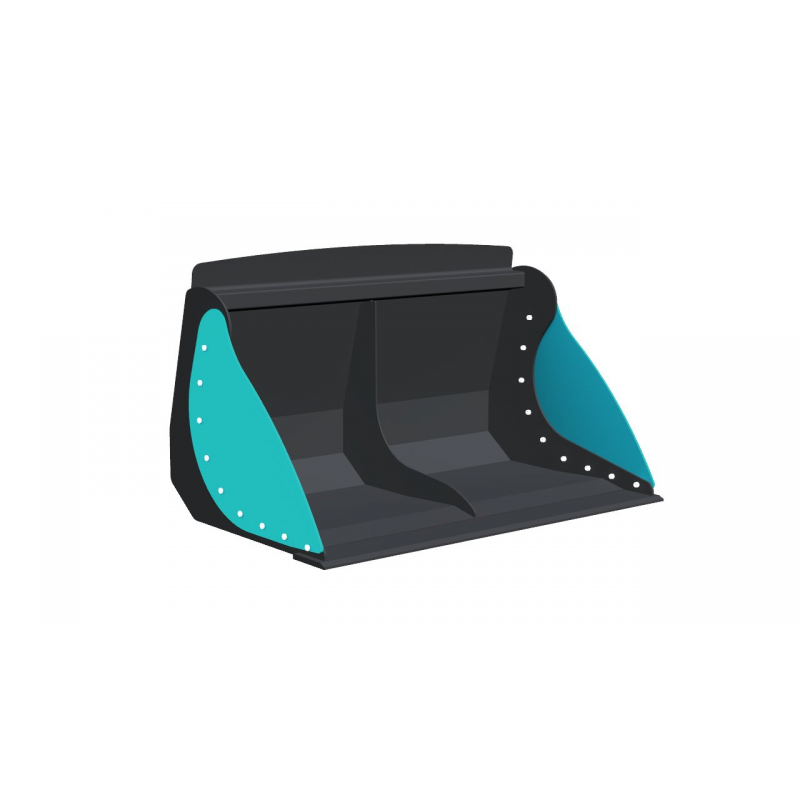

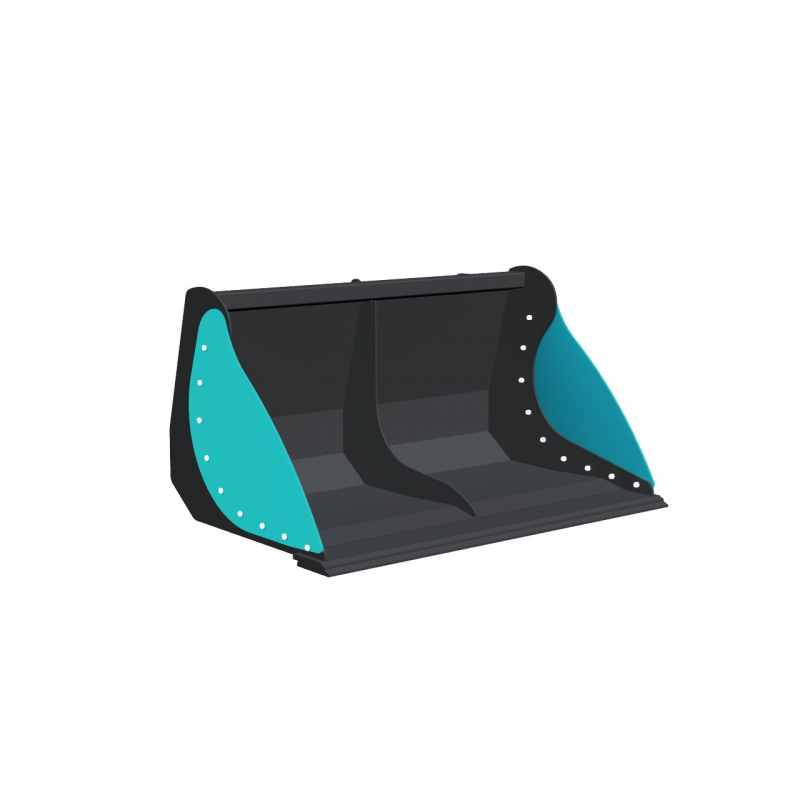

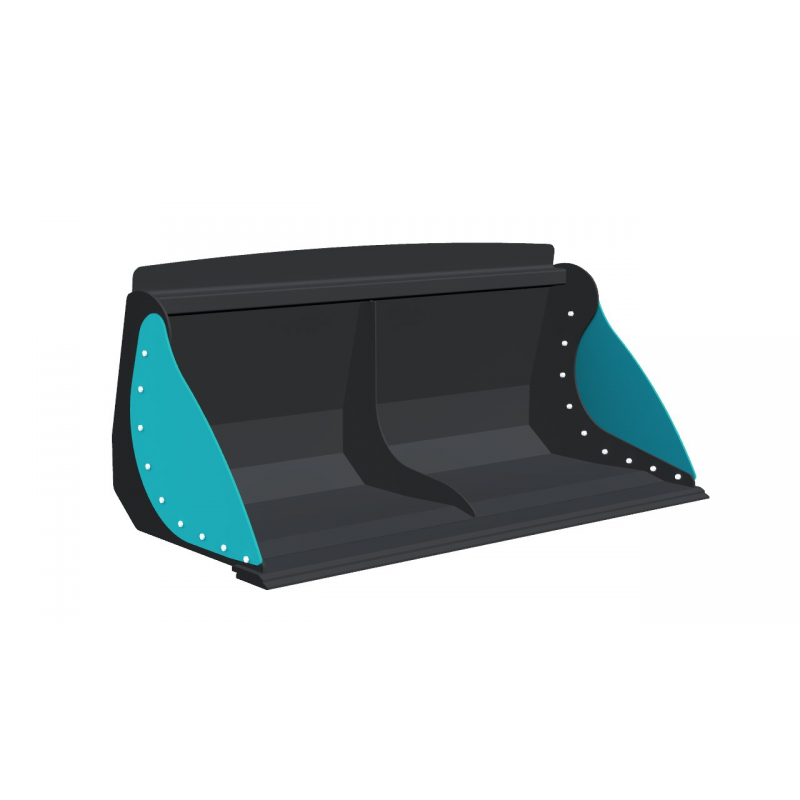

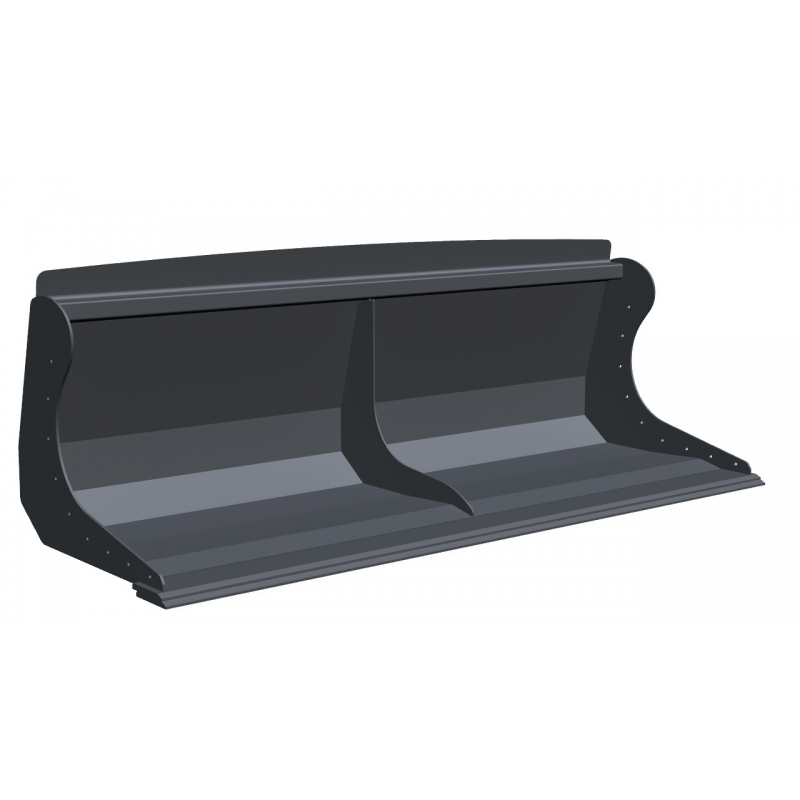

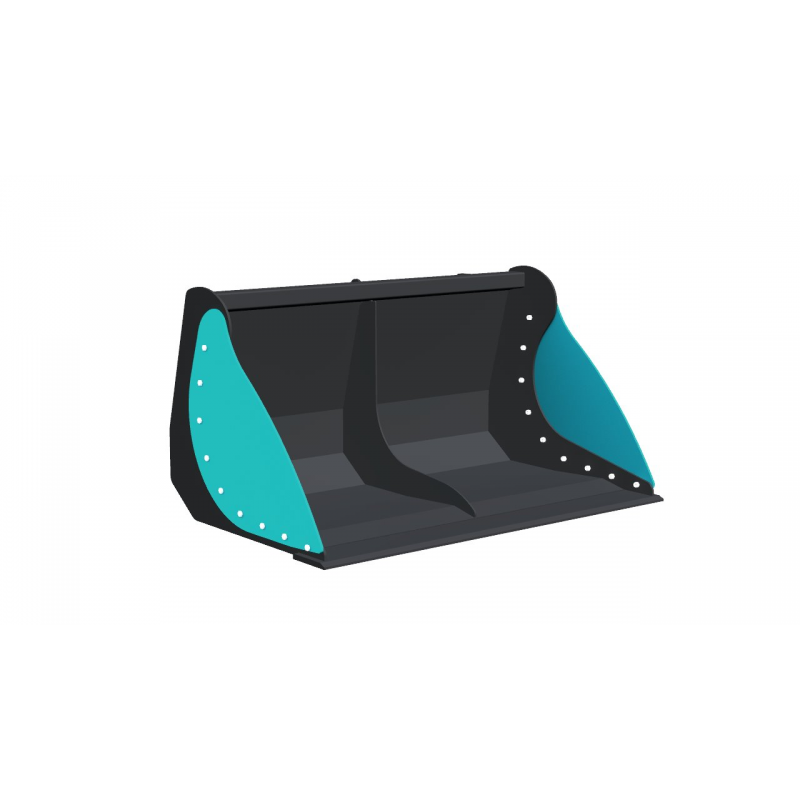

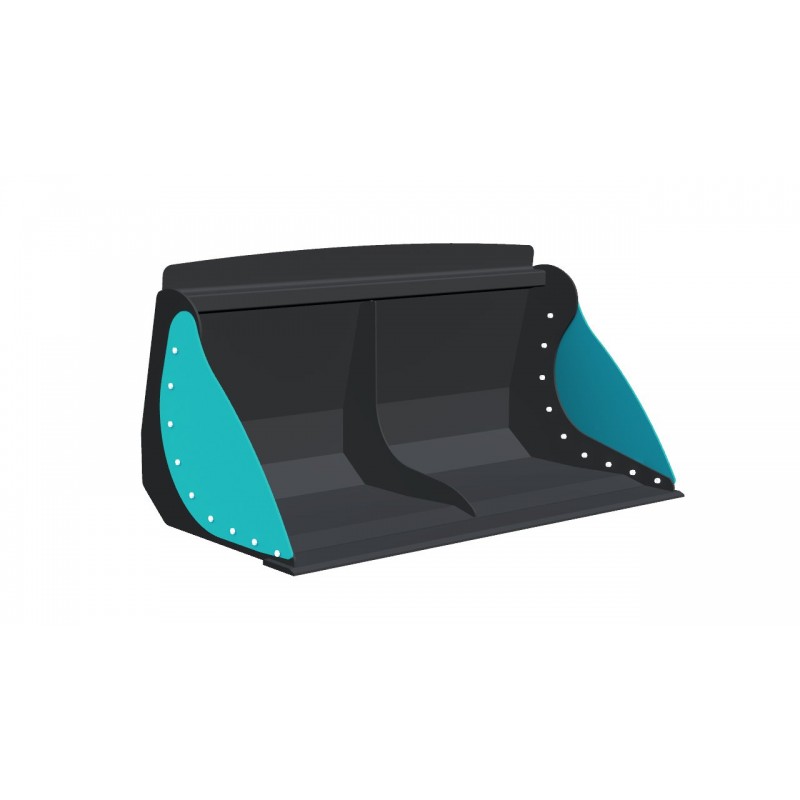

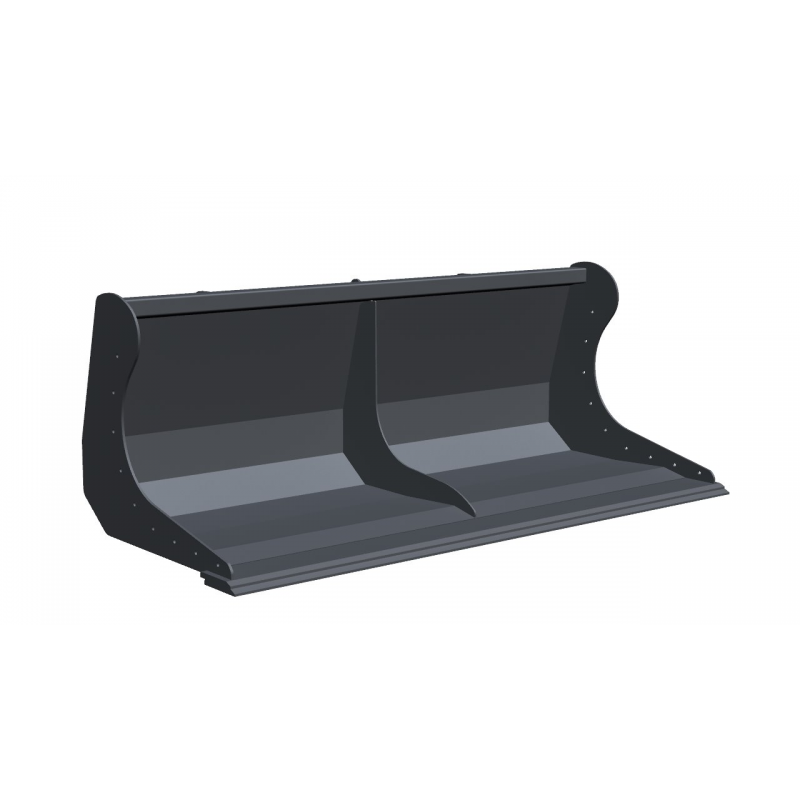

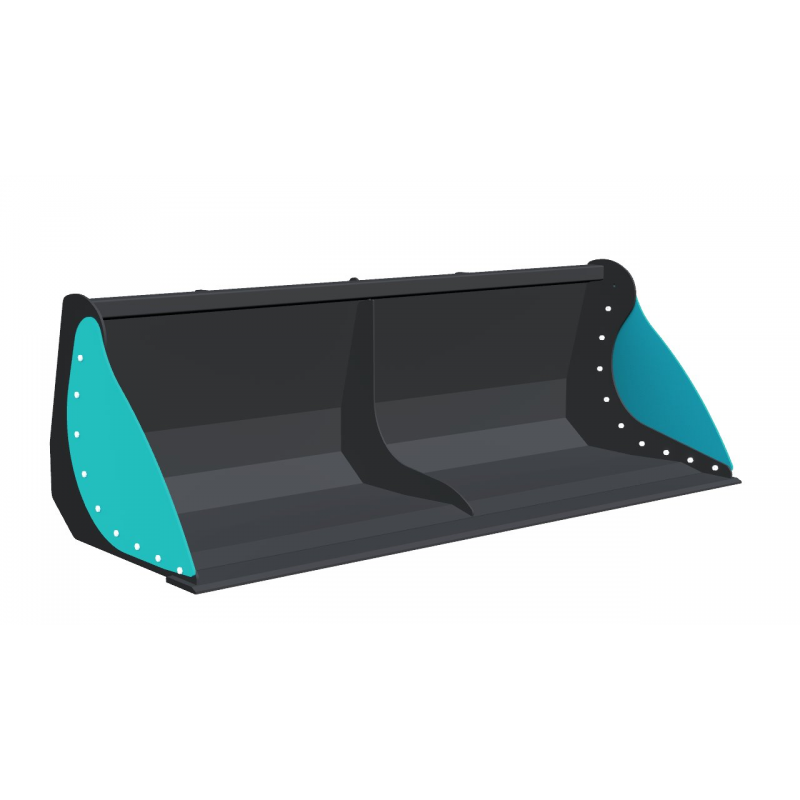

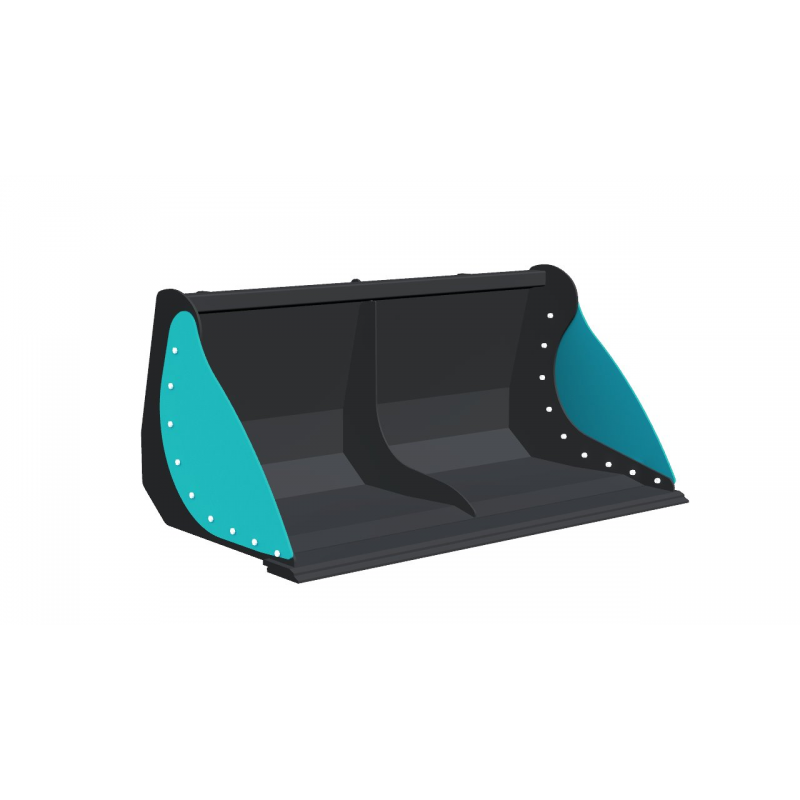

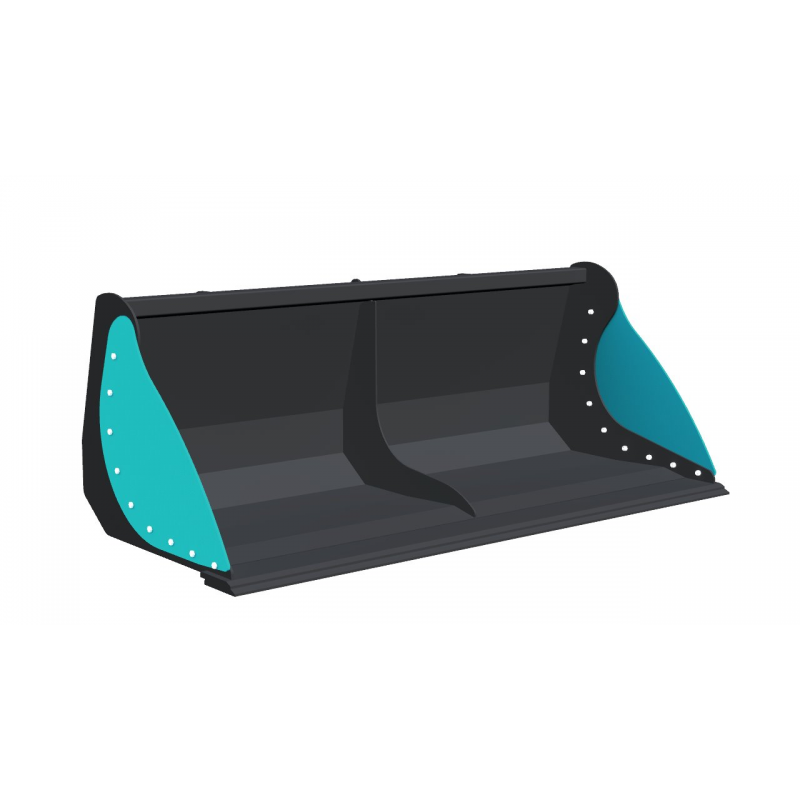

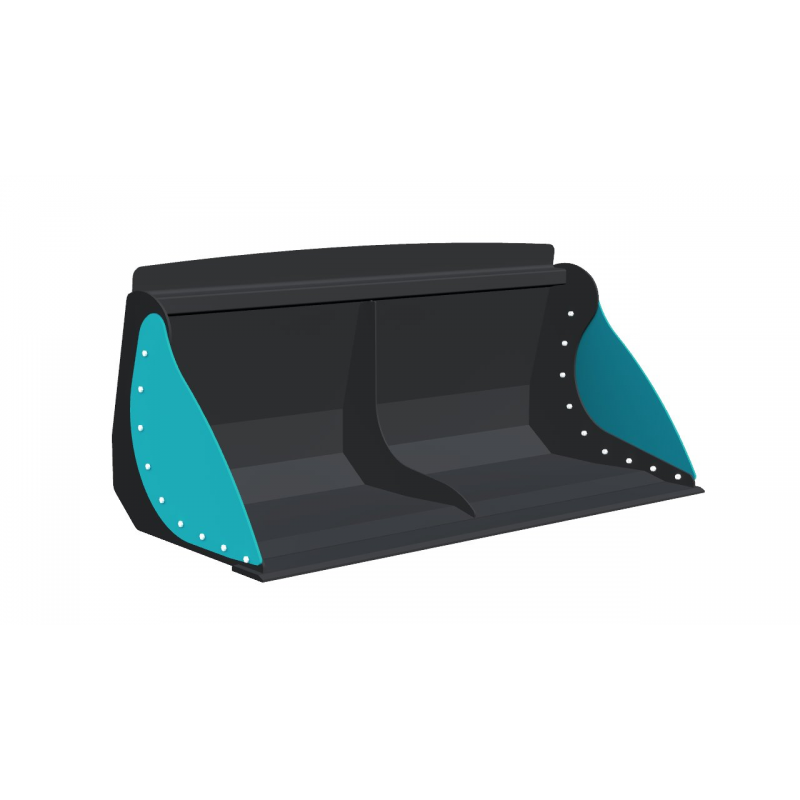

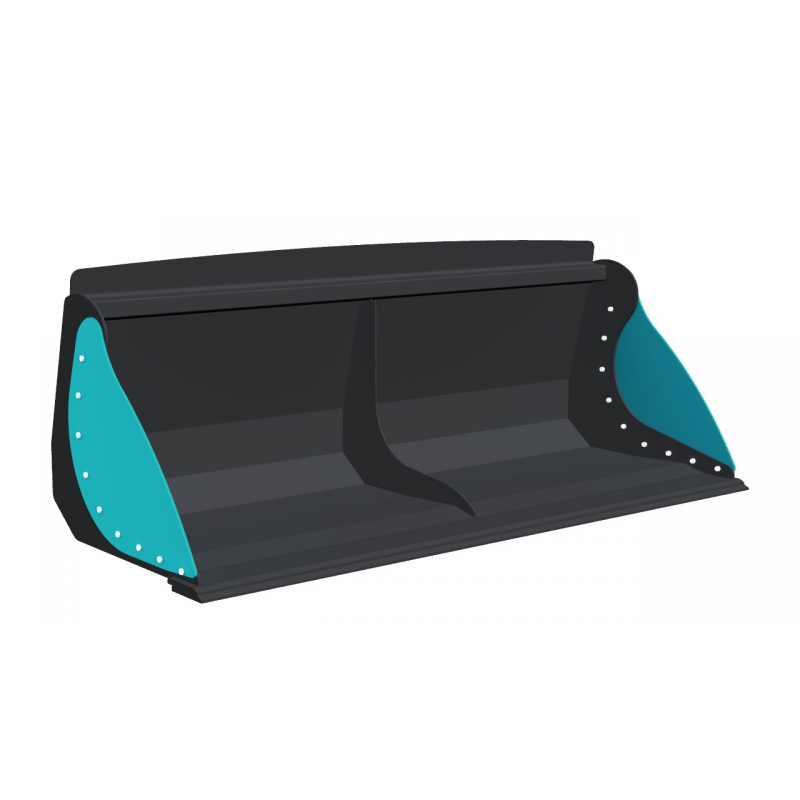

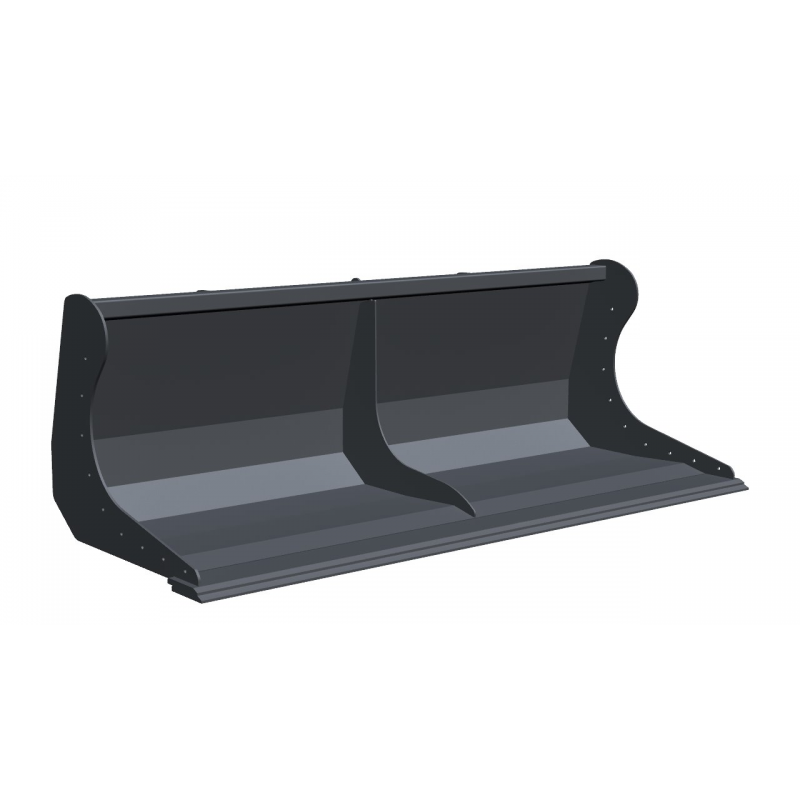

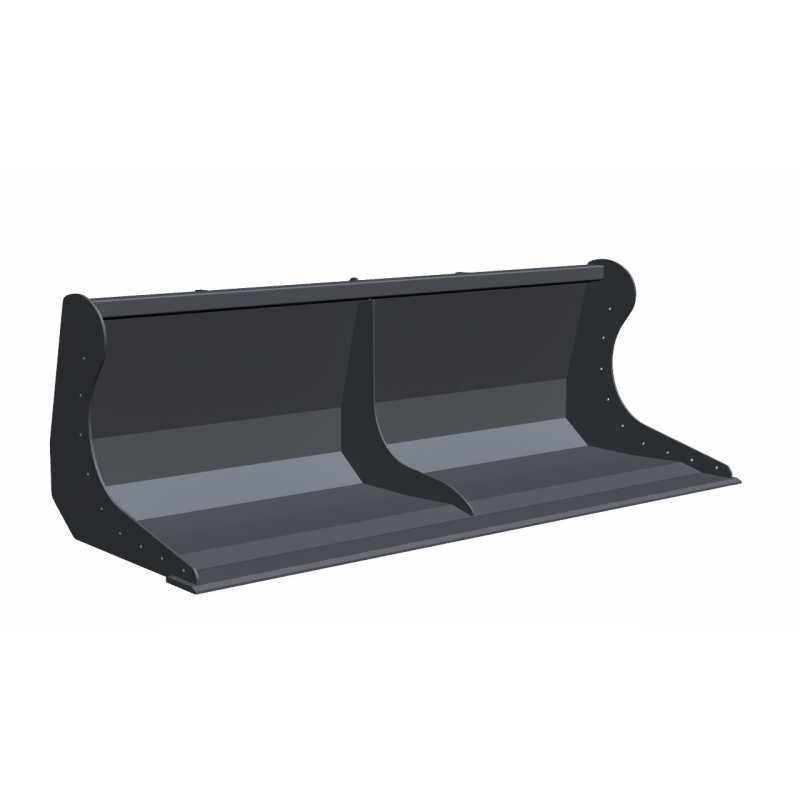

Bolt-on removable sides included
Central bucket reinforcement
Flat top acts as level indicator
Lifting ring
Wear pads
5/8" bolt-on cutting edge
Made in Canada
| Part # | Length | Volume (cu.ft) | Depth | Height | Weight (lbs) |
| GB1260 | 60" | 19,6 | 33" | 28" | 515 |
| GB1266 | 66" | 22,2 | 33" | 28" | 545 |
| GB1272 | 72" | 24,8 | 33" | 28" | 580 |
| GB1284 | 84" | 27,5 | 33" | 28" | 670 |
| GB1290 | 90" | 30,1 | 33" | 28" | 705 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
