Data sheet
| Power range | 20 hp - 60 hp |
| Material | 1/8" & 3/16" |
| Cutting edge | 4" x 1/2" 400 Brinell |
| Running board on Skid Steer | Yes |
| Lifting ring | Yes |
| Level indicator | Flat top |
| Length range (min-max) | 43" - 71" |
| Volume range (cu.ft) (min-max) | 6,0 - 9,7 |
More info

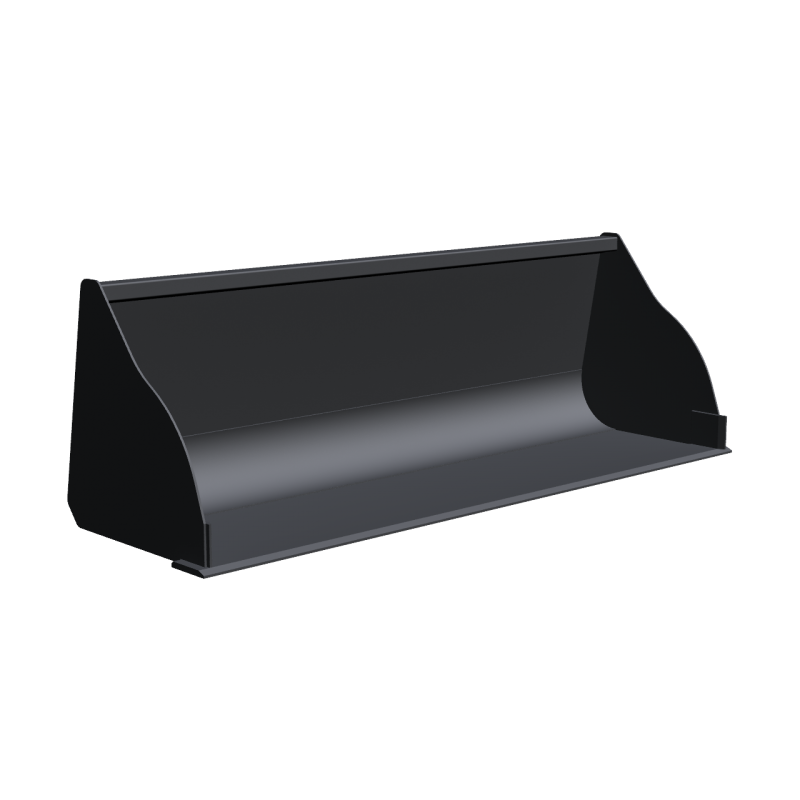

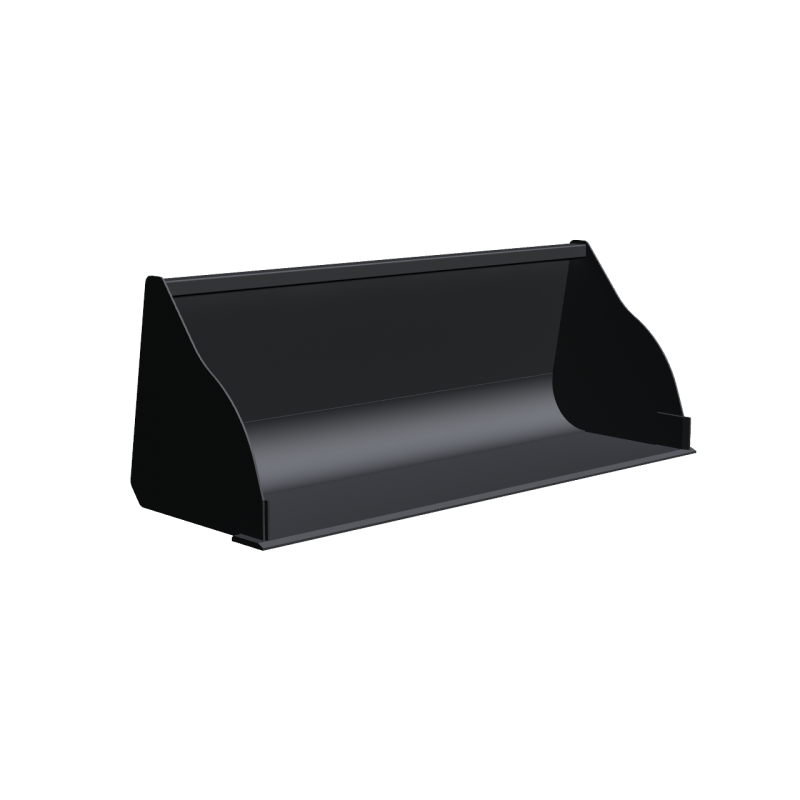

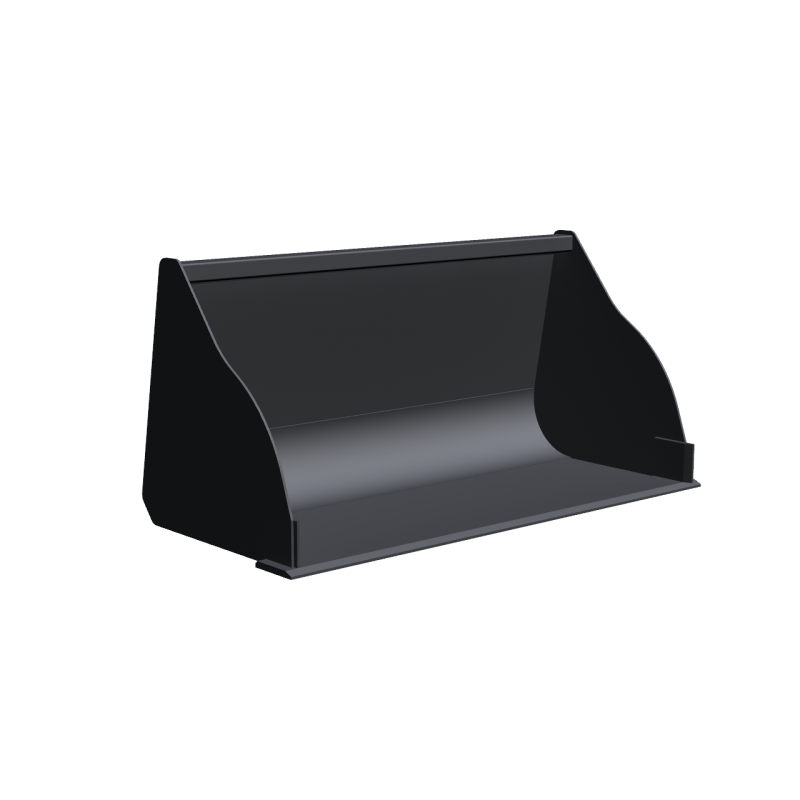

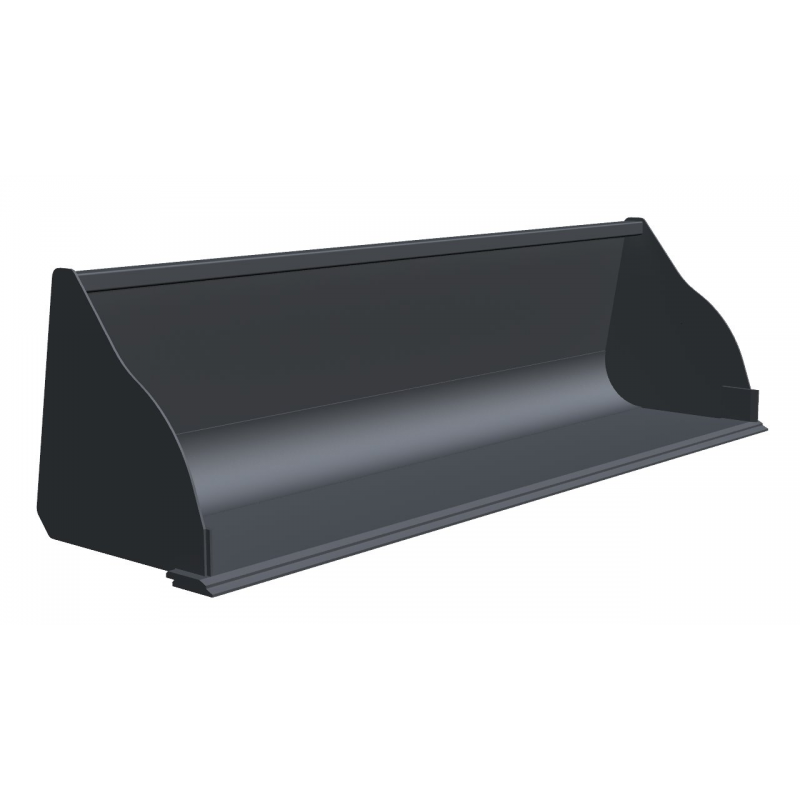

Grading bucket for 20hp to 60 hp loaders and tractors with skid steer attachment
Construction with High Strength Steel: 1/8" material, 3/16" end plates
1/2" cutting edge with 400 Brinell hardness (High Abrasion Resistant)
Bucket reinforcement
Flat top acts as level indicator
Lifting ring
3 wear pads
400 Brinell wear corner
Running board on skid steer attachment
Optional:
Double 1/2" cutting edge (400 Brinell hardness)
Made in Canada
| Part # | Length | Volume (cu.ft) | Depth | Height | Weight (lbs) |
| GS8143 | 43" | 6,0 | 19" | 20" | 220 |
| GS8151 | 51" | 7,0 | 19" | 20" | 240 |
| GS8159 | 59" | 8,1 | 19" | 20" | 260 |
| GS8171 | 71" | 9,7 | 19" | 20" | 285 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
