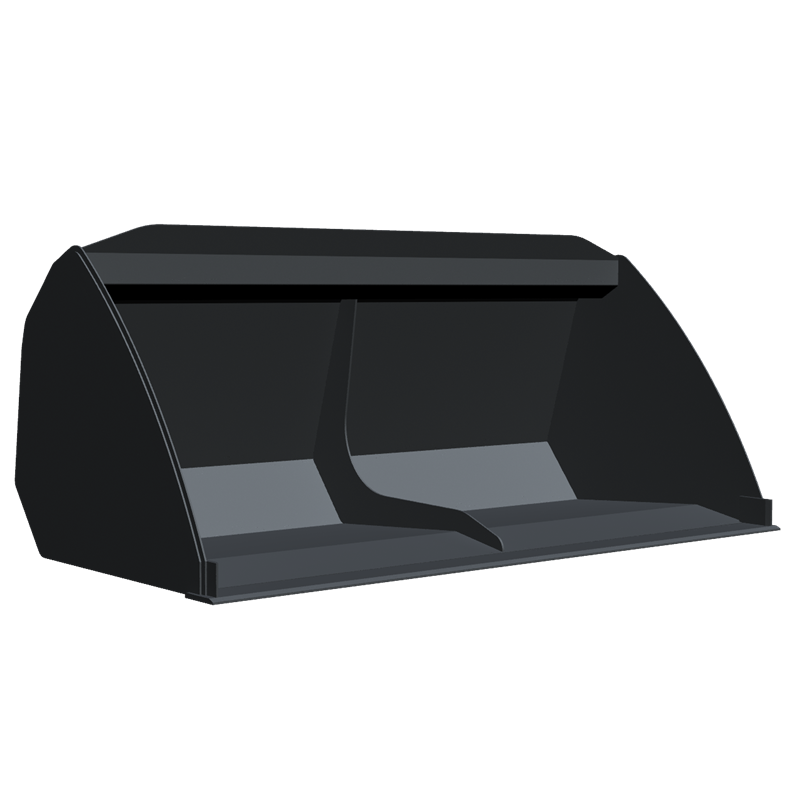

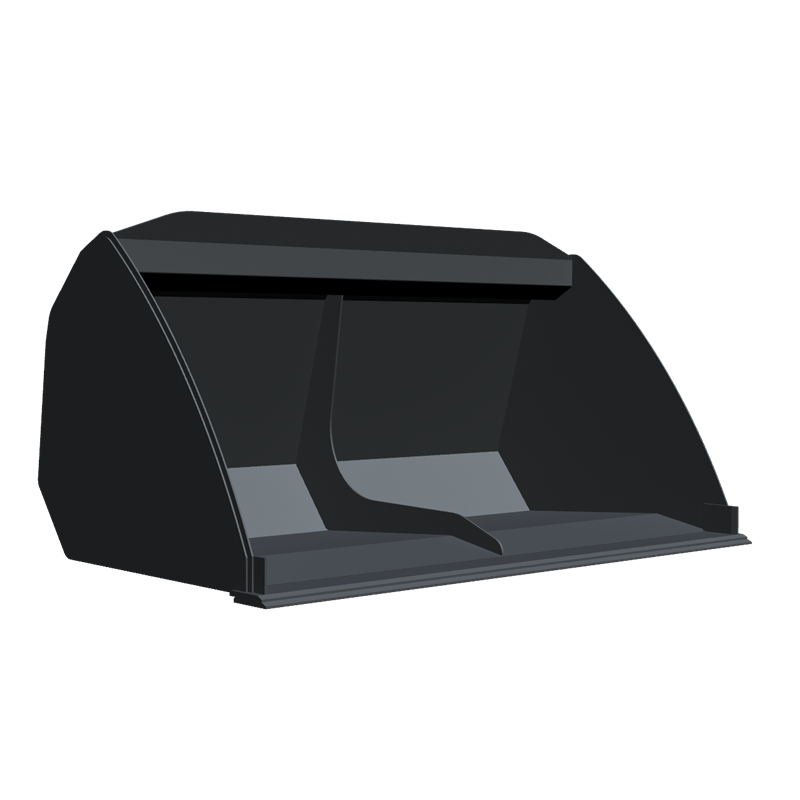

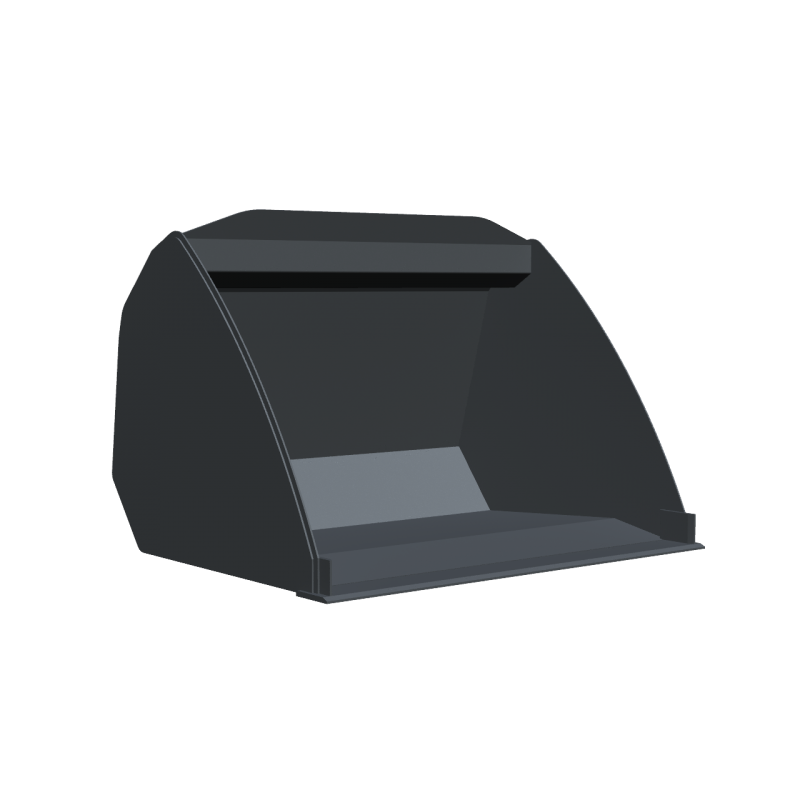

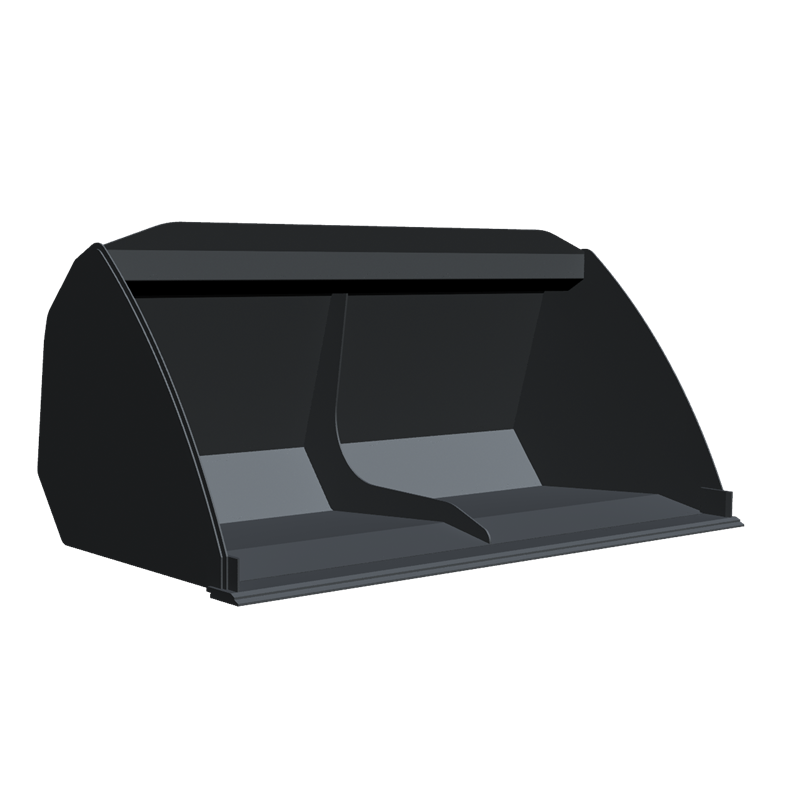

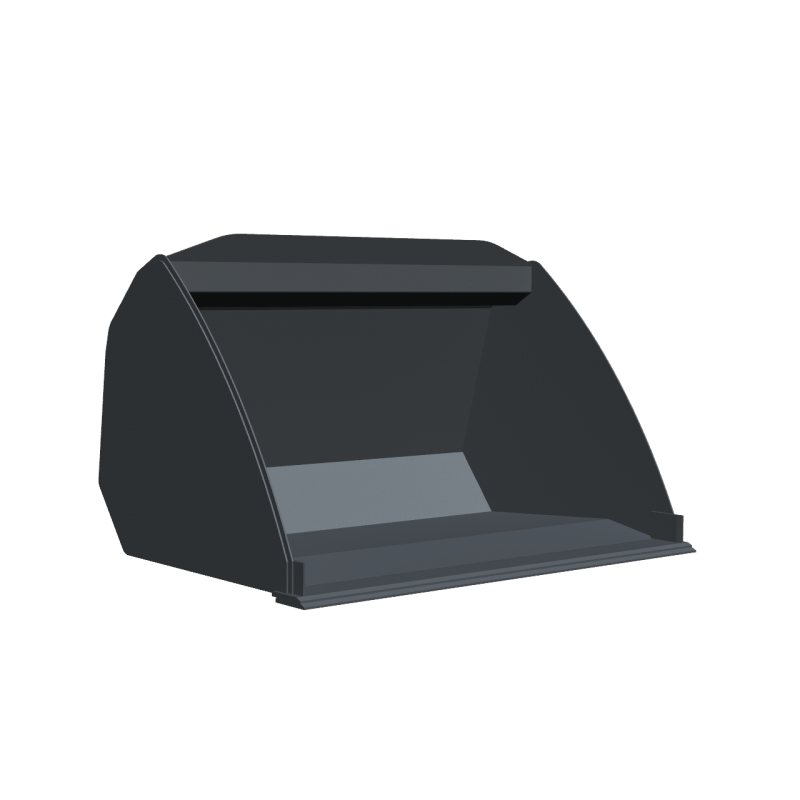

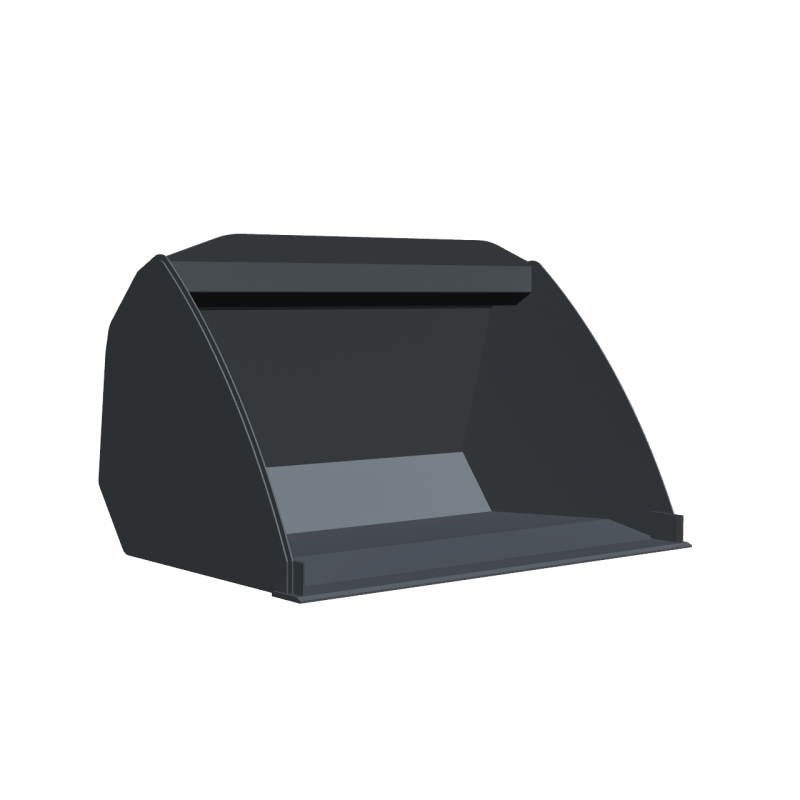

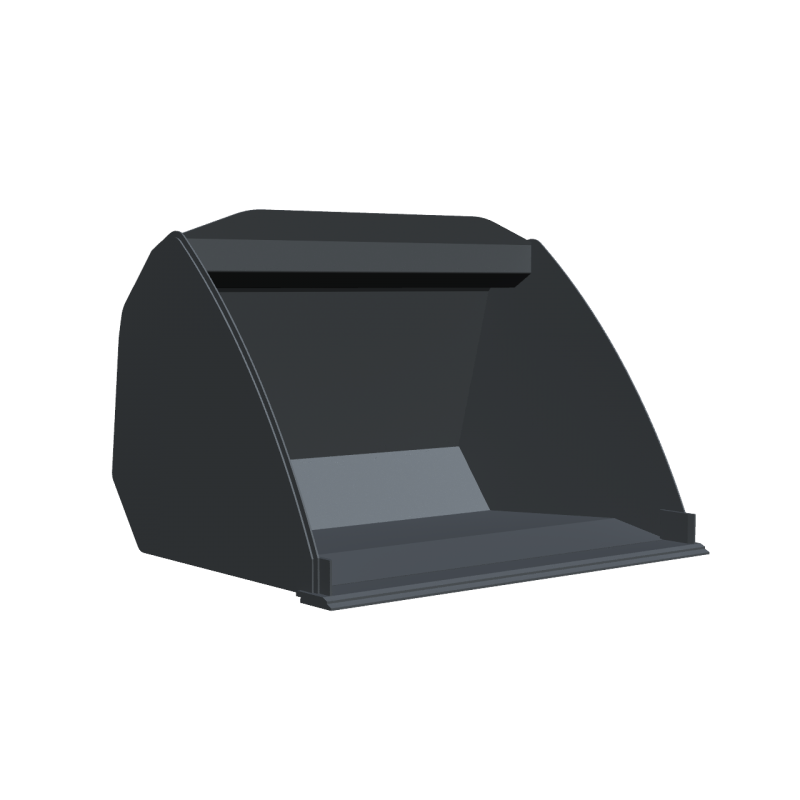

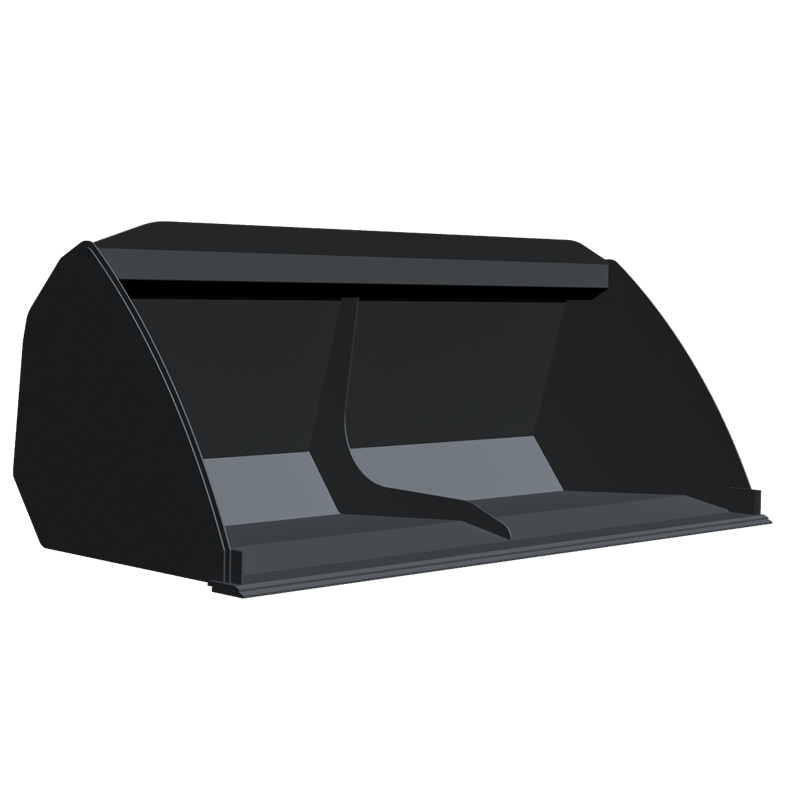

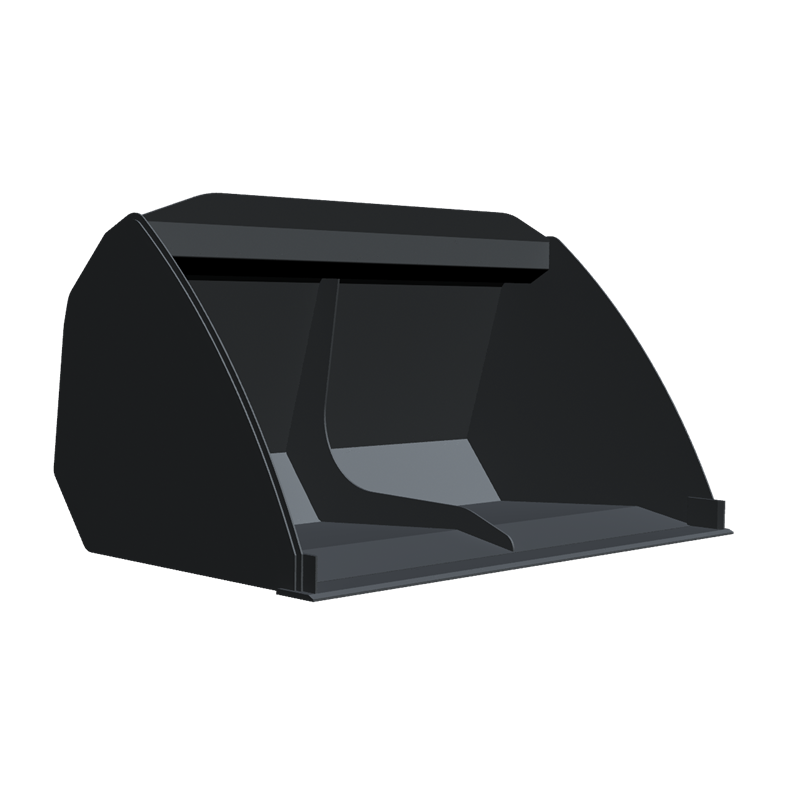

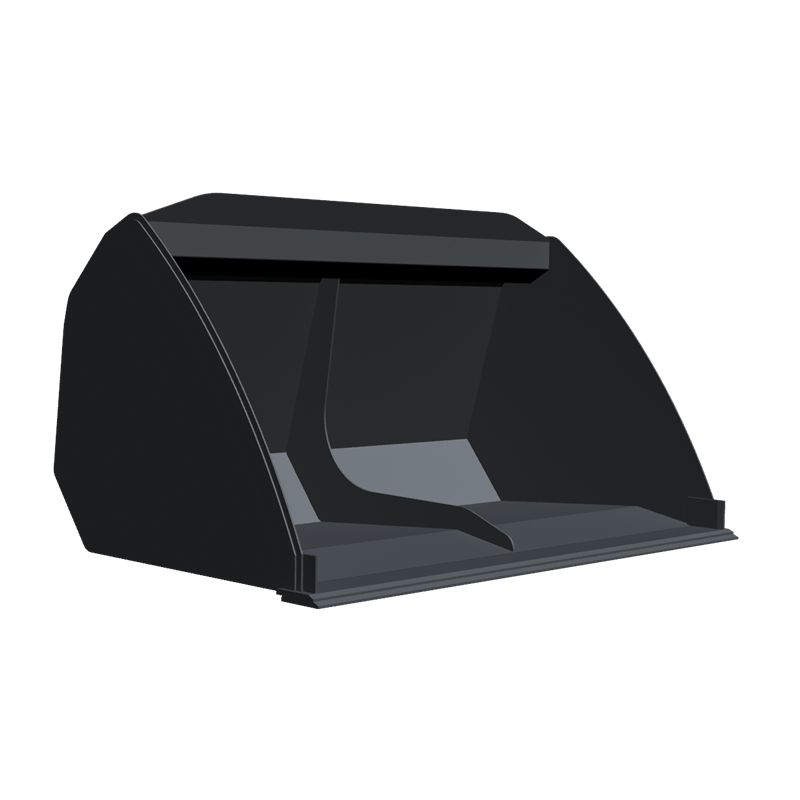

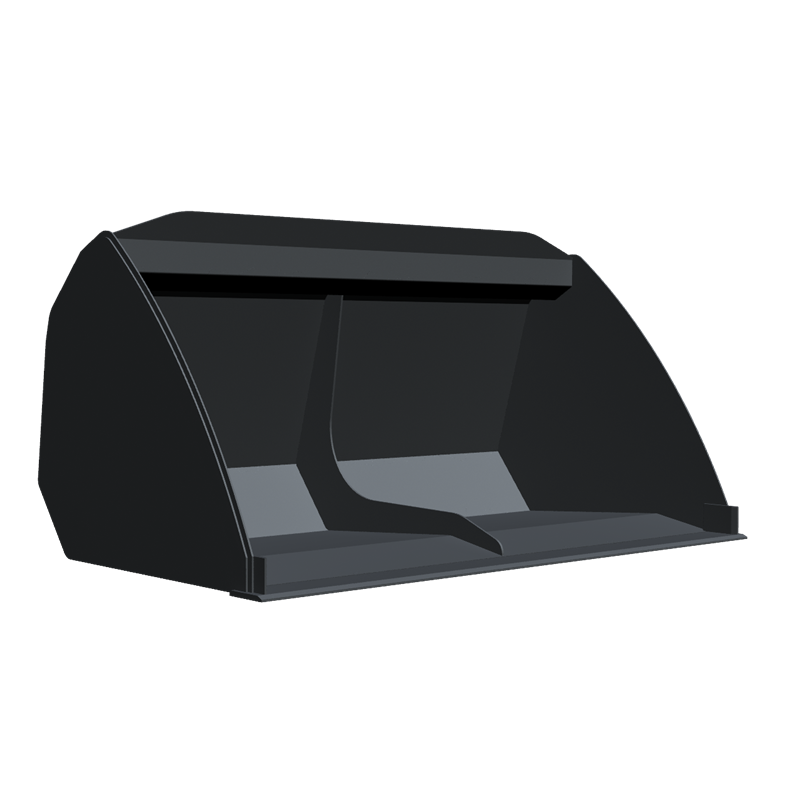

GR01 High capacity bucket
New product
High capcity bucket for tractors and loader with power from 100 hp and over
Data sheet
| Power range | 100 hp + |
| Material | 3/16" & 1/4" |
| Cutting edge | 5 7/8" x 5/8" 400 Brinell |
| Spill guard | Yes |
| Lifting ring | Yes |
| Level indicator | Yes |
| Length range (min-max) | 59" - 107" |
| Volume range (cu.ft) (min-max) | 30,5 - 83,7 |
More info
High capcity bucket for loaders, tractors and telehandlers with 100 hp and over power
Construction with High Strength Steel: 1/4" material, 5/16" end plates, 5/16" edge end plates
5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)
Spill guard
Lifting ring
Wear pads
400 Brinell large wear corners
Double 5/8" cutting edge (400 Brinell hardness)
Made in Canada
| Part # | Length | Stroke Volume (cu.yd) | Cap Volume (cu.yd) | Depth | Height | Weight (lbs) |
| GC0172 | 72" | 1,77 | 2,30 | 50" | 39'' | 990 |
| GC0178 | 78" | 1,90 | 2,47 | 50" | 39'' | 1060 |
| GC0184 | 84" | 2,05 | 2,67 | 50" | 39'' | 1150 |
| GC0190 | 90" | 2,19 | 2,85 | 50" | 39'' | 1205 |
| GC0196 | 96" | 2,34 | 3,05 | 50" | 39'' | 1280 |
| GC01102 | 102" | 2,48 | 3,22 | 50" | 39'' | 1345 |
| GC01108 | 108" | 2,63 | 3,42 | 50" | 39'' | 1410 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
