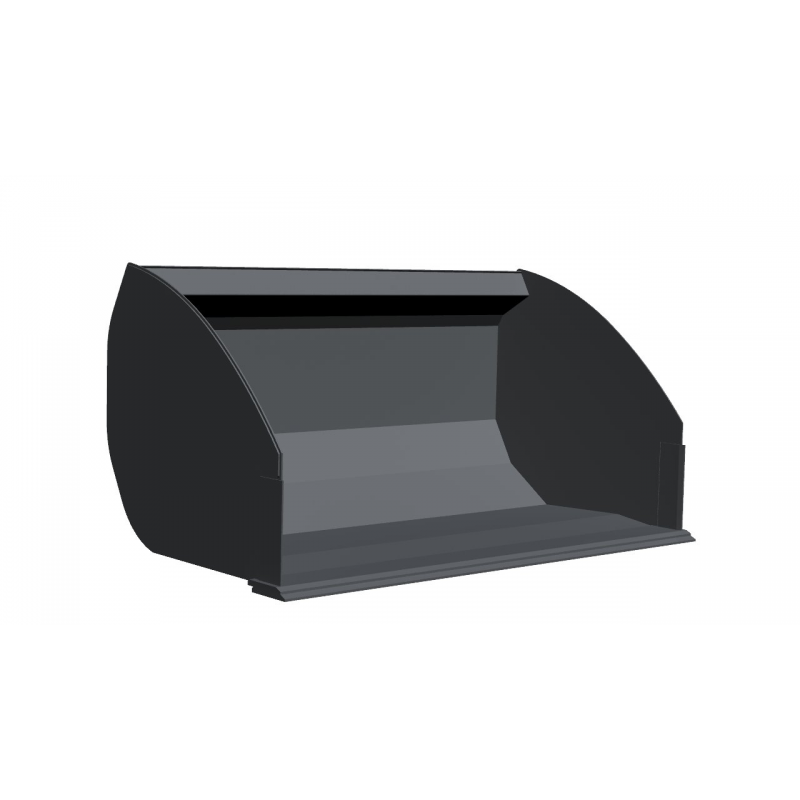

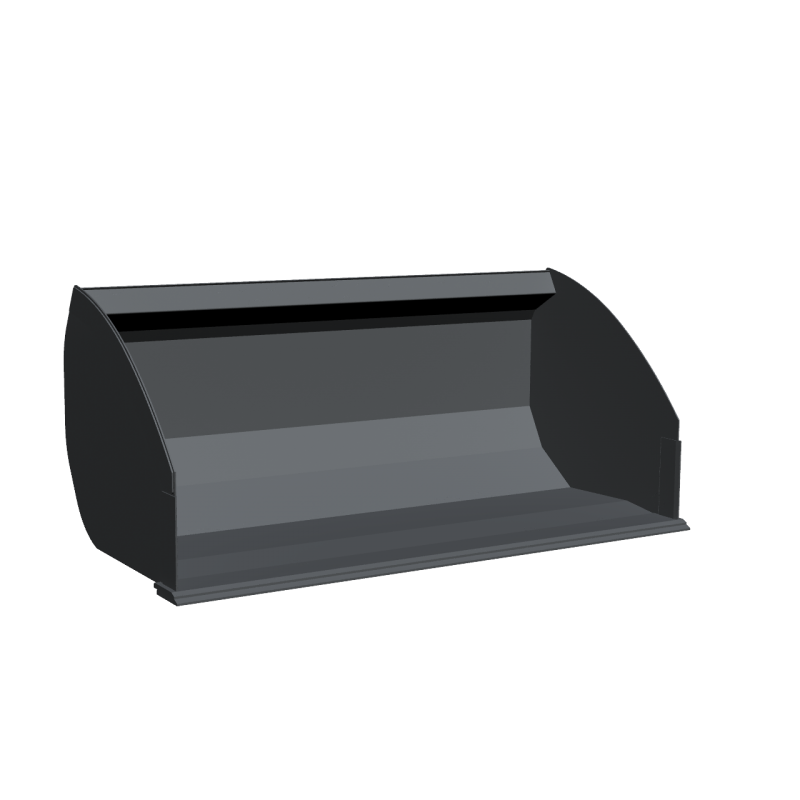

GB01 High capacity bucket
New product

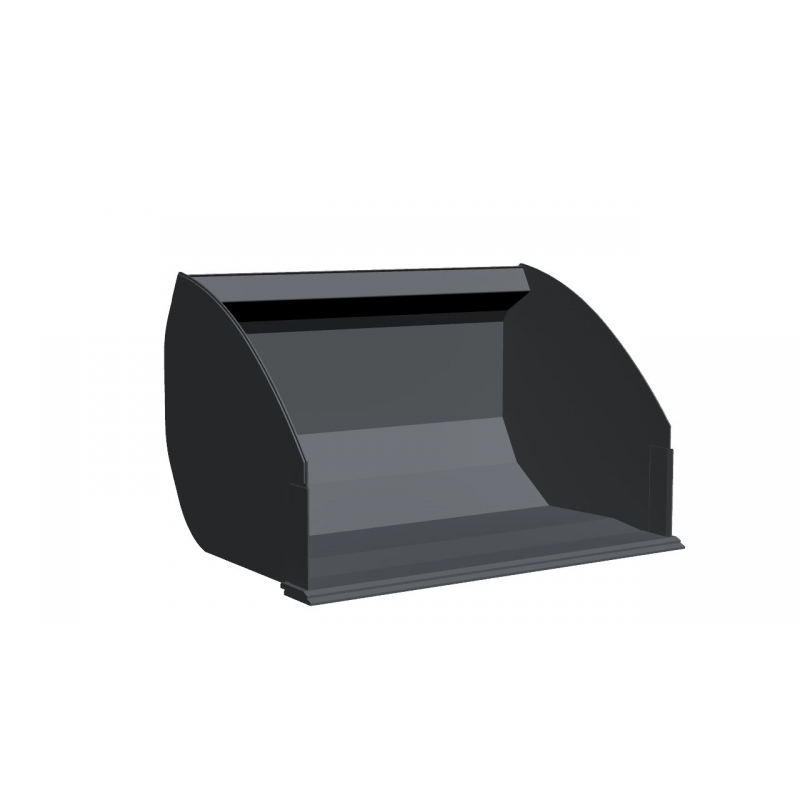

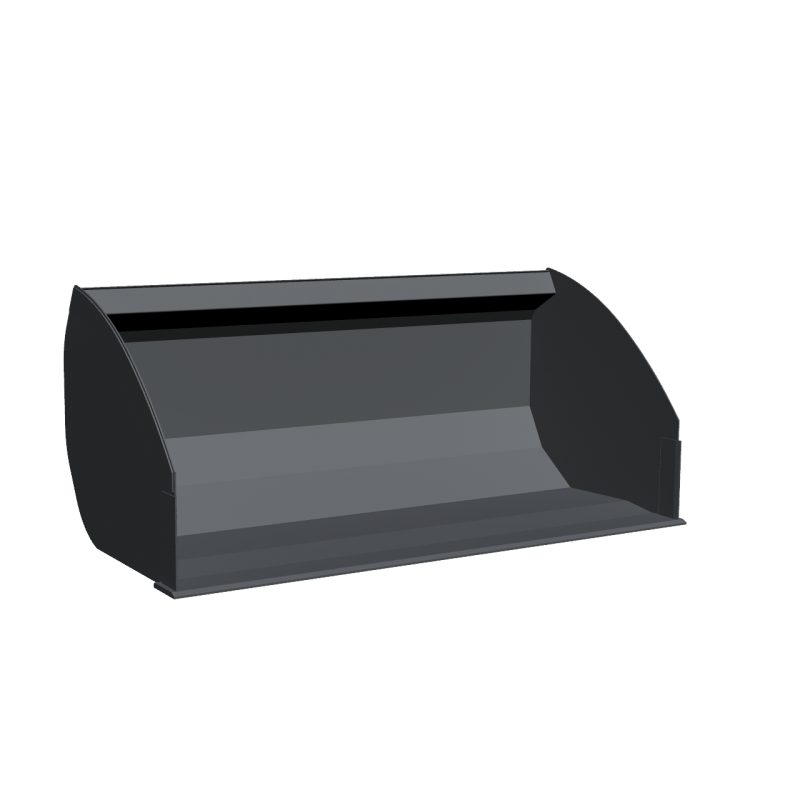

High capcity bucket for tractors and loader with power from 80 hp and over
Data sheet
| Power range | 80hp + |
| Material | 3/16" |
| Cutting edge | 5 7/8" x 5/8" 400 Brinell |
| Spill guard | Optional |
| Lifting ring | Yes |
| Level indicator | Yes |
| Length range (min-max) | 51" - 95" |
| Volume range (cu.ft) (min-max) | 25,9 - 47,8 |
More info
High capcity bucket for loaders and tractors with 80 hp and over power
Construction with High Strength Steel: 3/16" material, 3/16" end plates, 3/16" edge end plates
5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

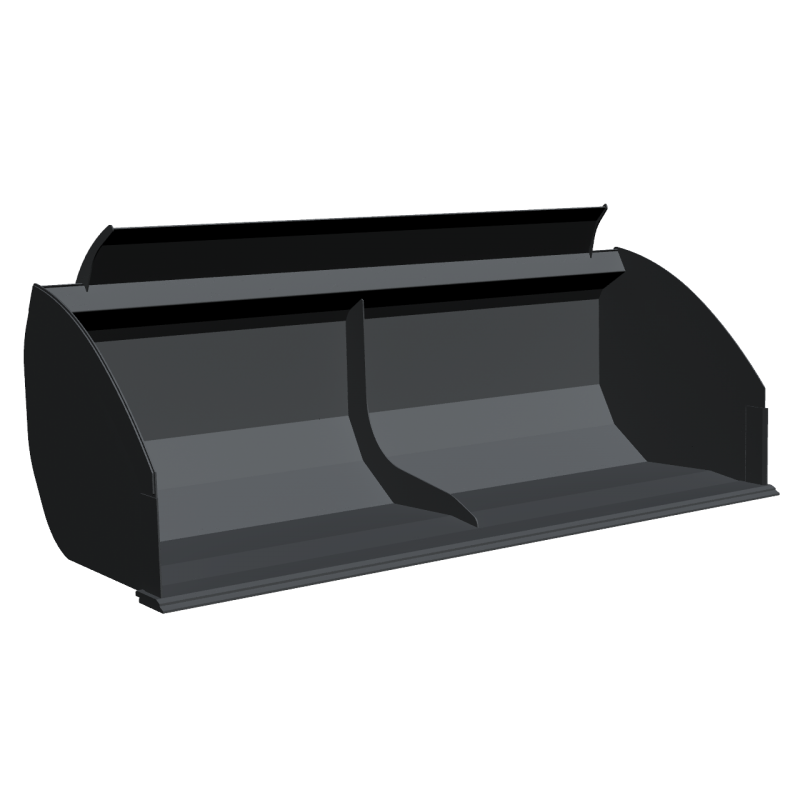

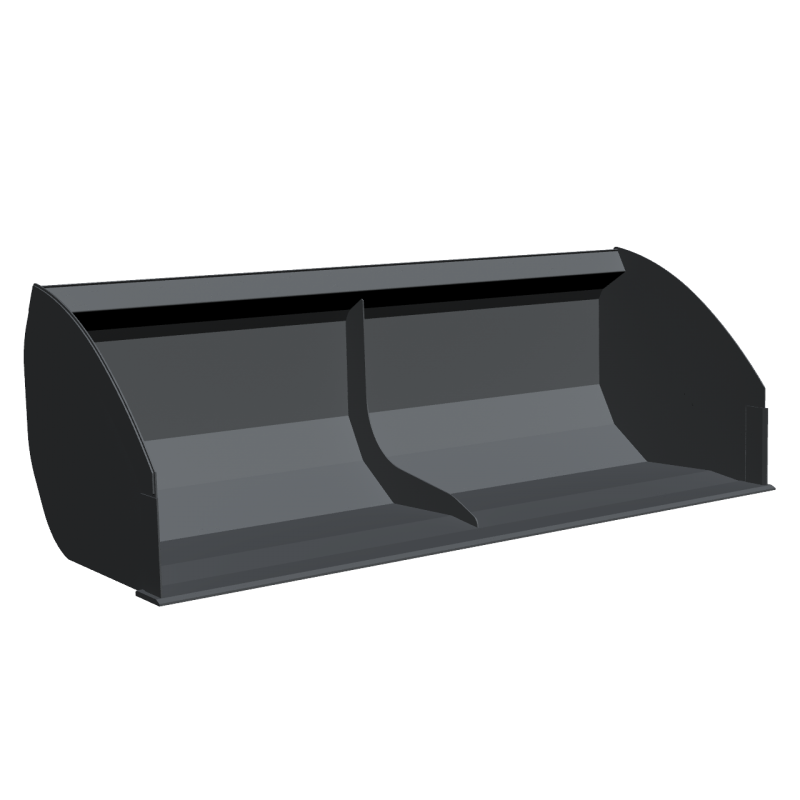

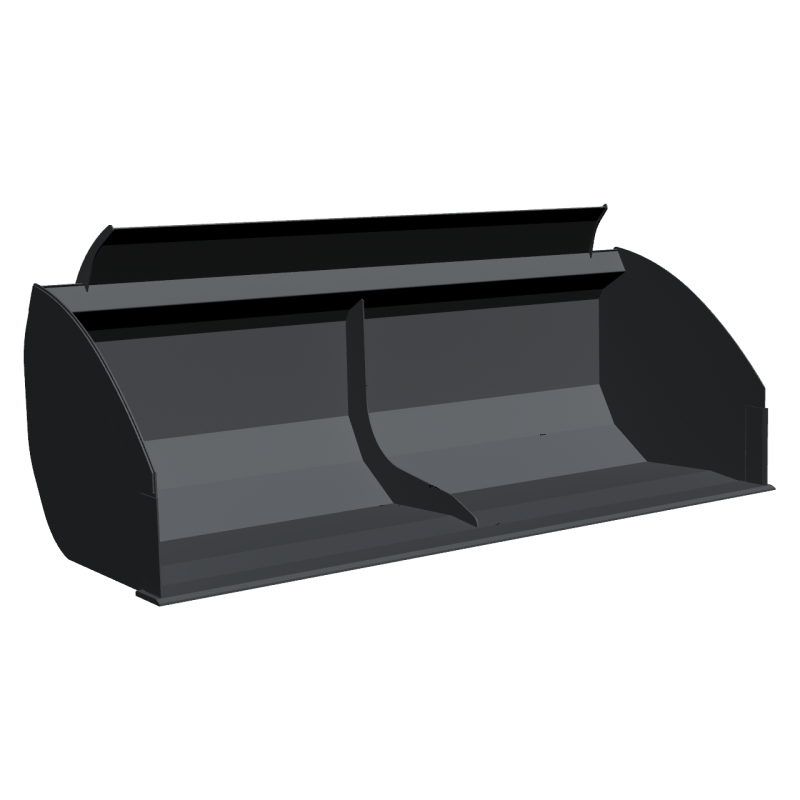

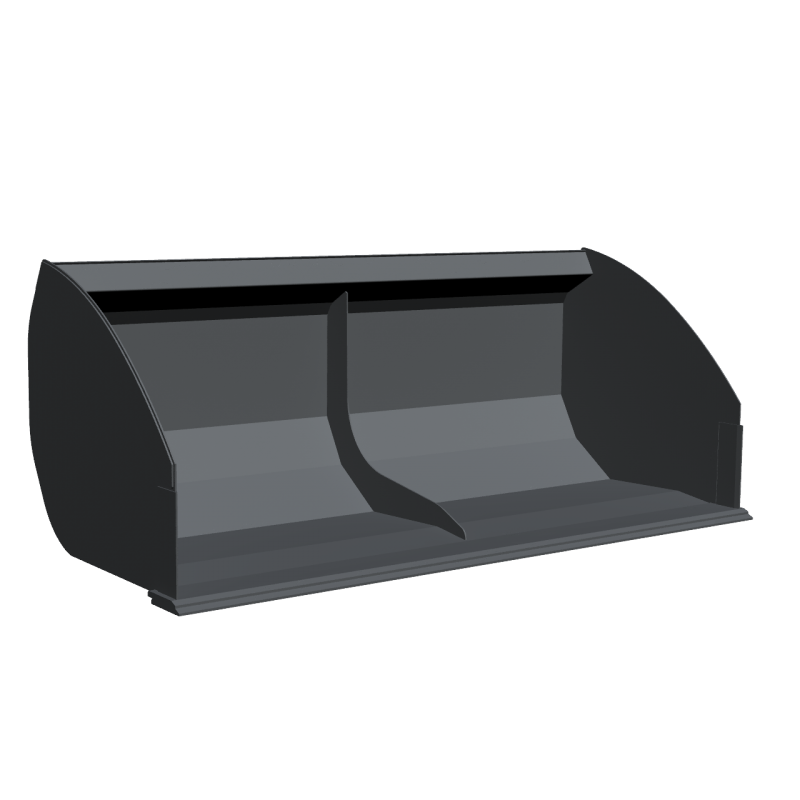

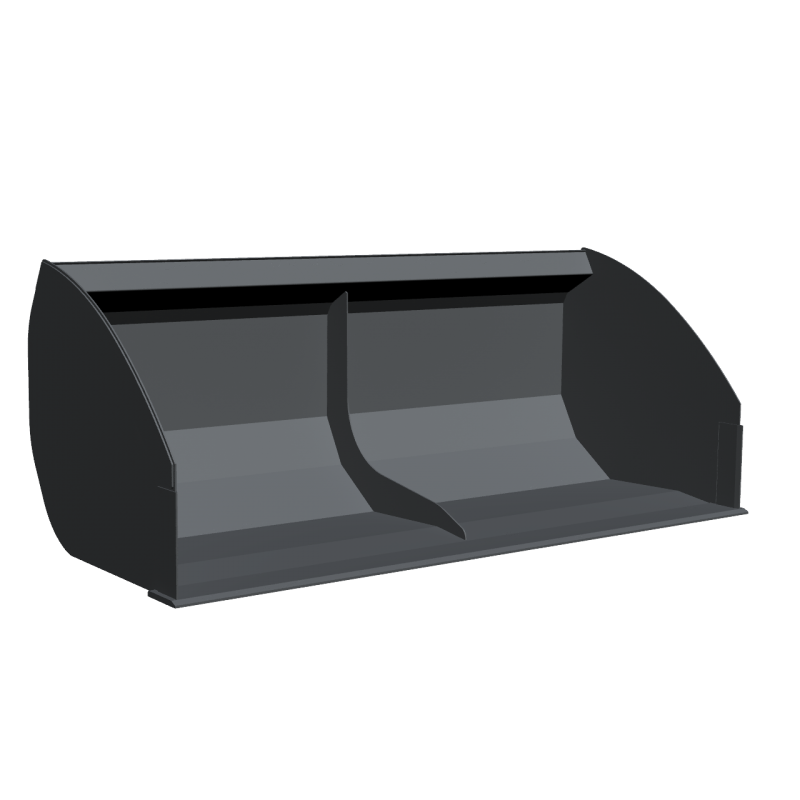

Central bucket reinforcement from 83" buckets
Level indicator
Lifting ring
Wear pads
400 Brinell large wear corners
Optional:
Double 5/8" cutting edge (400 Brinell hardness)

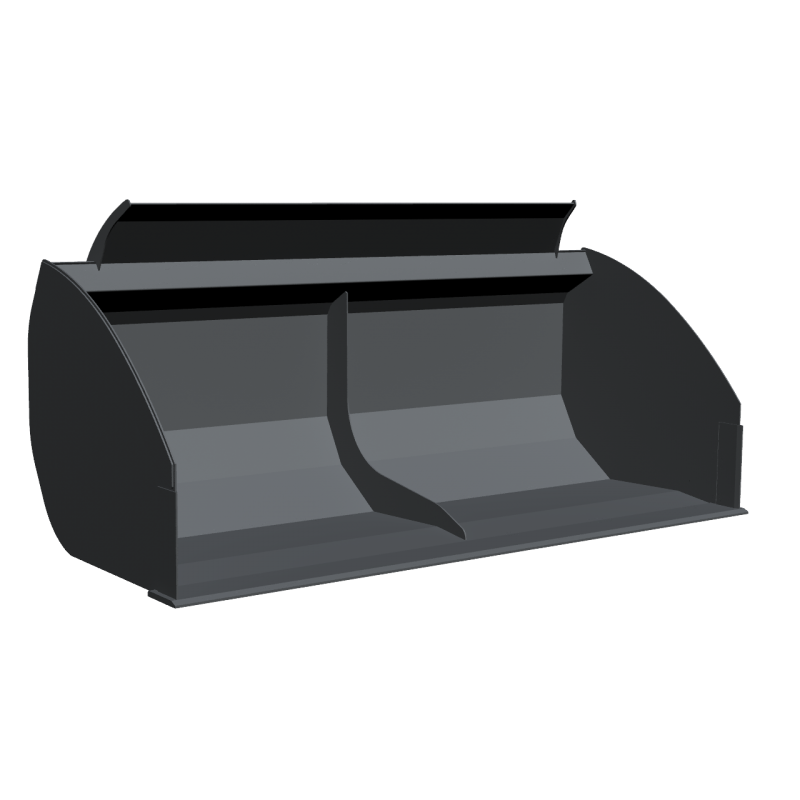

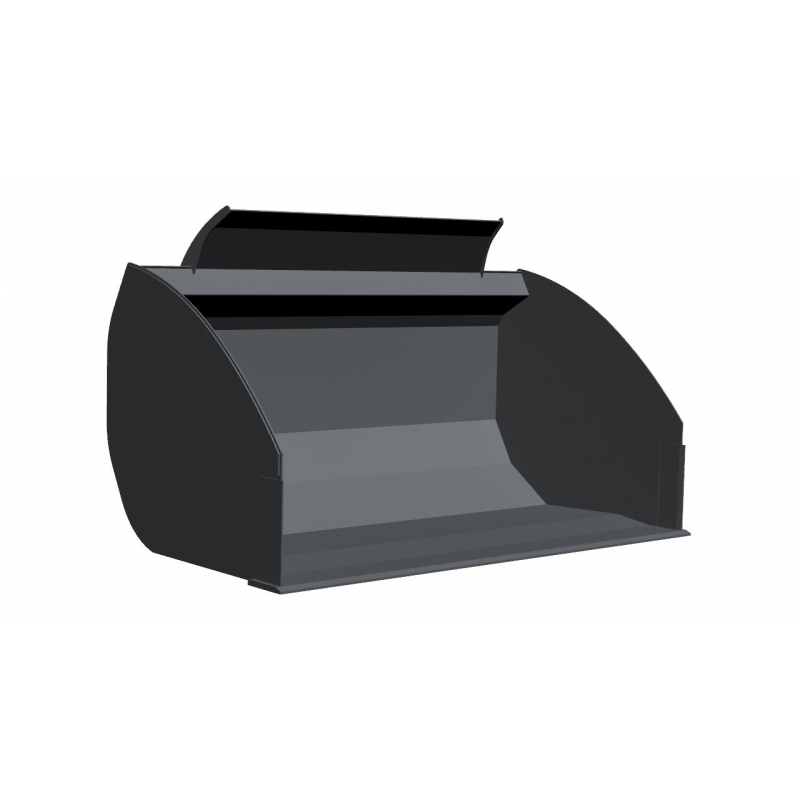

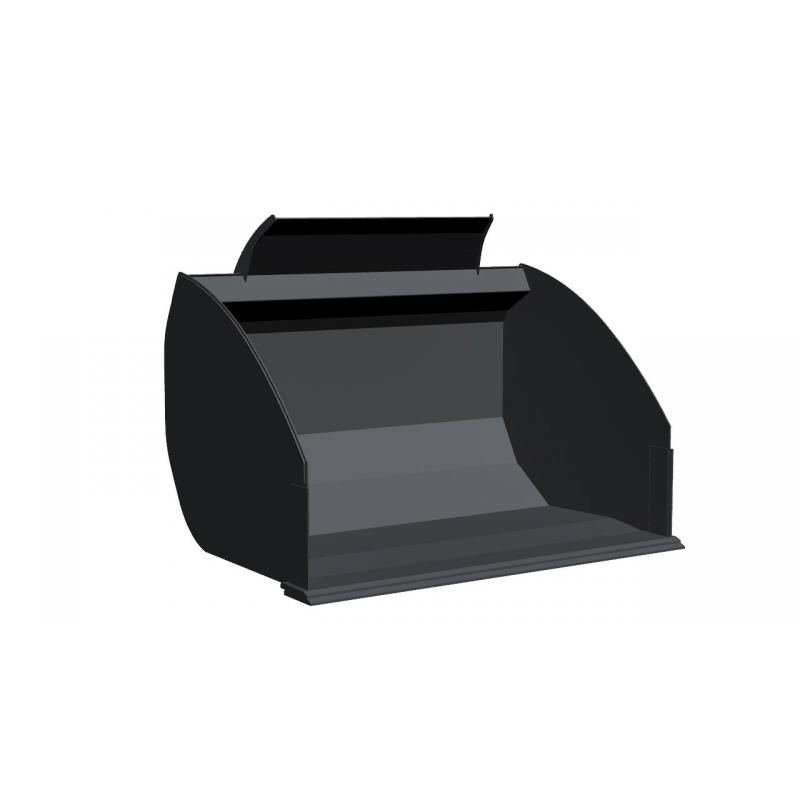

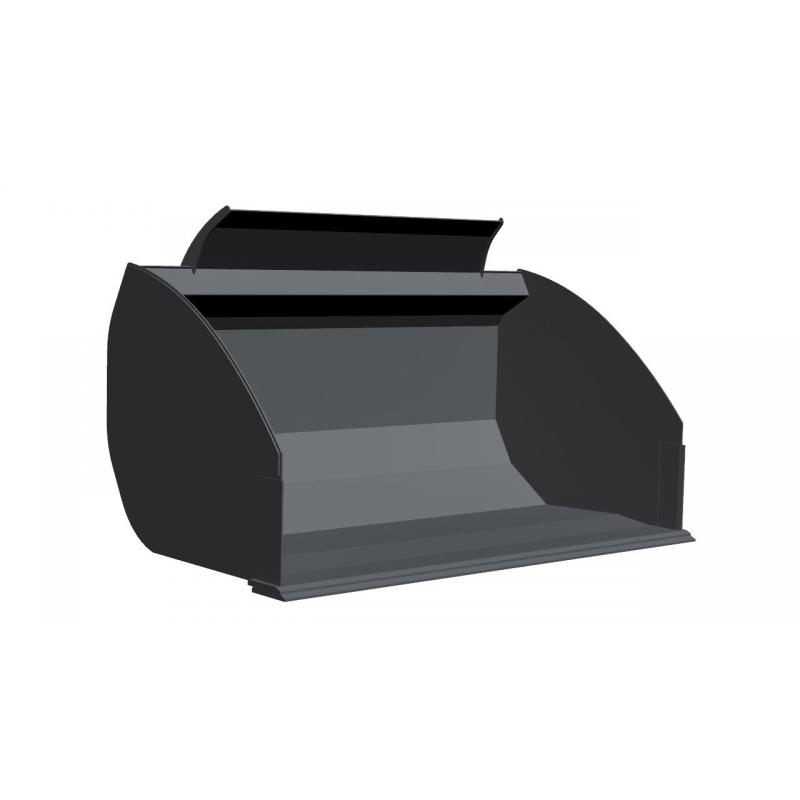

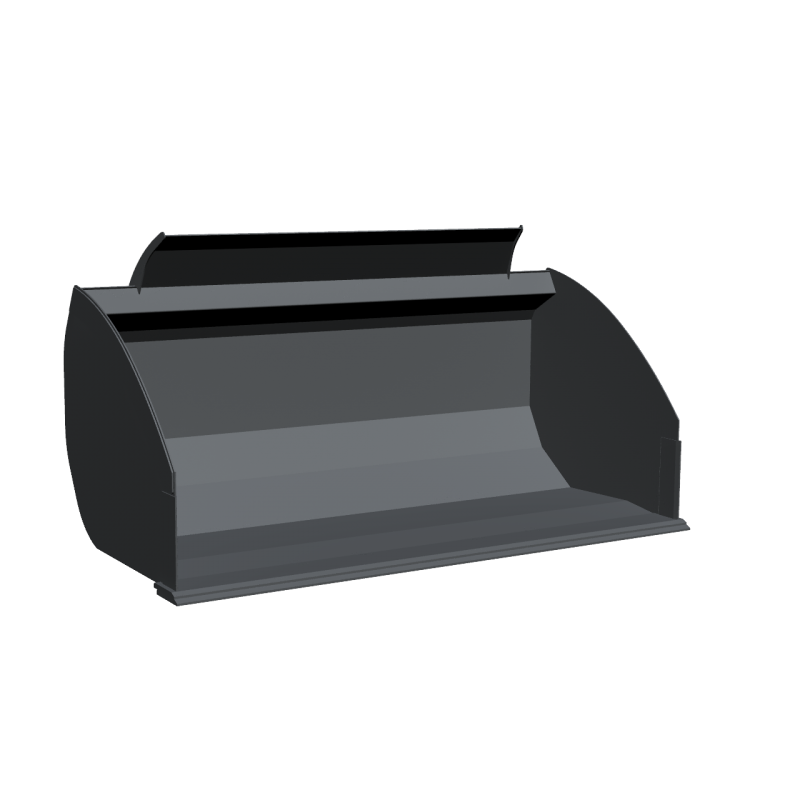

Large spill guard
Made in Canada
| Part # | Length | Volume (cu.ft) | Depth | Height | Weight (lbs) |
| GB0151 | 51" | 25,9 | 34" | 33" | 530 |
| GB0163 | 63" | 31,8 | 34" | 33" | 585 |
| GB0175 | 75" | 37,8 | 34" | 33" | 640 |
| GB0183 | 83" | 41,8 | 34" | 33" | 680 |
| GB0195 | 95" | 47,8 | 34" | 33" | 735 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
