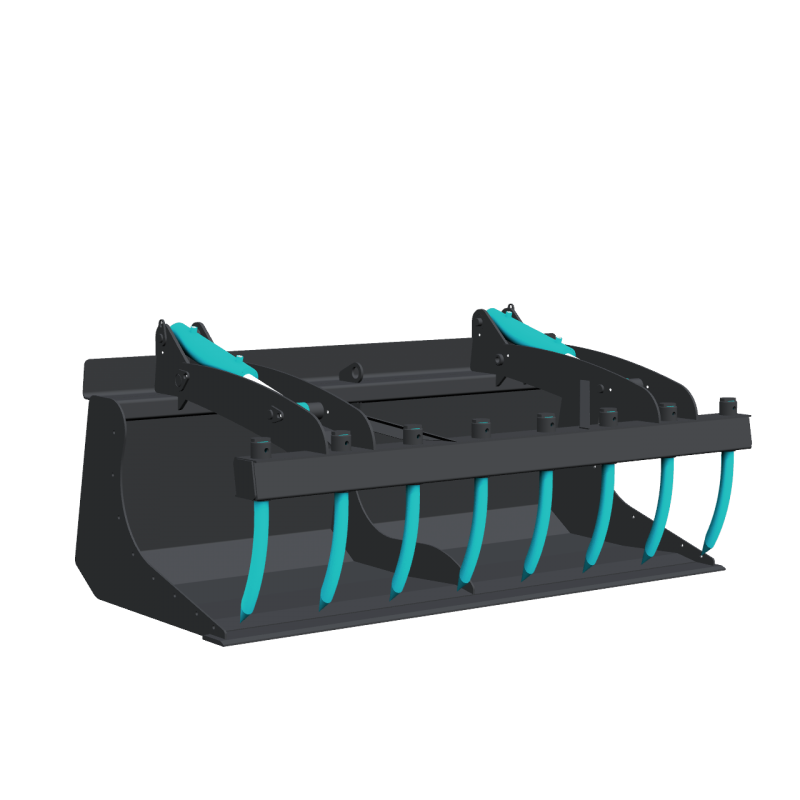

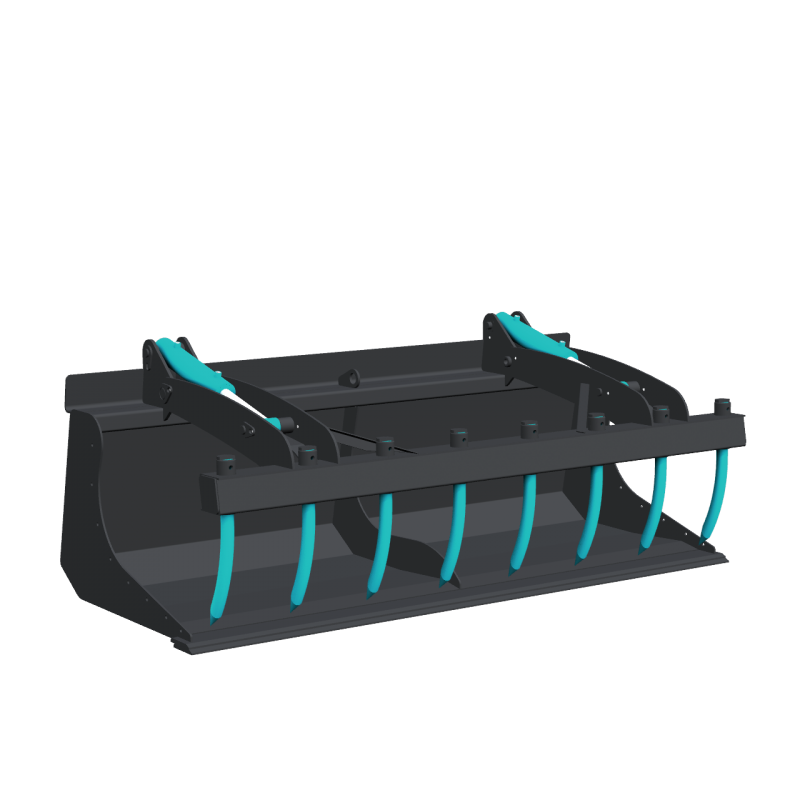

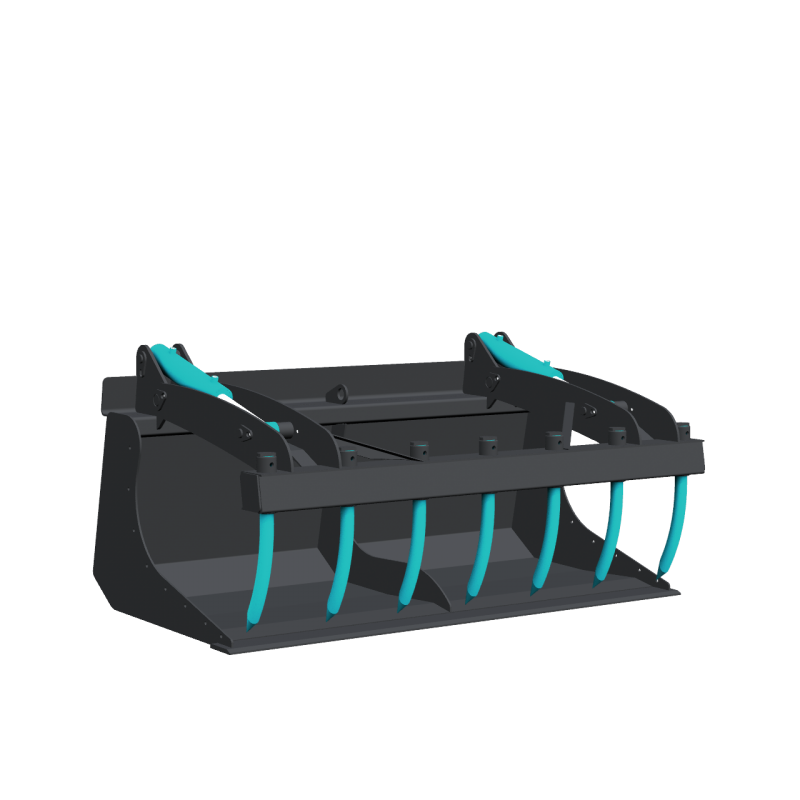

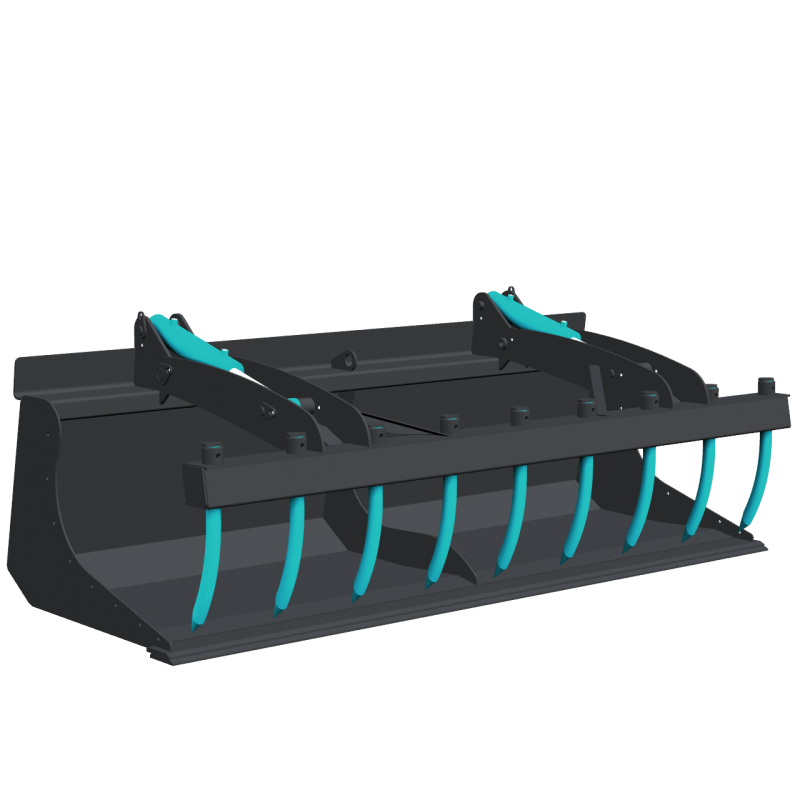

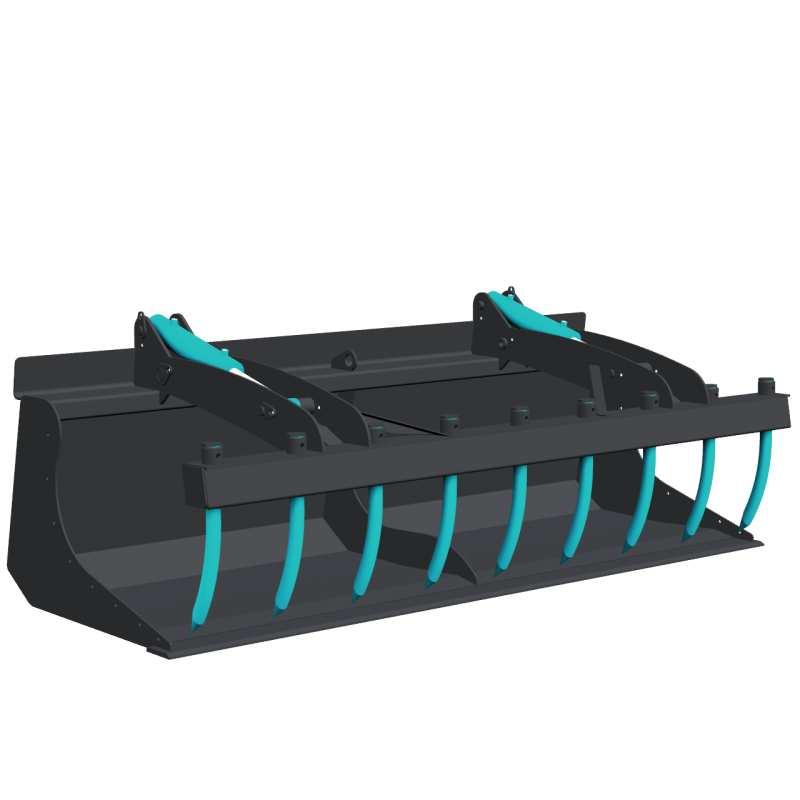

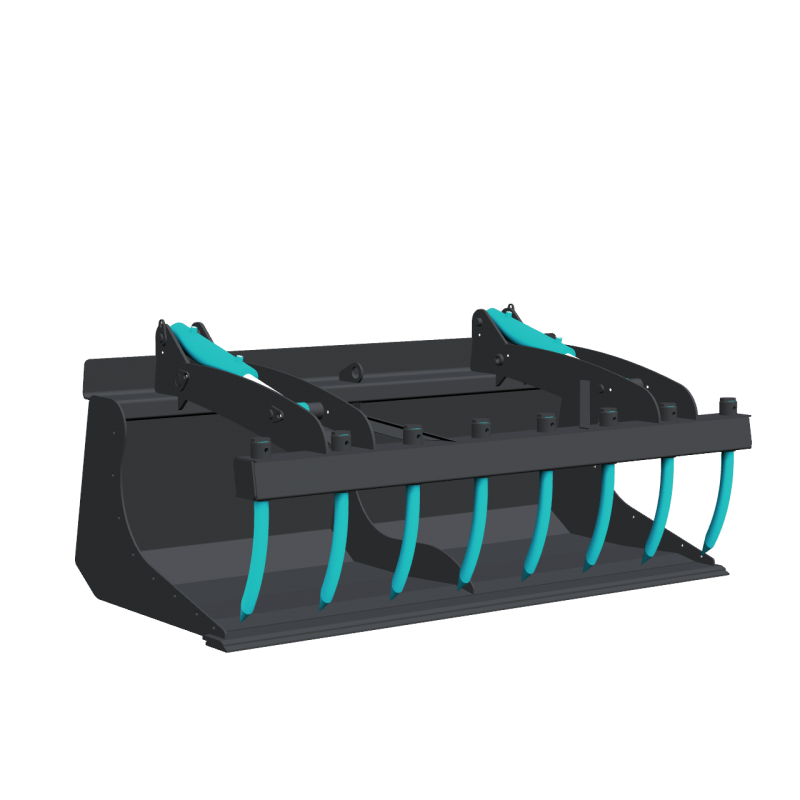

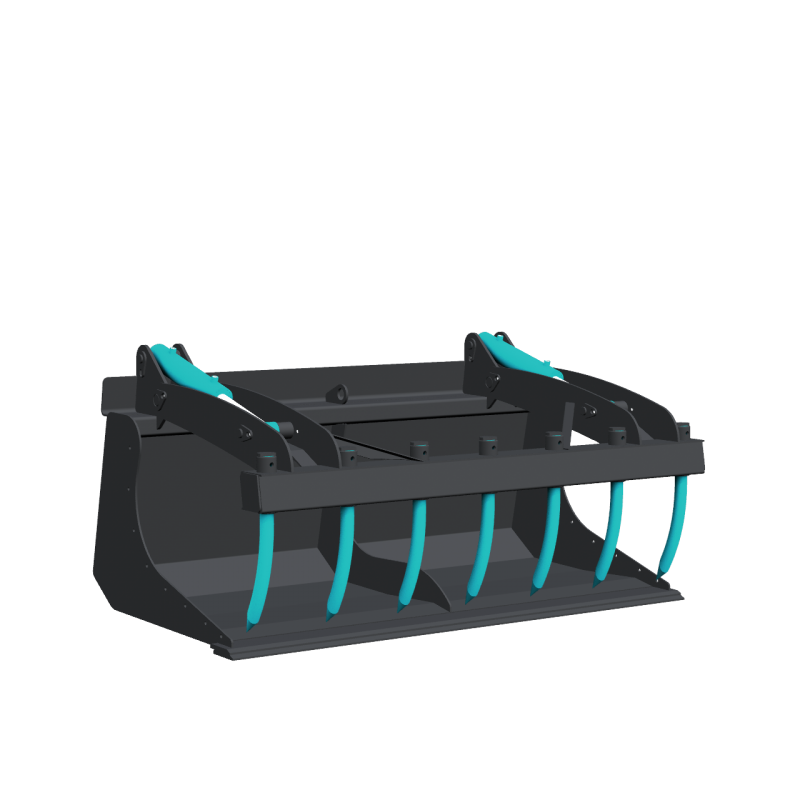

GP33 Bucket with forged tines grab
New product
Bucket with forged tines grab for tractors and loader with power range from 50 hp to 100 hp
Data sheet
| Power range | 50 hp - 100 hp |
| Material | 3/16" & 1/4" |
| Cutting edge | 4" x 1/2" 400 Brinell |
| Spill guard | Yes |
| Lifting ring | Yes |
| Grab tines | Forged |
| Bolt-on removable sides | Optional |
| Check valve | Optional |
| Length range (min-max) | 59" - 83" |
More info
Bucket with forged tines grapple for loaders and tractors with power range from 50 hp to 100 hp
Bucket set
Construction with High Strength Steel: 3/16" material, 1/4" end plates
5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)
Bucket reinforcement
Lifting ring
Wear pads

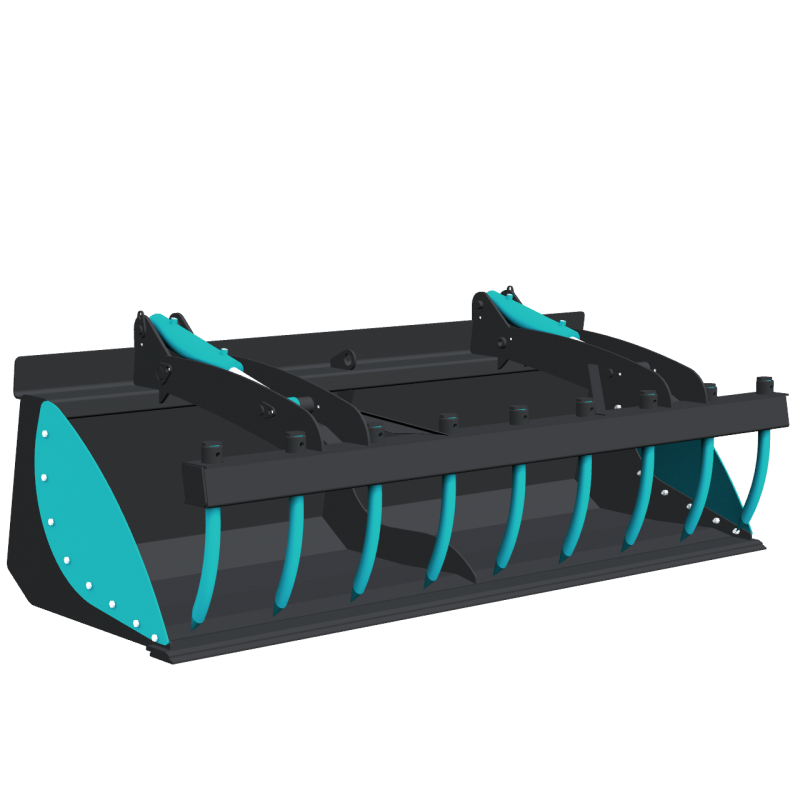

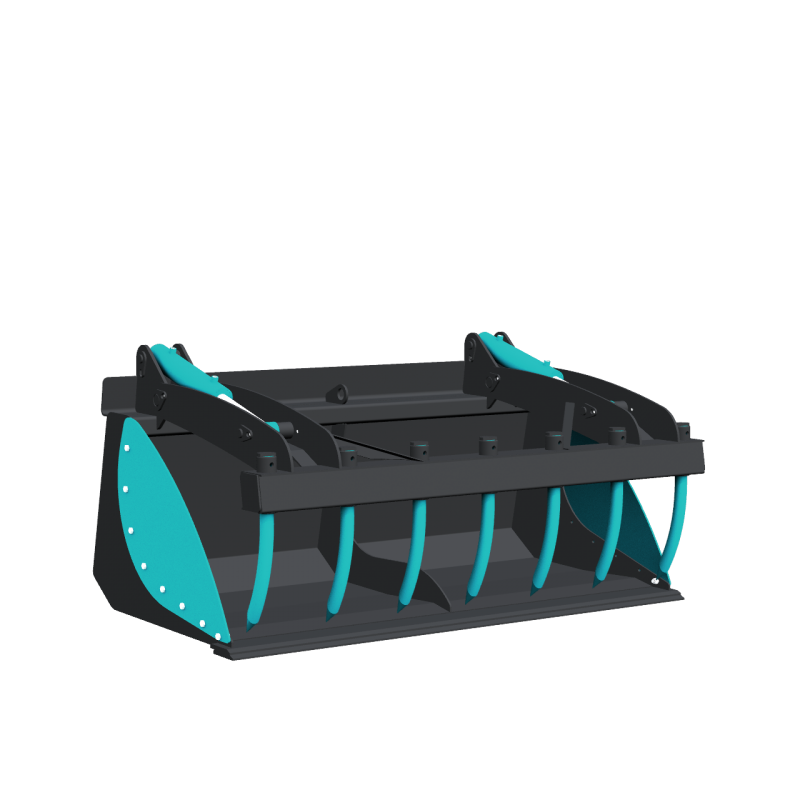

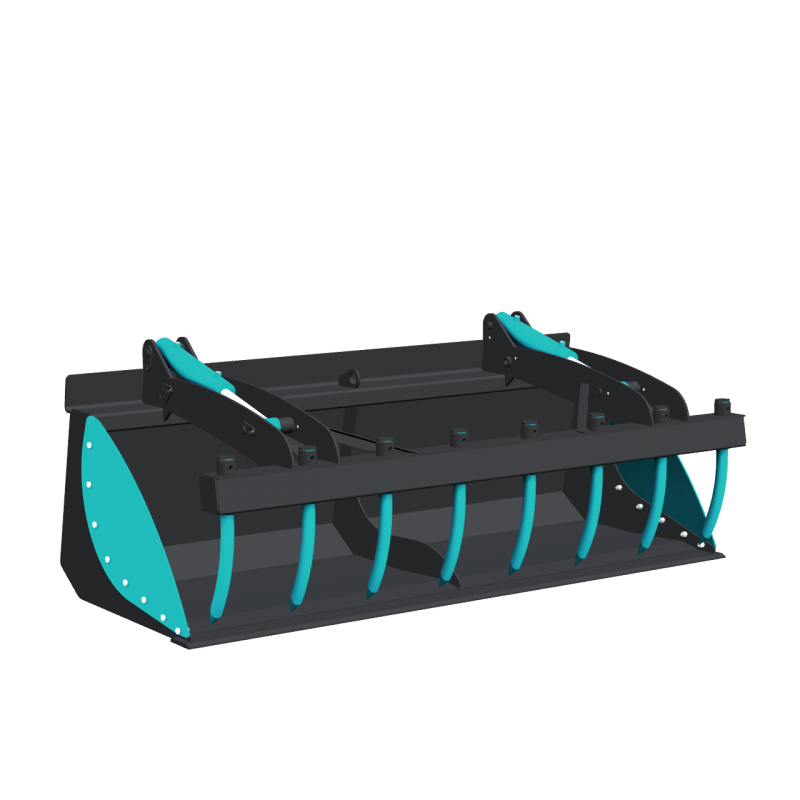

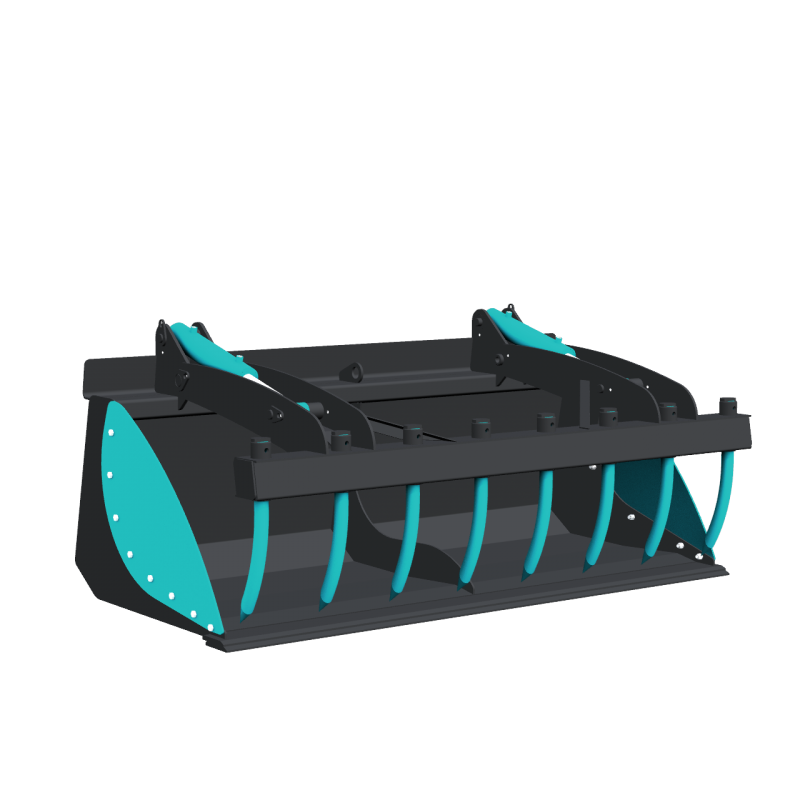

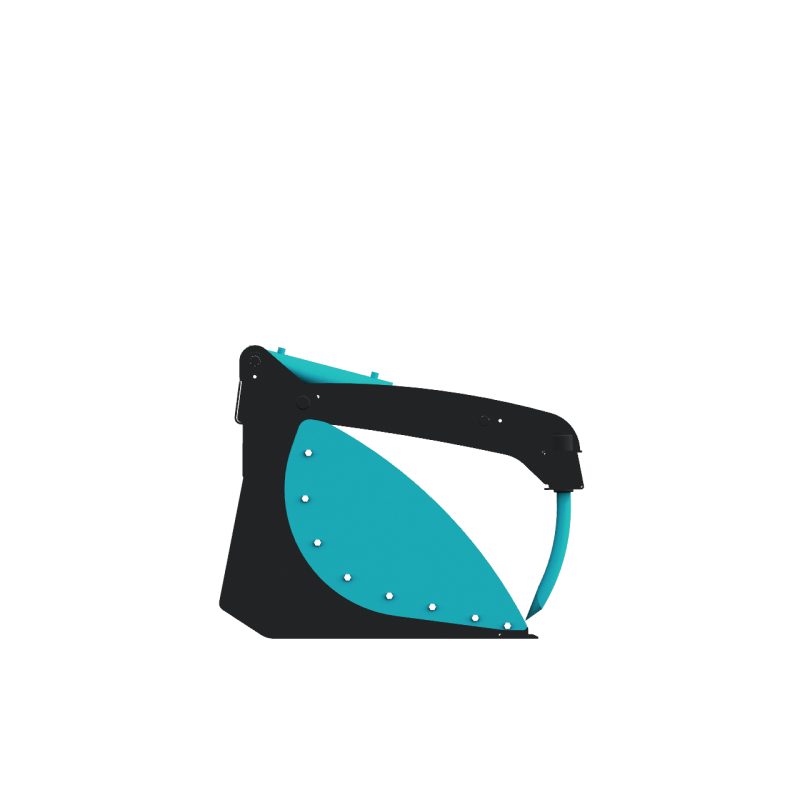

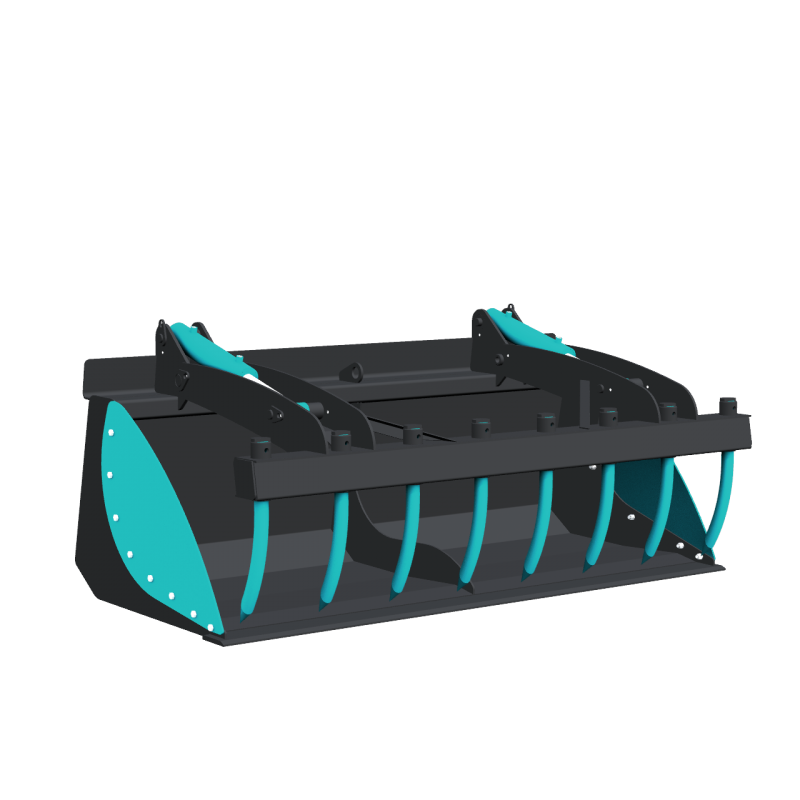

Bolt-on removable sides
5/8" bolt-on cutting edge
Grapple set

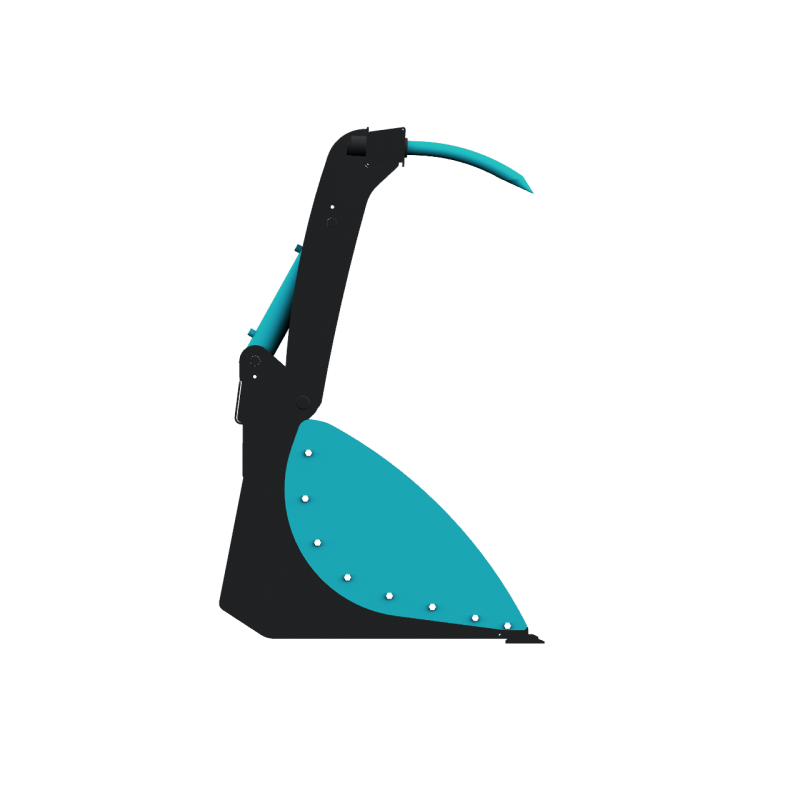

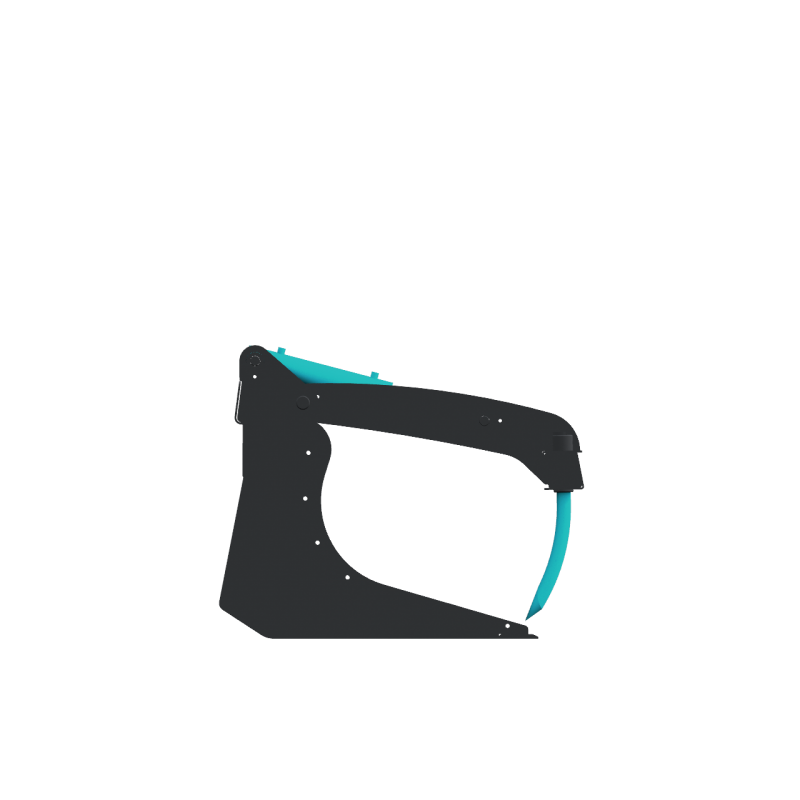

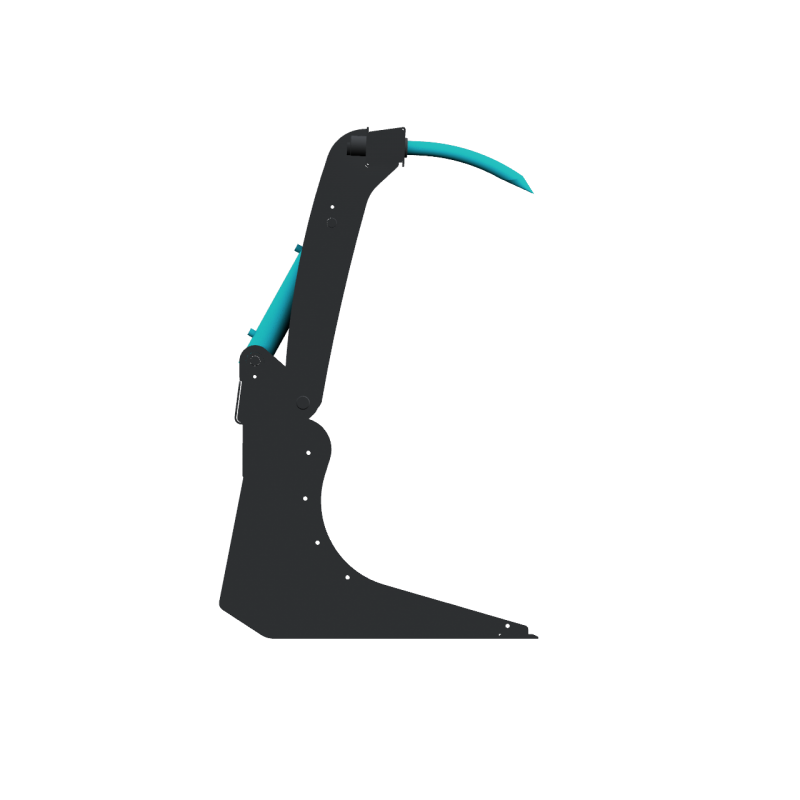

Maximum opening grapple for working against walls. In the opened position, the grapple teeth remains behind the cutting edge.
44" opening
2 1/2" x 8" cylinder on the top
1 7/16" x 18" forged tines
Tines with anti-rotation system
Wear bushing at the pivots
Made in Canada
| Part # | Length | Grab Tines | Depth | Height | Weight (lbs) |
| GP3359 | 59" | 7 | 34" | 29" | 710 |
| GP3365 | 65" | 8 | 34" | 29" | 765 |
| GP3375 | 75" | 8 | 34" | 29" | 805 |
| GP3383 | 83" | 9 | 34" | 29" | 865 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
