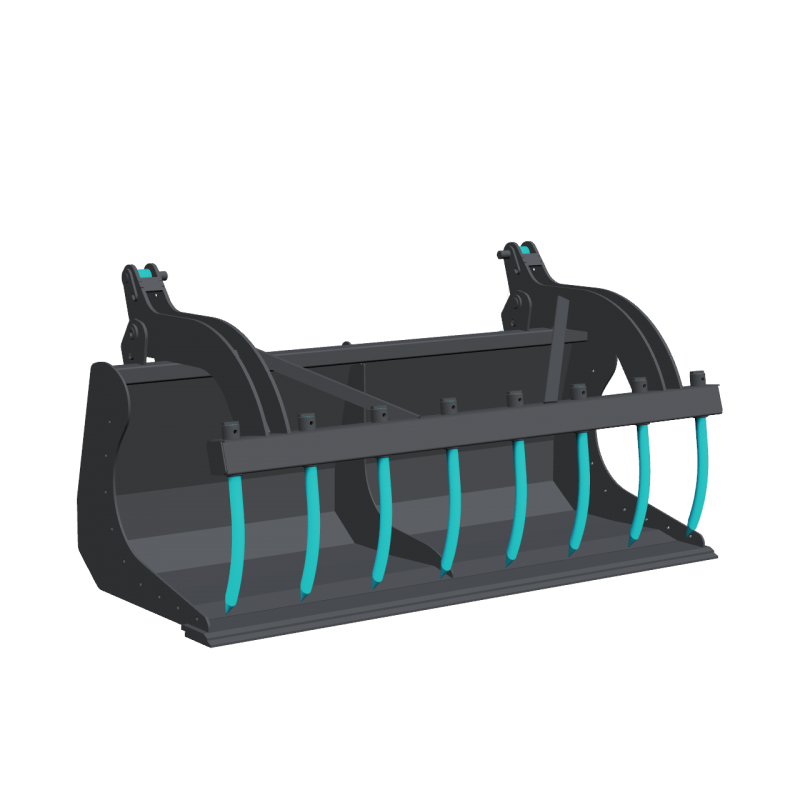

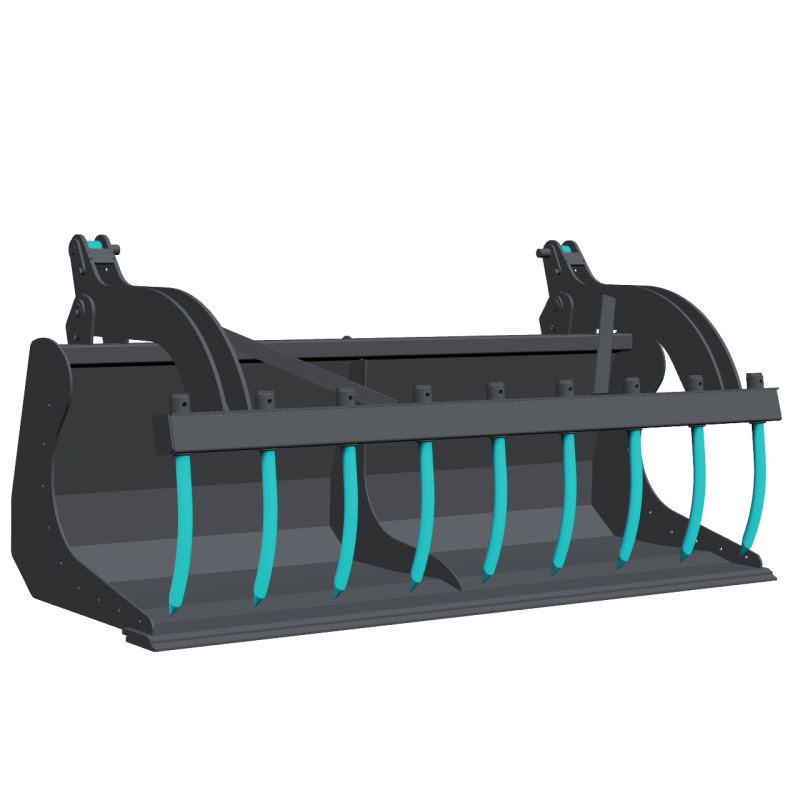

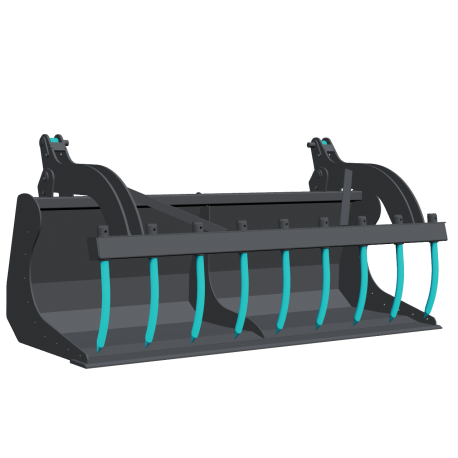

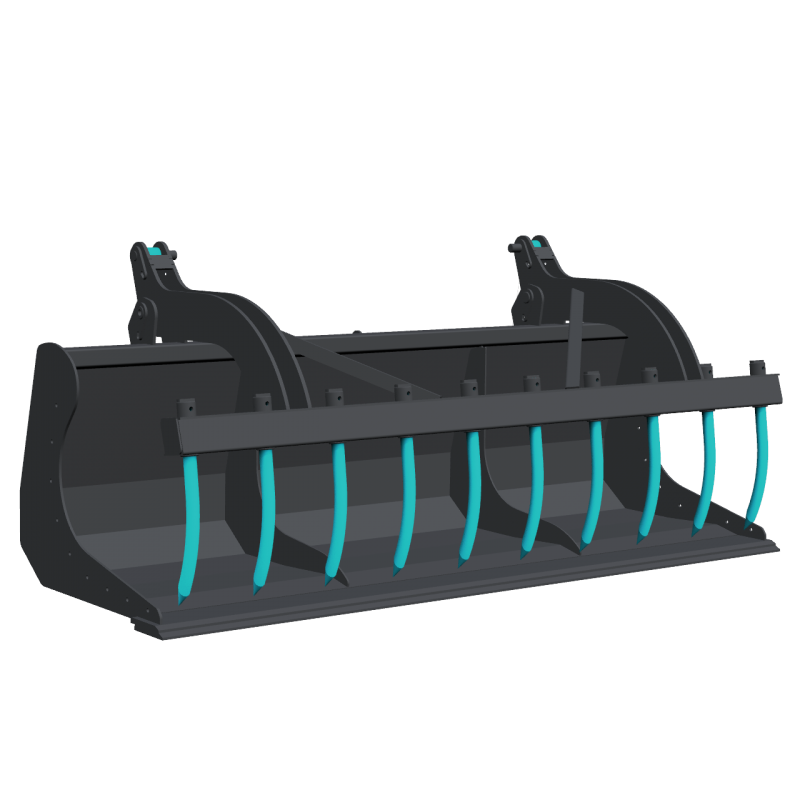

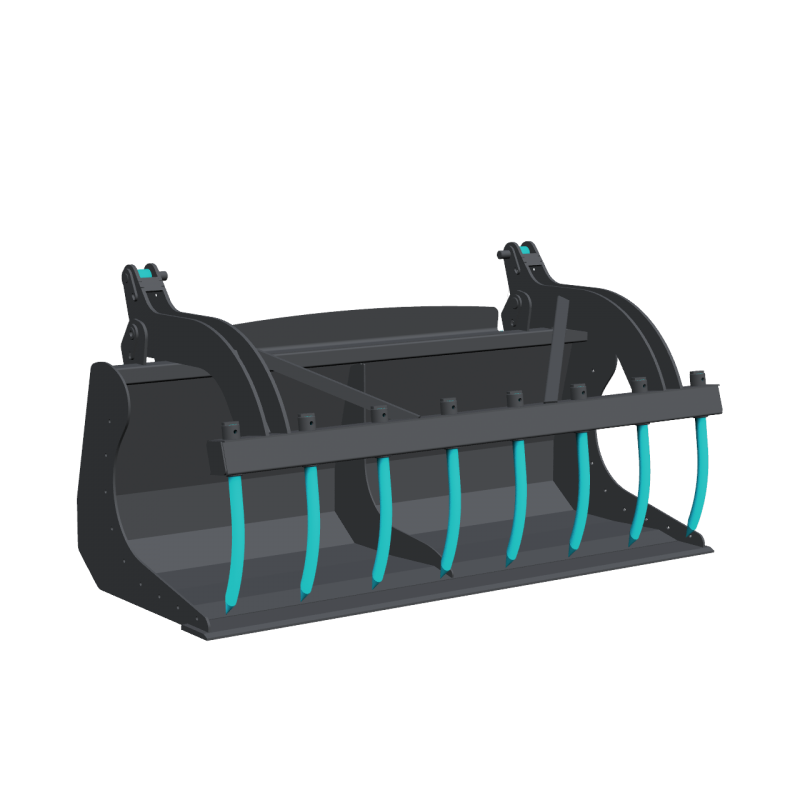

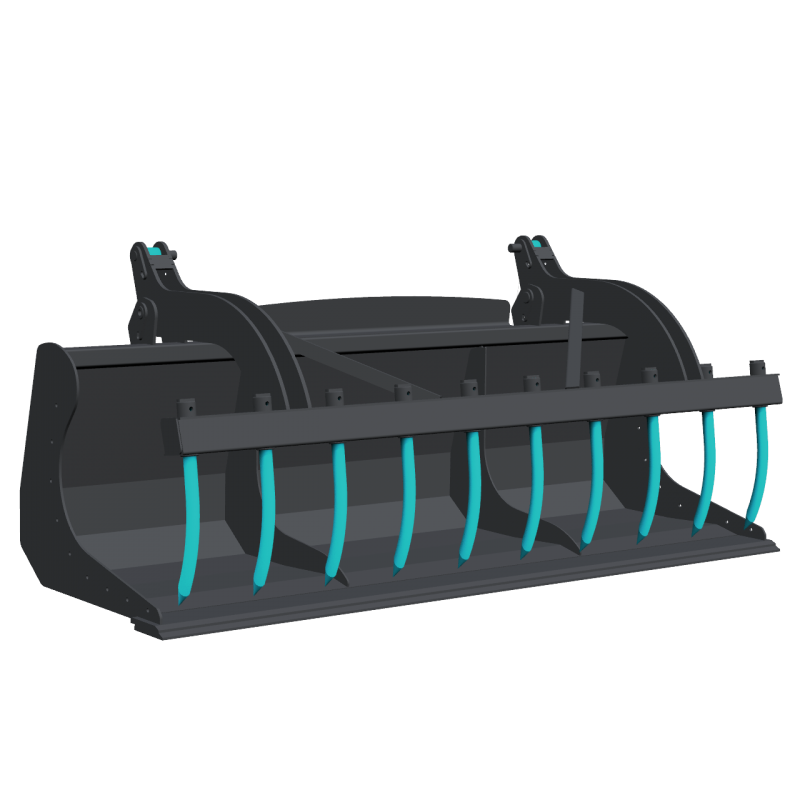

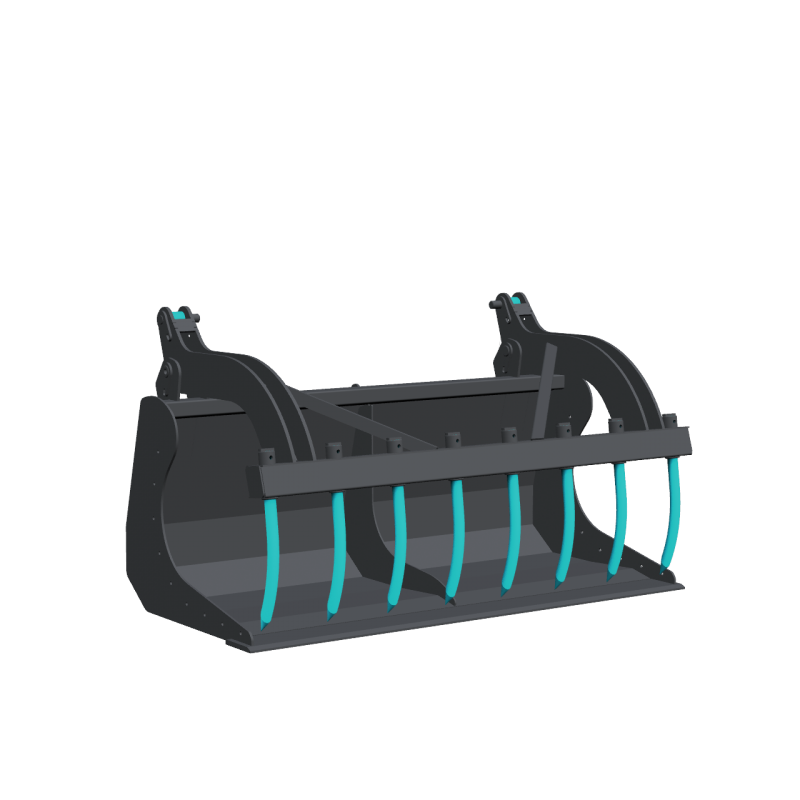

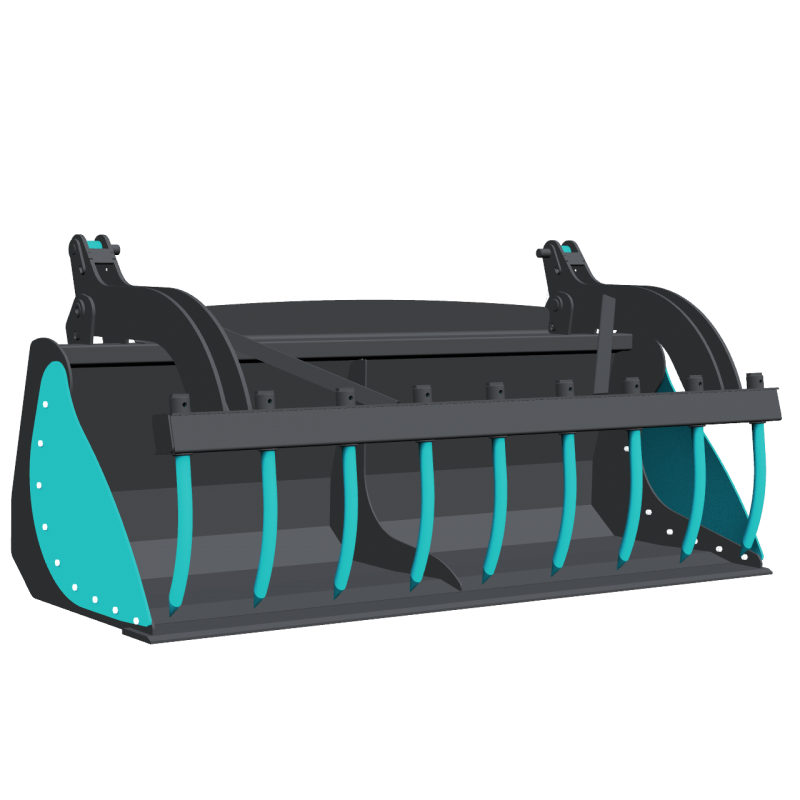

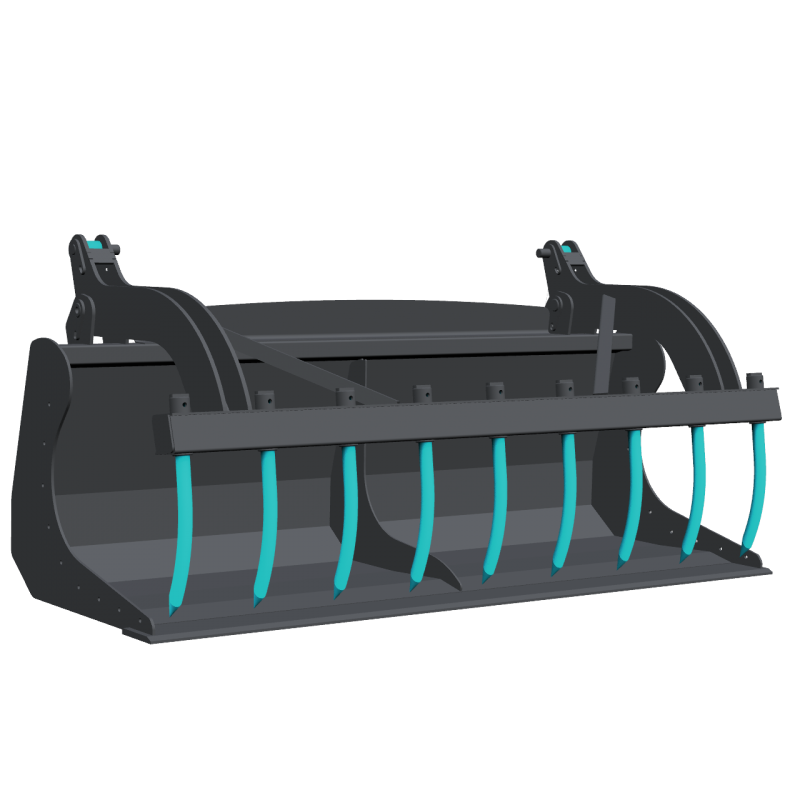

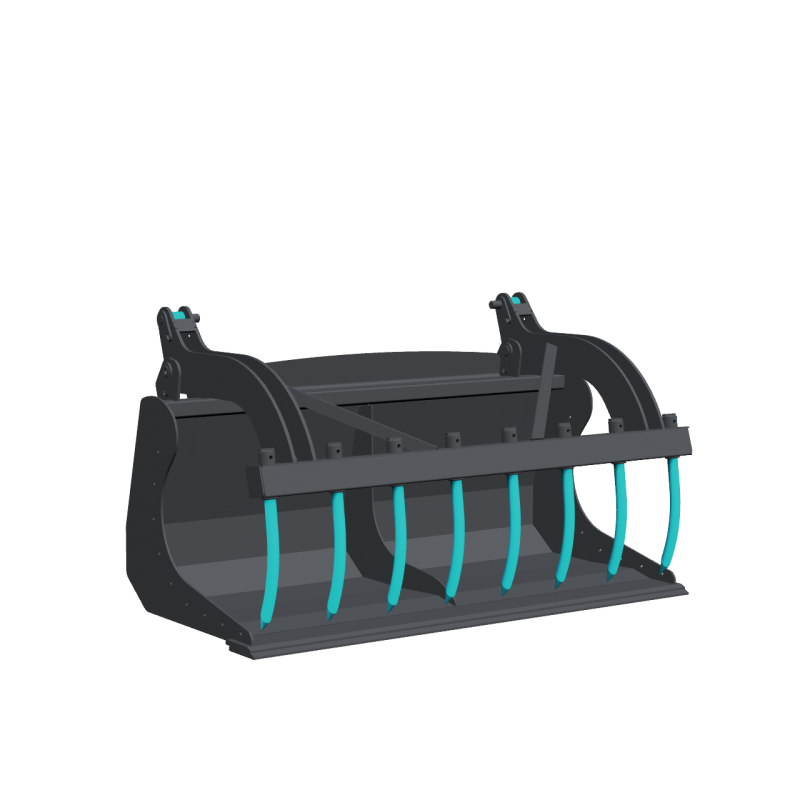

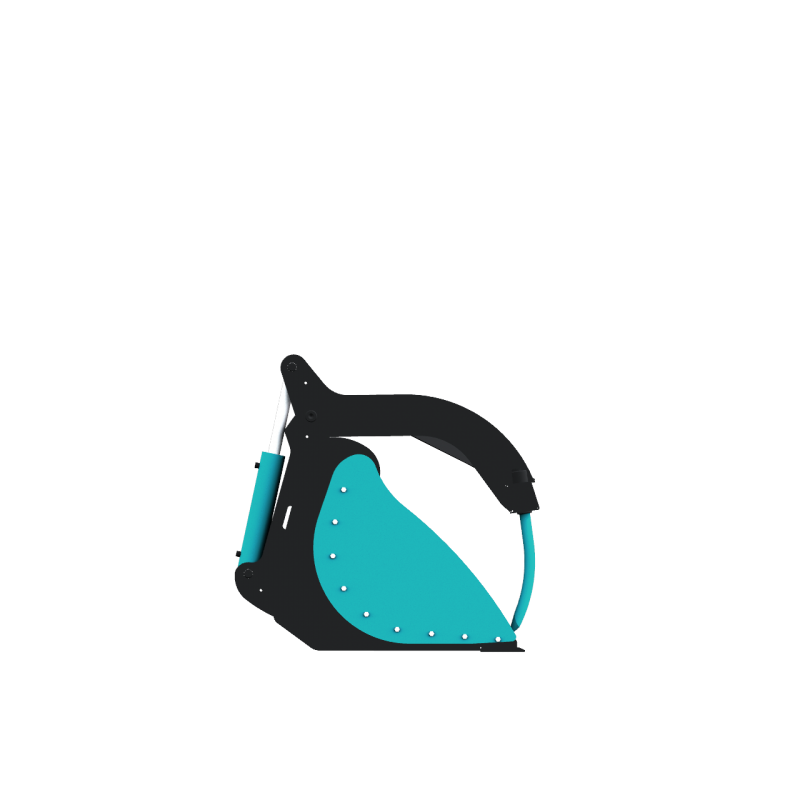

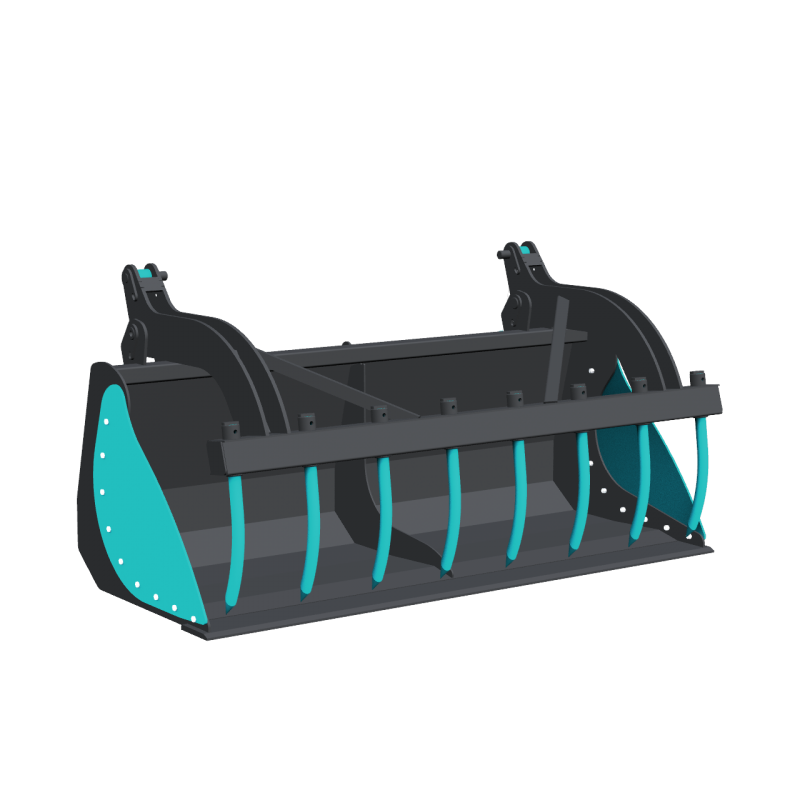

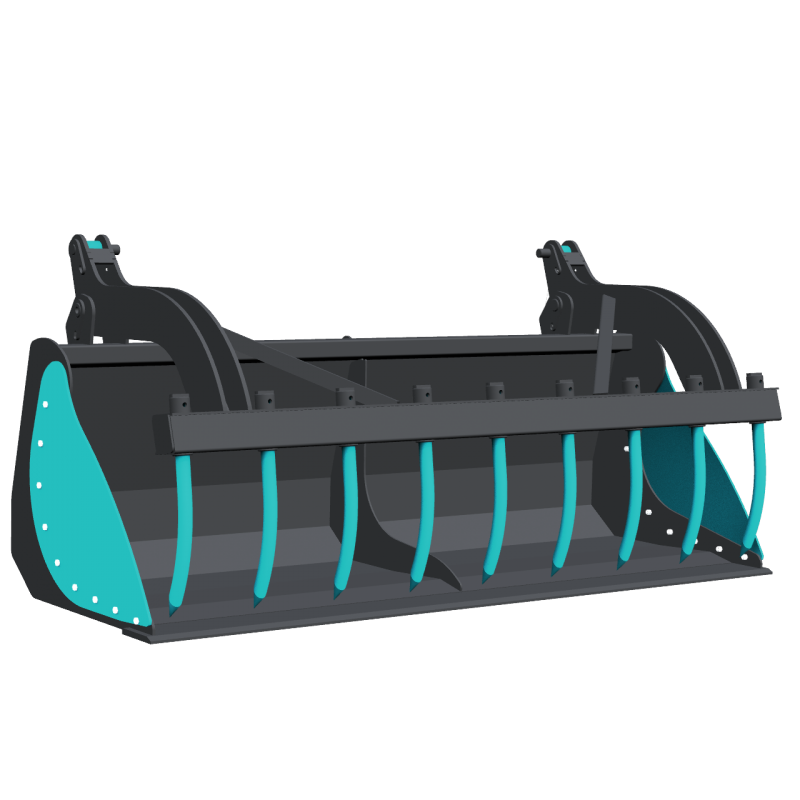

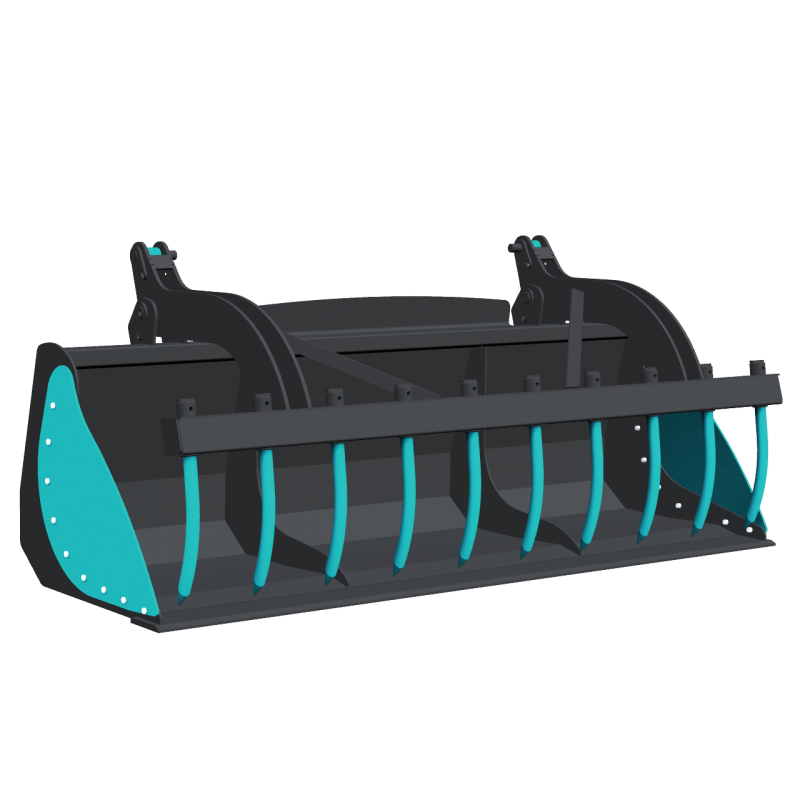

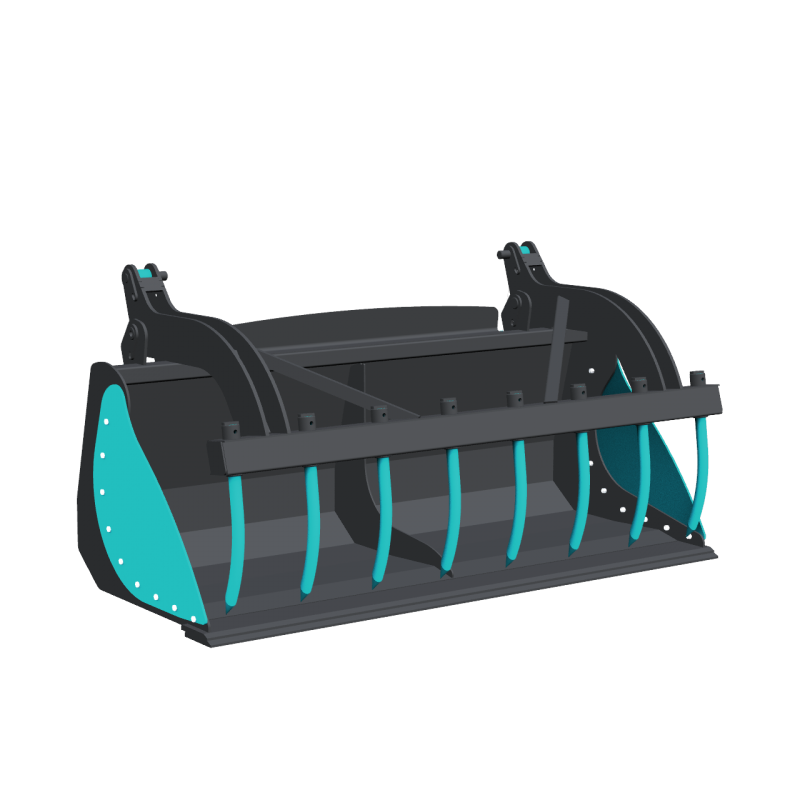

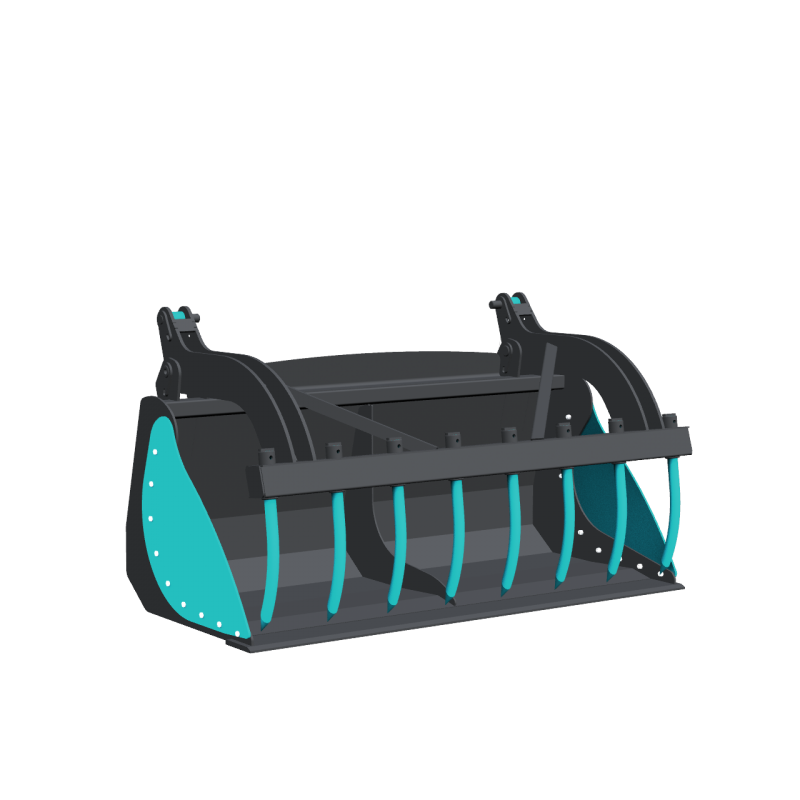

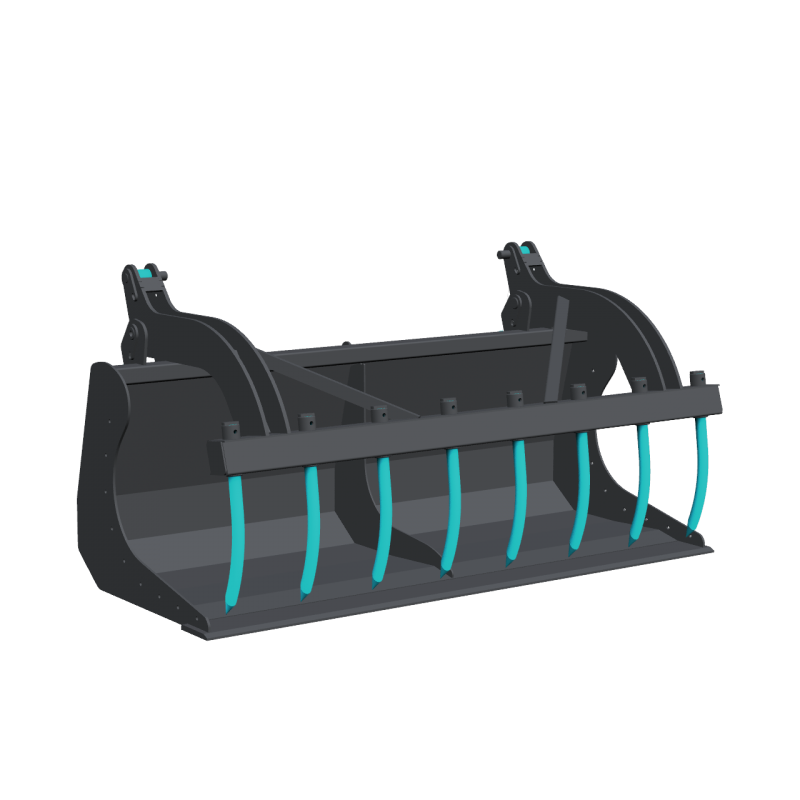

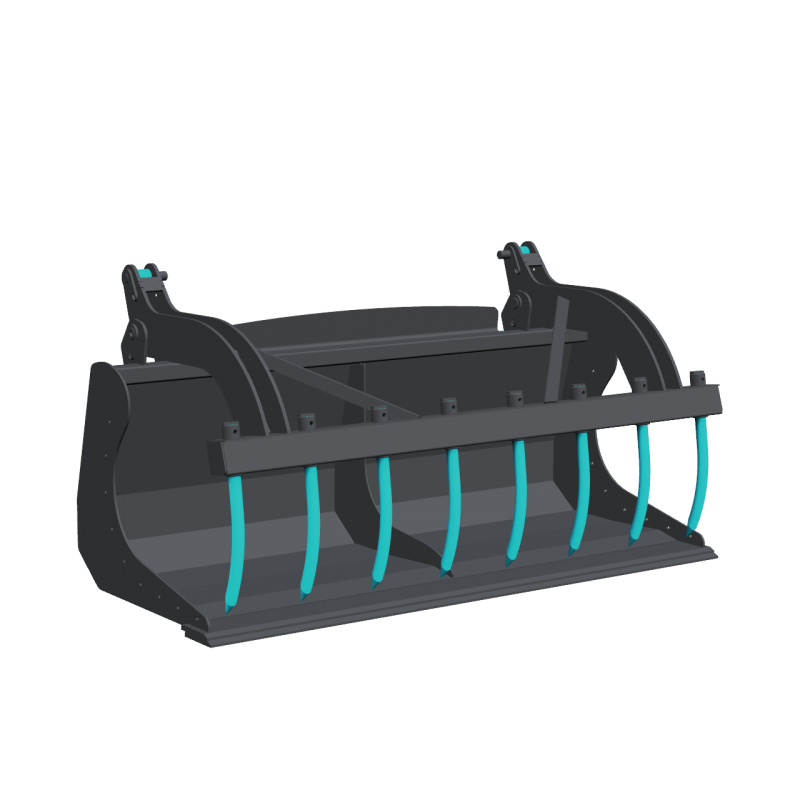

GB19 Bucket with forged tines grab
New product
Bucket with forged tines grab for tractors and loader with power range from 80 hp to 130 hp
Data sheet
| Power range | 80 hp - 130 hp |
| Material | 3/16" & 1/4" |
| Cutting edge | 5 7/8" x 5/8" 400 Brinell |

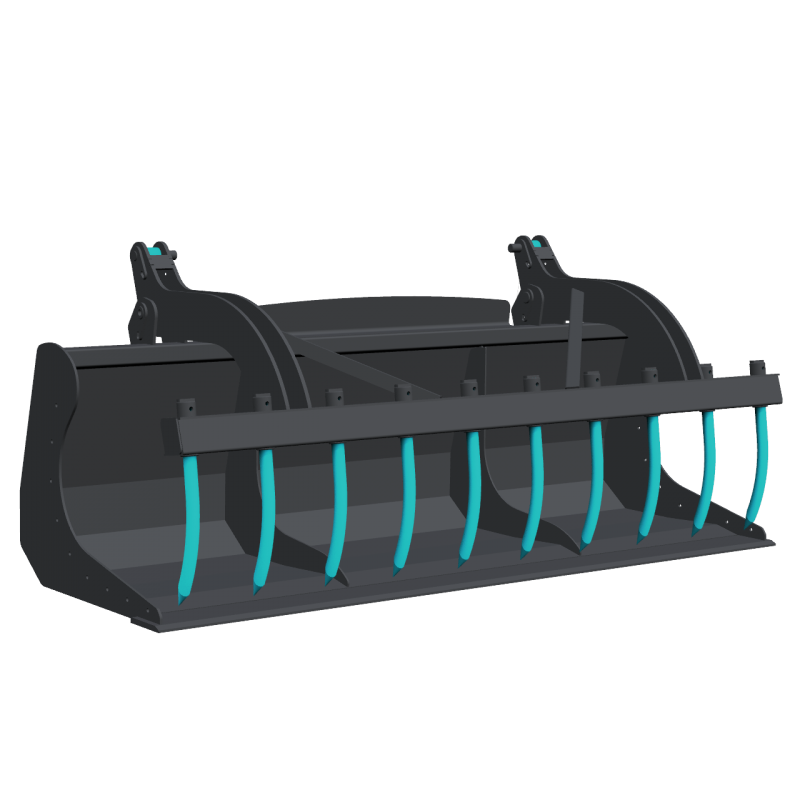

| Spill guard | Optional |
| Lifting ring | Yes |
| Grab tines | Forged |
| Bolt-on removable sides | Optional |
| Check valve | Optional |
| Pressure relief valve | Optional |
| Length range (min-max) | 67" - 91" |
More info
Bucket with forged tines grapple for loaders and tractors with power range from 80 hp to 130 hp
Bucket set
Construction with High Strength Steel: 3/16" material, 5/16" end plates
5/8" cutting edge
Bucket reinforcement
Lifting ring
Wear pads
Double 5/8" cutting edge (400 Brinell hardness)

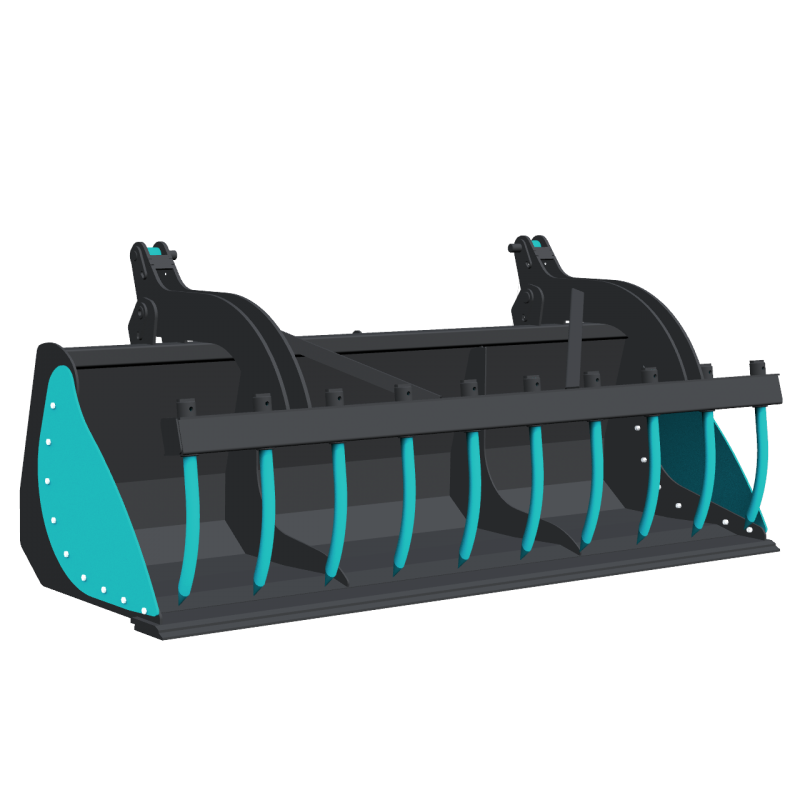

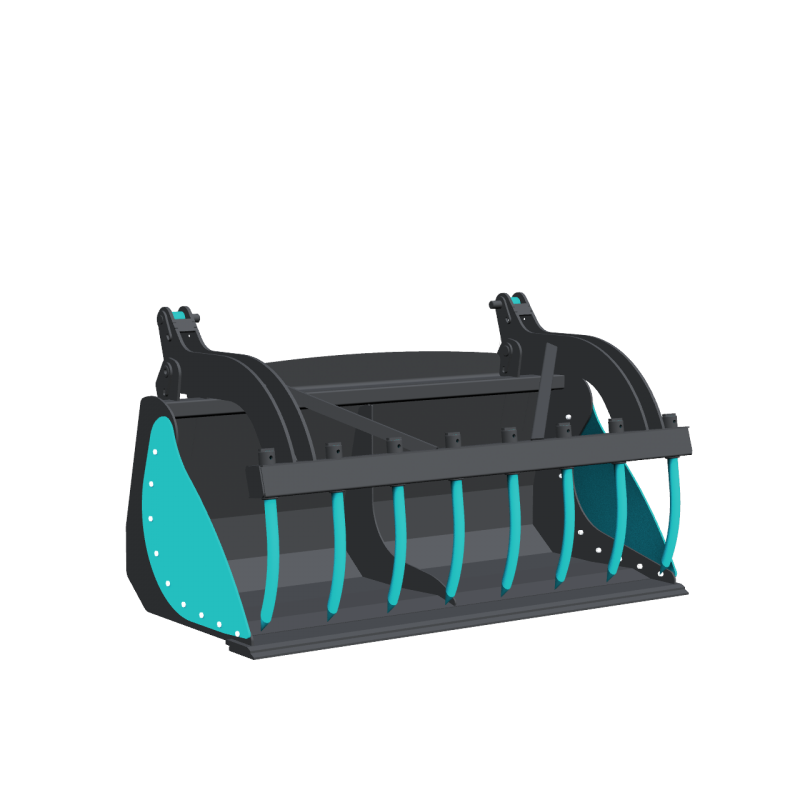

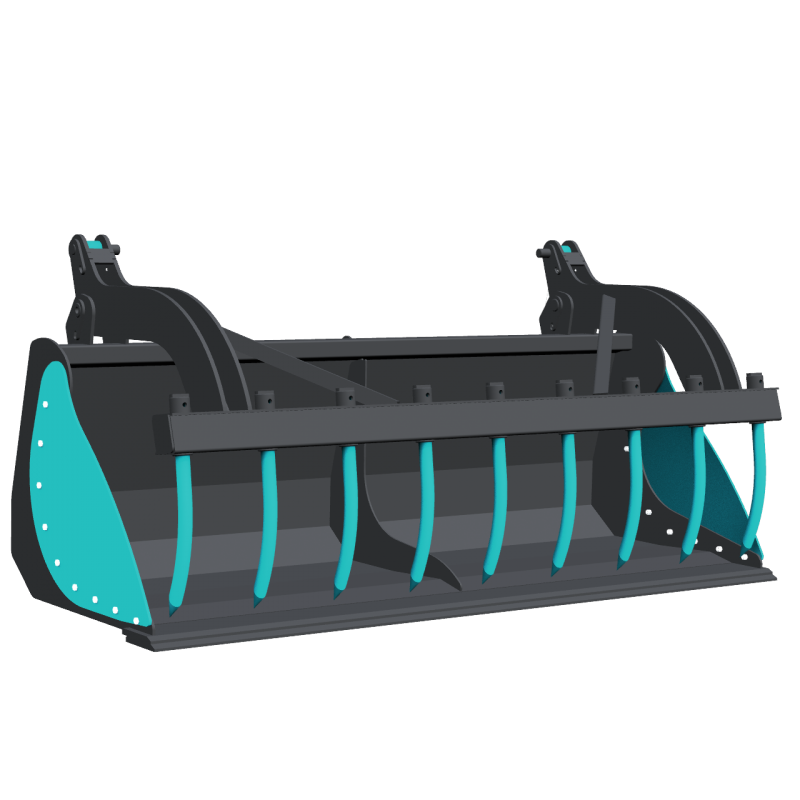

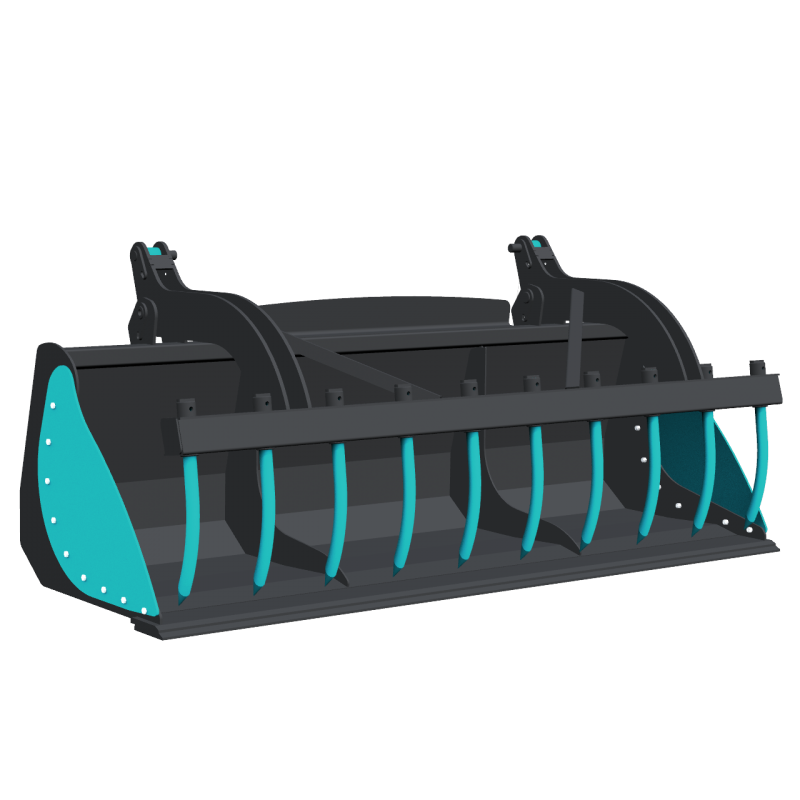

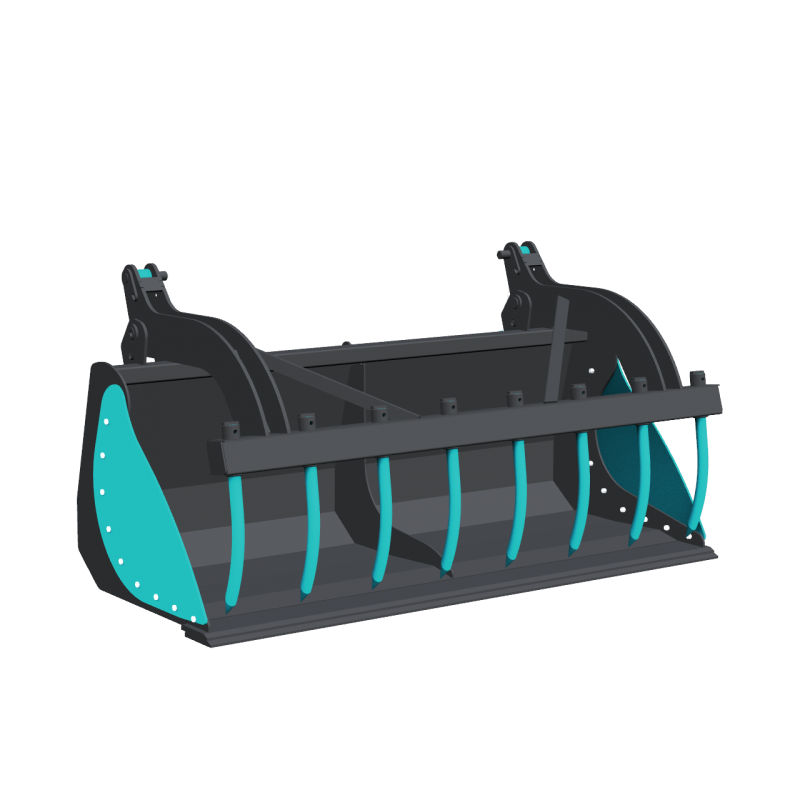

Bolt-on removable sides
Grapple set

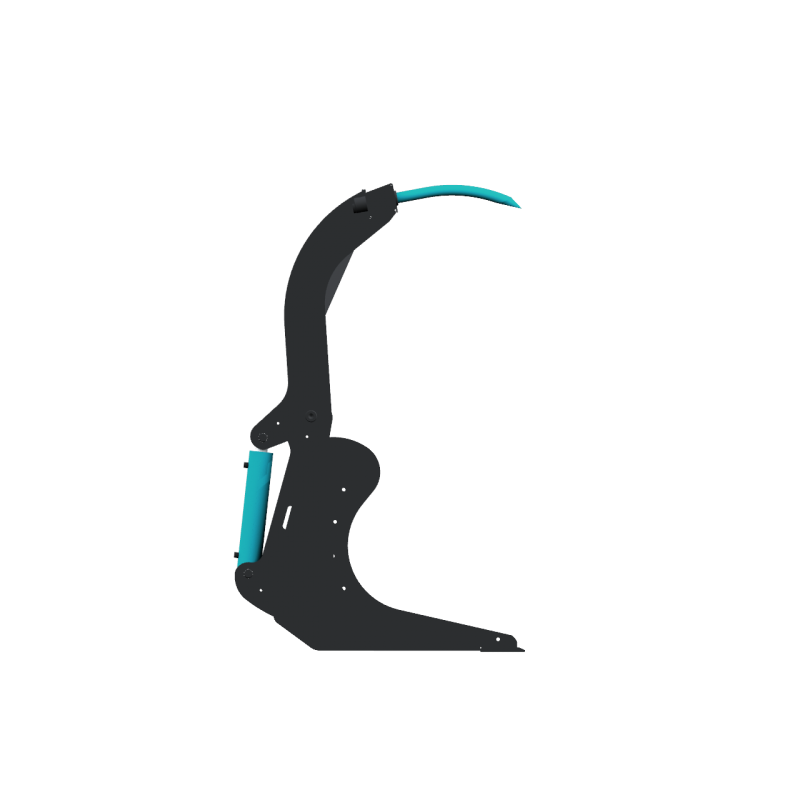

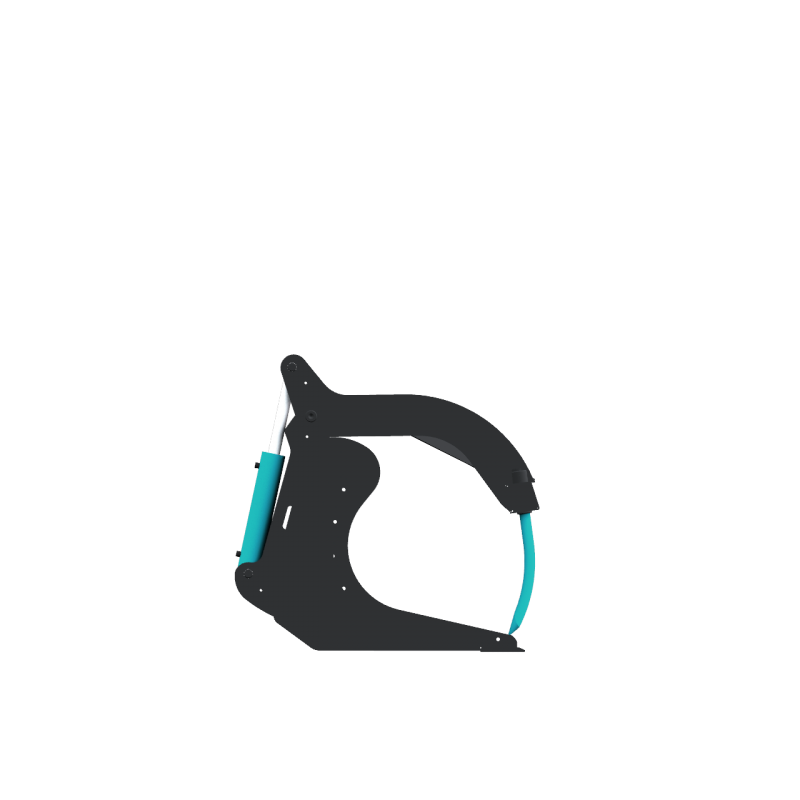

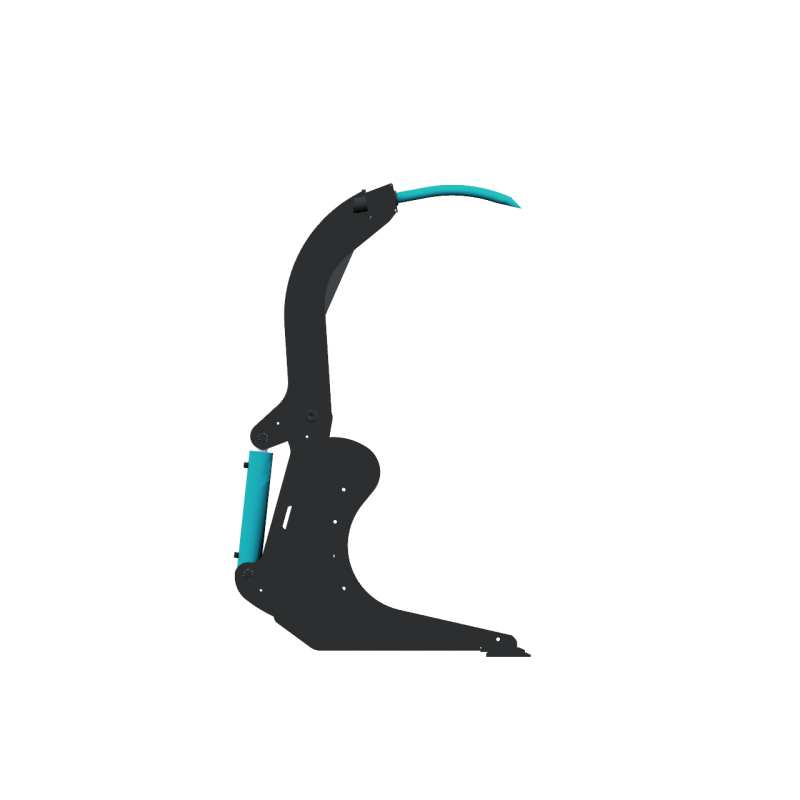

Maximum opening grapple for working against walls. In the opened position, the grapple teeth remains behind the cutting edge.
58" opening

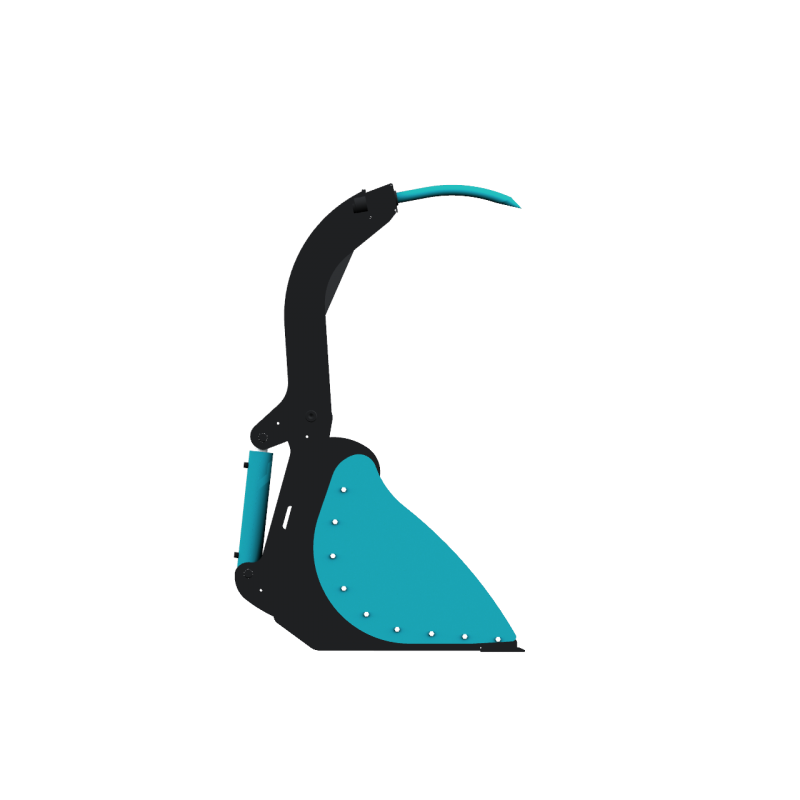

2 3/4" x 10" cylinder on the top
1 7/16" x 22" forged tines
Tines with anti-rotation system
Wear bushing at the pivots
Made in Canada
| Part # | Length | Grab Tines | Depth | Height | Weight (lbs) |
| GB1978 | 78" | 8 | 39" | 39" | 905 |
| GB1984 | 84" | 9 | 39" | 39" | 1025 |
| GB1990 | 90" | 10 | 39" | 39" | 1100 |
| GB1996 | 96" | 10 | 39" | 39" | 1175 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
