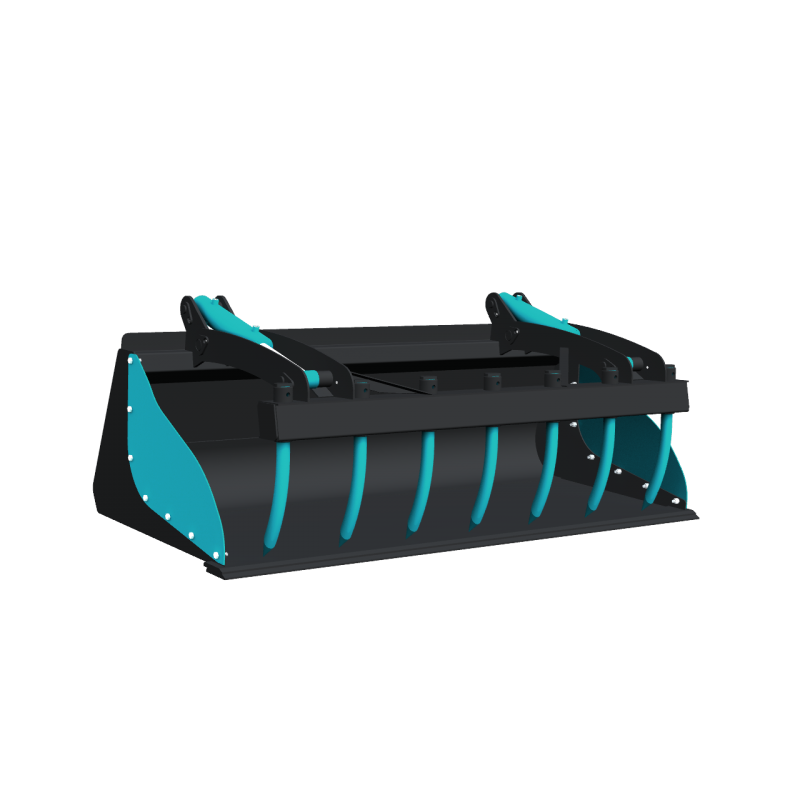

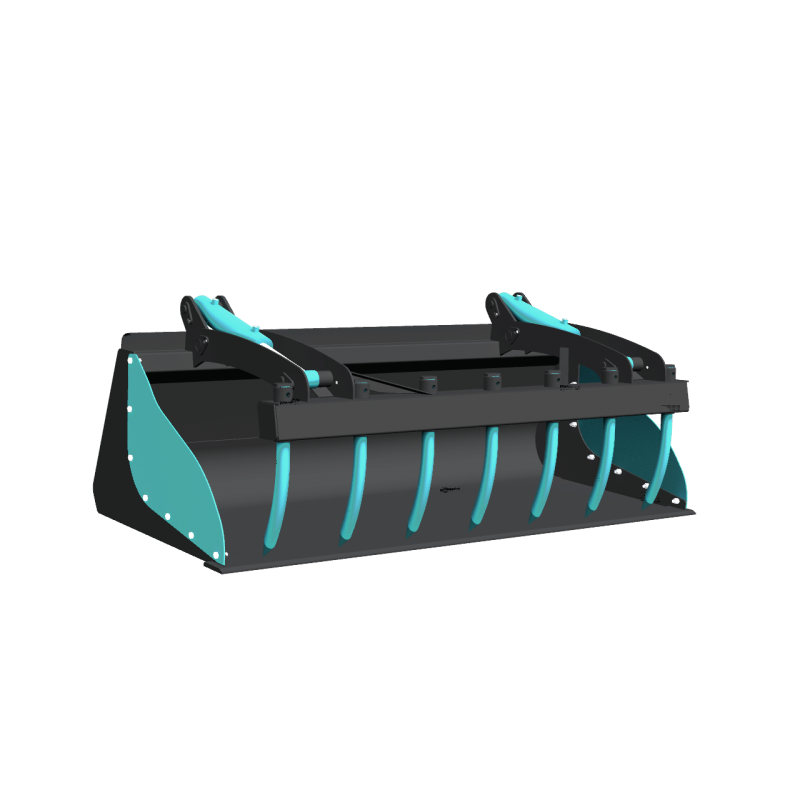

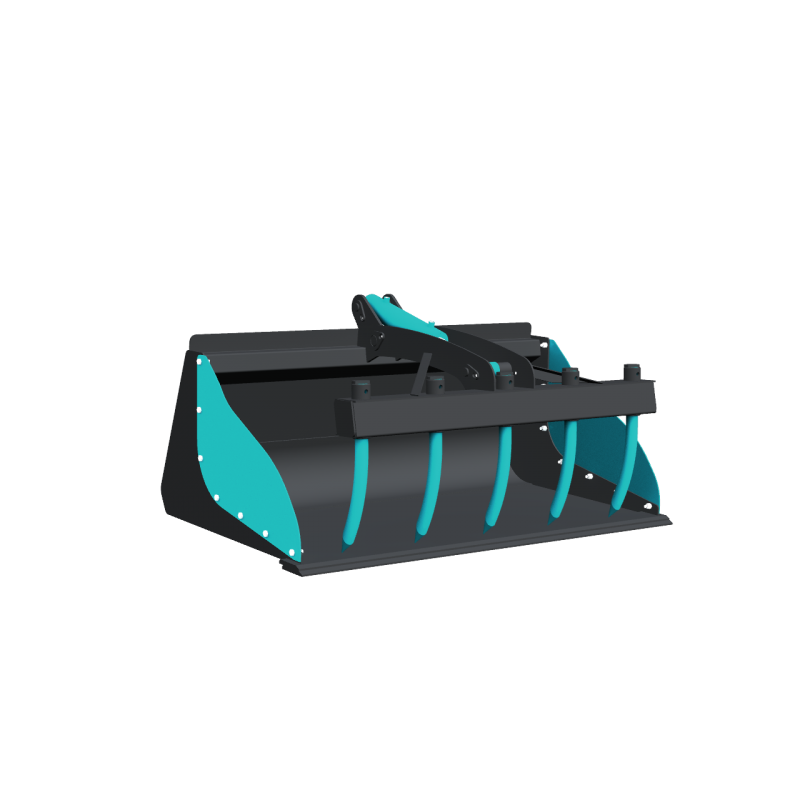

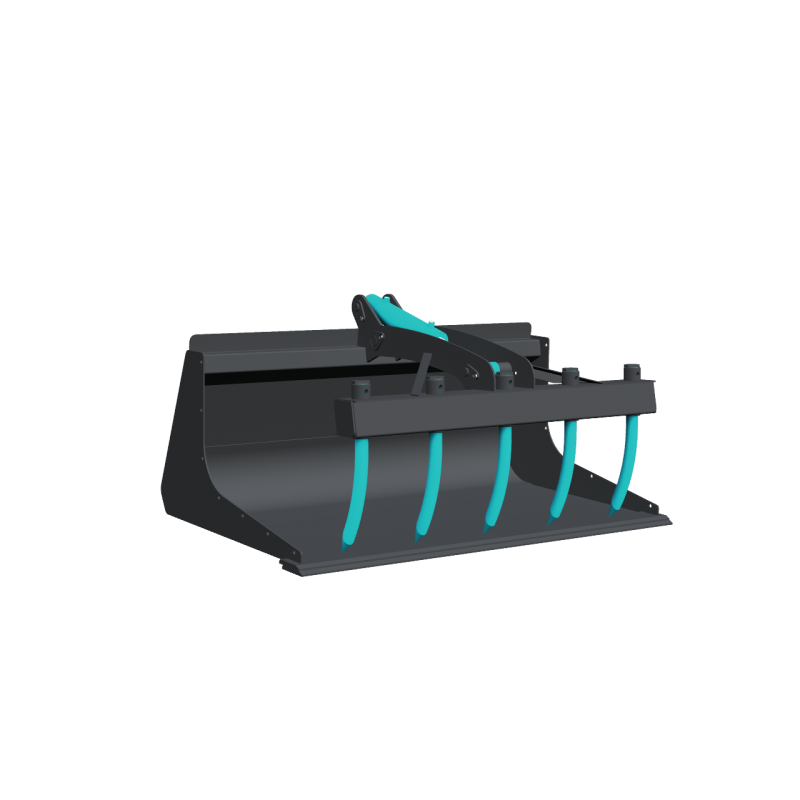

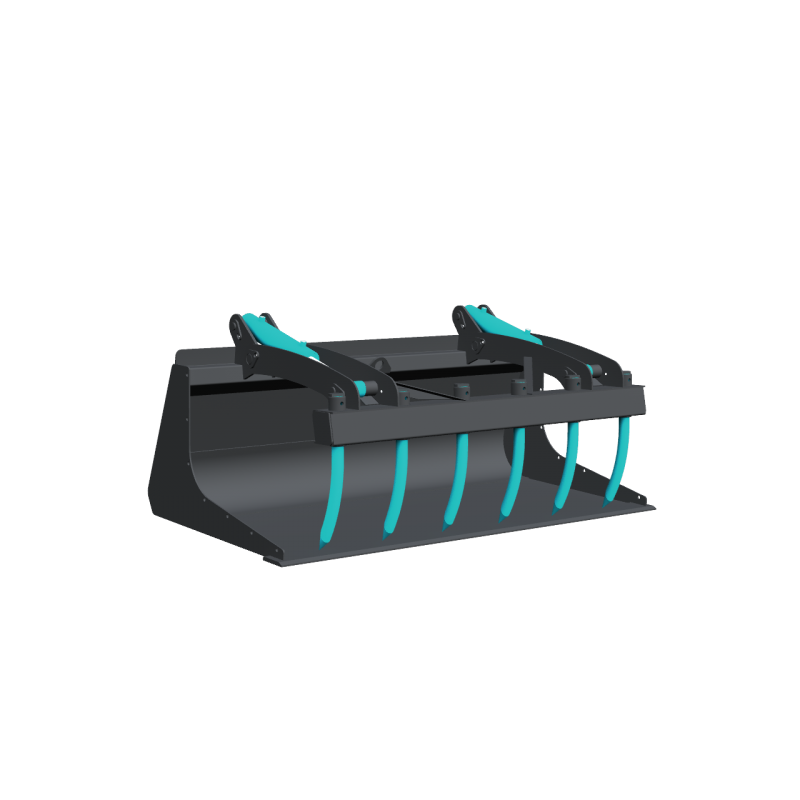

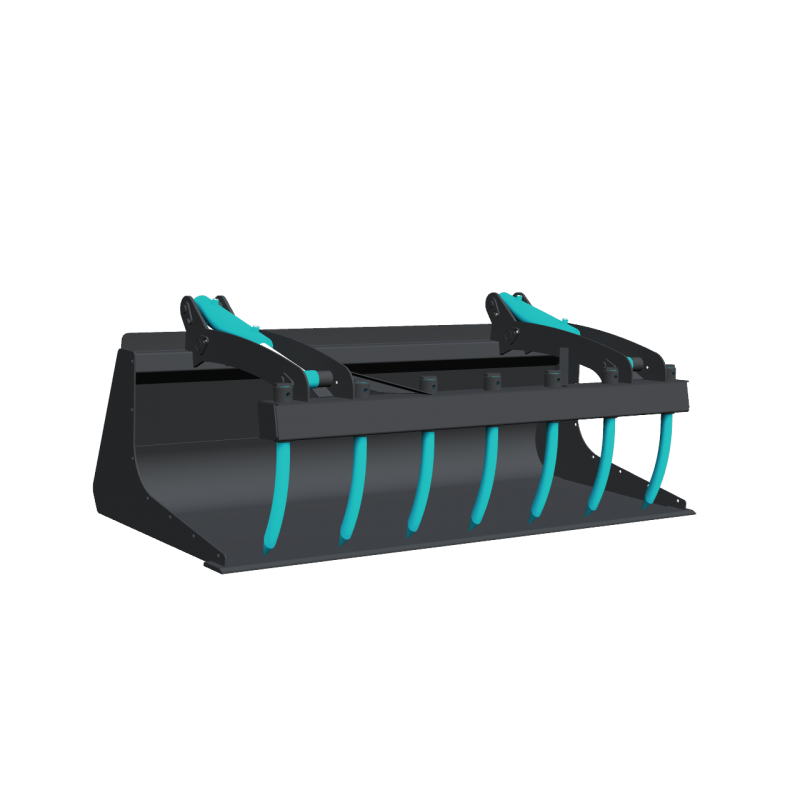

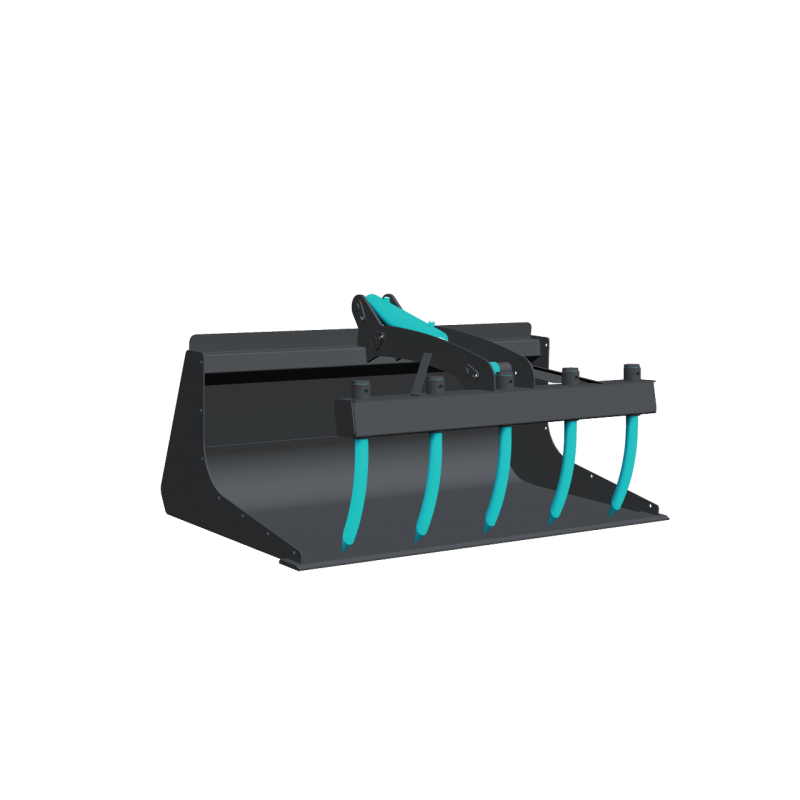

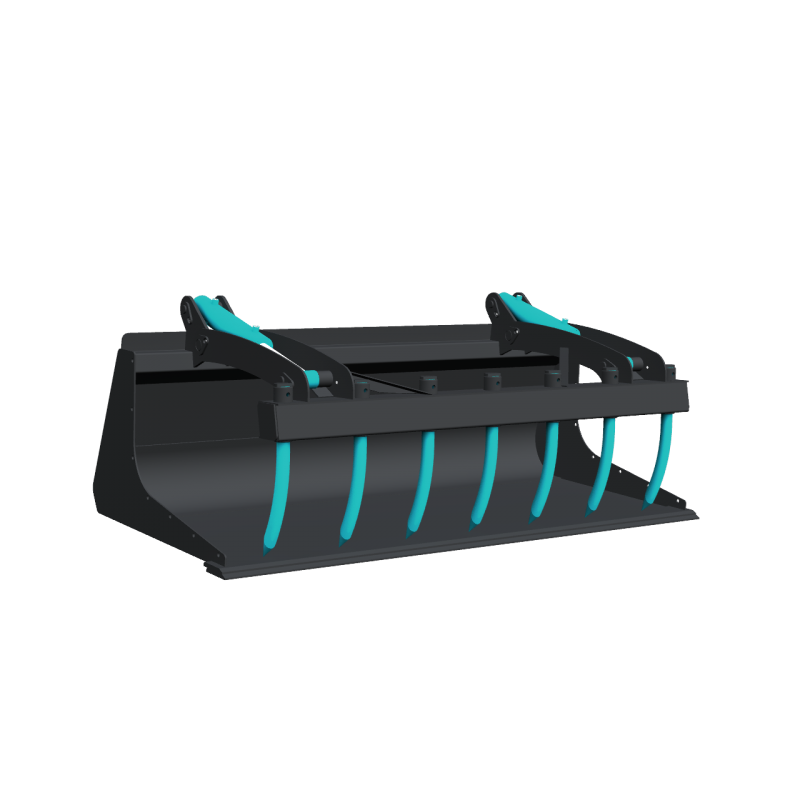

GM82 Bucket with forged tines grab
New product
Bucket with forged tines grab for tractors and loader with power range from 40 hp to 70 hp
Data sheet
| Power range | 40 hp - 70 hp |
| Material | 3/16" |
| Cutting edge | 4" x 1/2" 400 Brinell |
| Spill guard | Yes |
| Lifting ring | Yes |
| Grab tines | Forged |
| Bolt-on removable sides | Optional |
| Check valve | Optional |
| Length range (min-max) | 43" - 75" |
More info
Bucket with forged tines grapple for loaders and tractors with power range from 40 hp to 70 hp
Bucket set
Construction with High Strength Steel: 3/16" material, 3/16" end plates
5/8" cutting edge
Spill guard
Bucket reinforcement
Lifting ring
Wear pads
5/8" bolt-on cutting edge

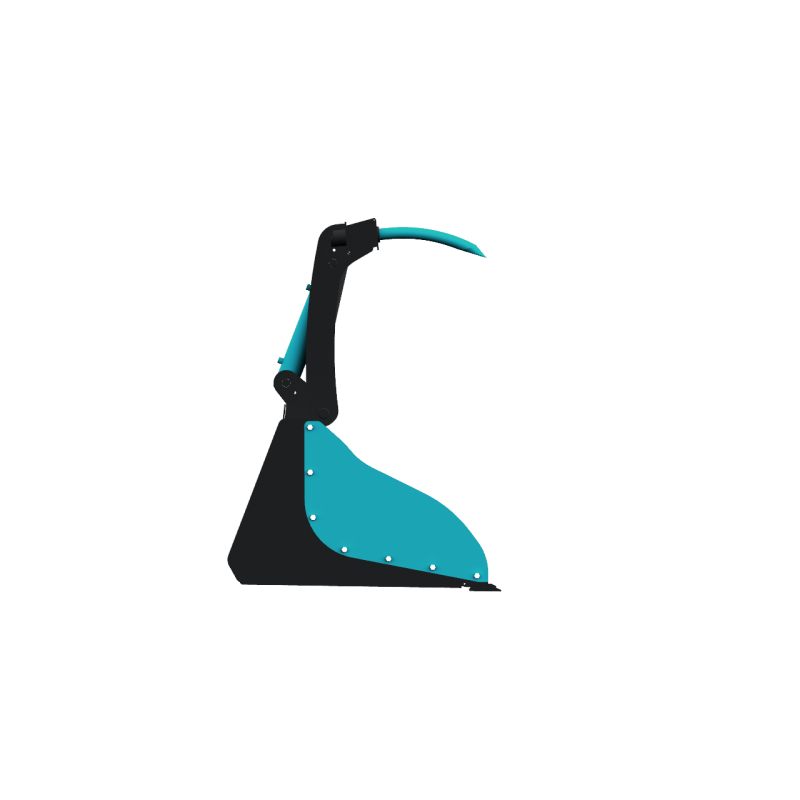

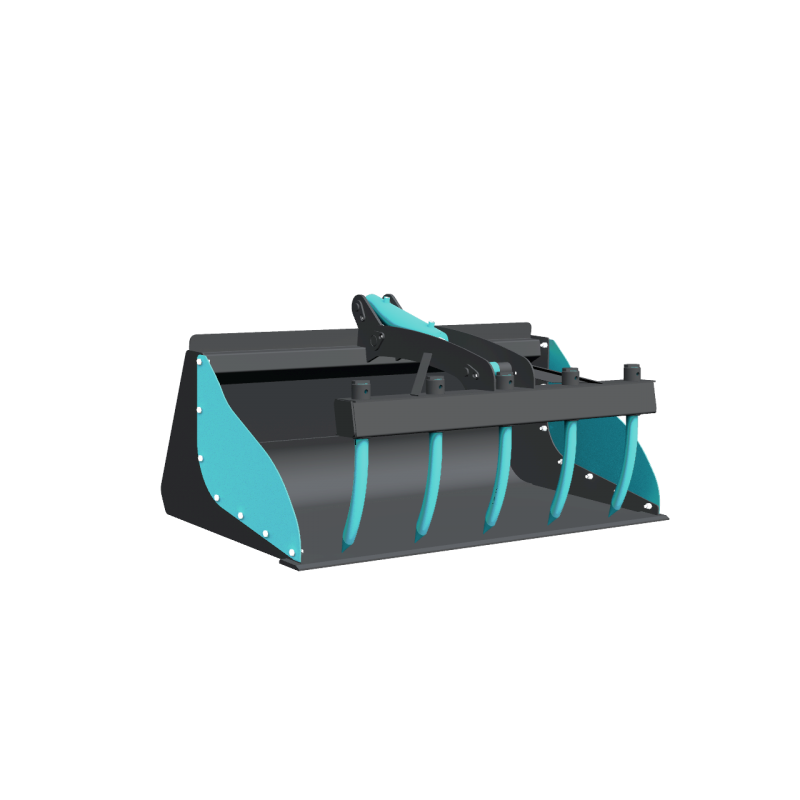

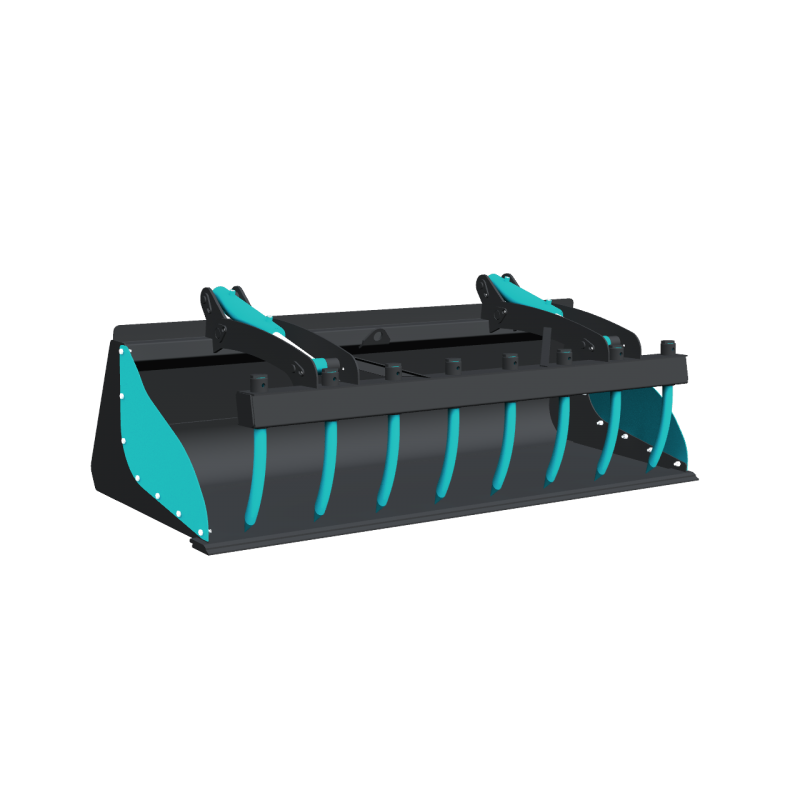

Bolt-on removable sides
Grapple set

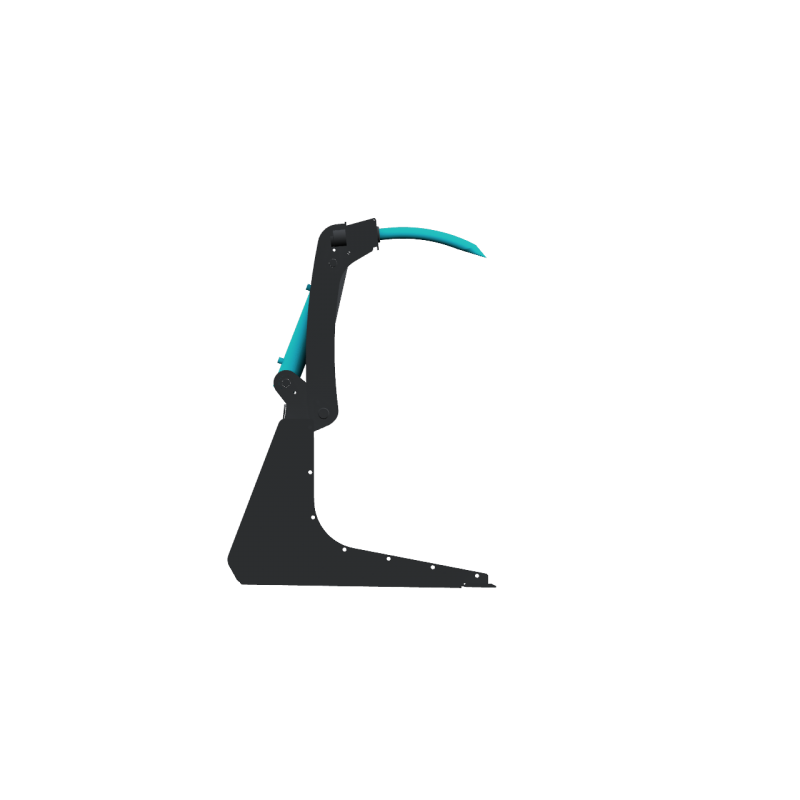

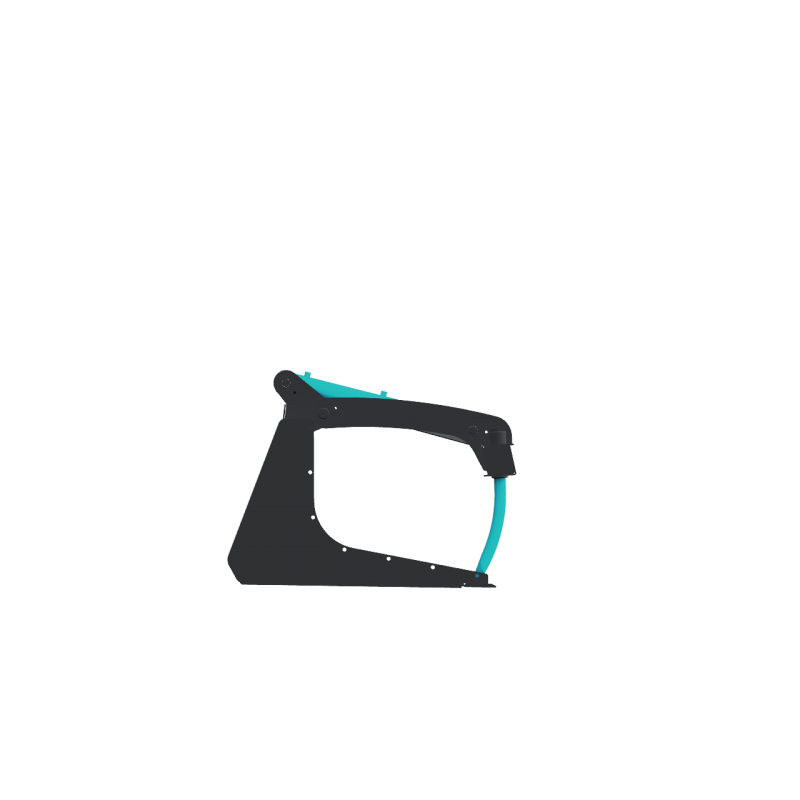

Maximum opening grapple for working against walls. In the opened position, the grapple teeth remains behind the cutting edge.
40" opening
2 1/2" x 8" cylinder on the top
1 7/16" x 18" forged tines
Tines with anti-rotation system
Wear bushing at the pivots
Made in Canada
| Part # | Length | Grab Tines | Cylinder | Depth | Height | Weight (lbs) |

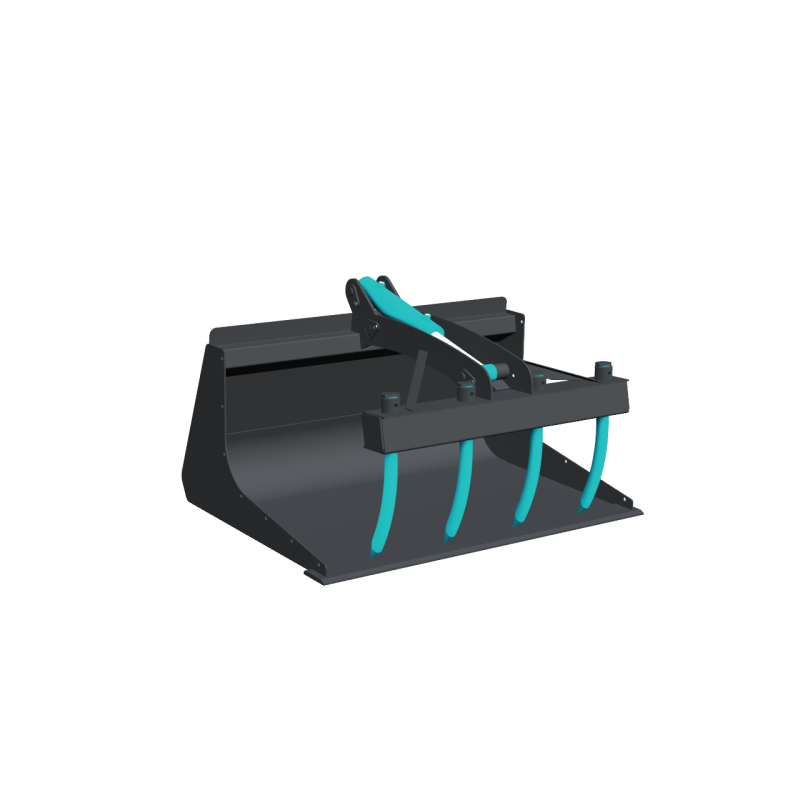

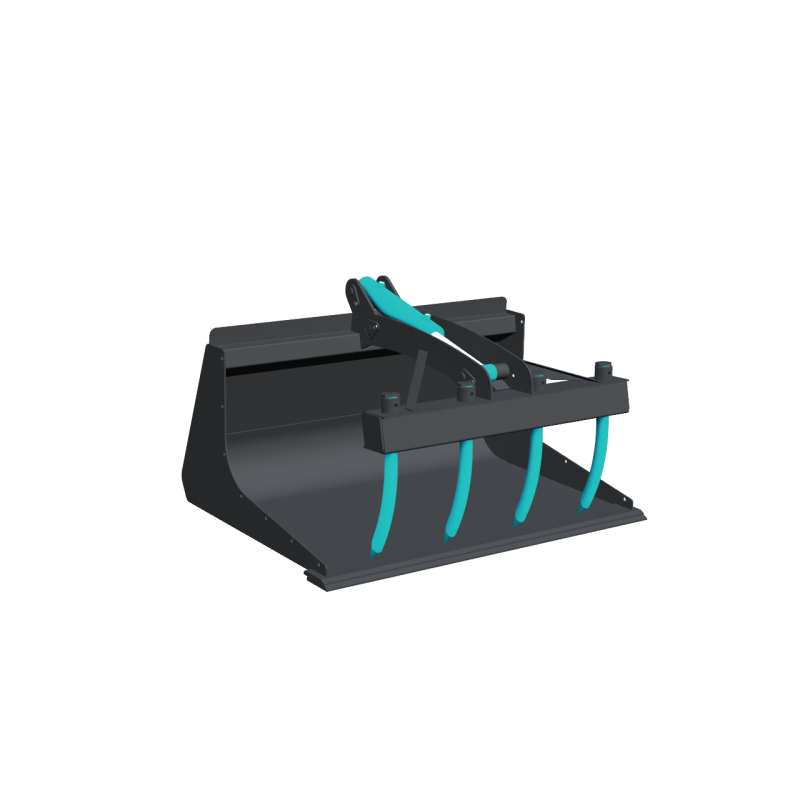

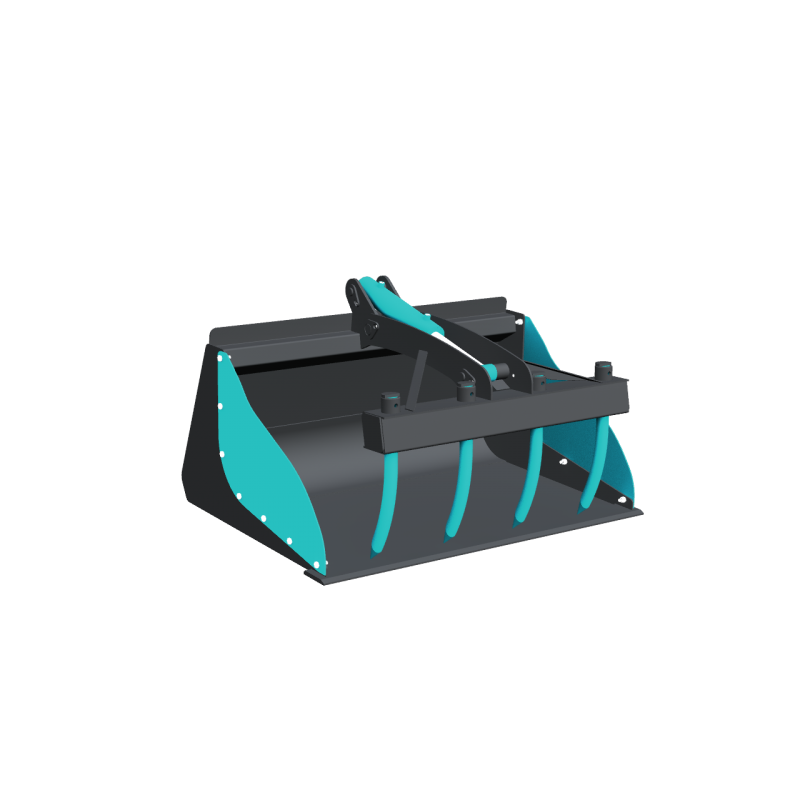

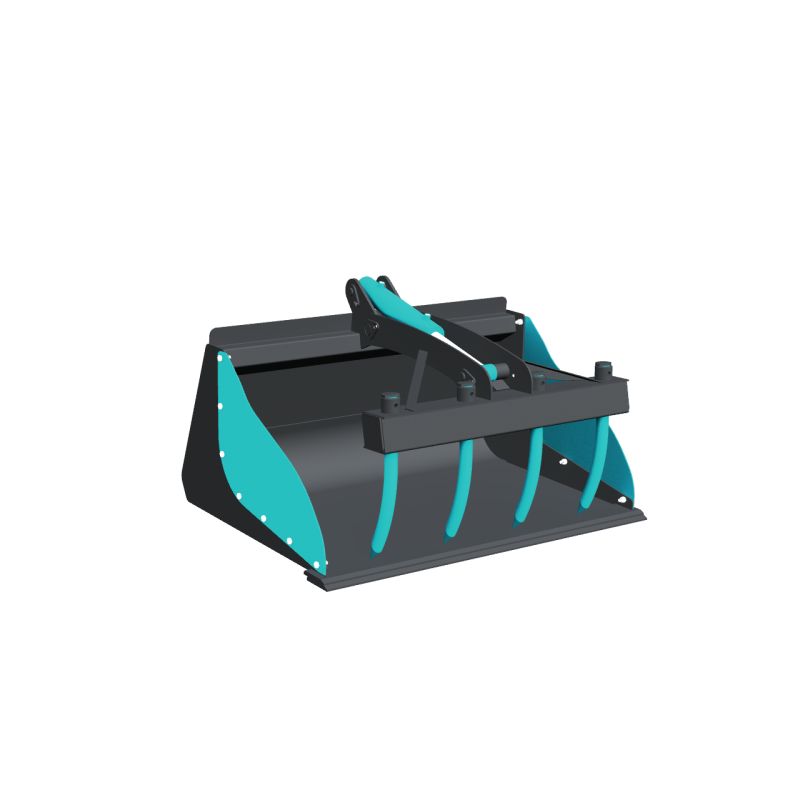

| GM8243 | 43" | 4 | 1 | 33" | 26" | 440 |
| GM8251 | 51" | 5 | 1 | 33" | 26" | 490 |

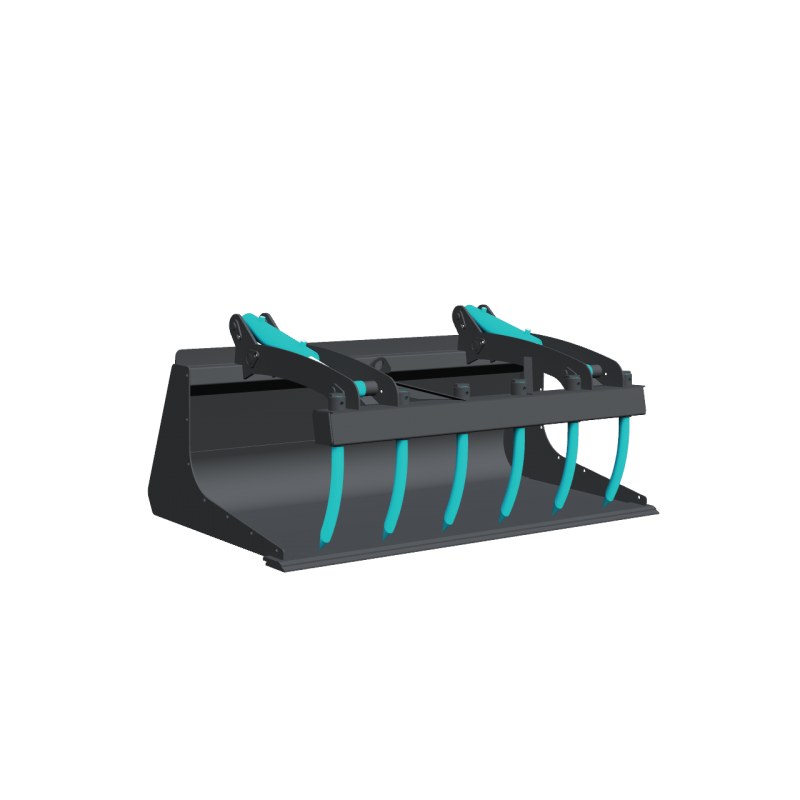

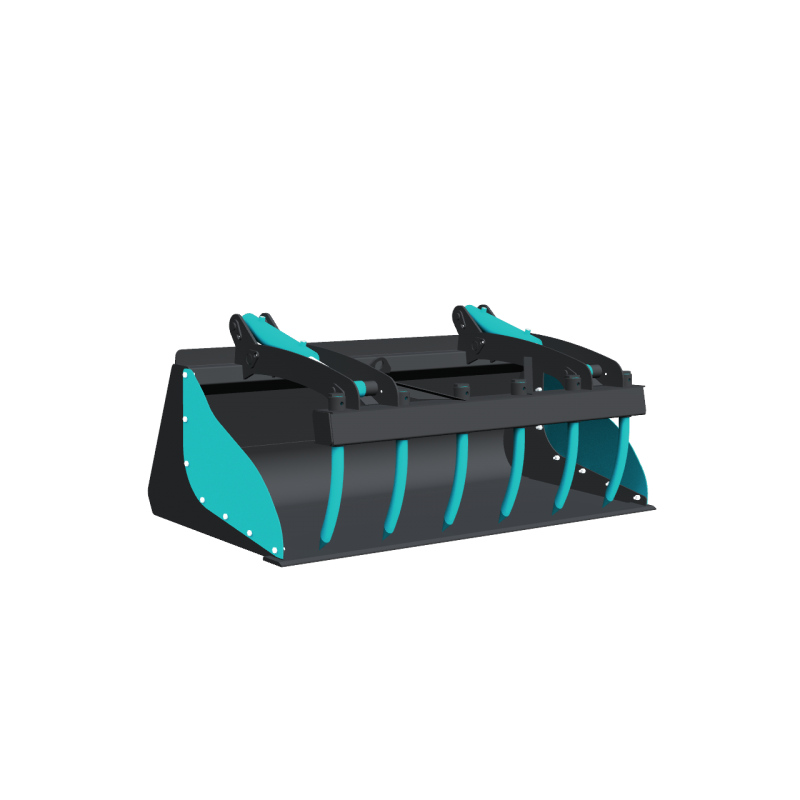

| GM8259 | 59" | 6 | 2 | 33" | 26" | 600 |
| GM8267 | 67" | 7 | 2 | 33" | 26" | 655 |

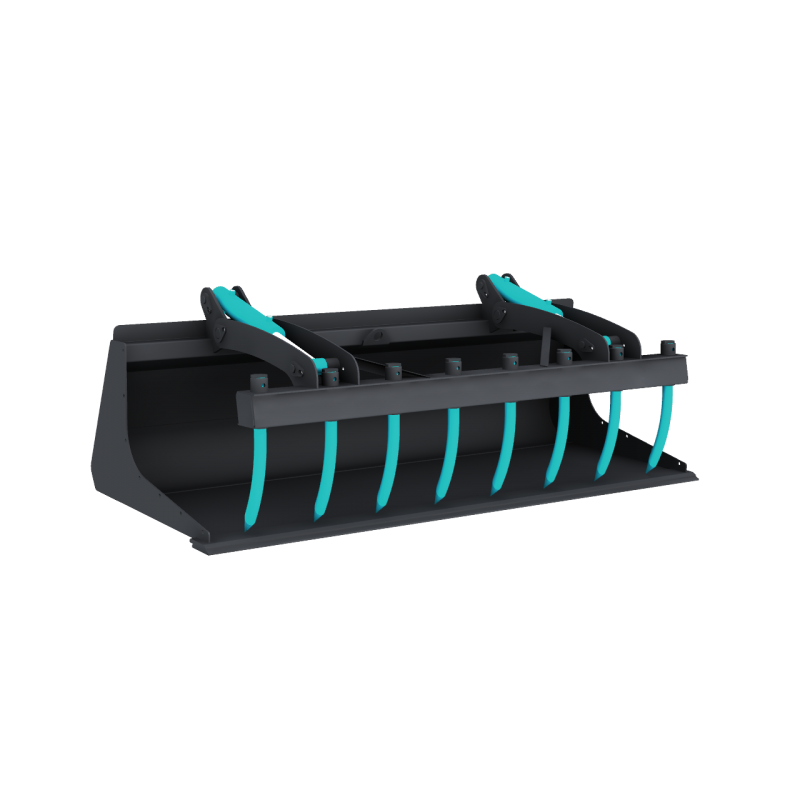

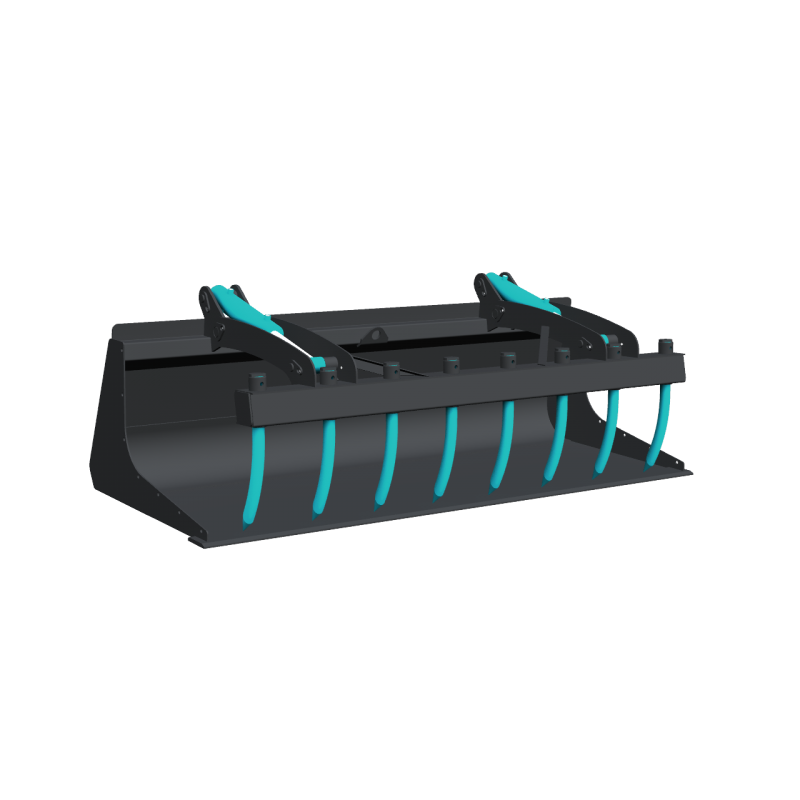

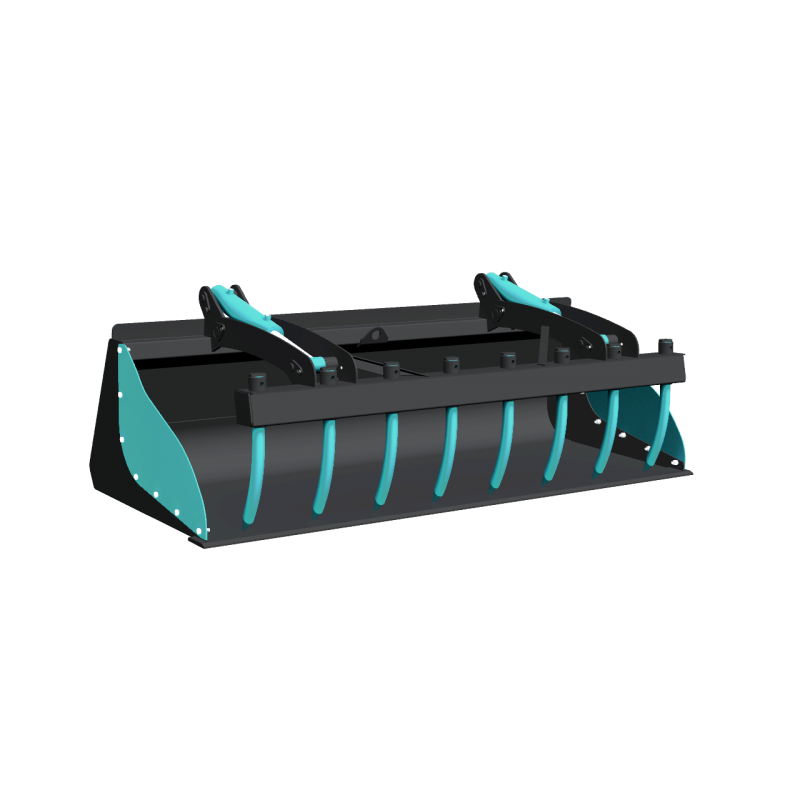

| GM8275 | 75" | 8 | 2 | 33" | 26" | 705 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
