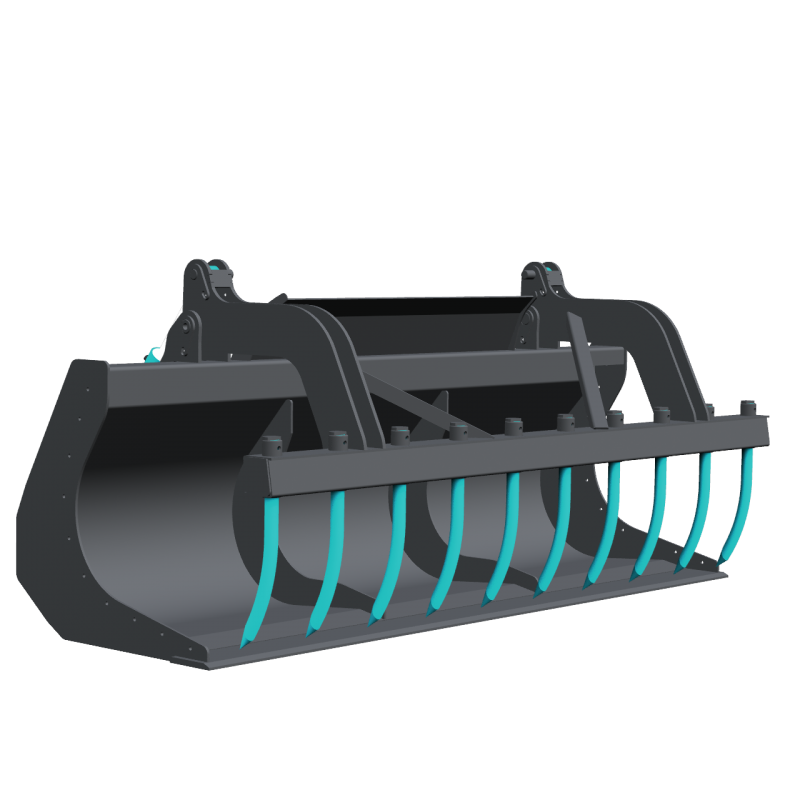

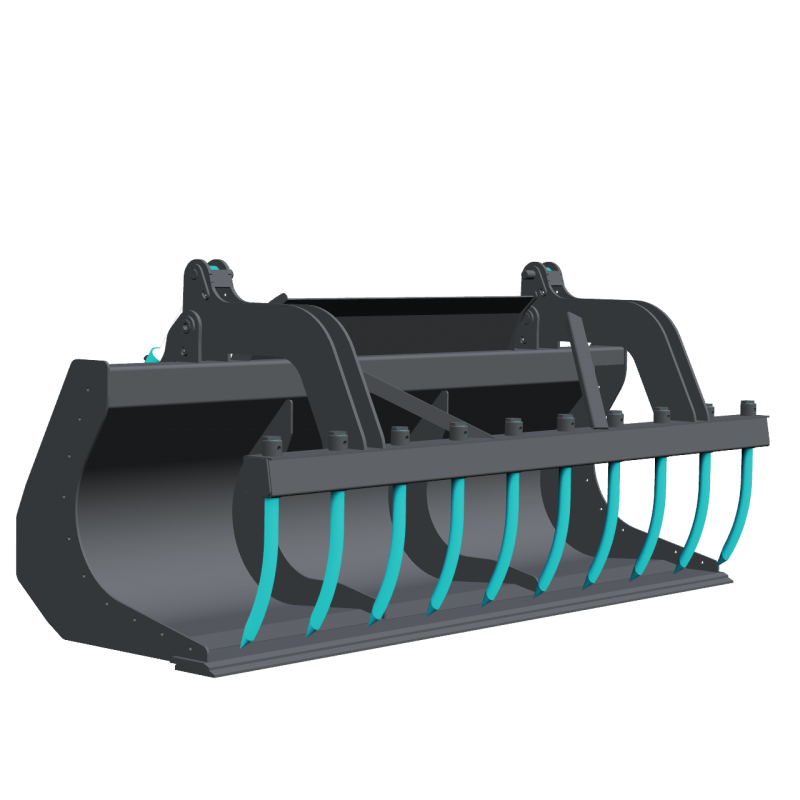

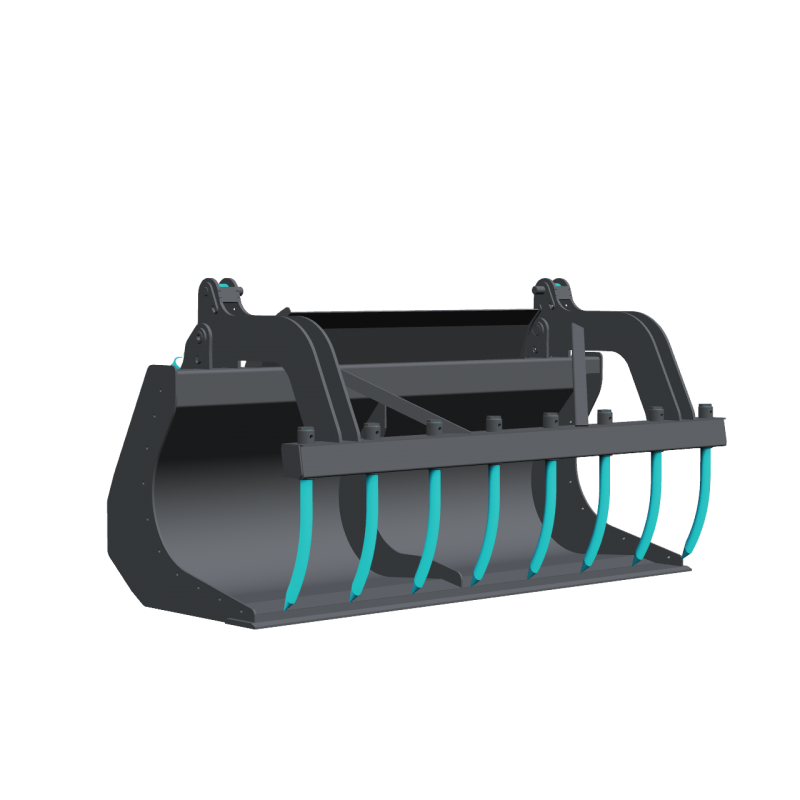

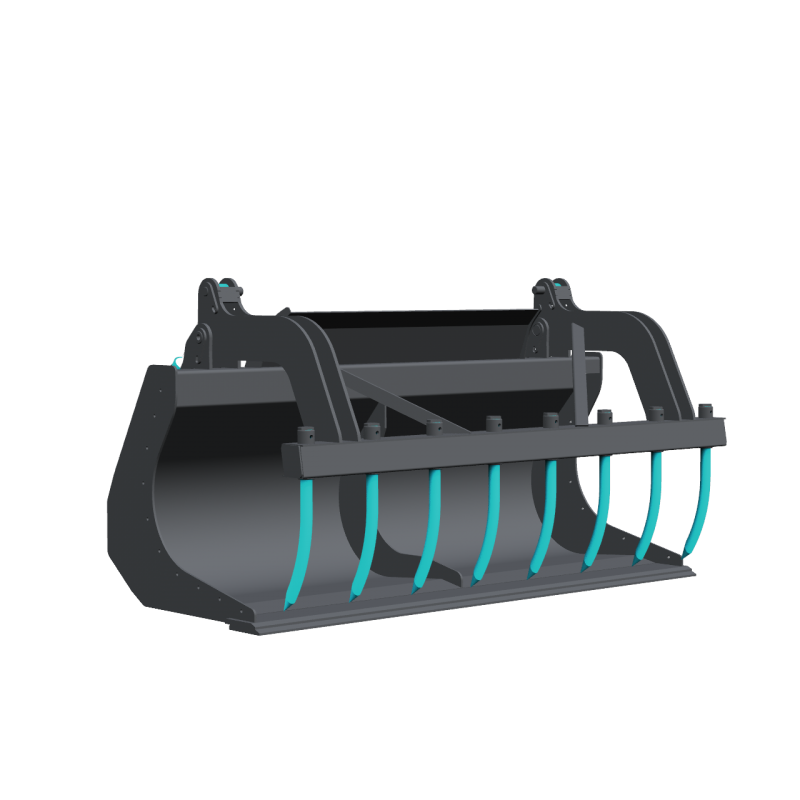

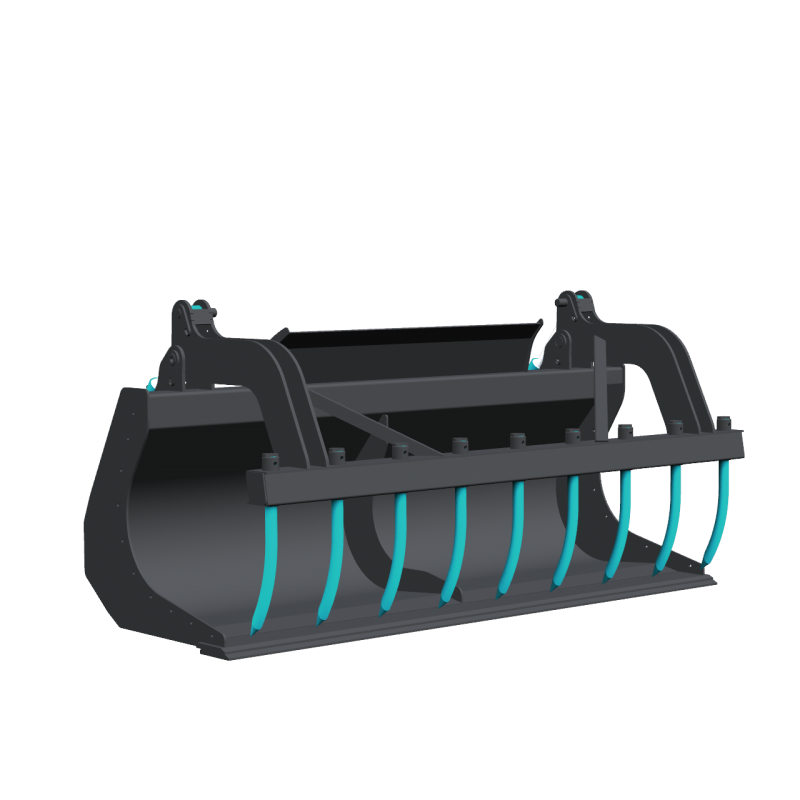

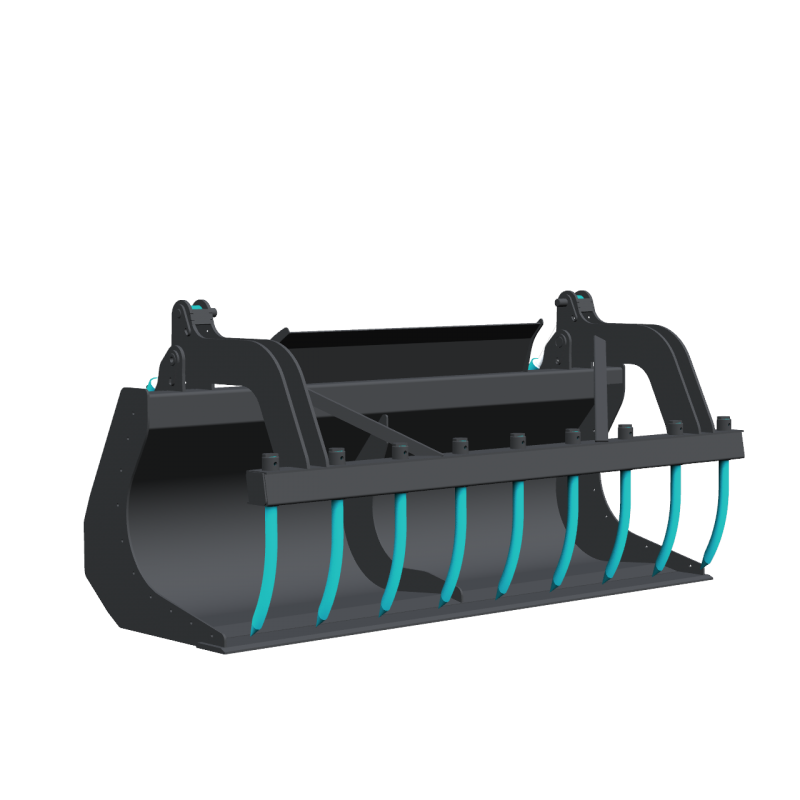

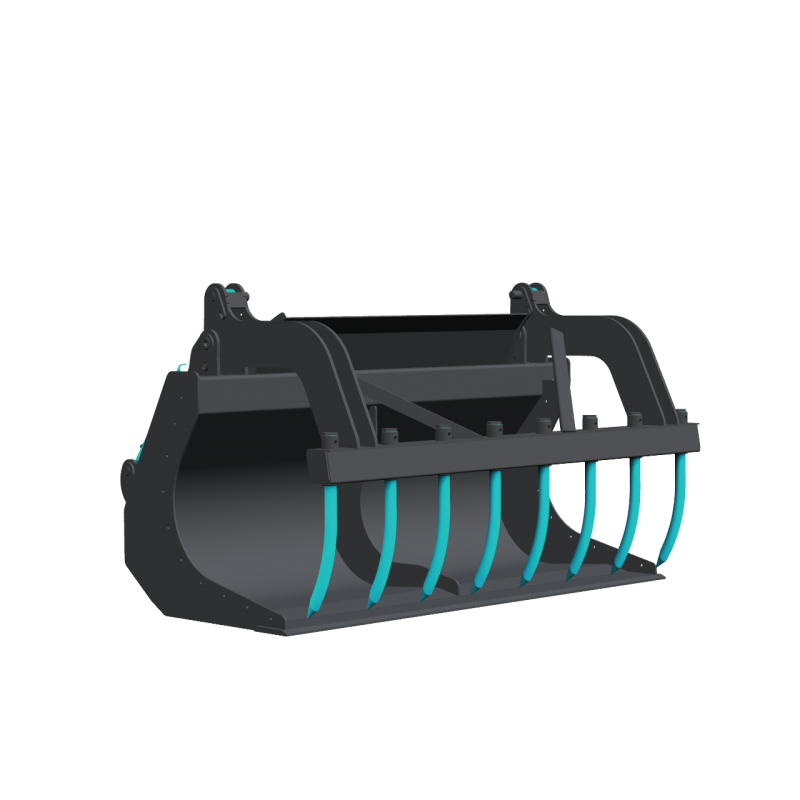

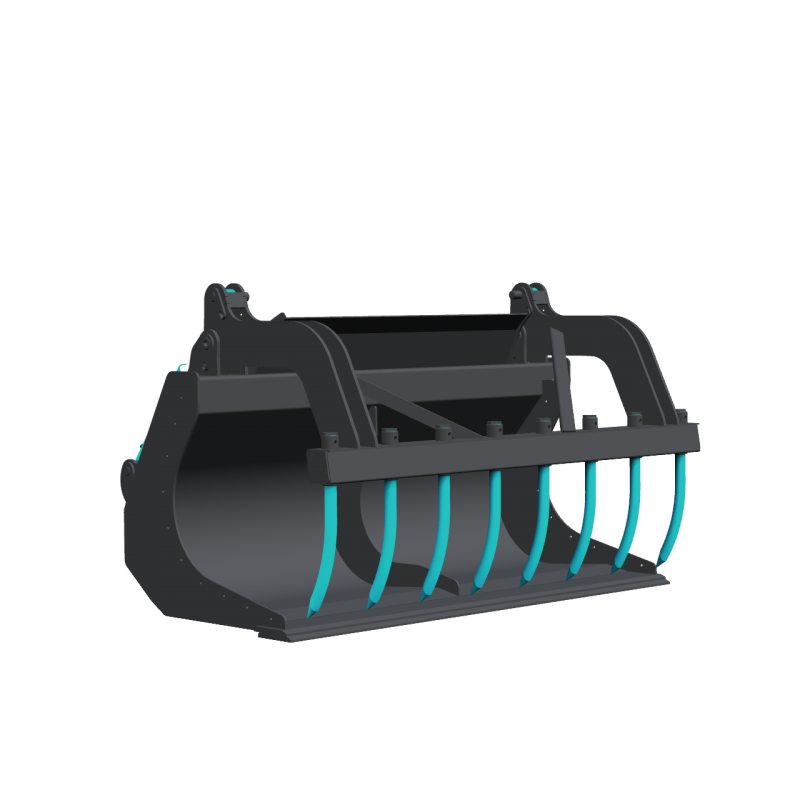

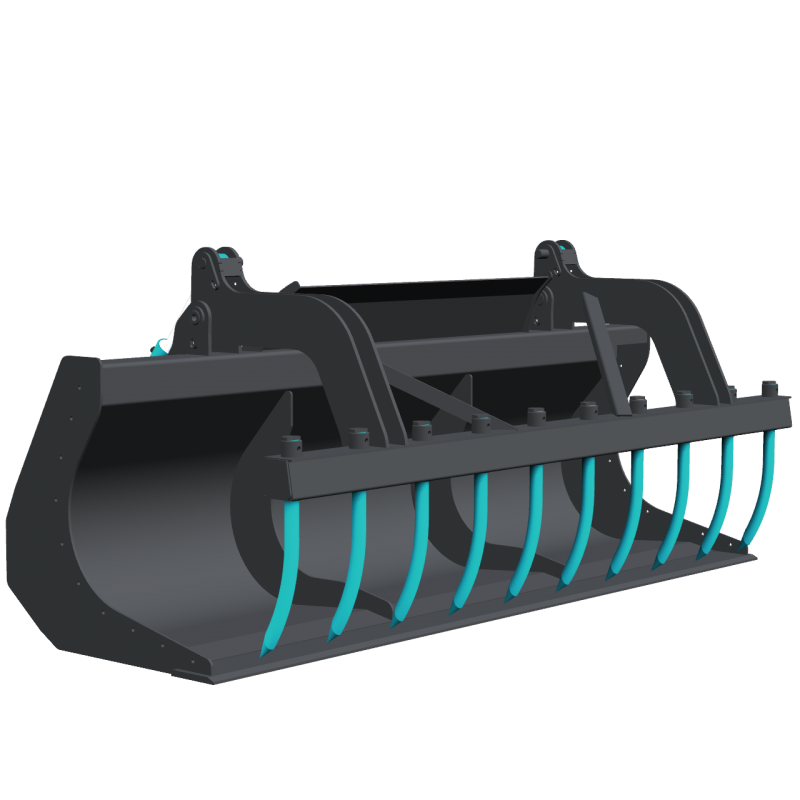

GV25 Bucket with forged tines grab
New product
Bucket with forged tines grab for tractors and loader with power range from 100 hp
Data sheet
| Power range | 100 hp + |
| Material | 1/4" & 5/16" |
| Cutting edge | 5 7/8" x 5/8" 400 Brinell |
| Spill guard | Yes |
| Lifting ring | Yes |
| Grab tines | Forged |
| Bolt-on removable sides | Optional |
| Check valve | Yes |
| Pressure relief valve | Yes |
| Length range (min-max) | 67" - 95" |
More info
Bucket with forged tines grapple for loaders and tractors with power range from 100 hp
Bucket set
Construction with High Strength Steel: 1/4" material, 3/8" end plates
5/8" cutting edge
Central bucket reinforcement
Large spill guard
Lifting ring
Wear pads
5/8" bolt-on cutting edge

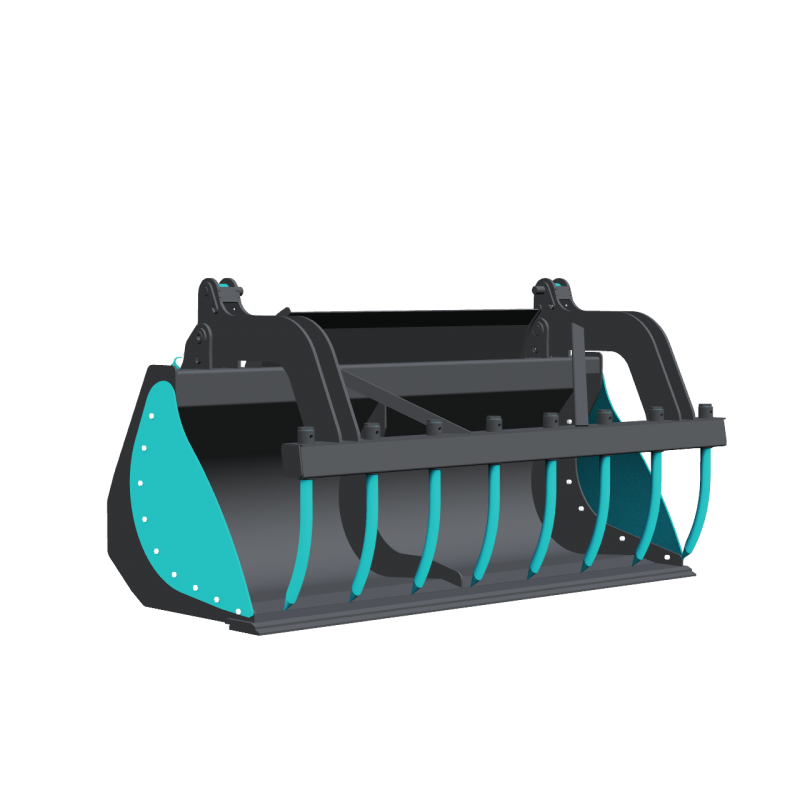

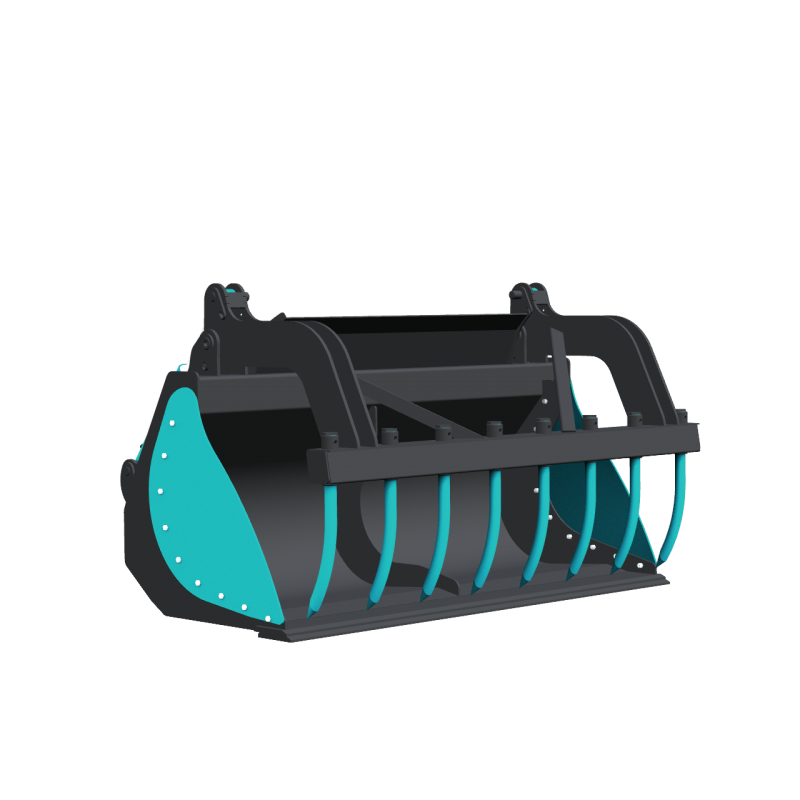

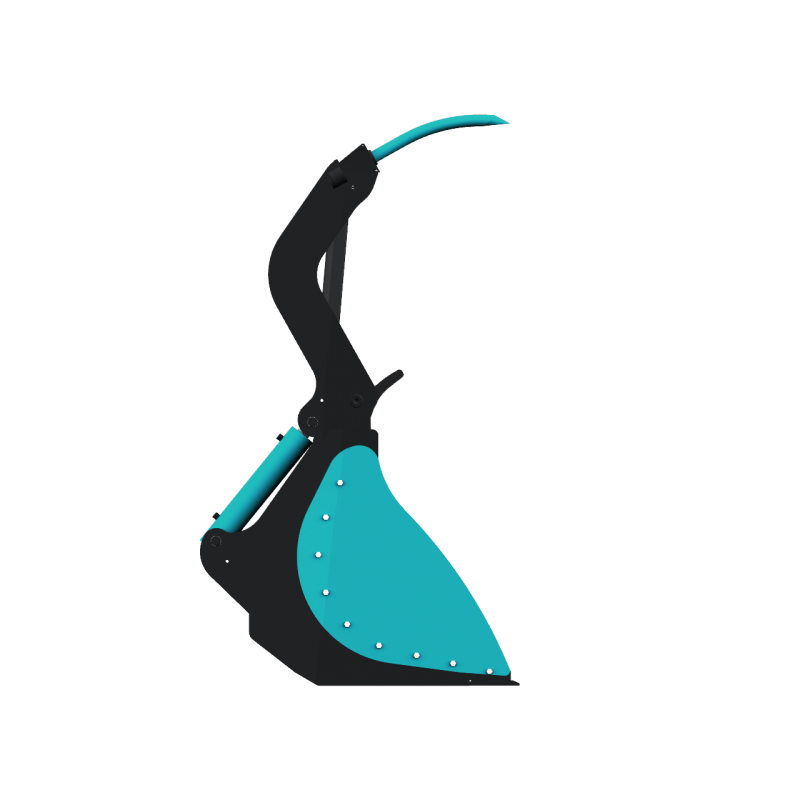

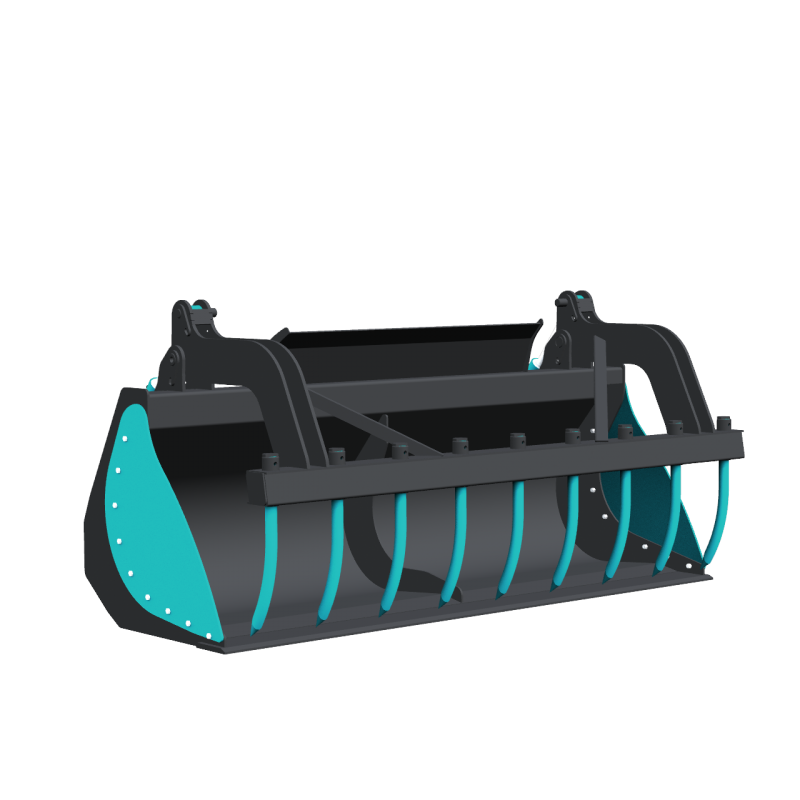

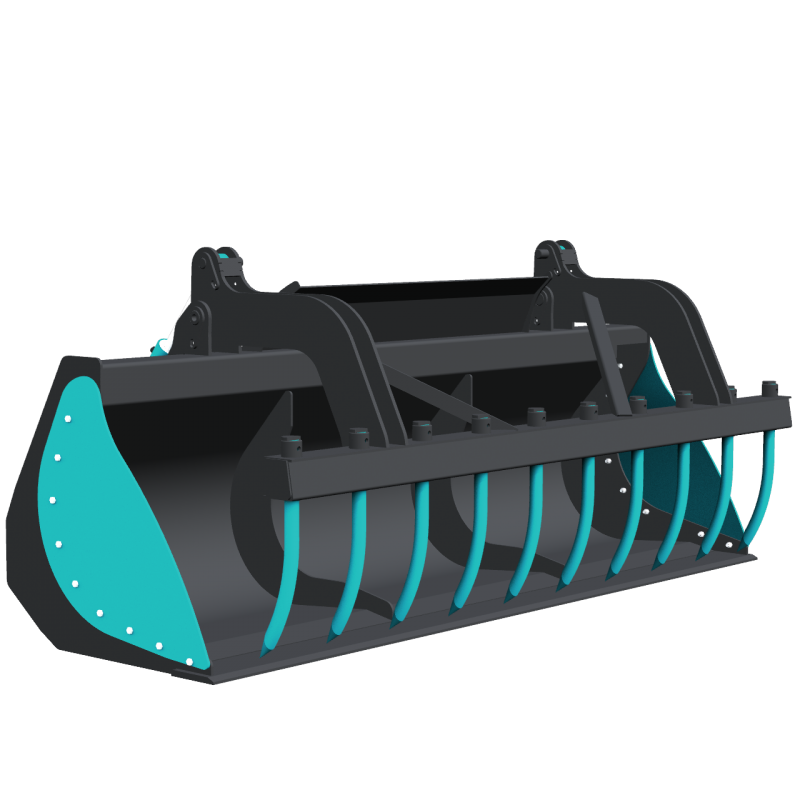

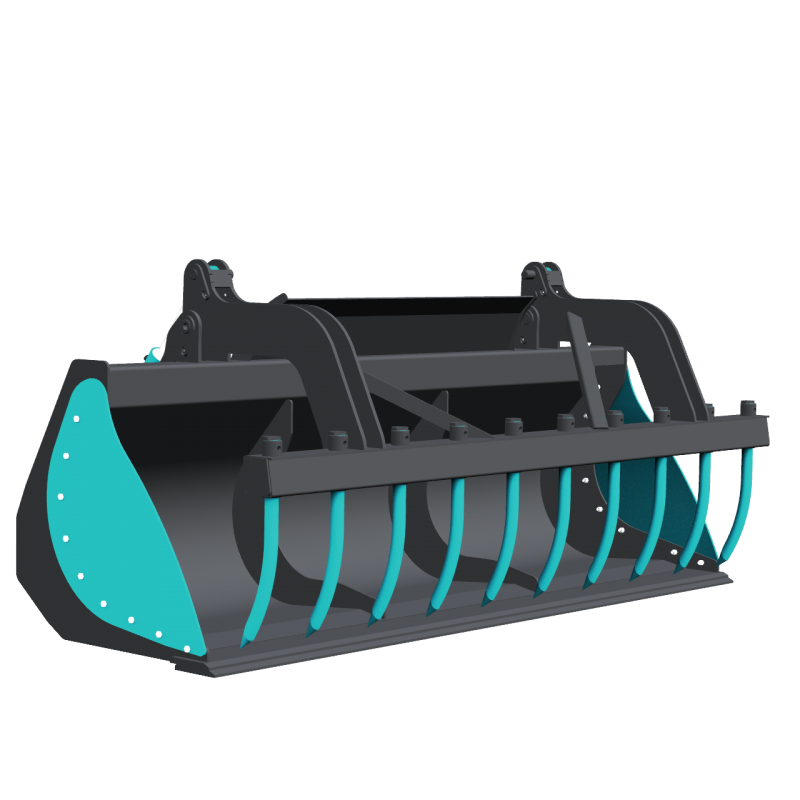

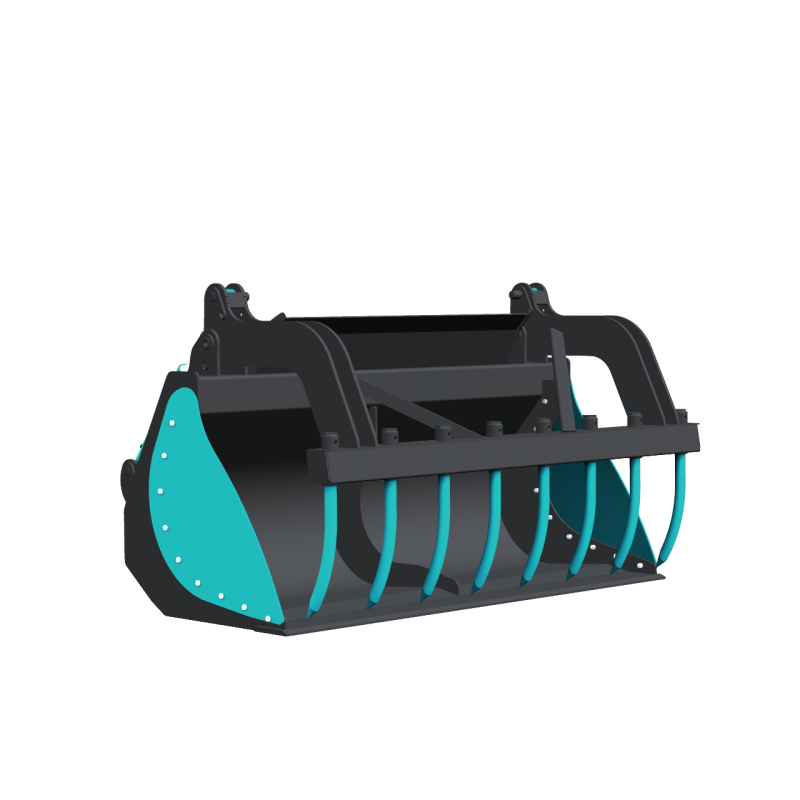

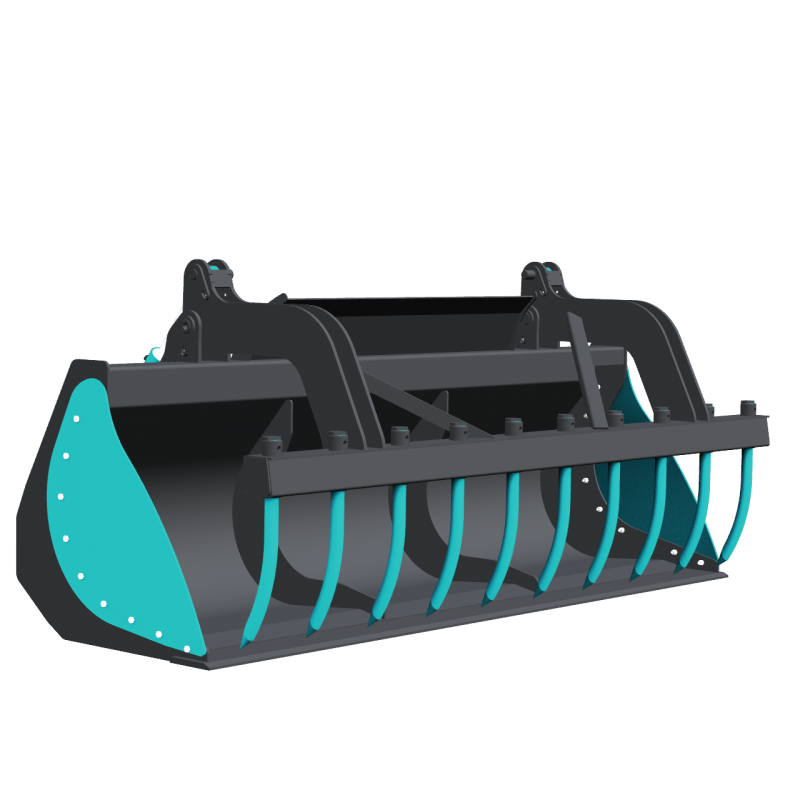

Bolt-on removable sides
Grapple set

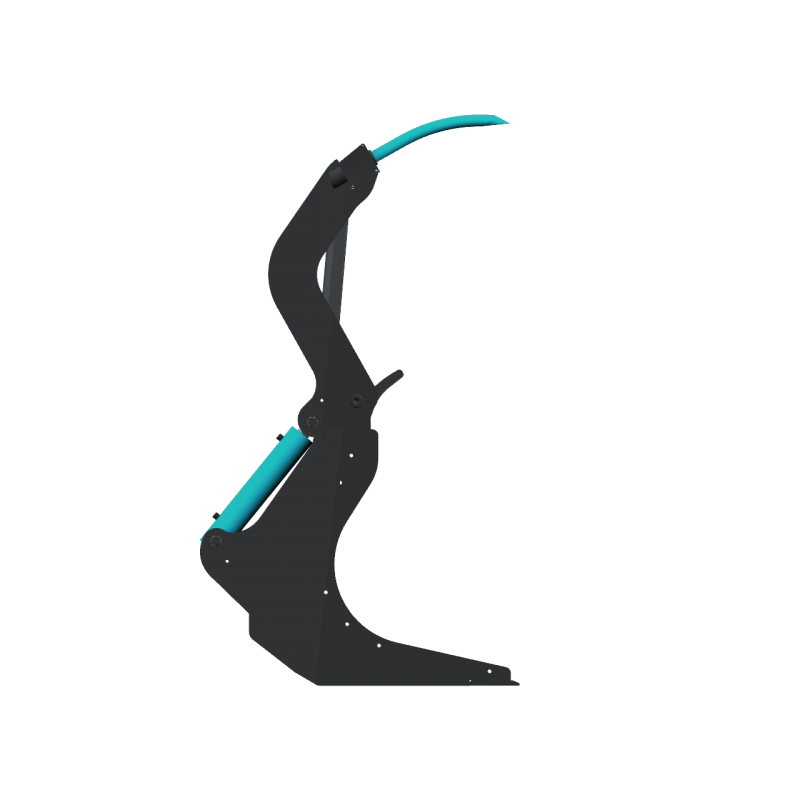

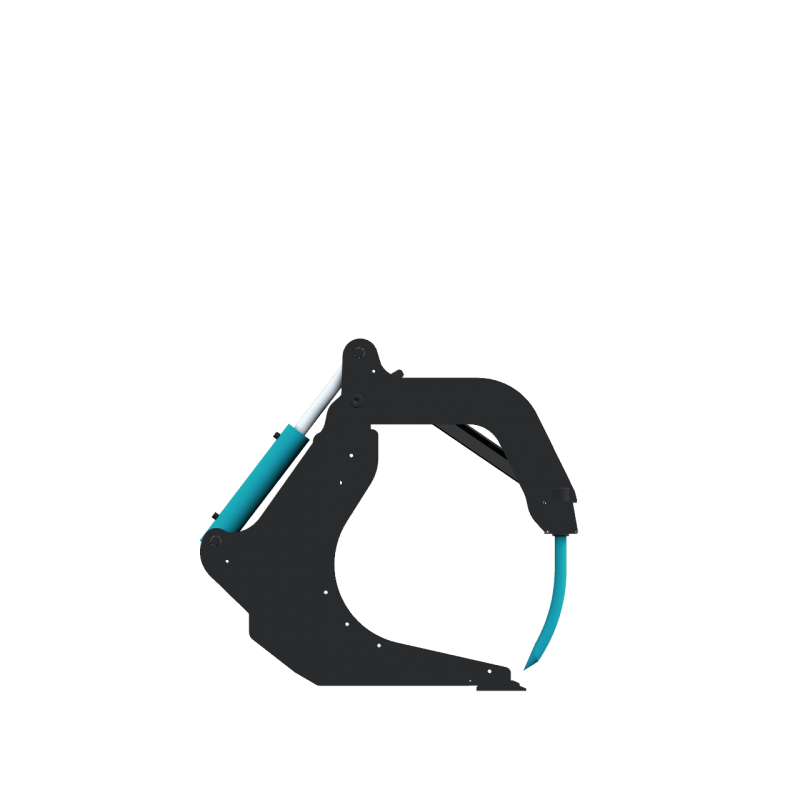

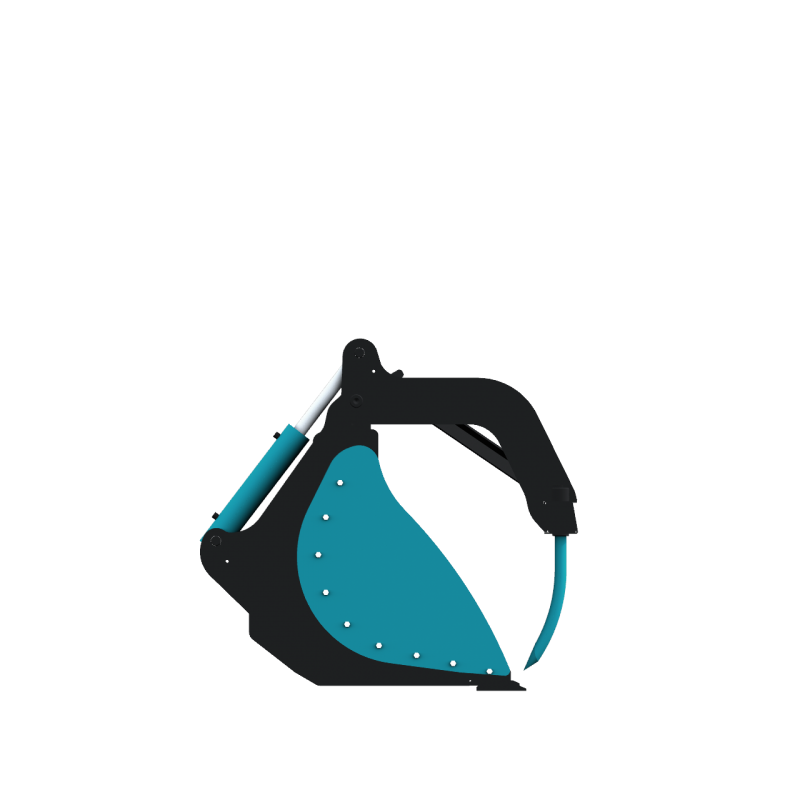

Maximum opening grapple for working against walls. In the opened position, the grapple teeth remains behind the cutting edge.
75" opening
2 3/4" x 10" cylinder on the top
1 7/16" x 22" forged tines
Tines with anti-rotation system
Check valve
Wear bushing at the pivots
Made in Canada
| Part # | Length | Grab Tines | Depth | Height | Weight (lbs) |
| GV2584 | 84" | 9 | 40" | 44" | 1070 |
| GV2590 | 90" | 10 | 40" | 44" | 1130 |
| GV2596 | 96" | 10 | 40" | 44" | 1200 |
| GV25102 | 102" | 11 | 40" | 44" | 1200 |
| GV25108 | 108" | 11 | 40" | 44" | 1200 |
| GV25114 | 114" | 12 | 40" | 44" | 1340 |
Dimension, weight and volume are without attachment, indicative only and not contractual.
